LIAN LI

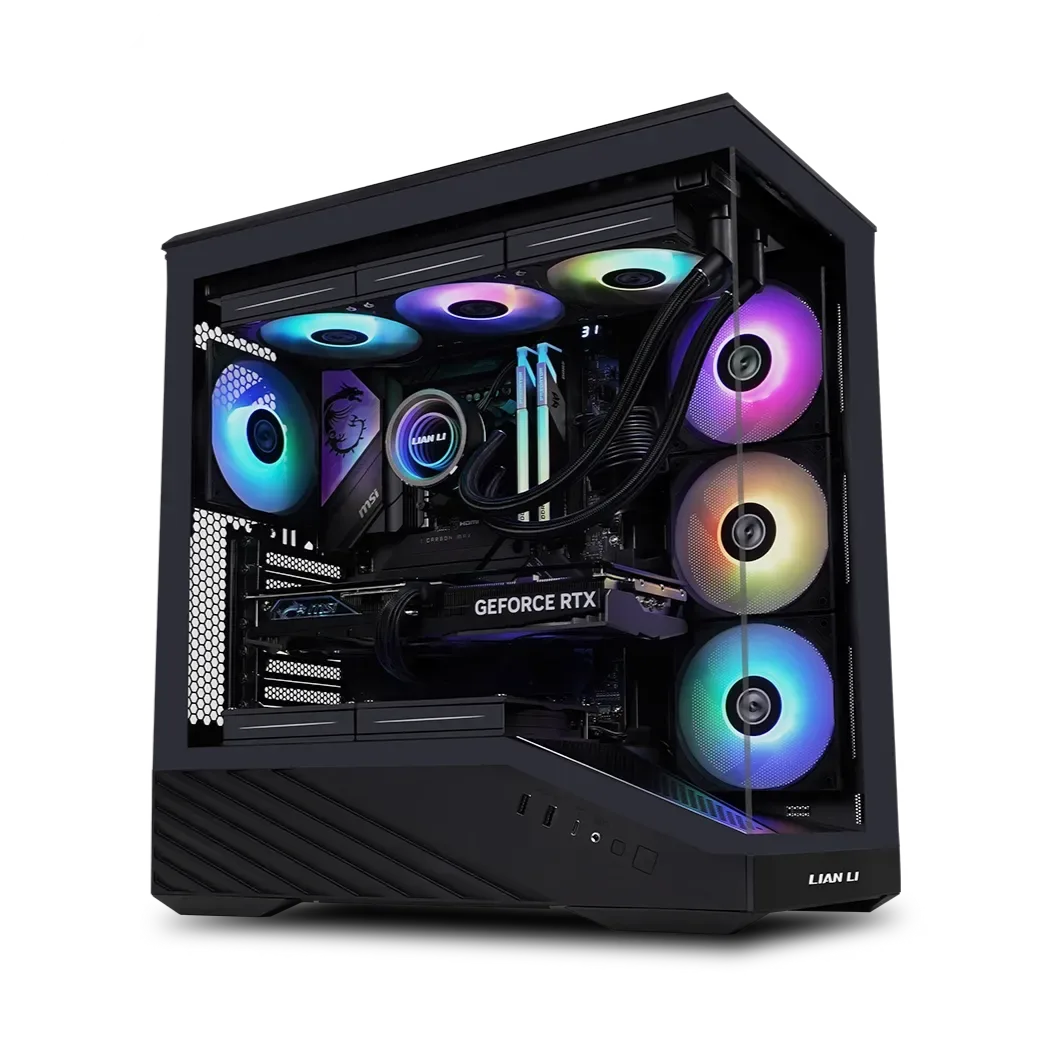

Vector V100R Mid-Tower Case
ColorBlack
Edition
V100R (4 fans)
Rs 22,999Sold out
1
Details

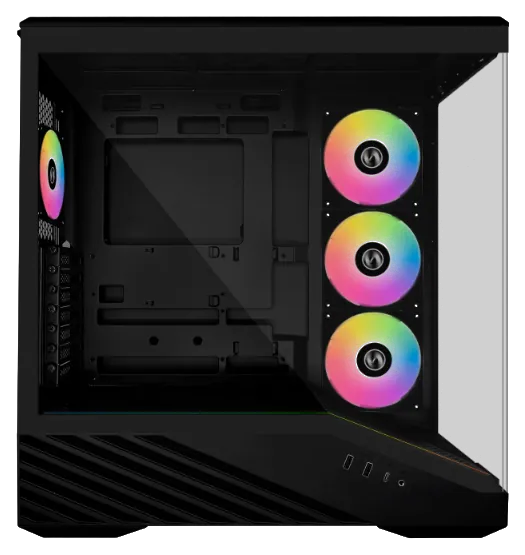

The Vector V100R is a mid-tower showcase case with 4 mm tempered glass across the front and side for a 270° view, and a 26-LED ARGB strip along its edge that syncs with motherboard software. It takes ATX, M-ATX and Mini-ITX boards, including ATX and M-ATX back-connect, plus 420 mm GPUs, 178 mm coolers and a 360mm top radiator. Nine fan positions, a side mesh with up to 40.3% perforation and a pre-installed GPU support bracket round it out. It comes with four 120mm fans fitted: three on the side and one at the rear.

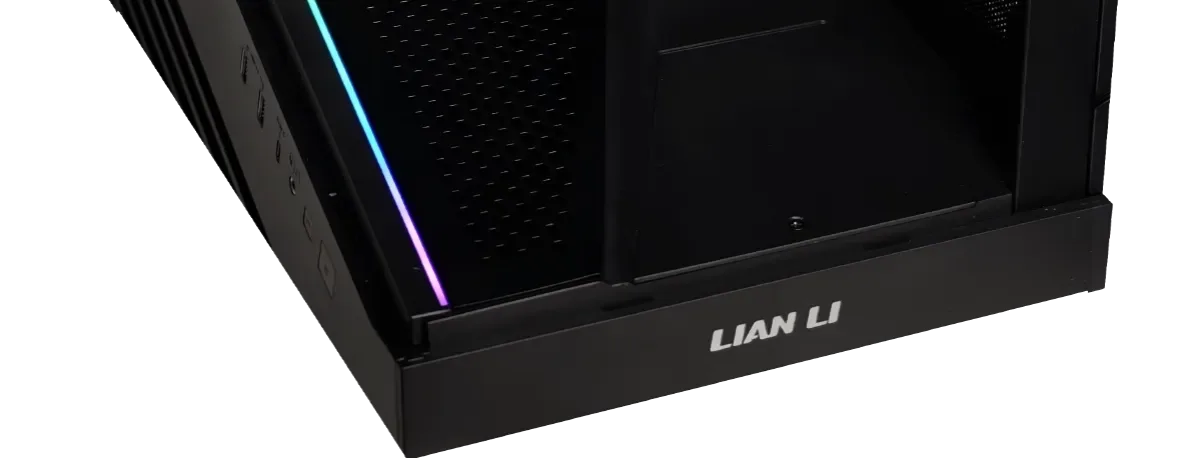

26-LED ARGB Edge Strip

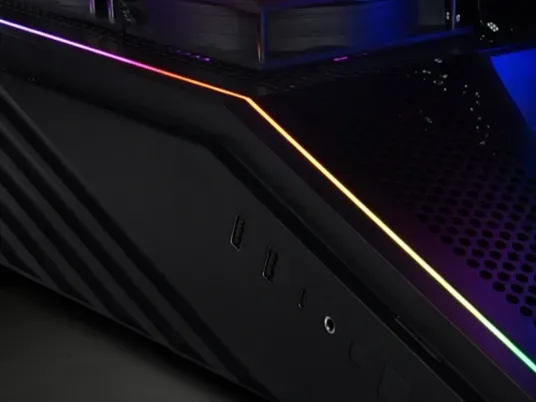

Side I/O Under the Lit Edge

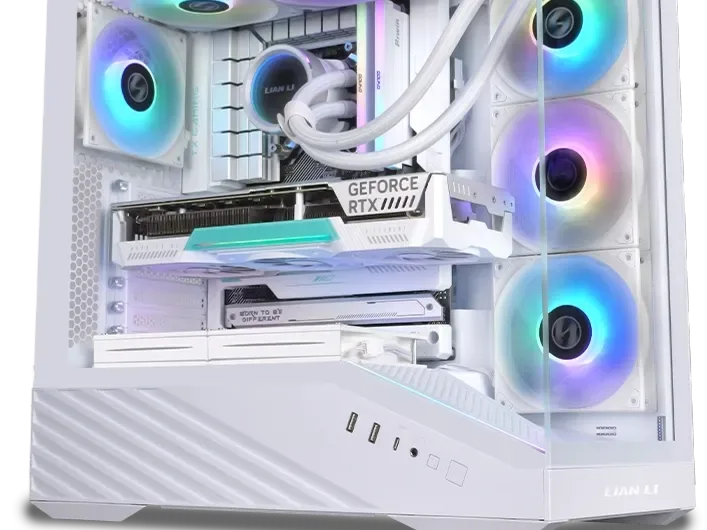

Just as Sharp in White

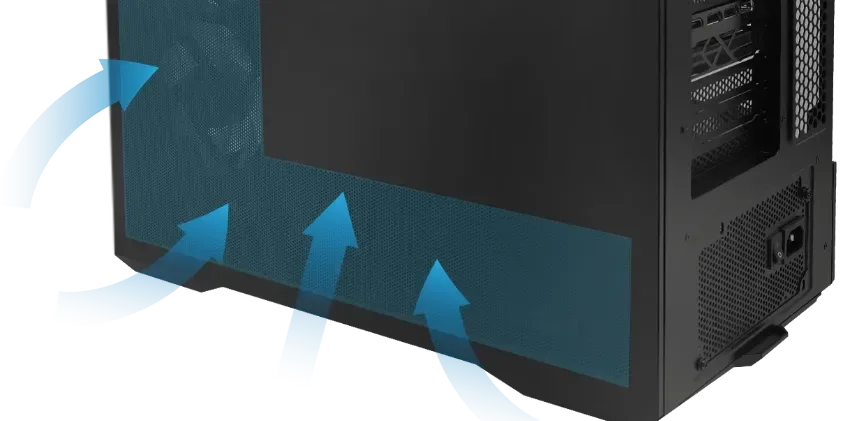

Side Mesh, Up to 40.3% Open

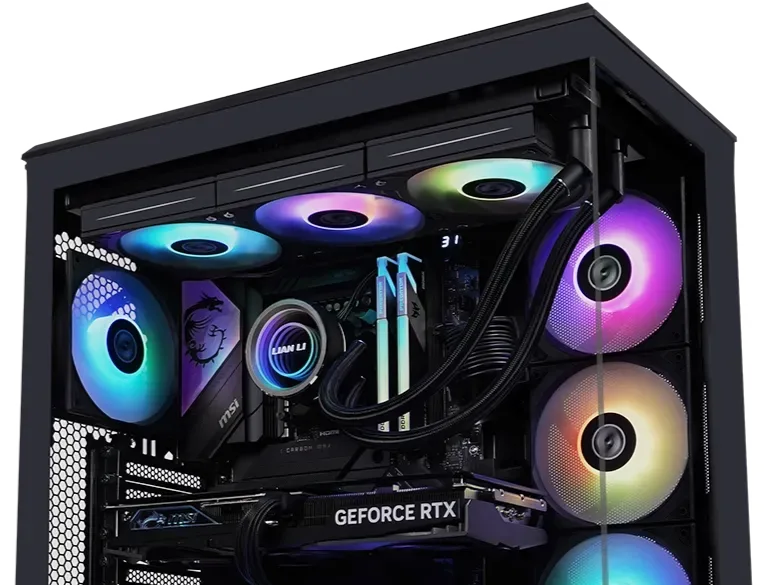

4 mm Glass, Front and Side
Specifications
- Expansion slots
- 7
- GPU length
- 420mm
- max
- CPU cooler height
- 178mm
- max
- Top radiator
- 360mm
- max (also 280), under 60 mm thick
01
Overview
- Model
- Vector V100R
- Model no.
- V100RX / V100RW
- Case type
- Mid-tower
- Colours
- Black / White
- Warranty
- Case 1 year · fans 2 years
02
Dimensions & Weight
- Dimensions
- 446 × 235.5 × 484.65 mm (L × W × H)
03
Materials
- Body
- Steel, tempered glass, plastic
- Glass
- Tempered glass, 4 mm, front and side (270° view)
- Side mesh
- Perforation rate up to 40.3%
- Dust filters
- Bottom × 1
- Trim
- Removable hand-rest panel
04
Motherboard Support
- Standard
- ATX / M-ATX / Mini-ITX
- Back-connect
- ATX / M-ATX
05
Expansion & GPU
- Expansion slots
- 7
- GPU length
- 420 mm max
- GPU support
- GB001 GPU support bracket, pre-installed
06
CPU Cooler & Radiators
- CPU cooler height
- 178 mm max
- Top radiator
- 360 mm max (also 280), under 60 mm thick
07
Fans
- Top fans
- 3 × 120 mm or 2 × 140 mm
- Side fans
- 3 × 120 mm (fitted)
- Rear fan
- 1 × 120 mm (fitted) or 1 × 140 mm
- Bottom fans
- 2 × 120 mm
- Included
- 4 × 120 mm (3 side, 1 rear)
- Side fan specs
- 3 × 120 mm · 1800 RPM max · 200 RPM min (0 RPM stop) · 60.4 CFM · 2.17 mmH₂O
- Rear fan specs
- 1 × 120 mm · 1800 RPM max · 200 RPM min (0 RPM stop) · 61.47 CFM · 2.54 mmH₂O
08
Storage
- Behind tray
- 1 × 2.5″ SSD
- Bottom drive mount
- 1 × 3.5″ HDD
09
Front I/O
- Ports
- 2 × USB 3.0 · 1 × USB 3.1 Type-C · 1 × audio
- Buttons
- Power · Reset
- Position
- Side-mounted I/O panel
10
Power Supply
- PSU clearance
- ATX, length under 220 mm
11
Lighting
- Strip
- Built-in ARGB light strip, 26 LEDs
- Sync
- Motherboard ARGB software
- Control
- Case button or motherboard software
12
Extras
- Cable management
- Tool-free routing in a dedicated front-side chamber
Downloads
- Download
Vector V100R Manual
Lian Li's installation guide for the V100R with its four pre-fitted fans (V100RX / V100RW).
PDF42 MB
