LIAN LI

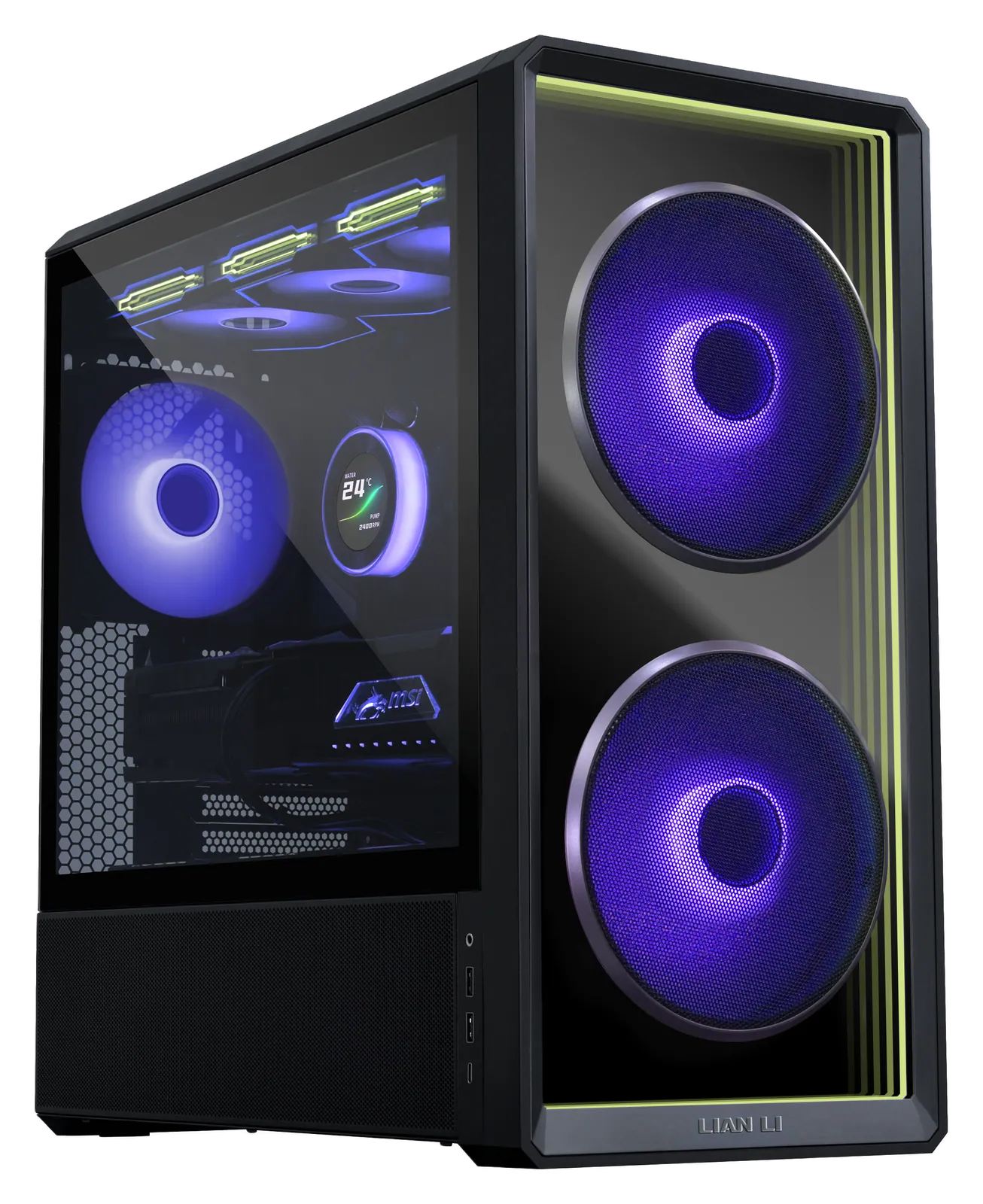

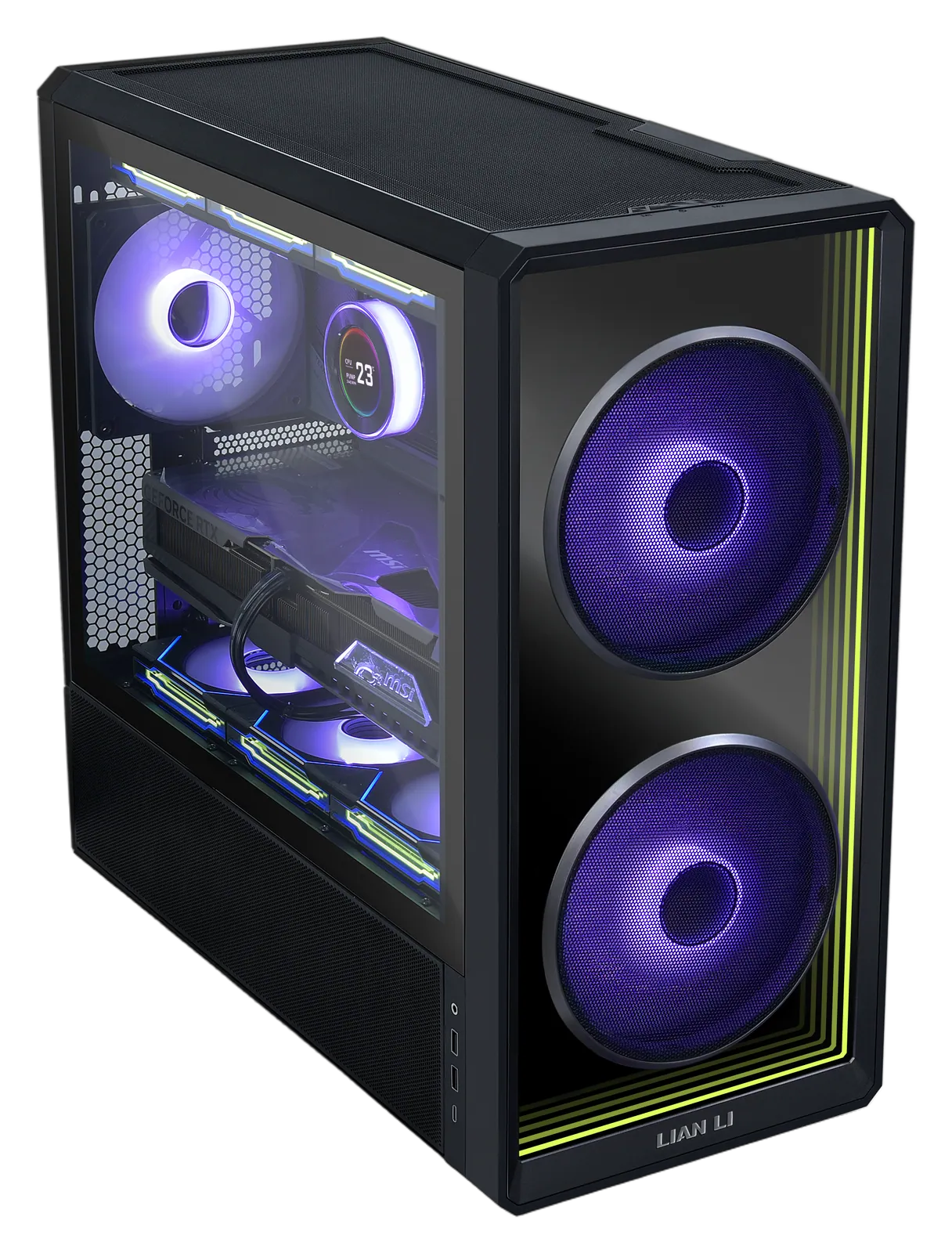

LANCOOL 217 INF Mid-Tower Case
ColorBlack
Rs 35,999Sold out
1
Details
The LANCOOL 217 INF puts two 170mm fans behind a tempered-glass infinity-mirror front, with a 140mm exhaust at the back, all three pre-installed. It takes EEB boards up to 330 mm wide, ATX and M-ATX back-connect boards, 380 mm GPUs, 180 mm tower coolers and a 360mm radiator up top. The PSU mounts standard or turned 90°, the I/O moves top or bottom, and the PCIe bracket rotates for a vertical GPU. Lighting runs from two I/O buttons, motherboard sync, or wirelessly in L-Connect 3 with an L-Wireless controller (sold separately).

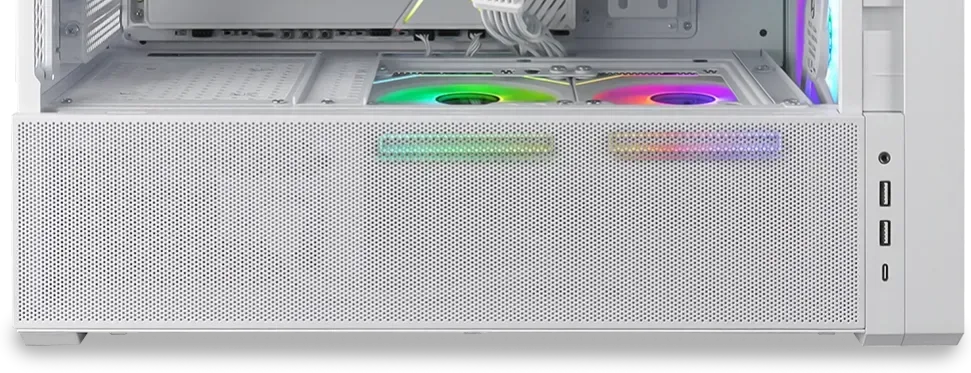

Fans Above or Below the Shroud

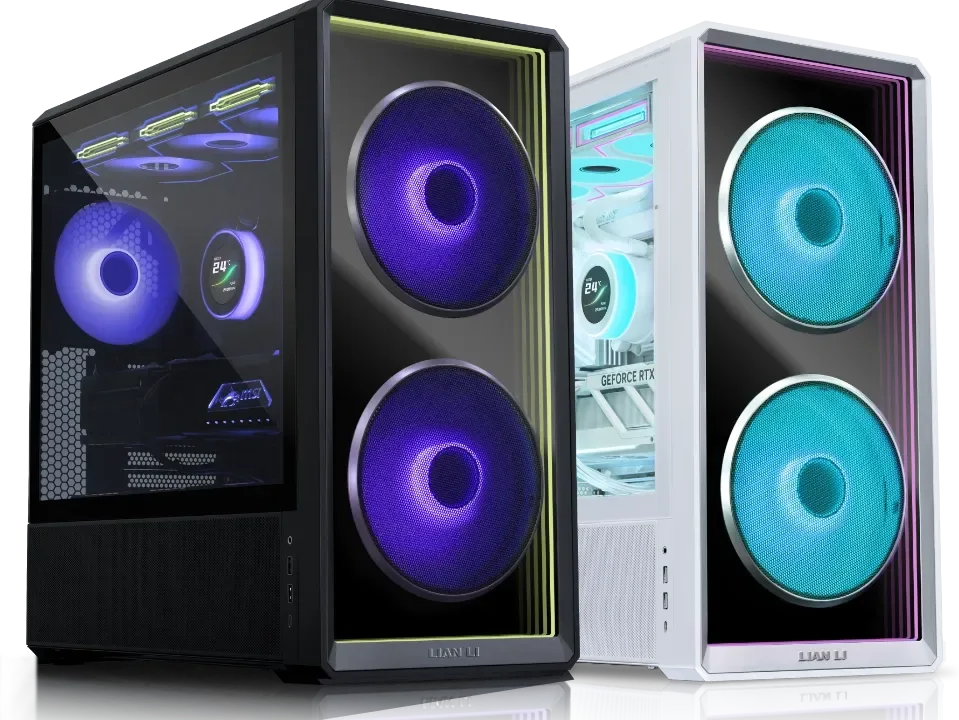

Infinity Mirror, Black or White
Two 170mm Fans Up Front

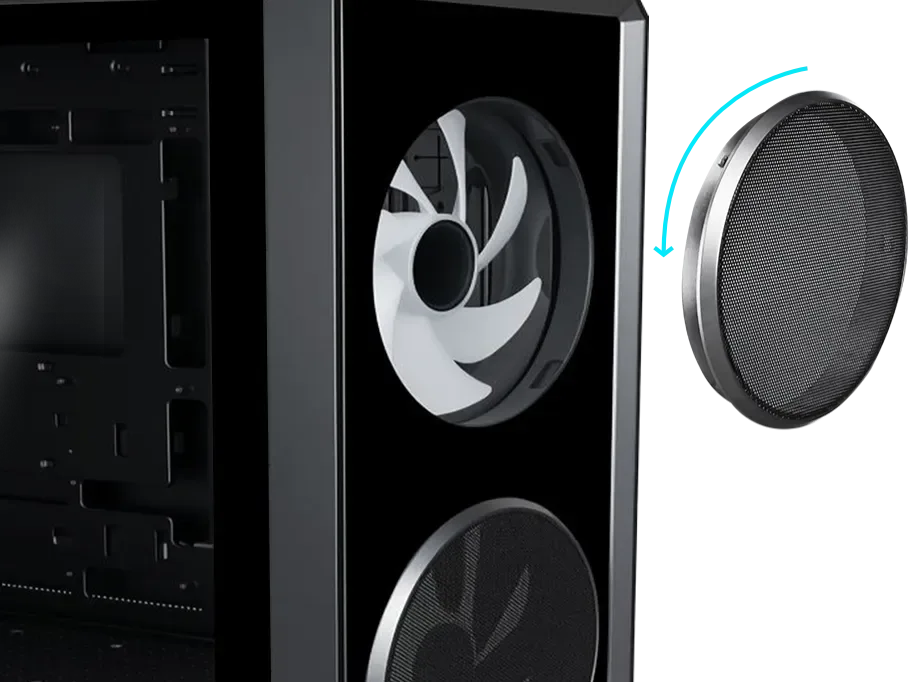

Twist-Off Mesh Fan Filters

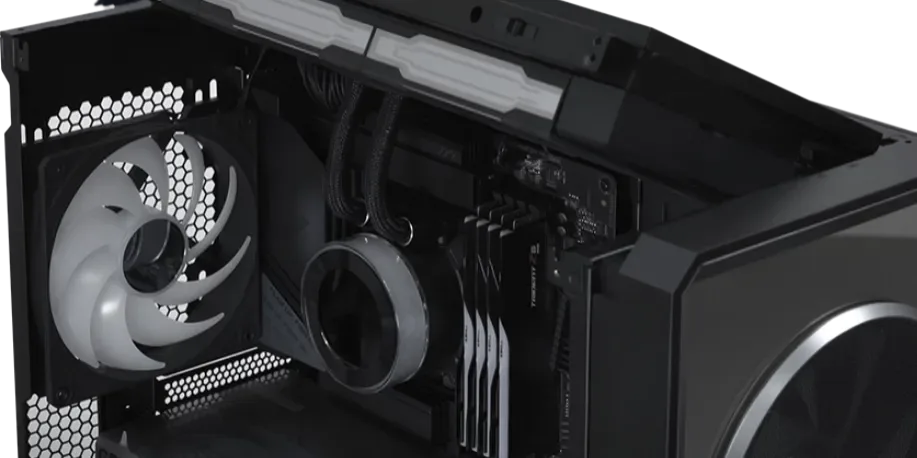

Lift-Out Top Radiator Bracket

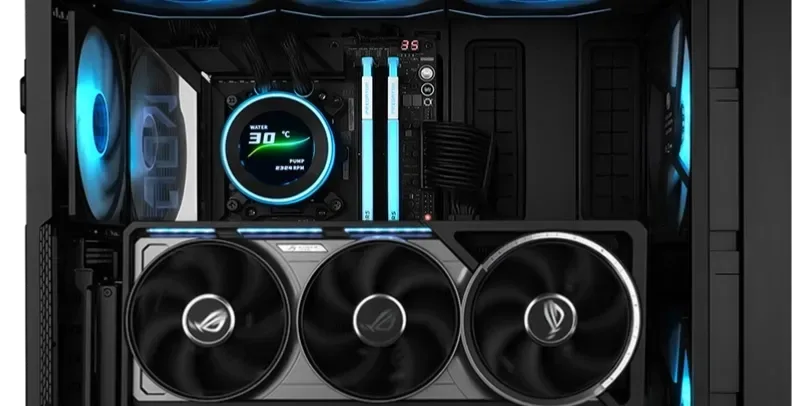

Room for Flagship GPUs

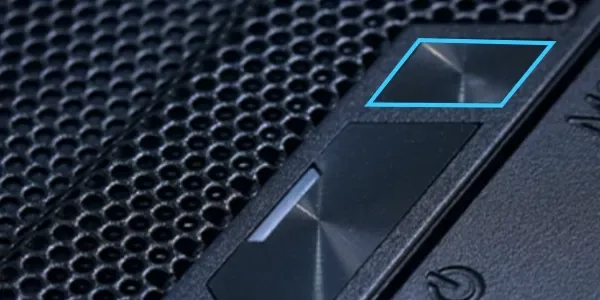

Lighting Buttons Beside Power
Specifications
- Expansion slots
- 7
- GPU length
- 380mm
- max
- CPU cooler height
- 180mm
- max
- Top radiator
- 360mm
- max (also 280 / 240)
01
Overview
- Model
- LANCOOL 217 INF
- Model no.
- LAN217INFX (Black) · LAN217INFW (White)
- Case type
- Mid-tower
- Colours
- Black / White
- Thermal rating
- PPLP S-Class thermal performance
- Warranty
- 1 year (fans: 3 years)
02
Dimensions & Weight
- Dimensions
- 482 × 238 × 503 mm (L × W × H)
03
Materials
- Body
- Steel / 4.0 mm tempered glass
- Front panel
- Tempered glass with built-in infinity mirror
- Dust filters
- Bottom × 1 · Front × 1 (× 2 on the RU version only)
04
Motherboard Support
- Standard
- SSI-EEB (max width 330 mm) / E-ATX (max width 280 mm) / ATX / Micro-ATX / Mini-ITX
- Back-connect
- ATX / M-ATX
- E-ATX / EEB fit
- E-ATX needs the right-side bracket flipped; EEB also needs its shield plate and grommets removed
05
Expansion & GPU
- Expansion slots
- 7
- GPU length
- 380 mm max
- GPU support
- Adjustable anti-sag bracket
- Vertical GPU
- PCIe slot bracket rotates 90° (remove PCIe slot covers 1 and 2 first); riser cable sold separately
06
CPU Cooler & Radiators
- CPU cooler height
- 180 mm max
- Top radiator
- 360 mm max (also 280 / 240)
- Top radiator fit
- 360 mm: under 85 mm total thickness, up to 406.5 mm long · 280 mm: up to 60 mm thick
07
Fans
- Front fans
- 2 × 170 mm (pre-installed)
- Top fans
- 3 × 120 mm or 2 × 140 mm
- Bottom fans, above PSU shroud
- 3 × 120 mm
- Bottom fans, under PSU shroud
- 2 × 120 mm
- Rear fan
- 1 × 140 mm (pre-installed) / 1 × 120 mm; 140 mm fans up to 144.5 mm wide
- Front fan specs
- 170 × 170 × 30 mm · 1500 RPM max · 200 RPM min (0 RPM stop) · 151.63 CFM · 3.32 mmH₂O · 35 dBA · FDB
- Rear fan specs
- 140 × 140 × 30 mm · 1900 RPM max · 450 RPM min (0 RPM stop) · 118.53 CFM · 3.32 mmH₂O · 33.8 dBA
08
Storage
- Behind motherboard tray
- Up to 2 × 2.5″ SSD (1 × 2.5″ SSD with a back-connect M-ATX board)
- Drive cages
- 2; each 1 × 3.5″ HDD + 1 × 2.5″ SSD (or 1 × 3.5″ HDD / 2 × 2.5″ SSD)
- PSU-shroud cover
- 1 × 2.5″ SSD
- Second drive cage
- Fits only with the PSU in the rotated orientation
09
Front I/O
- Ports
- 2 × USB 3.0 · 1 × USB 3.2 Type-C · 1 × audio / mic combo jack
- Buttons
- Power · M1 front-panel lighting · M2 fan lighting
- Position
- Top or bottom (relocatable)
10
Power Supply
- Standard orientation
- ATX up to 220 mm (one drive cage)
- Rotated orientation
- ATX up to 180 mm (turned 90°, connectors to the right)
11
Lighting & Control
- Integrated hub
- ARGB / fan hub: 3 × sync motherboard fan header, 1 × ARGB header
- Control
- I/O buttons, motherboard sync, or L-Connect 3 (L-Wireless controller required)
- Wireless
- Receiver built into the rear hub; L-Wireless controller sold separately
- Default mode
- Motherboard PWM sync for the 170 mm and 140 mm fans
- Rear hub
- Built-in rear hub does not take external fans
Downloads
- Download
LANCOOL 217 INF Manual
Lian Li's installation guide for the LANCOOL 217 INF, linked from its product page.
PDF60 MB
