LIAN LI
O11 Dynamic EVO RGB Mid-Tower Case
ColorBlack
Rs 59,999Sold out
1
Details
The O11D EVO RGB runs two 1.5 mm L-shaped ARGB strips along the top and bottom edges, with 14 effects set from buttons on the case or synced to your motherboard. It is slightly larger than the O11D EVO, so the top takes a 420mm radiator and all three fan mounts take 3 × 140mm (top and bottom: LIAN LI UNI FAN only). The front pillar comes off for a clean glass corner, the case flips to a left- or right-hand layout, and the motherboard mounts at two heights. GPUs up to 455.7 mm and up to eight drives fit.

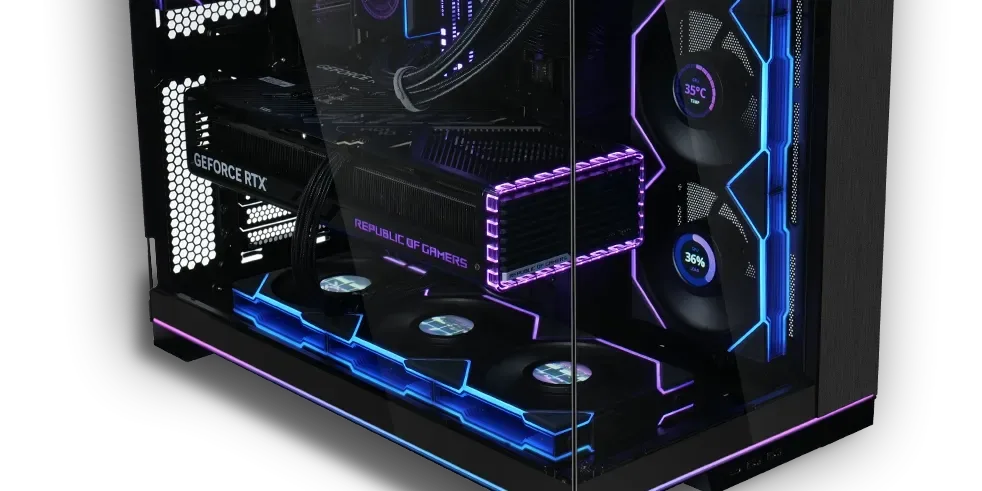

L-Shaped ARGB Strips
Fit
455.7 mm GPUs · 167 mm Coolers
E-ATX under 280 mm, ATX PSUs under 220 mm, 7 slots, up to 8 drives.

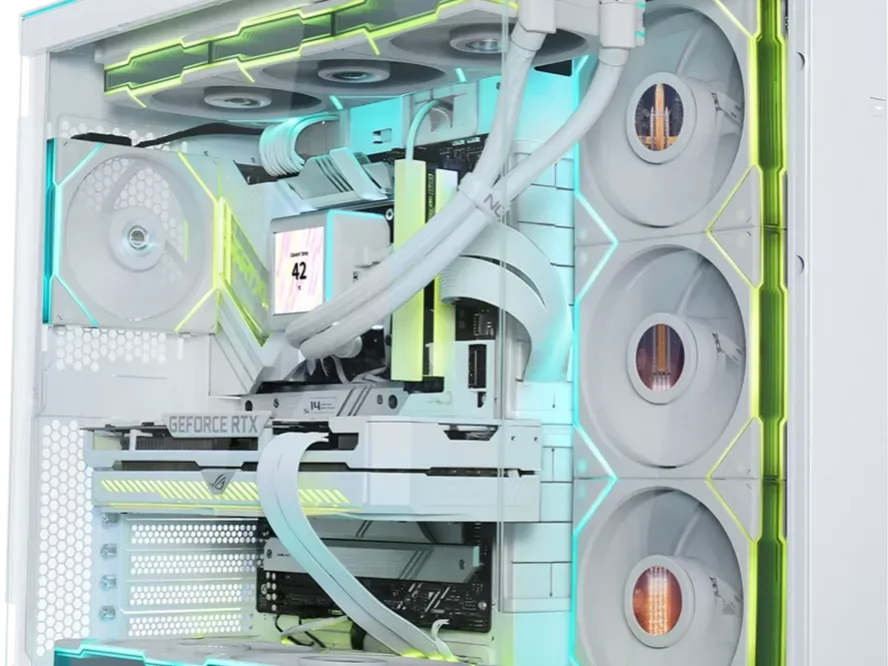

Front Pillar Comes Off

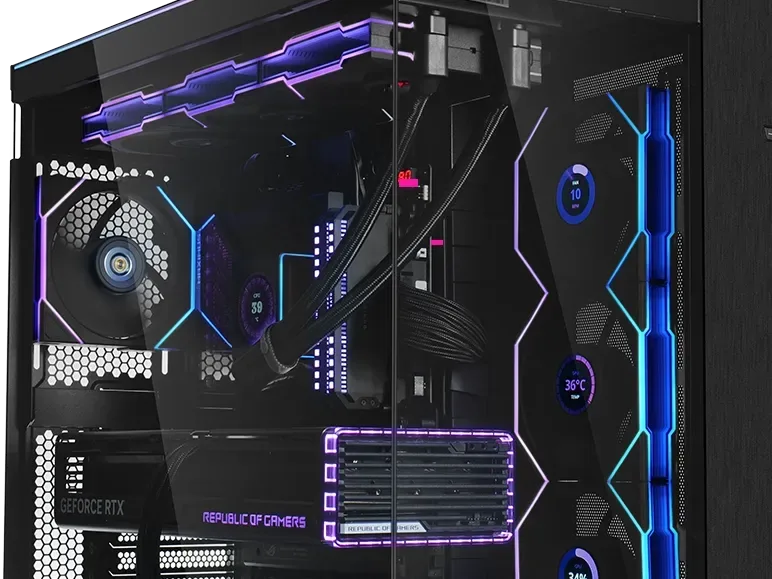

Tinted Glass, Brushed Aluminium

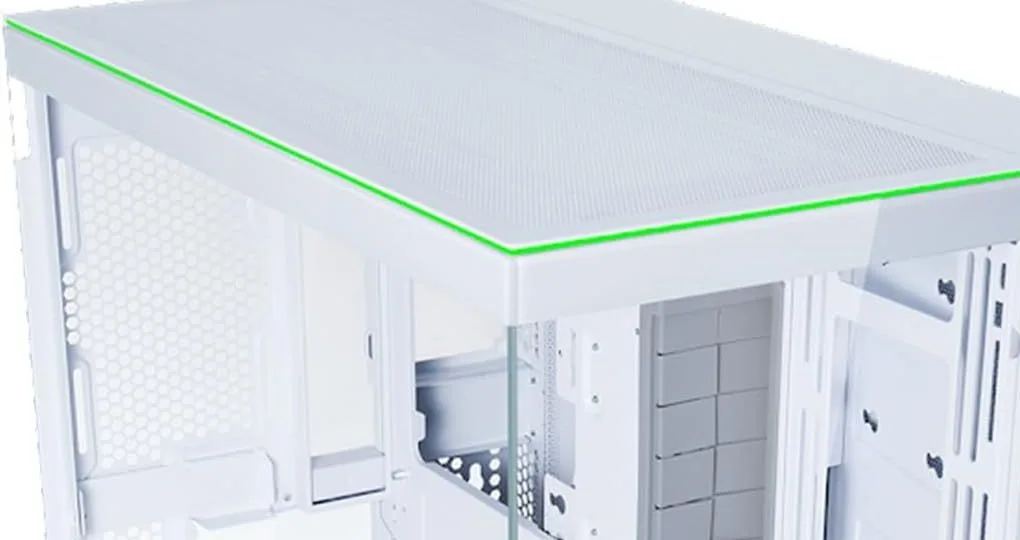

Lit Along the Top Edge

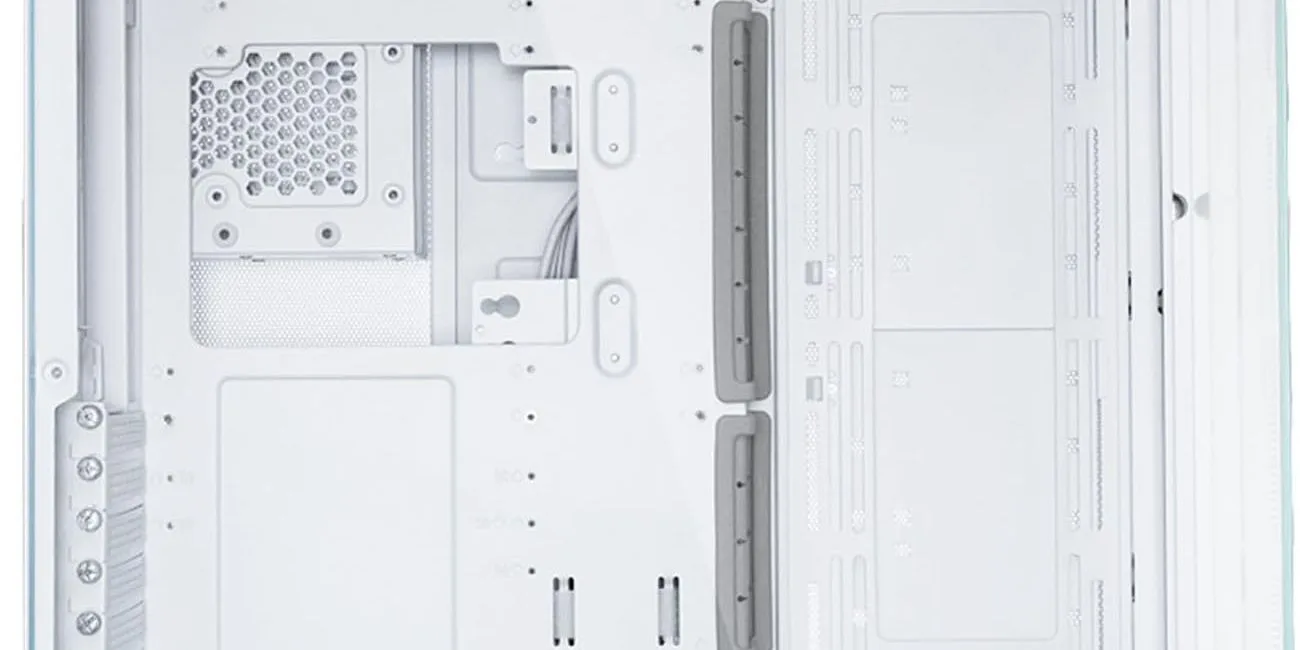

Cable Room Behind the Tray
Specifications
- Effects
- 14
- modes, 11 colours, pure-colour mode, 5 brightness levels
- Expansion slots
- 7
- CPU cooler height
- 167mm
- max
- Top radiator
- 420mm
- max (also 240 / 360)
01
Overview
- Model
- O11 Dynamic EVO RGB
- Model no.
- O11DERGBX (Black) · O11DERGBW (White)
- Case type
- Tower chassis, dual chamber, reversible (left or right view)
- Colours
- Black / White
- Warranty
- 1 year
02
Dimensions & Weight
- Dimensions
- 478 × 290 × 471 mm (D × W × H)
03
Materials
- Materials
- Steel, aluminium, 4.0 mm tempered glass
- Black
- Brushed aluminium, tinted glass, black mesh
- White
- White powder-coated aluminium, clear glass, white mesh
04
Lighting
- Strips
- 2 × L-shaped ARGB, 1.5 mm, top and bottom edges
- Effects
- 14 modes, 11 colours, pure-colour mode, 5 brightness levels
- Control
- Mode, colour and brightness buttons on the I/O, or motherboard ARGB sync
05
Motherboard Support
- Form factors
- E-ATX (under 280 mm) / ATX / Micro-ATX / Mini-ITX
- Mounting
- Two heights (upper / lower)
06
Expansion & GPU
- Expansion slots
- 7
- GPU length
- 455.7 mm max
- GPU support
- GB-003 anti-sag bracket (GPU in the 2nd slot)
07
CPU Cooler & Radiators
- CPU cooler height
- 167 mm max
- Top radiator
- 420 mm max (also 240 / 360)
- Side radiator
- 360 mm max (also 240 / 280)
- Bottom radiator
- 360 mm max (also 240 / 280)
- Side bracket depth
- Up to 83.2 mm radiator + fans facing the main chamber · up to 113.7 mm facing the second chamber
- Top clearance, upper board mode
- 83.5 mm (360 / 280 mm radiator or 3 fans) · 63.1 mm (420 mm radiator)
- Top clearance, lower board mode
- 103.8 mm (360 / 280 mm radiator or 3 fans) · 83.4 mm (420 mm radiator)
- Bottom clearance under a 4-slot GPU
- 92.3 mm (upper board mode) · 72 mm (lower board mode, 360 mm radiator)
08
Fans
- Top fans
- 3 × 120mm or 3 × 140mm
- Side fans
- 3 × 120mm or 3 × 140mm
- Bottom fans
- 3 × 120mm or 3 × 140mm
- Rear fan
- 1 × 120mm
- Max fans
- 10
- 140mm fans, top and bottom
- No screw points for 3 × 140mm; only LIAN LI UNI FAN 140 fans fit (they hold without screws)
09
Storage
- Side fan bracket
- 2 × 3.5″ HDD or 4 × 2.5″ SSD
- Behind motherboard tray
- 2 × 2.5″ SSD
- Drive cage
- 2 × 3.5″ HDD or 2.5″ SSD
- Max drives
- 8 × 2.5″ SSD, or 4 × 3.5″ HDD + 2 × 2.5″ SSD
10
Front I/O
- Ports
- USB 3.0 × 2, USB 3.1 Type-C × 1, Audio × 1
- Buttons
- Power × 1, Reset × 1, Mode × 1, Colour × 1, Brightness × 1
- Position
- Toolless module, 3 positions
11
Power Supply
- PSU support
- ATX, under 220 mm
- PSU bracket
- Extends 15 mm past the rear for cable room
12
Extras
- Dust filter
- Bottom × 1
- Low-mode covers
- 2 silicone covers
- Optional
- Upright GPU bracket O11DE-9X/9W, front mesh kit O11DERGB-4X/4W, vertical GPU kit VG4-5-V4X/V4W, extra I/O kit O11DE-3XV2/3WV2
