TRYX
LUCA L70 E-ATX Mid-Tower Case
ColorBlack
Rs 79,999Pre-order
1
- Arrives in 7-12 days on average.
- Full payment upfront by bank transfer. No cash on delivery.
- Can't be cancelled once paid.
Details

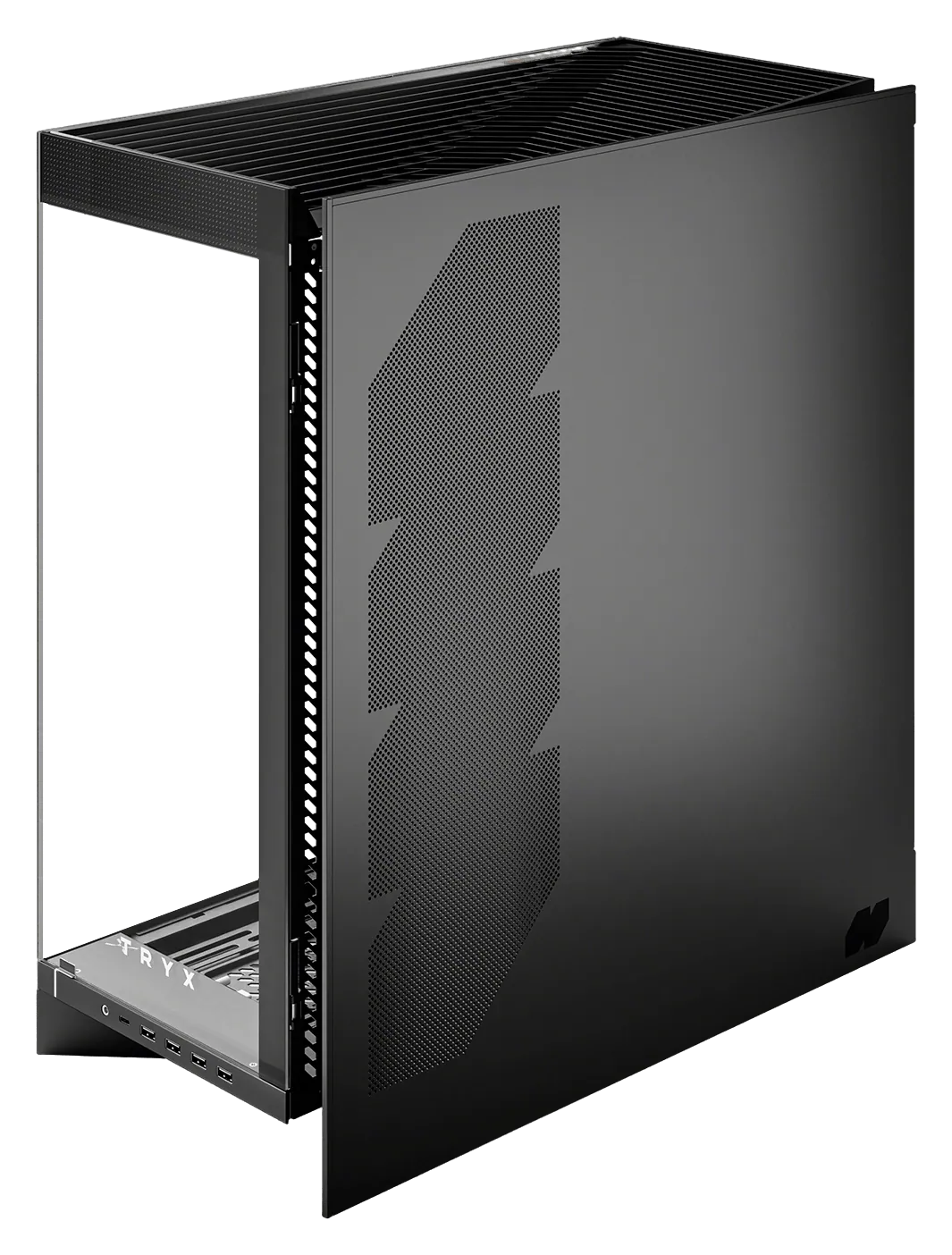

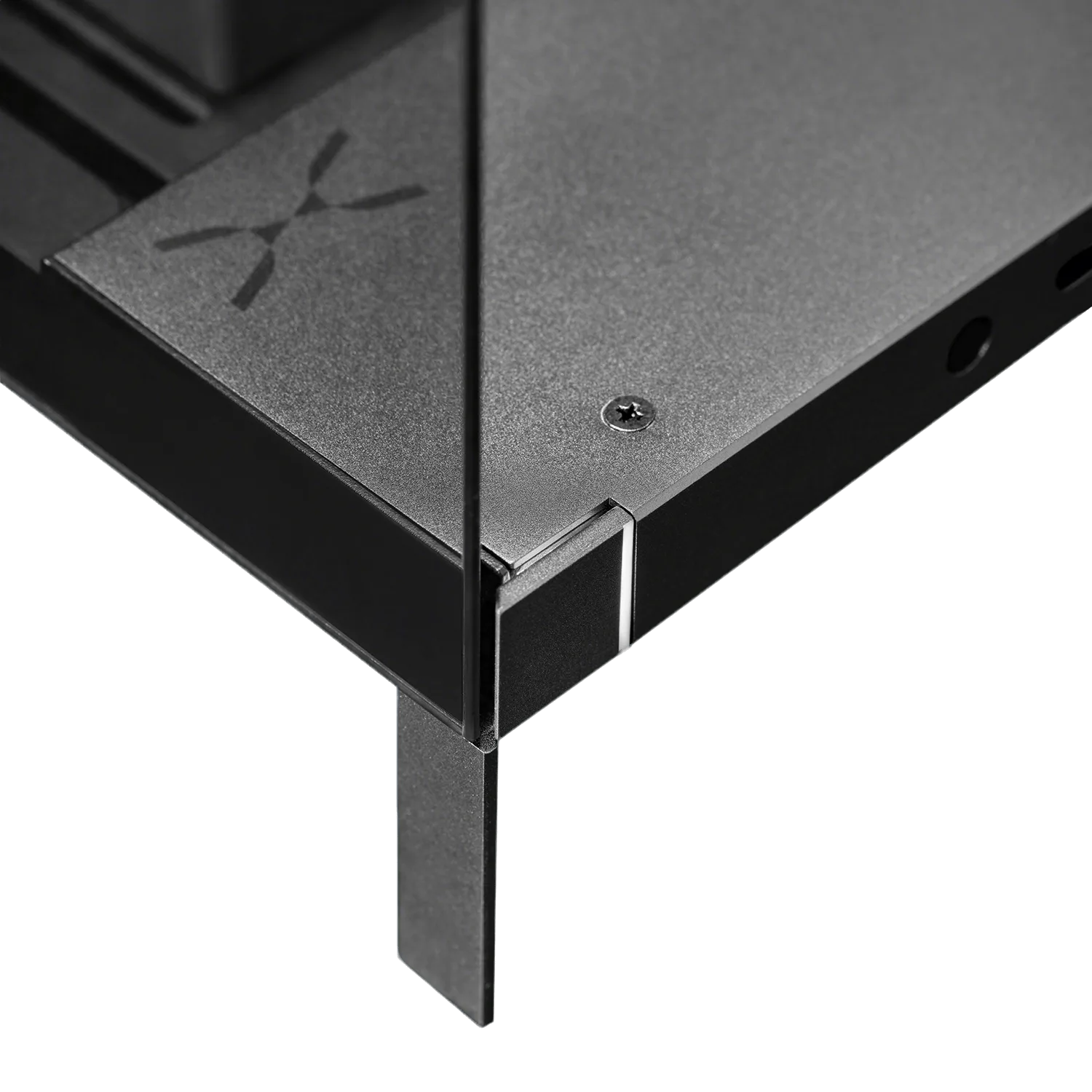

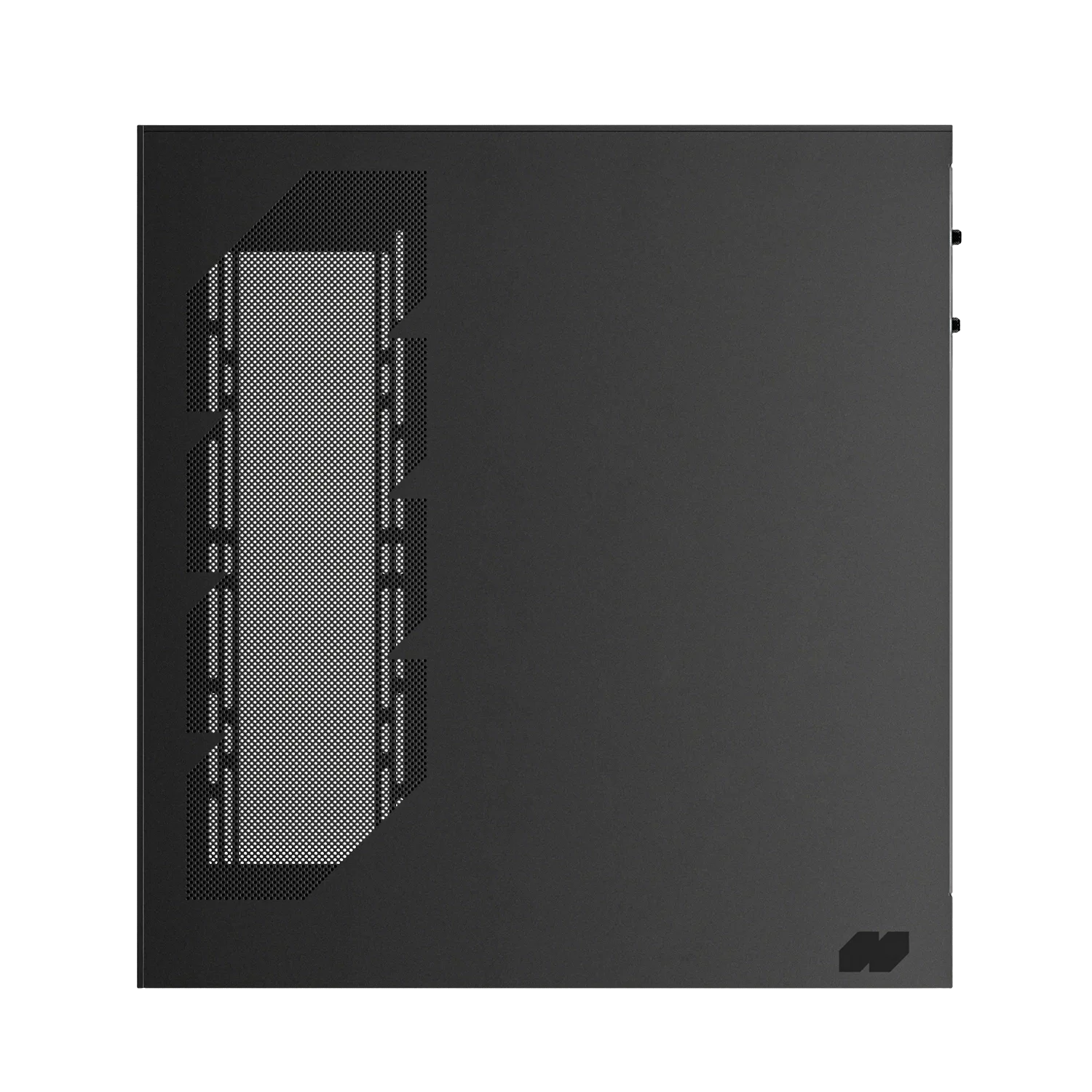

LUCA L70 is a 75.2-litre E-ATX mid-tower built on a 6000-series anodized aluminum frame, with a 2 mm aluminum side panel and 4 mm tempered glass on the front and left side, framed by a 19 mm bezel. The power supply mounts at the top or the bottom, and that choice sets the cooling layout: up to two 420 mm radiators and room for eight 140 mm fans plus one 120 mm. It takes GPUs up to 460 mm and back-connect ATX boards, and the front USB-C runs at 20 Gbps with 60W charging. An X-shaped base lifts it 40 mm.

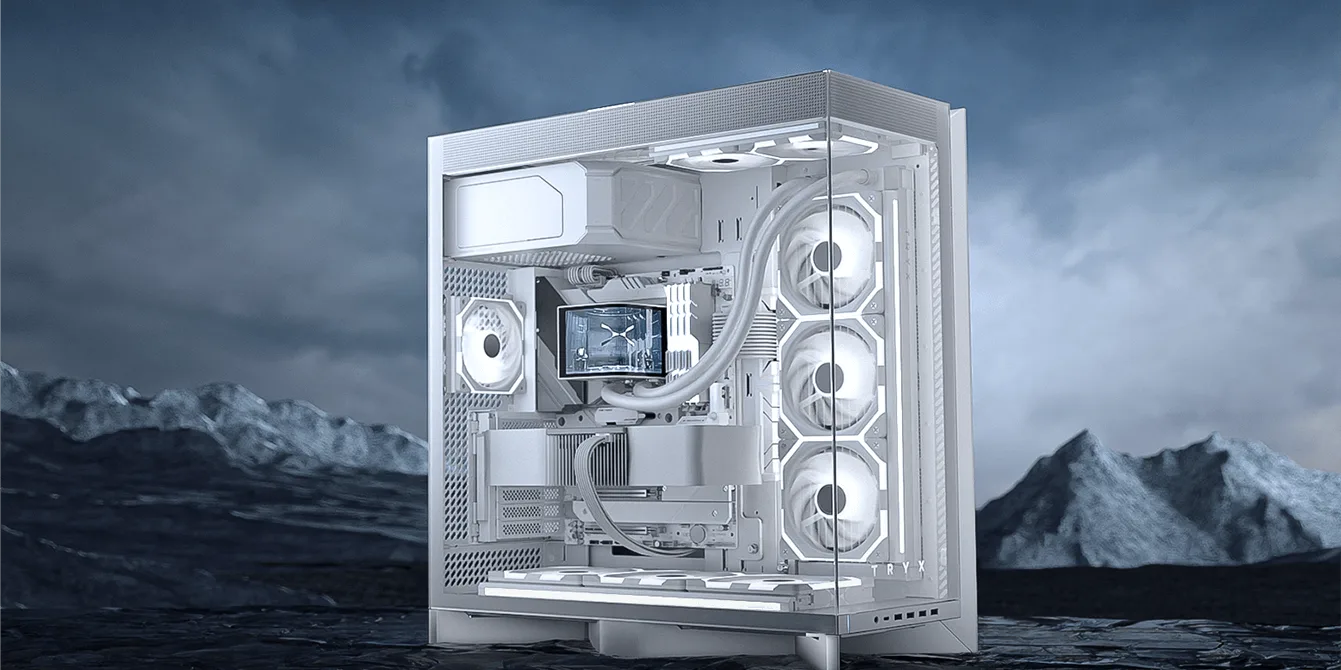

Glass on Two Sides, 19mm Bezel

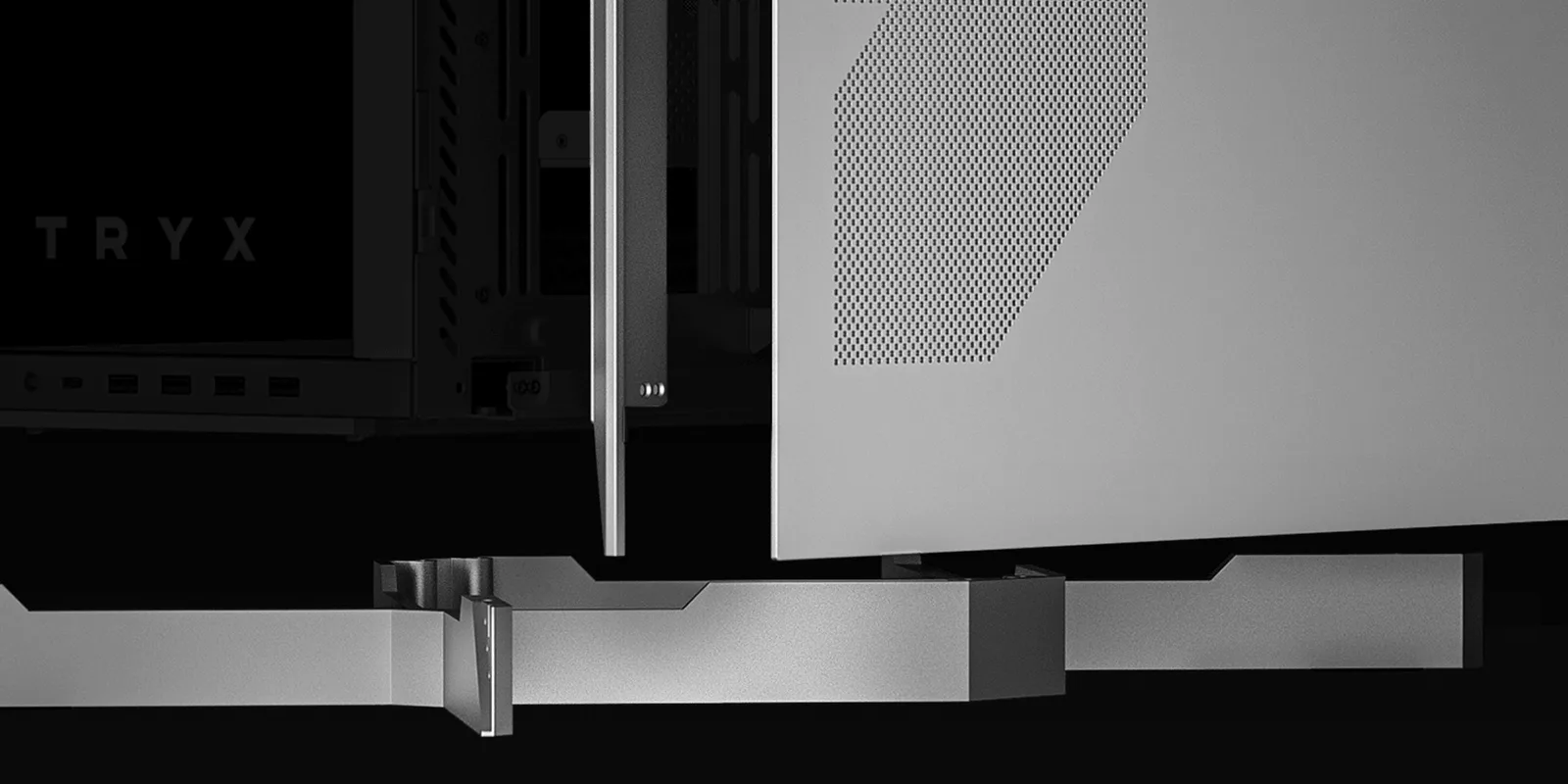

6000-Series Aluminum Frame

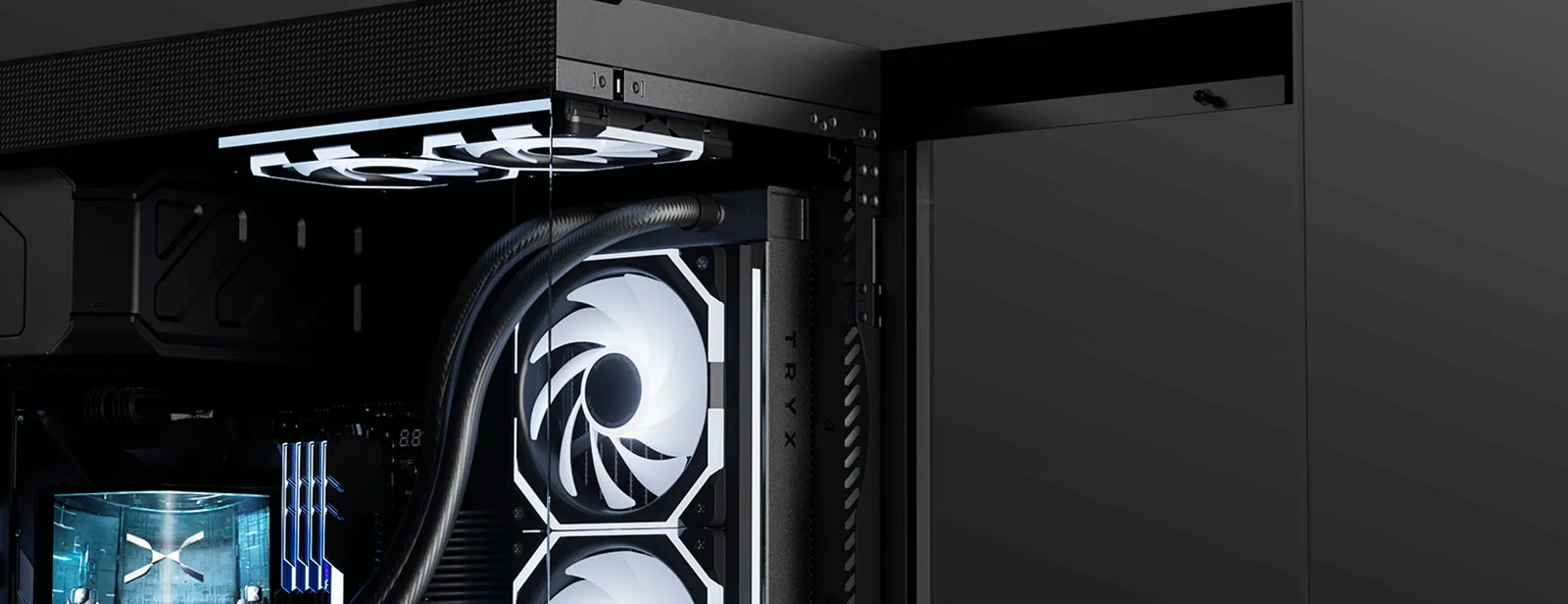

Front Glass Opens for Access

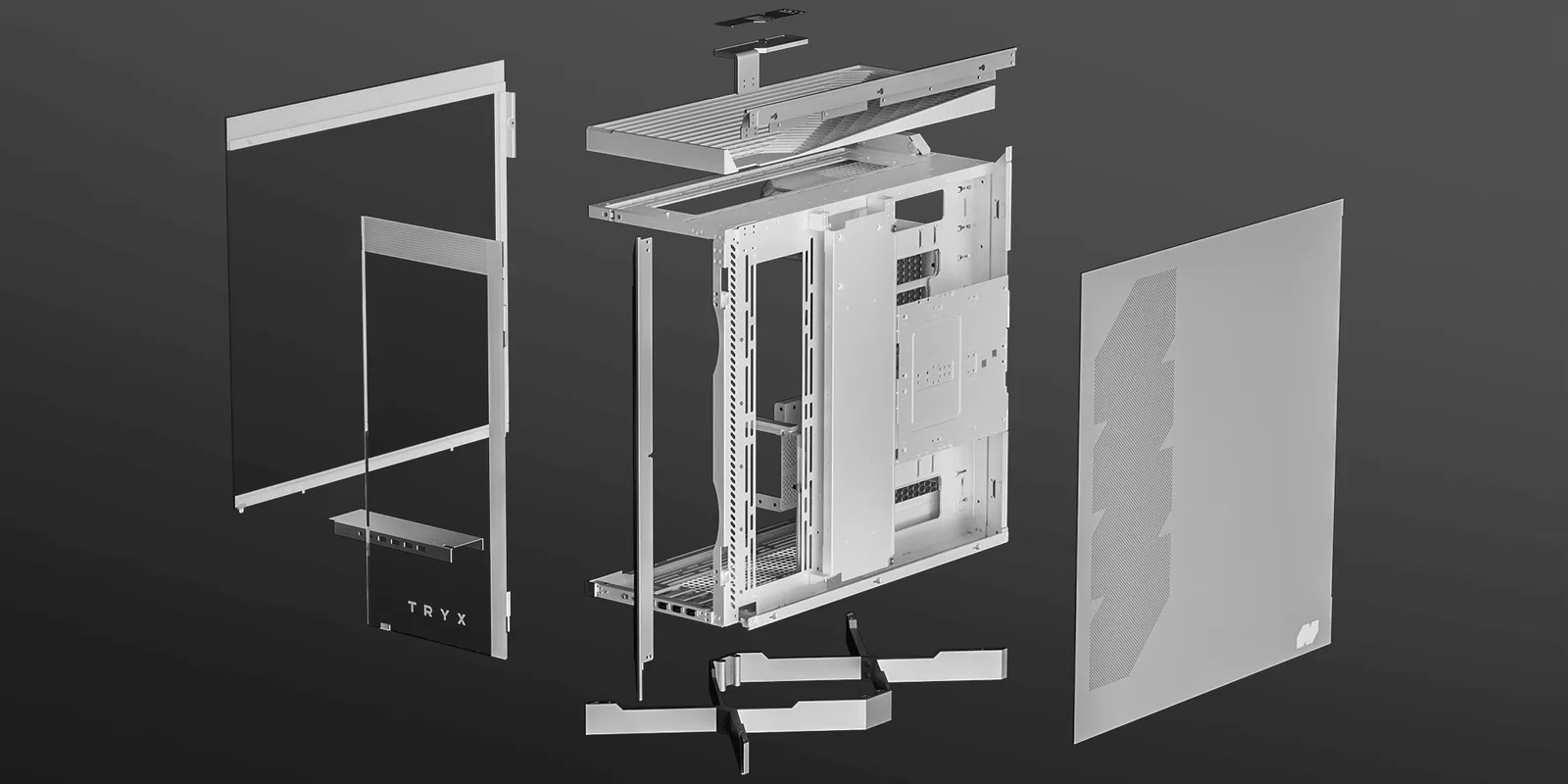

Comes Apart Panel by Panel

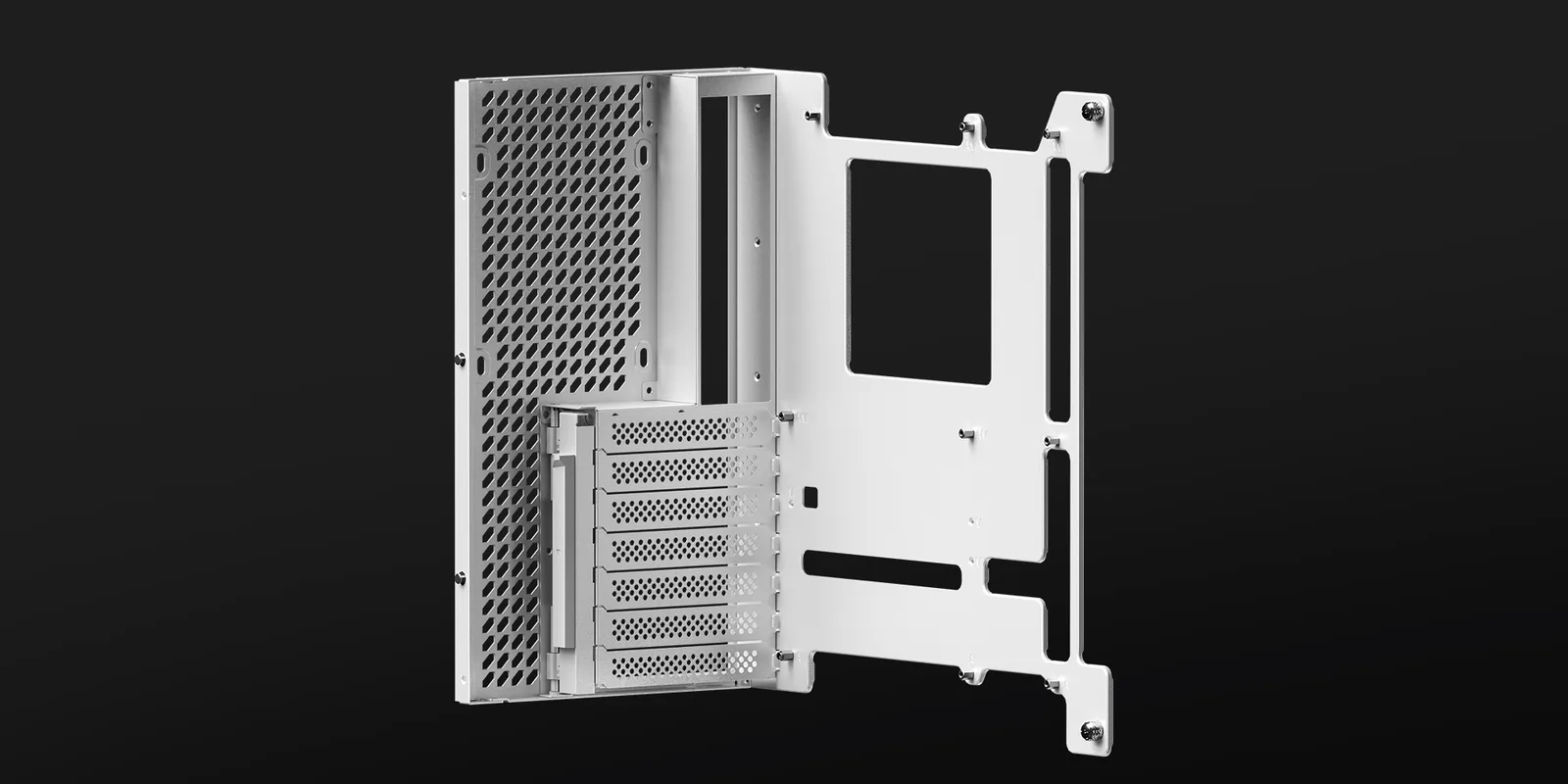

Adjustable Board Tray

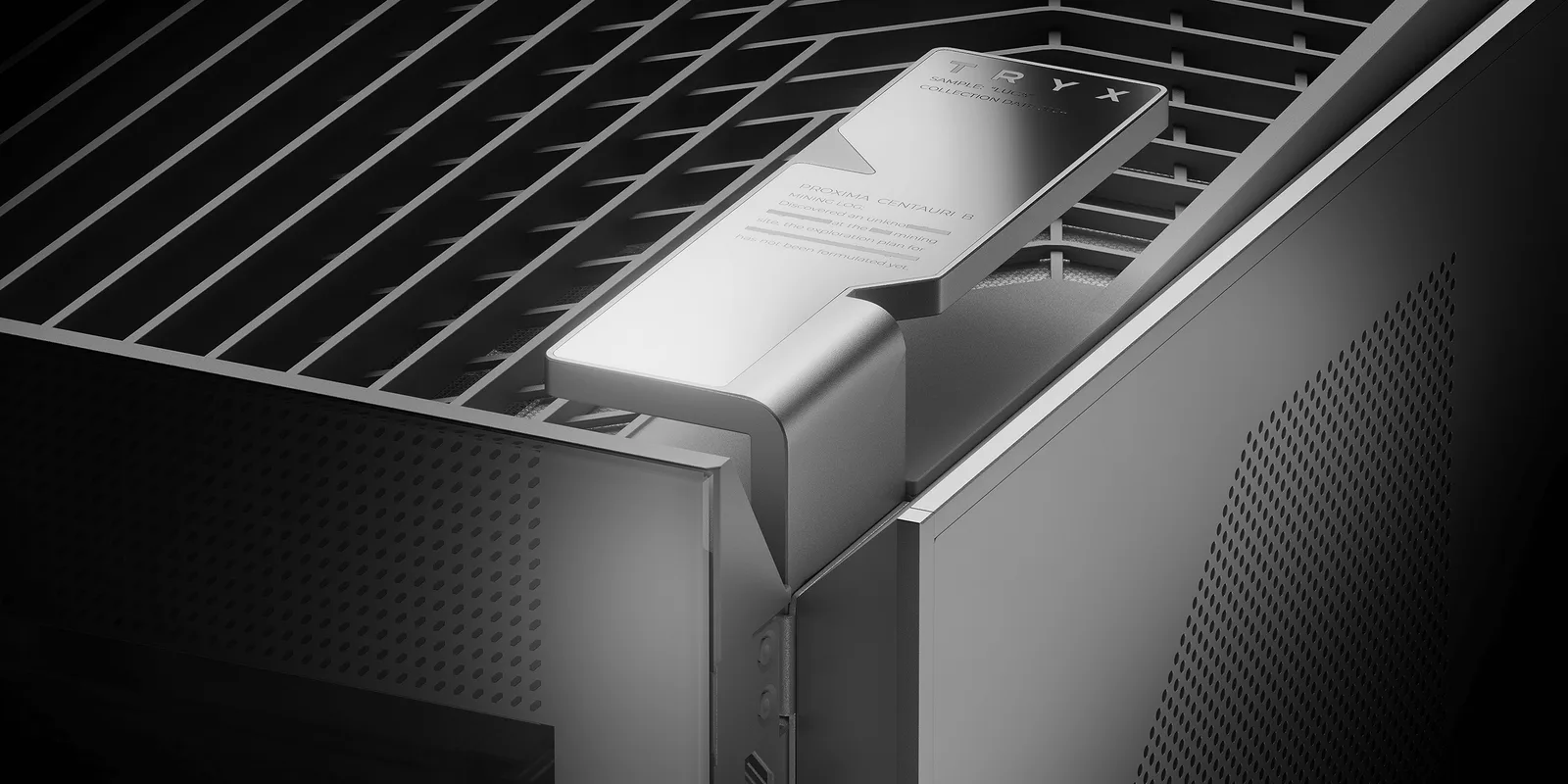

Aluminum Handle, Steel Nameplate

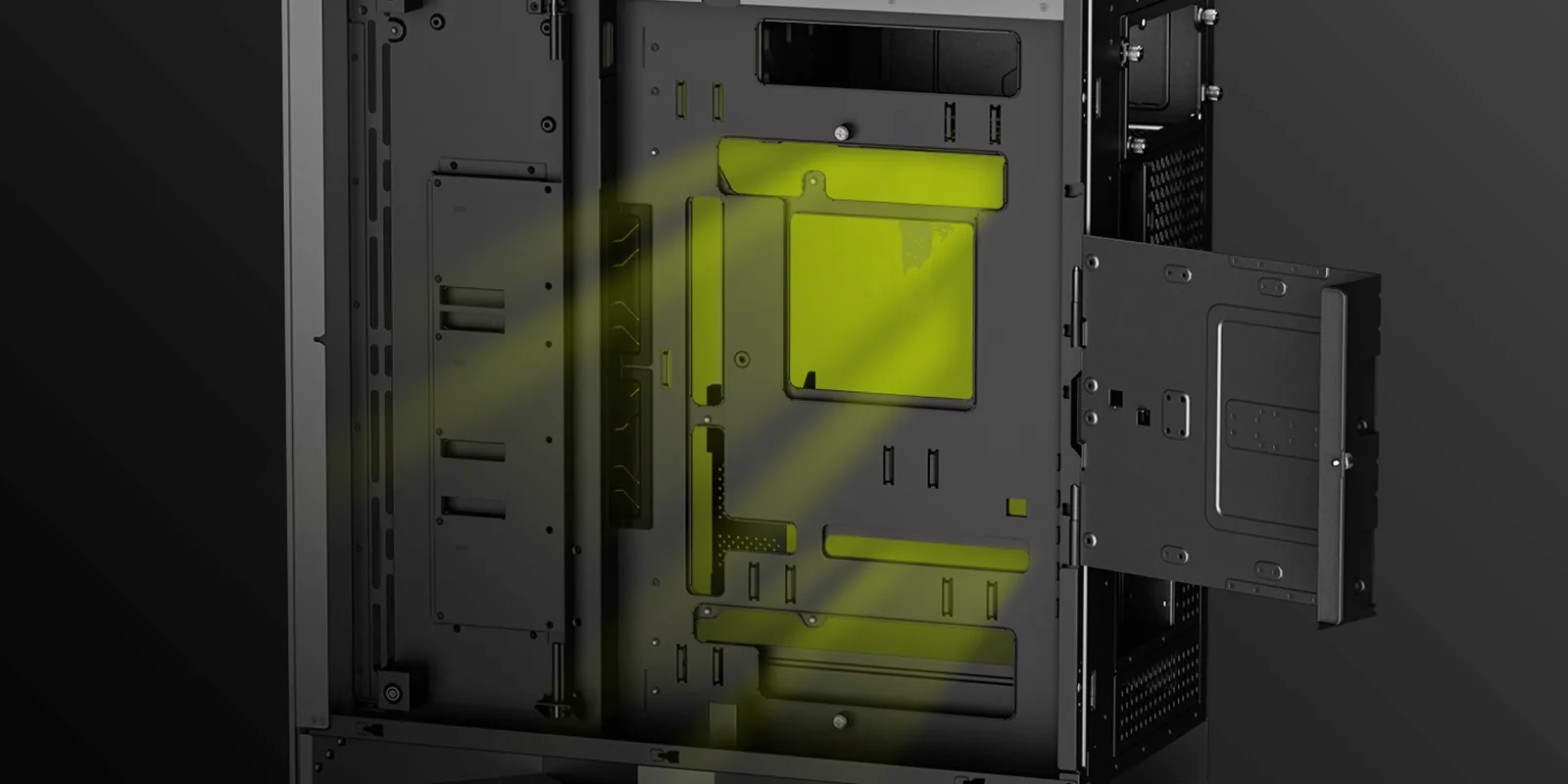

Back-Connect Board Ready

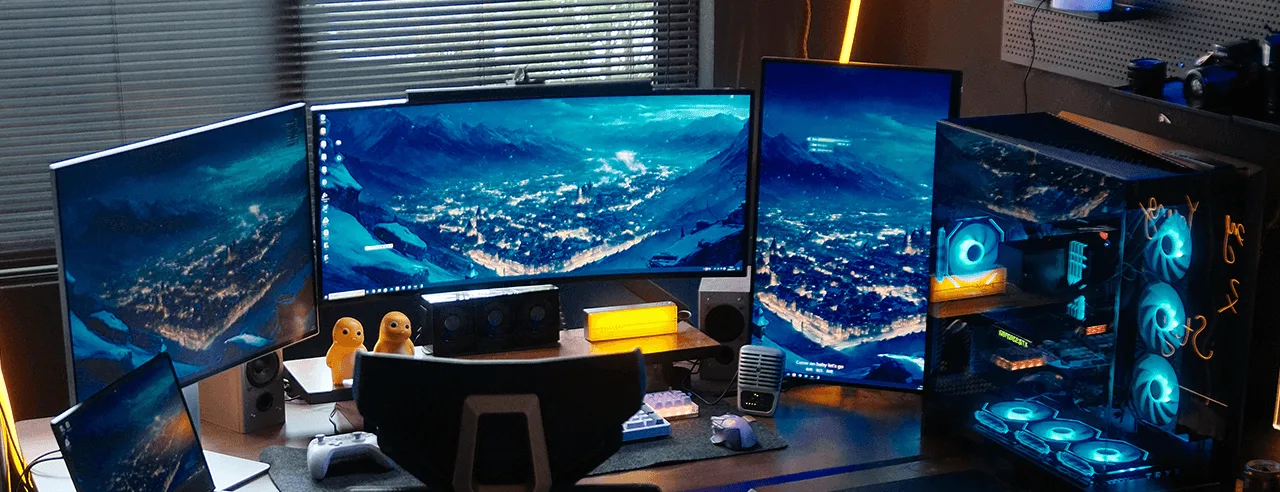

Shown in a Full Desk Build
Specifications
- Expansion slots
- 7
- GPU length
- 460mm
- max
- CPU cooler height
- 170mm
- max
- Top radiator
- 420mm
- max with the PSU at the bottom (also 240 / 280 / 360) · 240 mm with the PSU on top
01
Overview
- Model
- LUCA L70
- Type
- Mid-tower E-ATX case
- Colours
- Black / White
- Volume
- 75.2 L
- Warranty
- 2 years
02
Dimensions & Weight
- Dimensions (L × W × H)
- 540 × 262 × 572 mm
- Net weight
- 16.2 kg
- Gross weight
- 19.6 kg
03
Materials
- Frame & base
- Anodized 6000-series aluminum
- Side panel
- Anodized 5000-series aluminum, 2 mm
- Glass
- Tempered glass, 4.0 mm, front and left side
- Other
- Steel, plastic, stainless steel
04
Motherboard Support
- Form factors
- E-ATX (≤ 280 mm wide) / ATX / Micro-ATX / Mini-ITX
- Back-connect boards
- ATX BTF / m-ATX BTF (PSU in the top position)
- Motherboard tray
- Adjustable
05
Expansion & GPU
- Expansion slots
- 7
- GPU length
- 460 mm max
06
CPU Cooler & Radiators
- CPU cooler height
- 170 mm max
- Top radiator
- 420 mm max with the PSU at the bottom (also 240 / 280 / 360) · 240 mm with the PSU on top
- Side radiator
- 420 mm max (also 240 / 280 / 360)
- Bottom radiator
- 240 / 280 / 360 mm · 120 mm with the PSU at the top
07
Fans
- Top fans
- 2 × 120 mm / 2 × 140 mm with the PSU on top · 3 × 120 mm / 3 × 140 mm with the PSU at the bottom
- Side fans
- 3 × 120 mm / 3 × 140 mm
- Bottom fans
- 3 × 120 mm / 3 × 140 mm · 1 × 120 mm / 1 × 140 mm with the PSU at the top
- Rear fans
- 1 × 120 mm
- Maximum fans
- 8 × 140 mm + 1 × 120 mm
08
Storage
- Drives
- Up to 2 × 3.5" HDD or 9 × 2.5" SSD
09

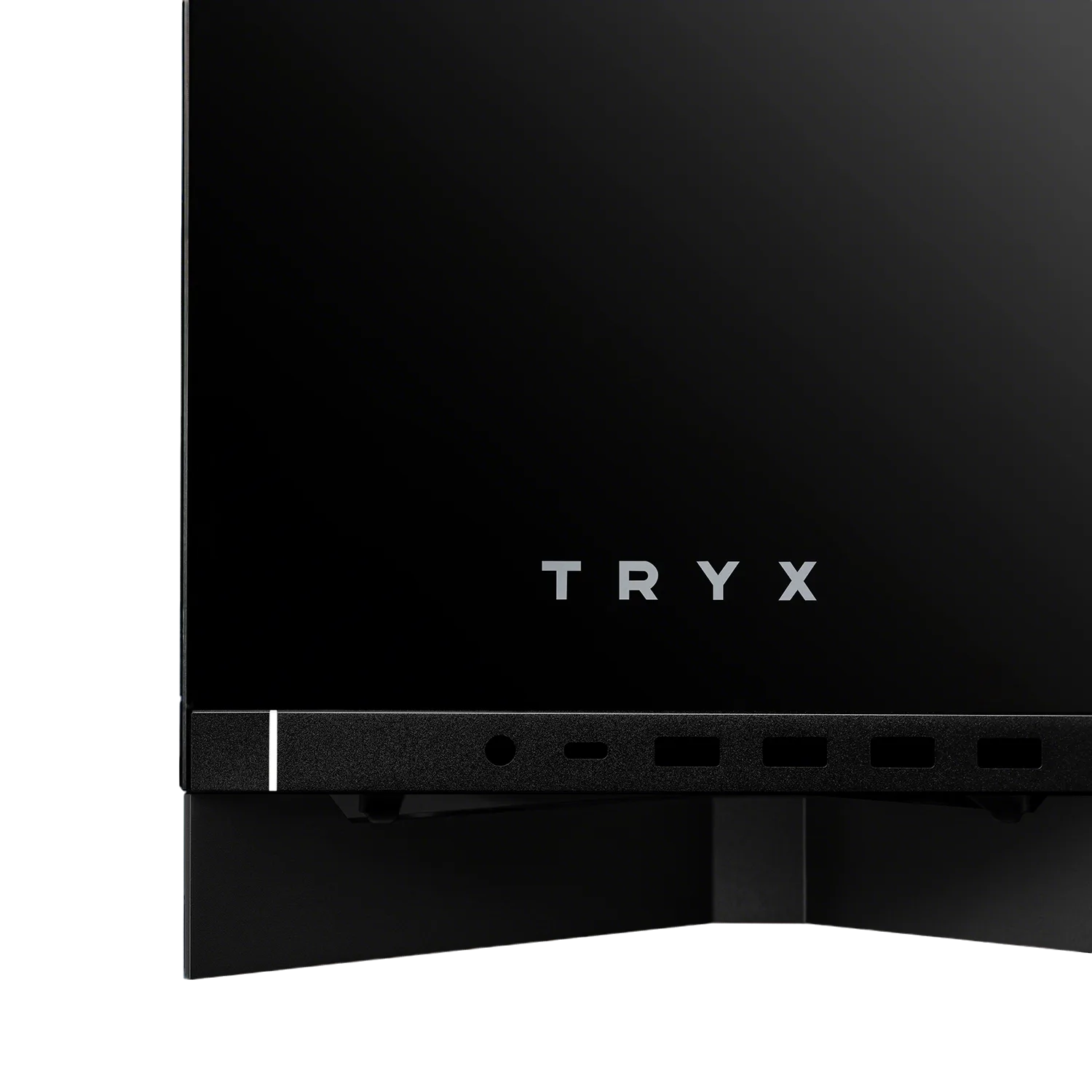

Front I/O
- USB-C
- 1 × USB 3.2 Gen 2×2 Type-C (20 Gbps, 60W PD charging)
- USB-A
- 4 × USB 3.2 Gen 1
- Audio
- 1 × audio / speaker combo jack
- Power
- 1 × power button
10
Power Supply
- Support
- ATX, 190 mm max
- Placement
- Top or bottom
- Cable management space
- 63 mm
11
In the box
- Tools & mounting
- 1 × motherboard standoff tool, 3 × motherboard standoff bolts
- Screws
- 20 × motherboard / 3.5" drive screws, 36 × 2.5" drive screws
- Spare screws
- 4 × aluminum base screws, 4 × aluminum handle screws
- Cable management
- 10 × cable ties, 3 × Velcro ties
- Cover
- 1 × PSU cover
