HS 360 VGPU Dual-Chamber Mid-Tower Case
ColorBlack
Rs 79,999Pre-order
1
- Arrives in 7-12 days on average.
- Full payment upfront by bank transfer. No cash on delivery.
- Can't be cancelled once paid.
Details

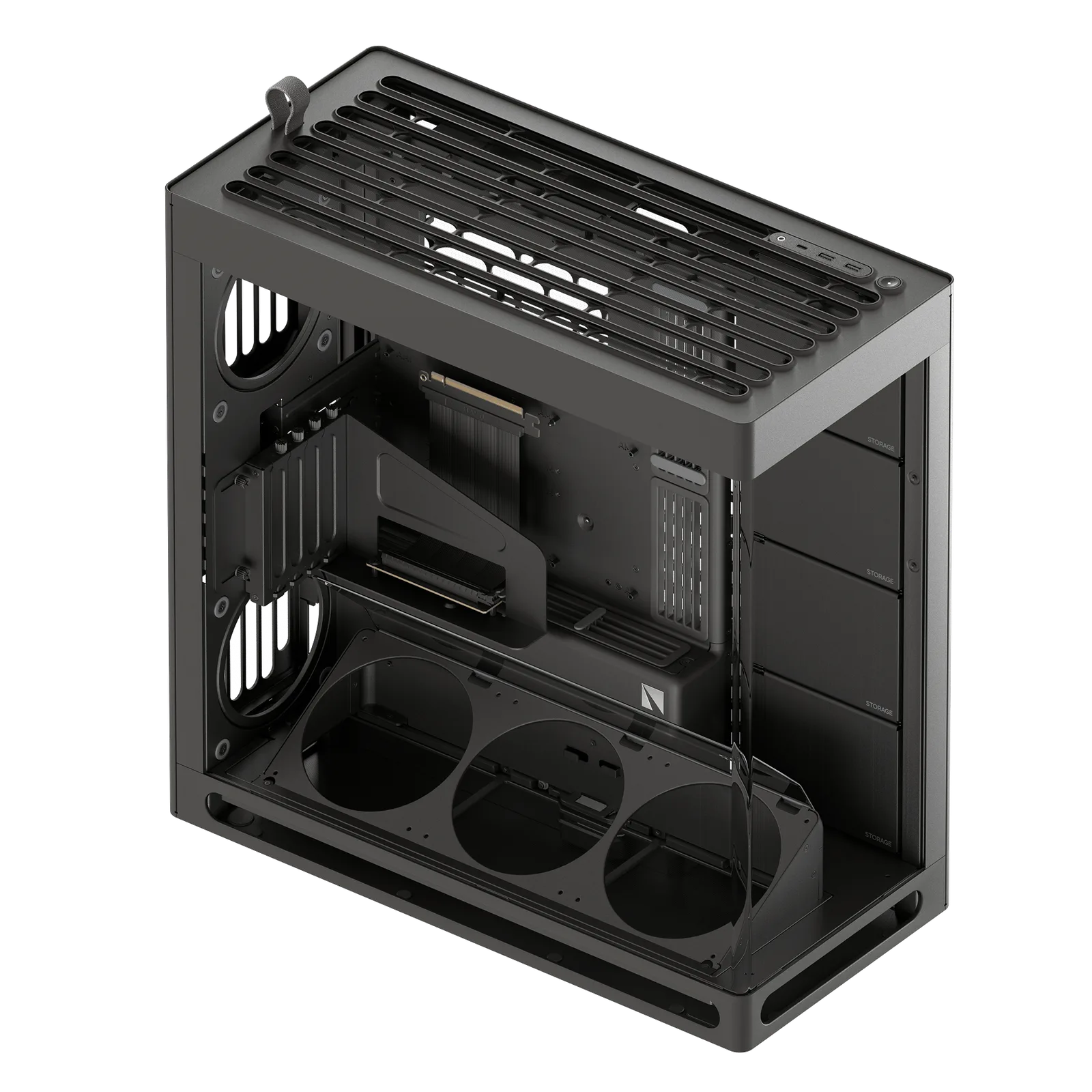

The HS 360 VGPU is HAVN's smaller dual-chamber mid-tower with a vertical GPU mount; HAVN says it is 19.4% smaller and 29.5% lighter than the HS 420. The graphics card stands upright behind one curved UniSheet glass panel that wraps around the front and side with no corner pillar. The angled bottom platform takes three 120 mm fans aimed at the card, and a detachable magnetic glass divider above it keeps that air on the GPU. The VGPU kit comes with a PCI Express 5.0 riser cable. It takes ATX, Micro-ATX and Mini-ITX boards, back-connect boards included, 360 mm radiators on the top or side, up to eleven 120 mm fans and GPUs up to 430 mm long; the right-side bay holds fans, drive cages or a display on its VESA mount. No fans included. Black or white.

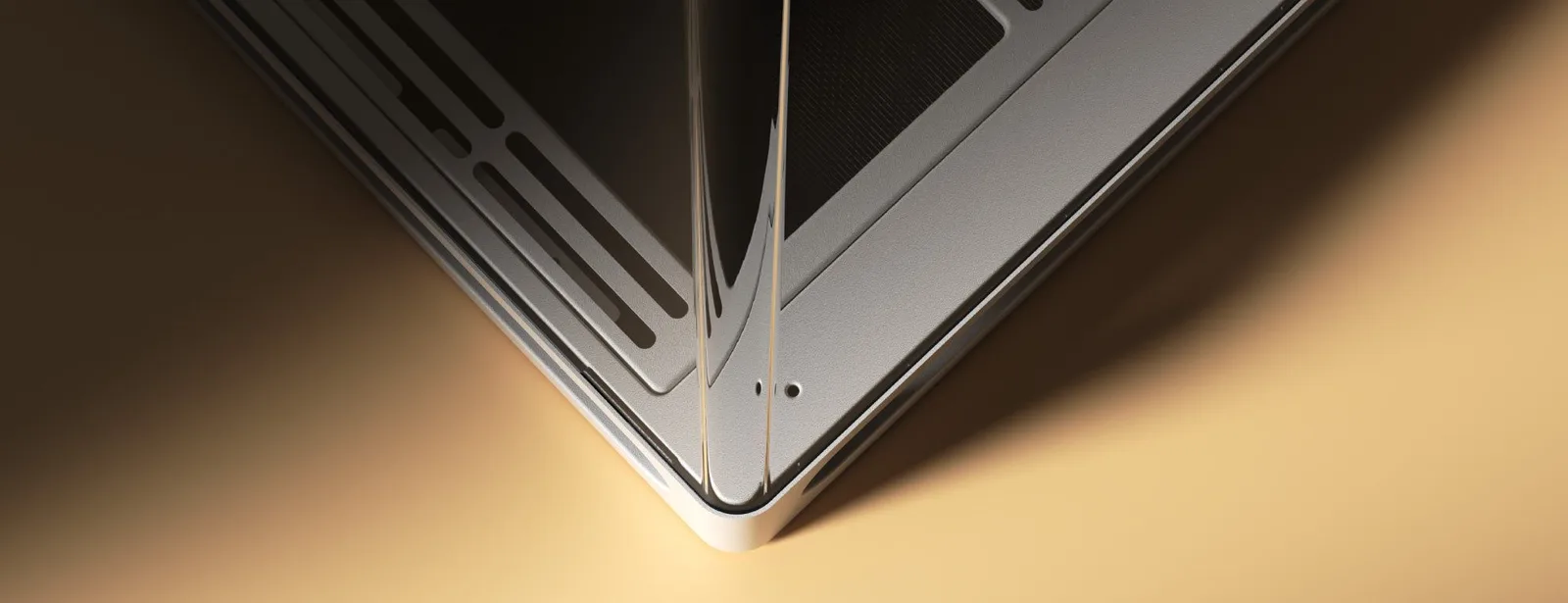

One Curved Glass Panel, Front and Side

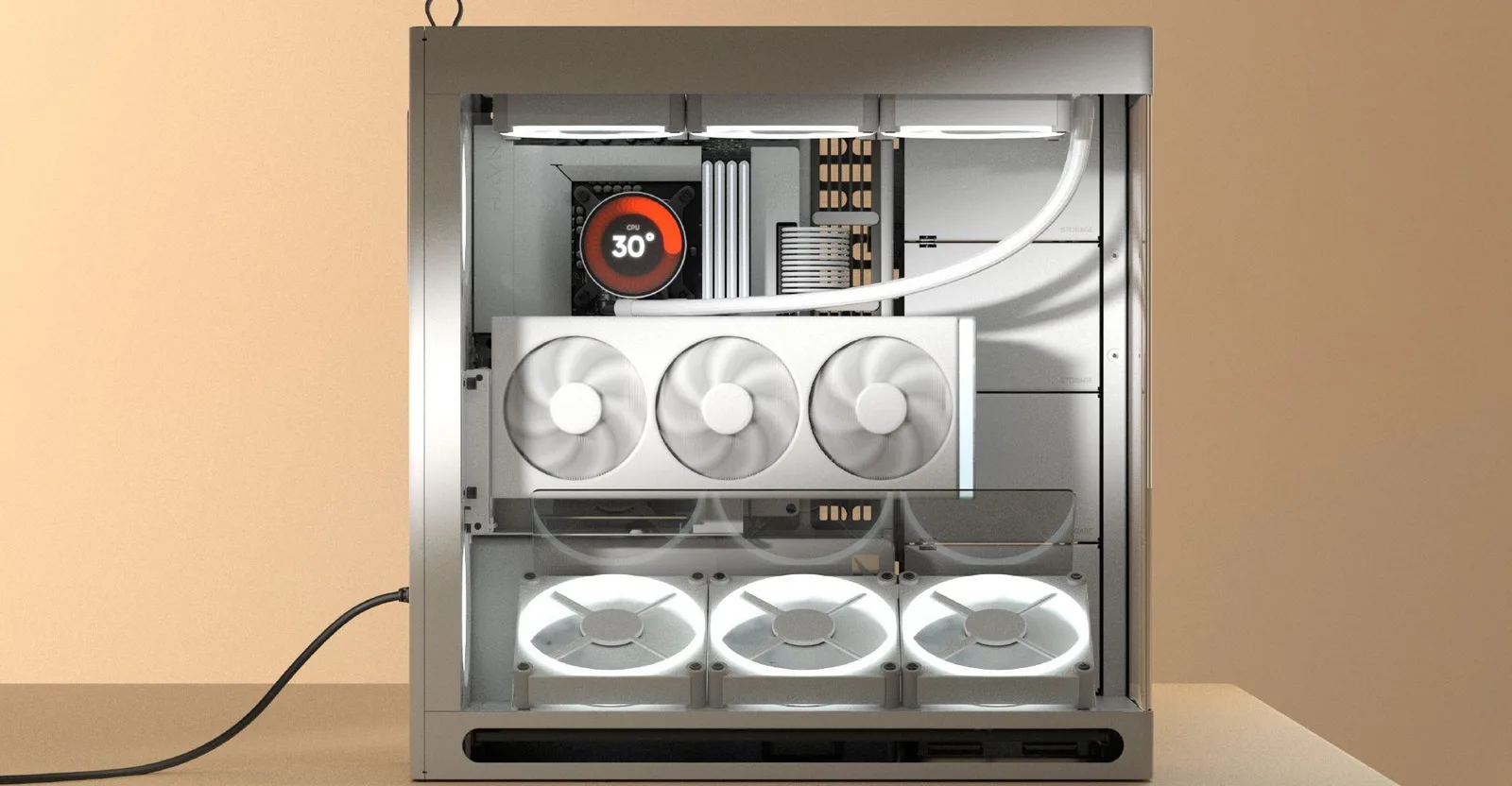

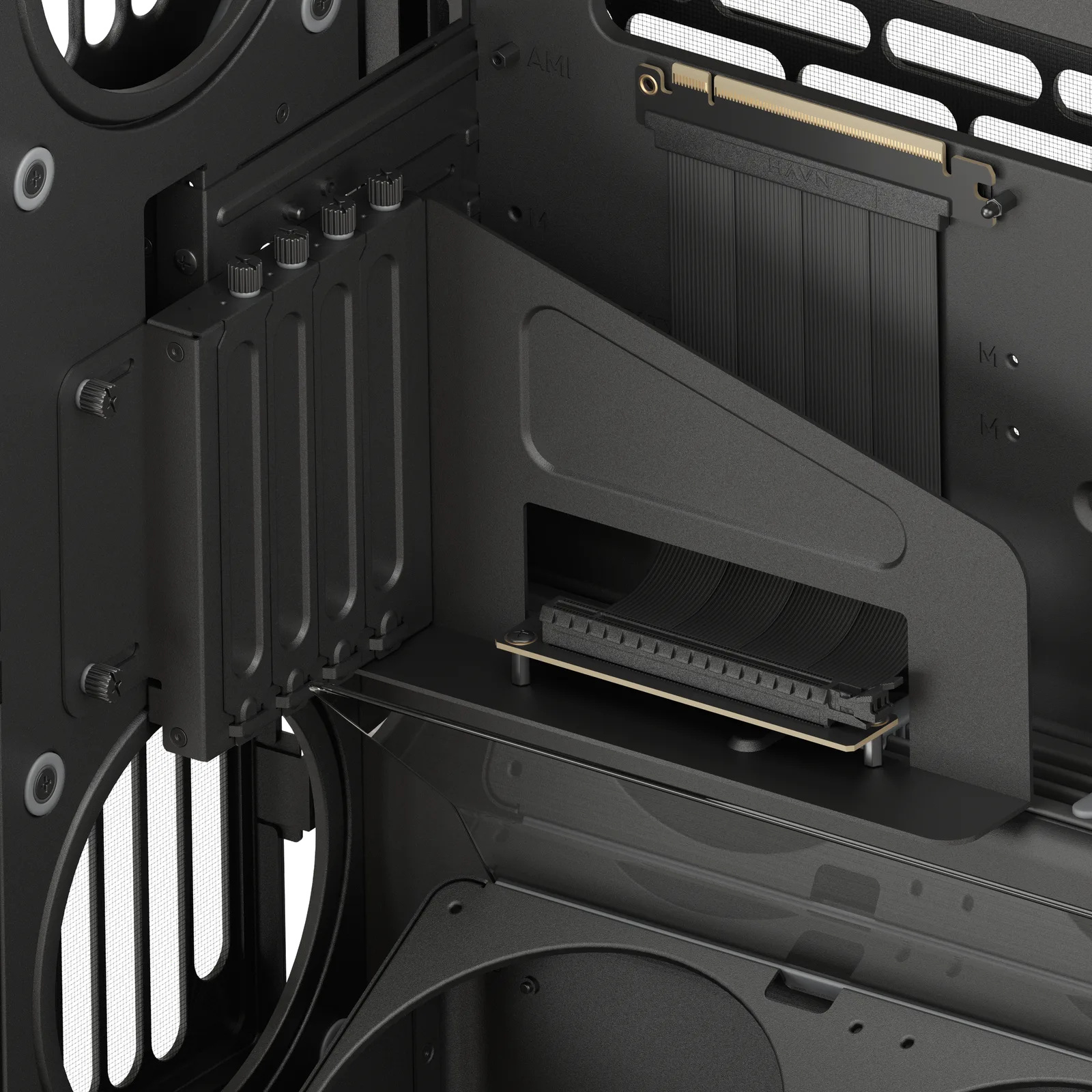

The Card Stands Upright

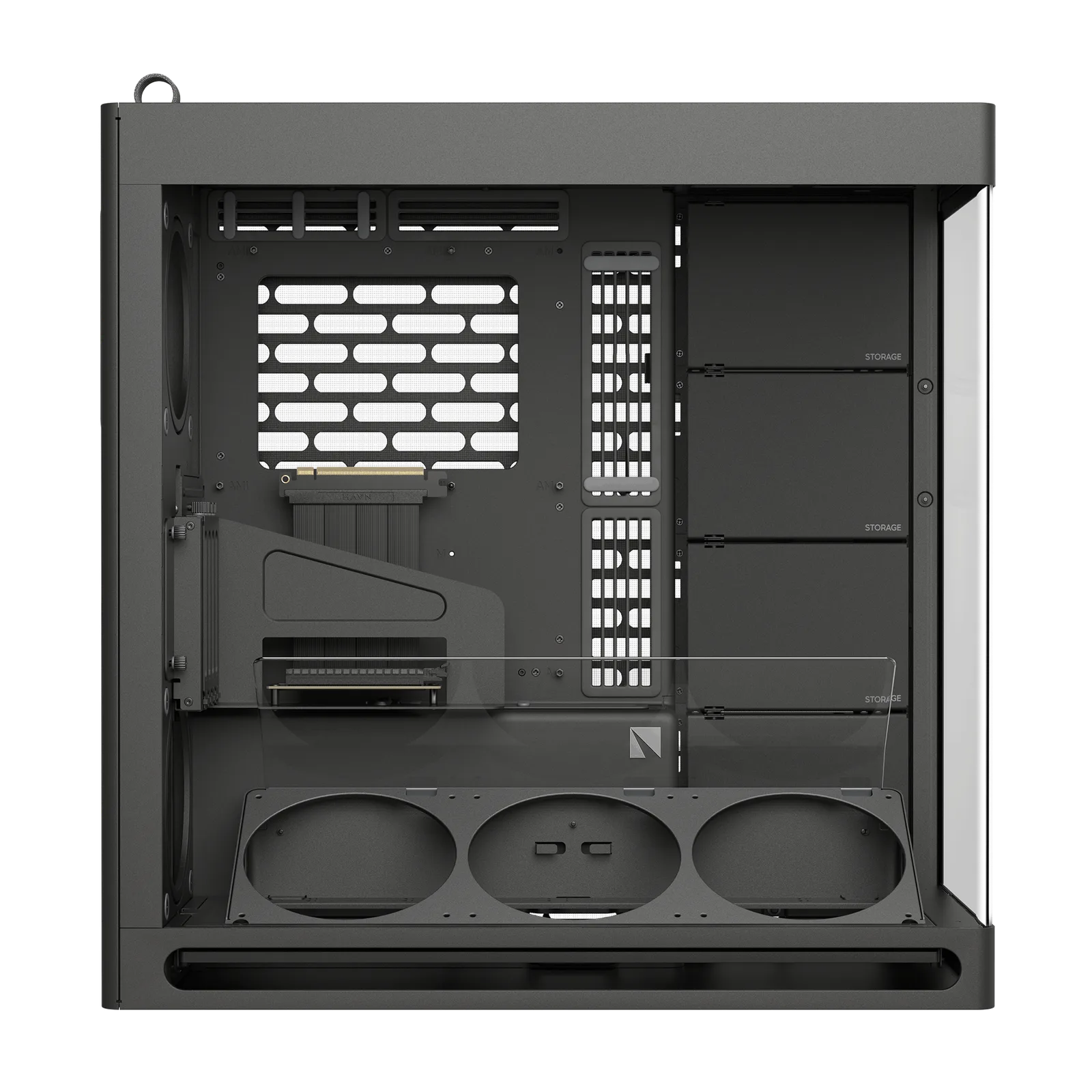

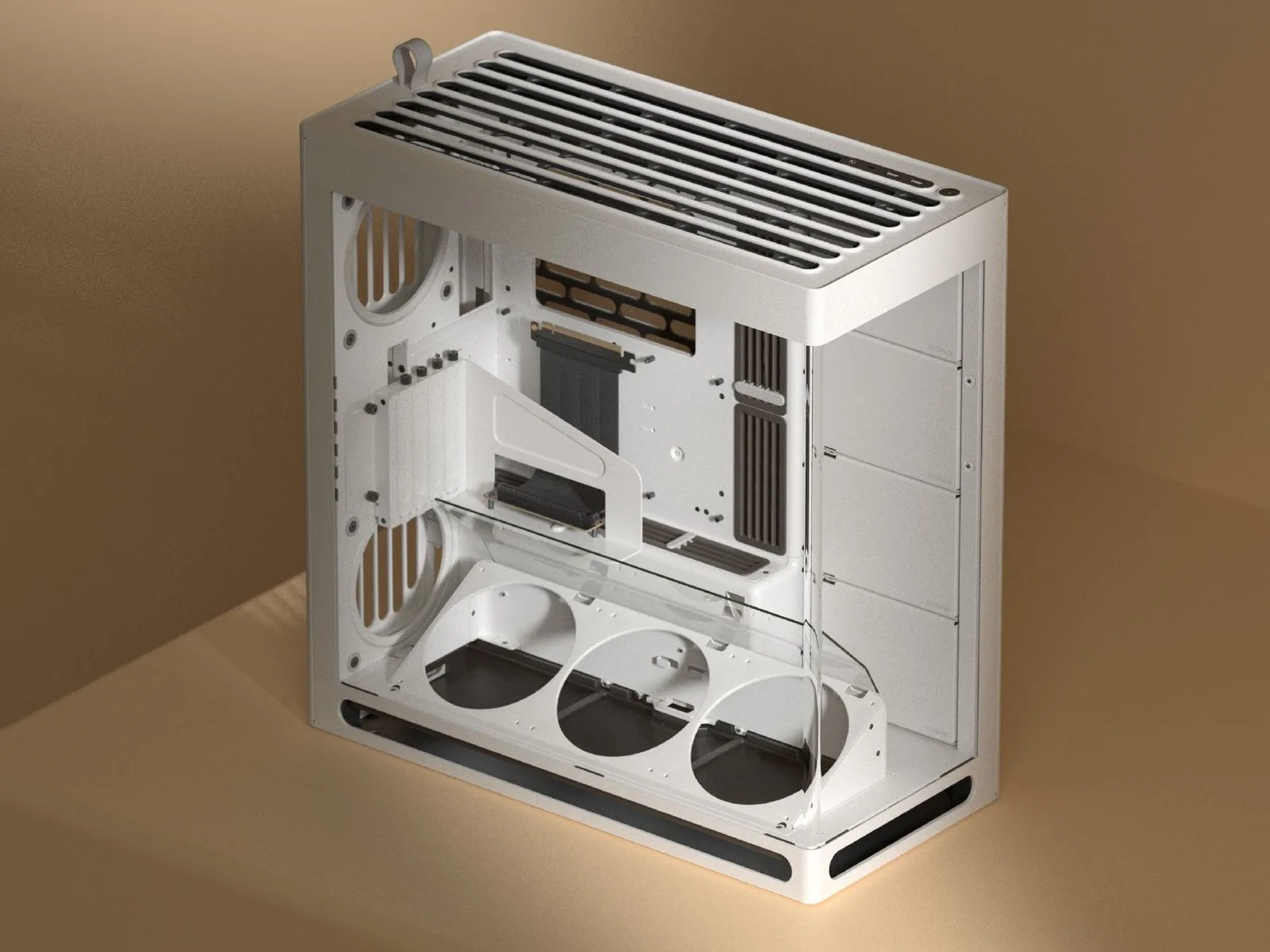

Vertical Mount, Angled Fans
Airflow
Glass Divider Above the Card
A detachable magnetic glass panel above the vertical card keeps the bottom intake air on the GPU. With the bottom glass guide, HAVN quotes up to 4 °C lower GPU temperature.

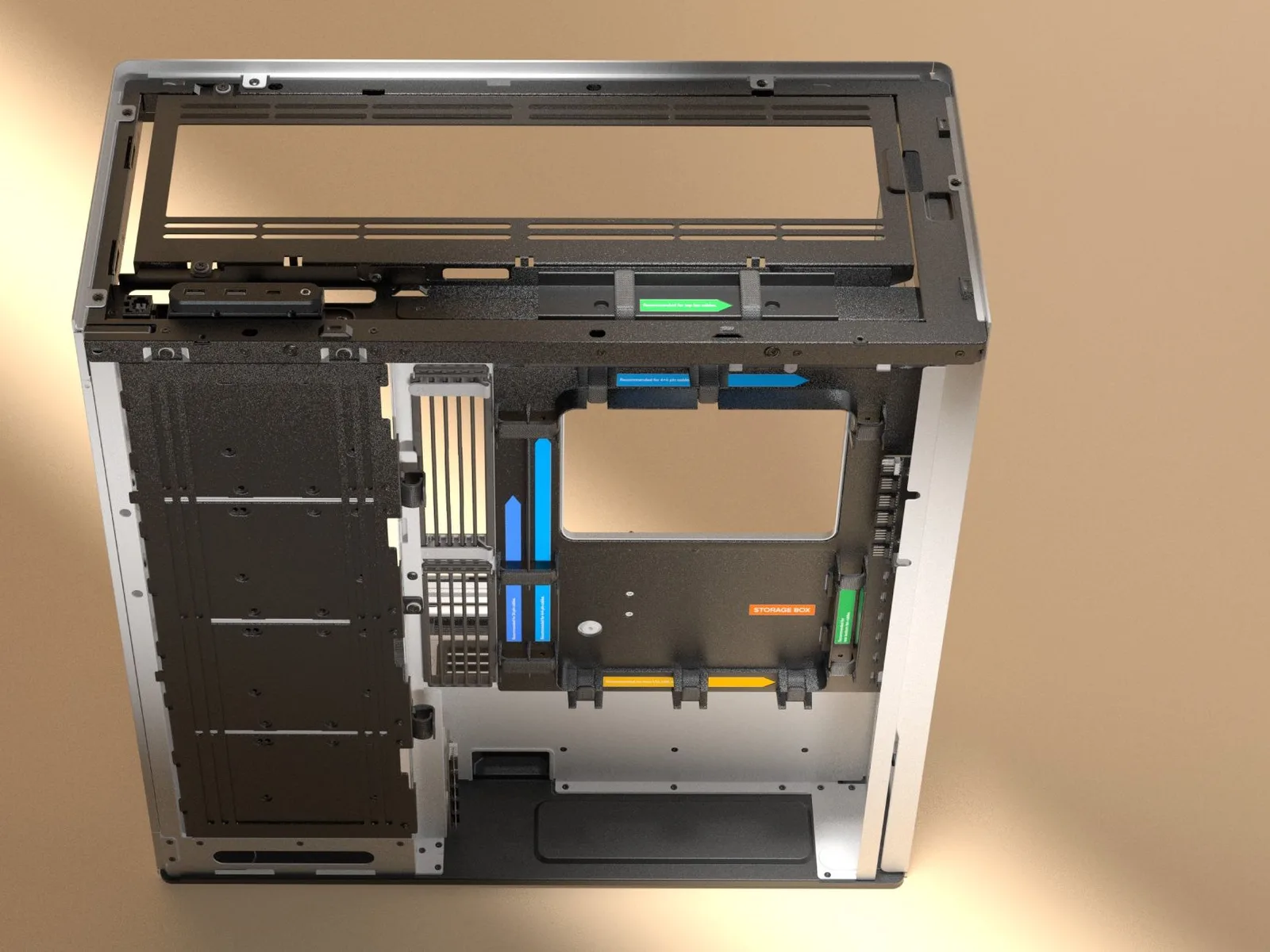

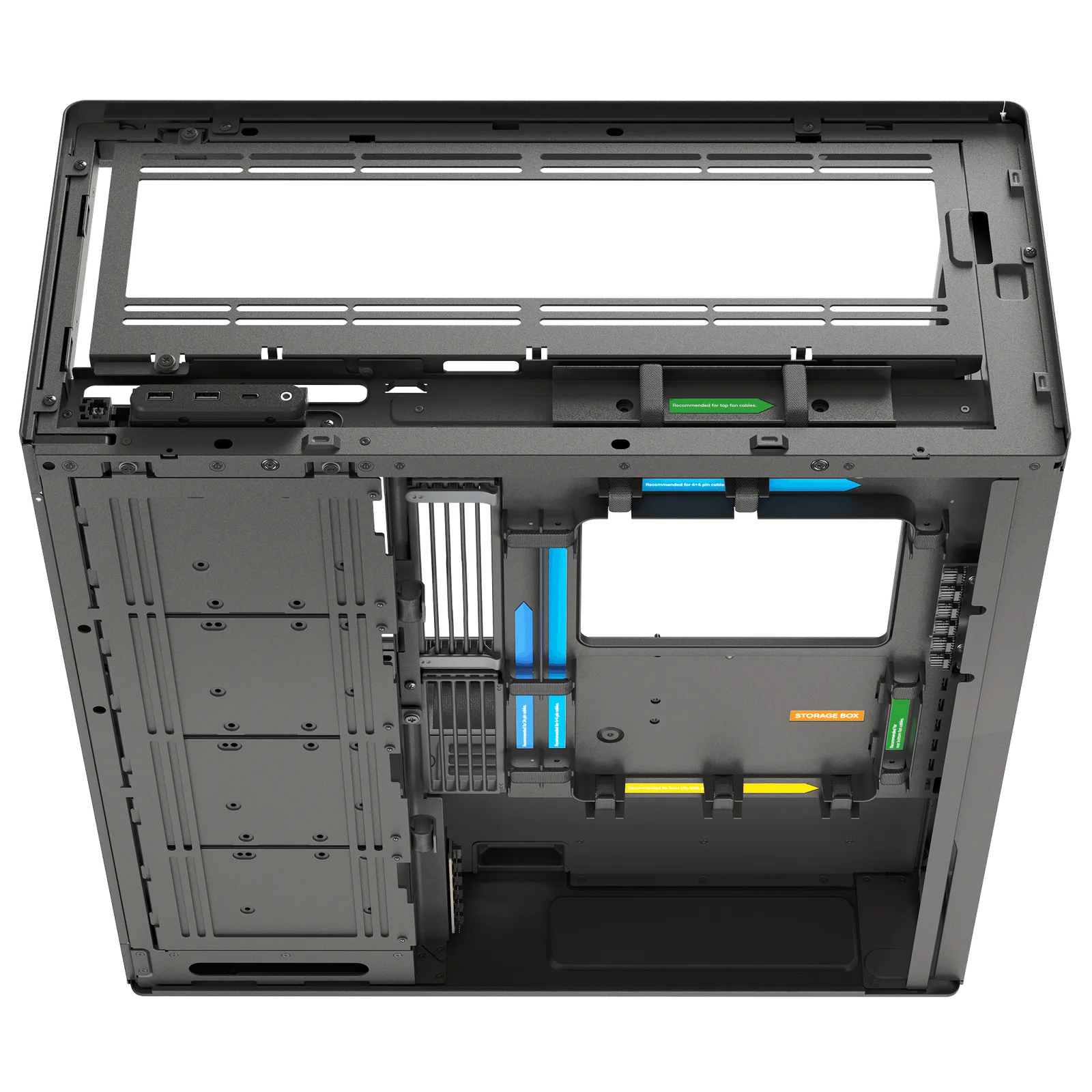

SimpliCable Routing Behind the Board
Specifications
- Expansion slots
- 7
- GPU length
- 430mm
- max
- CPU cooler height
- 170mm
- max
01
Overview
- Model
- HS 360 VGPU
- Type
- Dual-chamber mid-tower case (ATX)
- Colours
- Black / White
- Warranty
- Checked before dispatch; damage or a defect on arrival is covered if reported within 48 hours of delivery. No long-term warranty (HAVN's own covers US orders only).
02
Dimensions & Weight
- Dimensions (L × W × H)
- 490.9 × 242.1 × 520.9 mm
- Net weight
- 13.4 kg
03
Materials
- Materials
- Steel, ABS, curved glass
- Glass
- UniSheet tempered glass panel, curved around the front and side with no corner pillar (R7.5 mm corner)
04
Motherboard Support
- Form factors
- ATX / Micro-ATX / Mini-ITX, back-connect boards supported
05
Expansion & GPU
- Expansion slots
- 7
- GPU length
- 430 mm max
- Vertical GPU mount
- Vertical GPU bracket, PCI Express 5.0 riser cable included
06
CPU Cooler & Radiators
- CPU cooler height
- 170 mm max
- Top radiator
- Up to 360 mm (removable bracket)
- Side radiator
- Up to 360 mm
07
Fans
- Top fans
- 3 × 120mm
- Right fans
- 3 × 120mm (or drive cages in their place)
- Bottom fans
- 3 × 120mm (angled platform)
- Rear fans
- 2 × 120mm (upper and lower)
- Maximum fans
- 11 × 120mm (120 mm fans only)
- Included fans
- None
- Fan hub
- 8-port PWM hub, built in
- Dust filters
- Top, side and bottom
08
Storage
- Right-side bay
- 2 drive cages, each 1 × 3.5" or 2 × 2.5" (2 × 3.5" or 4 × 2.5" in total); the bay can take 3 × 120 mm fans or 1 fan + 1 cage instead
09

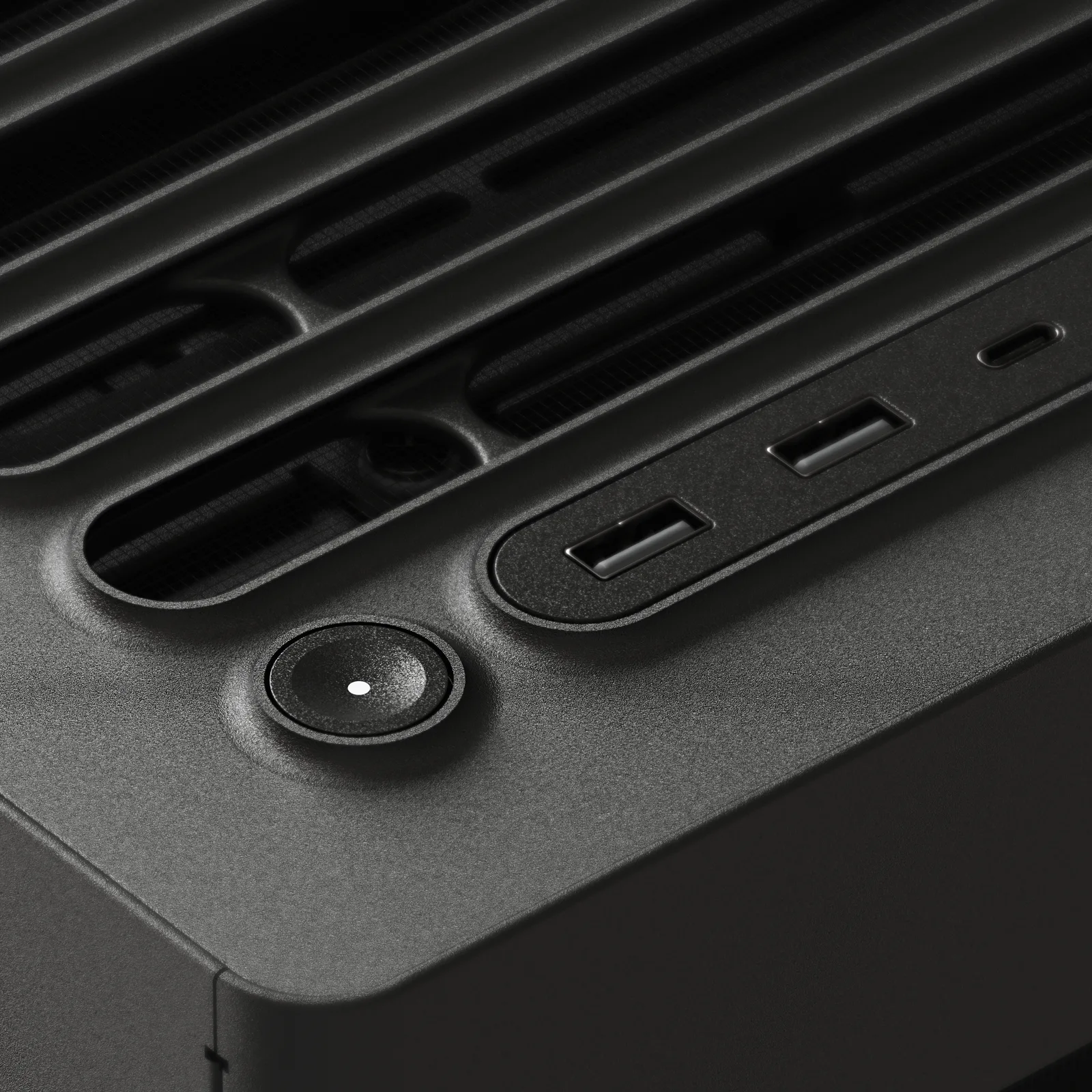

Front I/O
- USB-C
- 1 × USB 3.2 Gen 2 Type-C (10 Gbps)
- USB-A
- 2 × USB 3.2 Gen 1 (5 Gbps)
- Audio
- 1 × 3.5 mm combo audio jack
- Buttons
- Power (I/O panel on top)
10
Power Supply
- Support
- ATX, 230 mm max
11
Display Mount
- VESA
- Standard VESA bracket position
- Display area
- Up to 425 × 140 mm
- Location
- Right-side bay
12
In the box
- VGPU kit
- Vertical GPU bracket with PCI Express 5.0 riser cable, angled bottom fan platform, glass airflow guide at the bottom, detachable magnetic glass divider above the card
- Also included
- 8-port PWM fan hub (fitted), printed manual
