LIAN LI

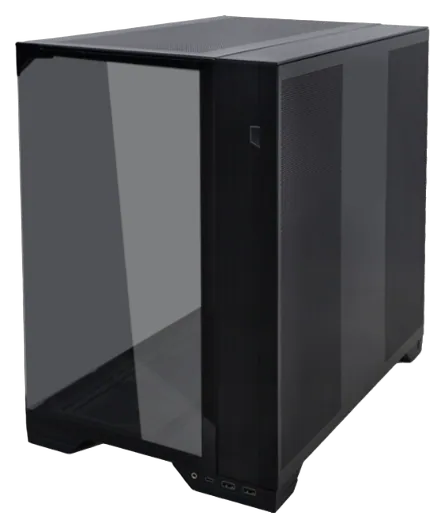

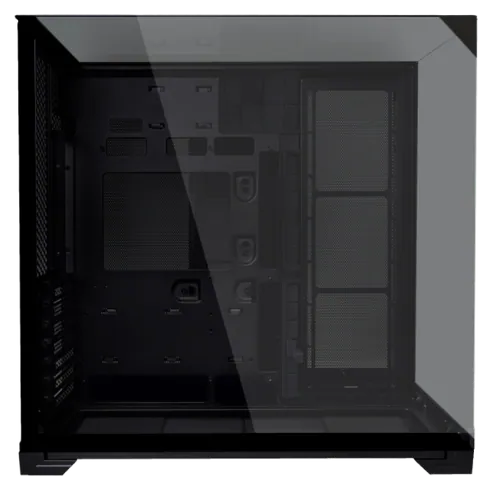

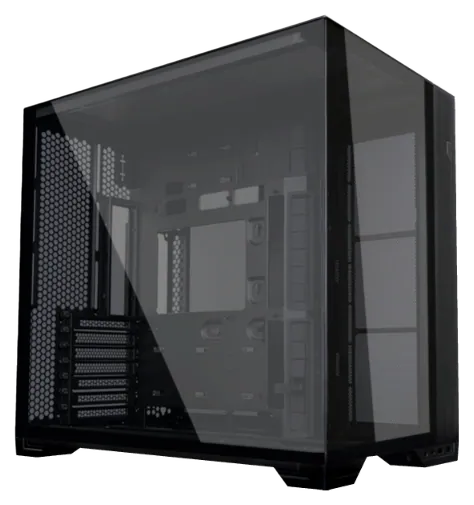

O11 Vision Compact Mid-Tower Case
ColorBlack
Rs 37,999Sold out
1
Details
The O11 Vision Compact keeps the pillarless three-side glass of the O11 Vision in a 57.4 L body, 10.4 L smaller than the original. Swap the top between a 3 mm glass panel and a mesh panel with a fan bracket that adds a 360mm radiator up top. It takes back-connect ATX boards, GPUs up to 408 mm and air coolers up to 167 mm, and hides the AIO tubing in the second chamber. Mesh mode fits up to 11 fans. Black comes with tinted glass, white with clear glass and matching hardware.

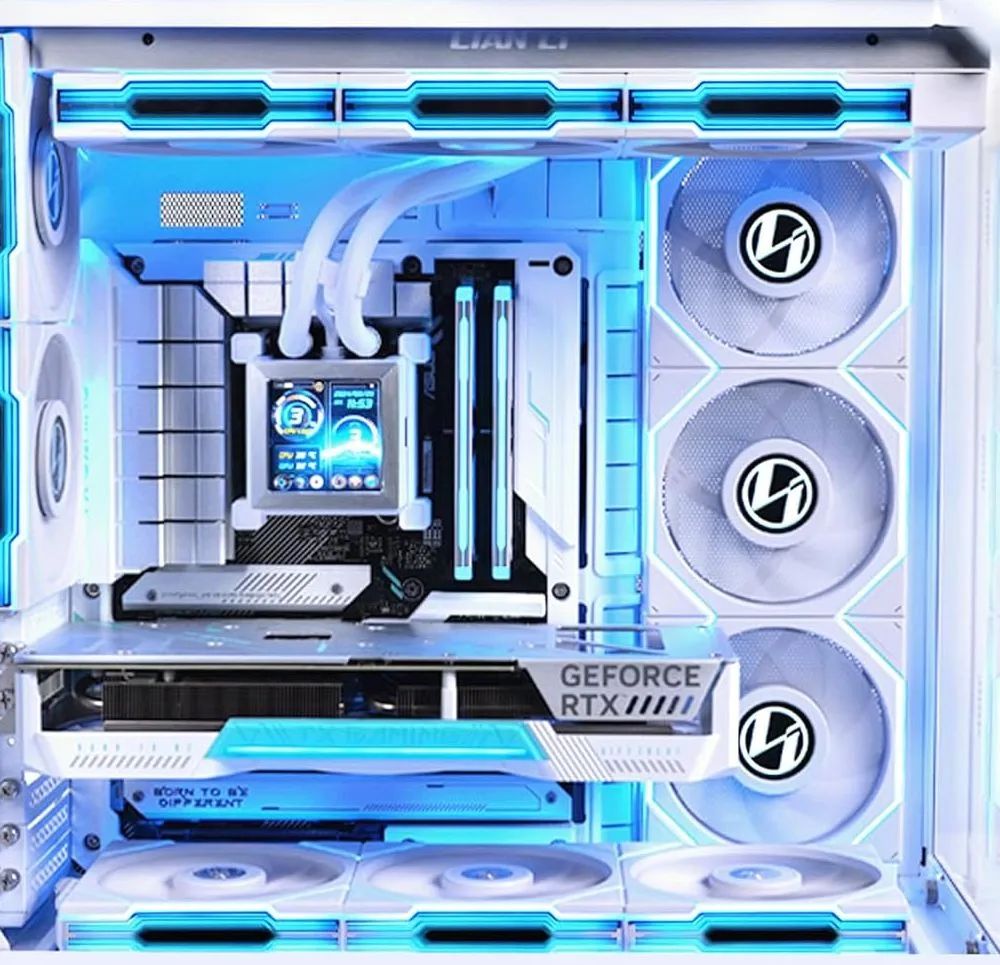

Mesh Top, Third Radiator

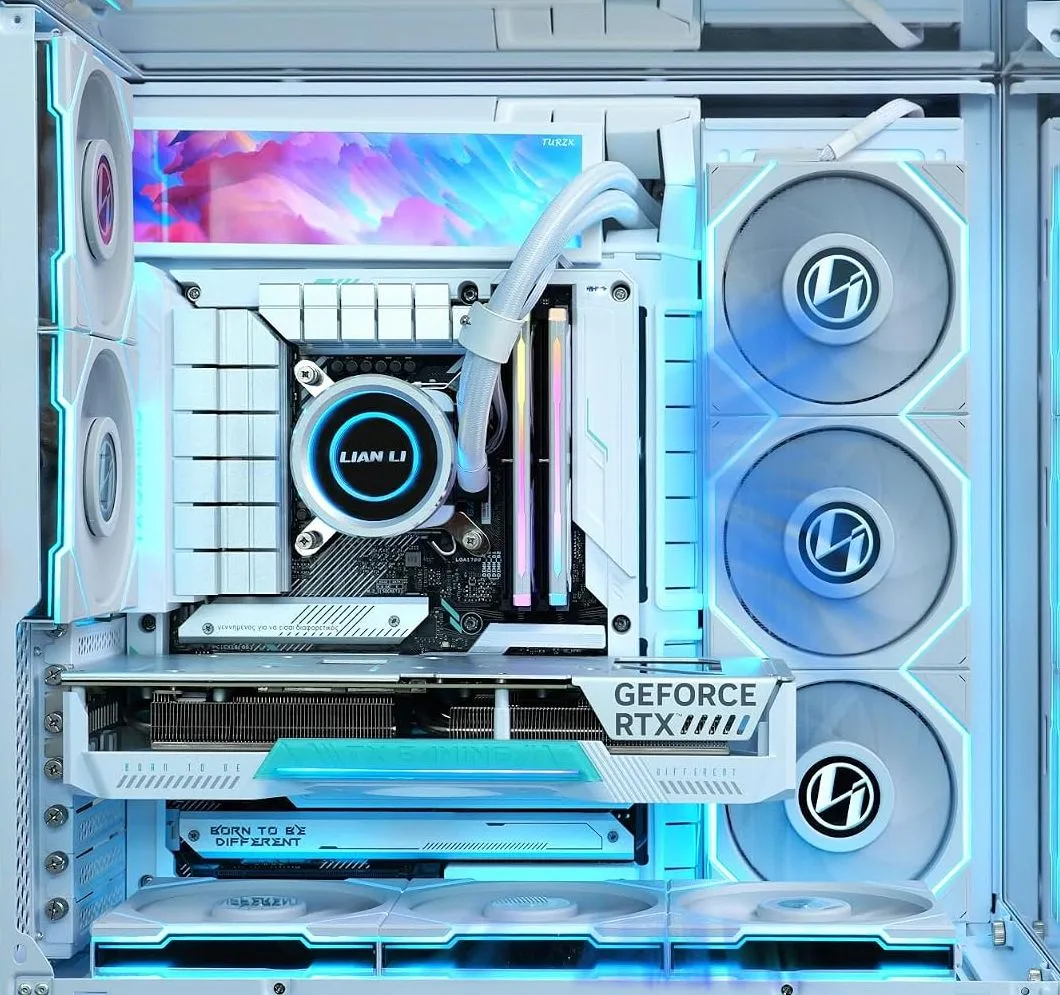

Glass Top, Clear View

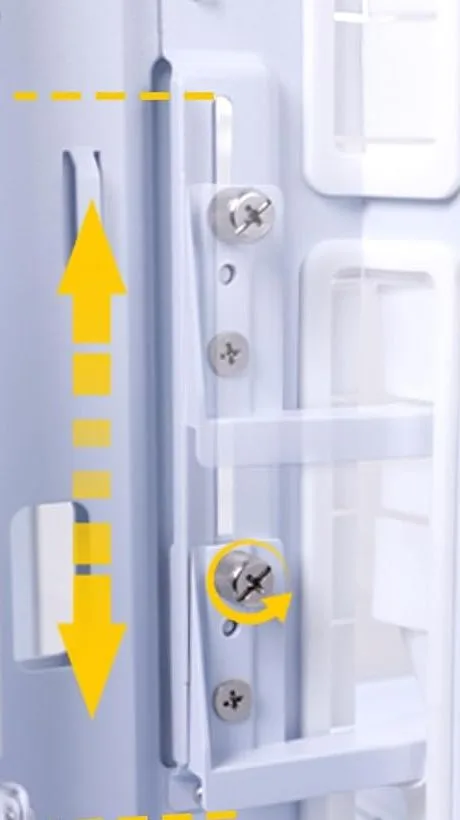

Built-In Anti-Sag Bracket

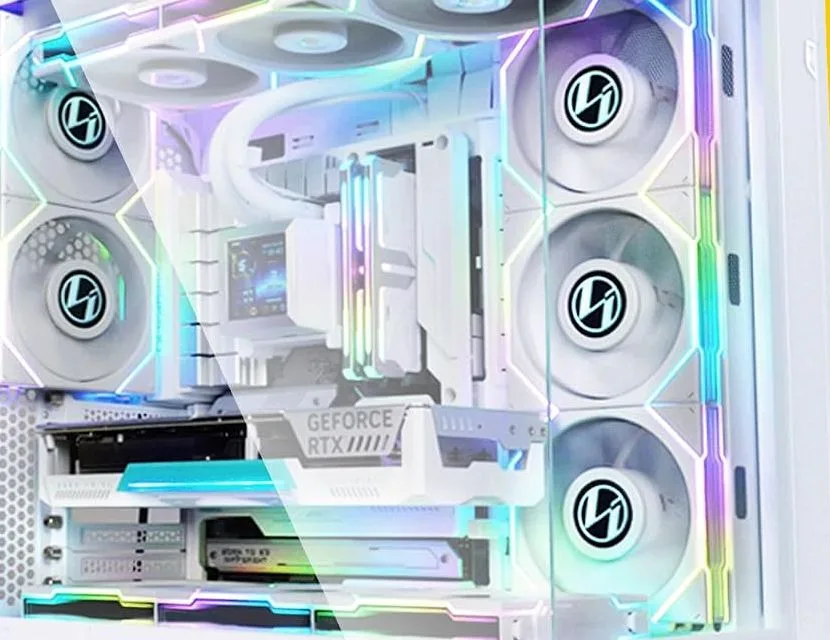

Made With PC Master Race

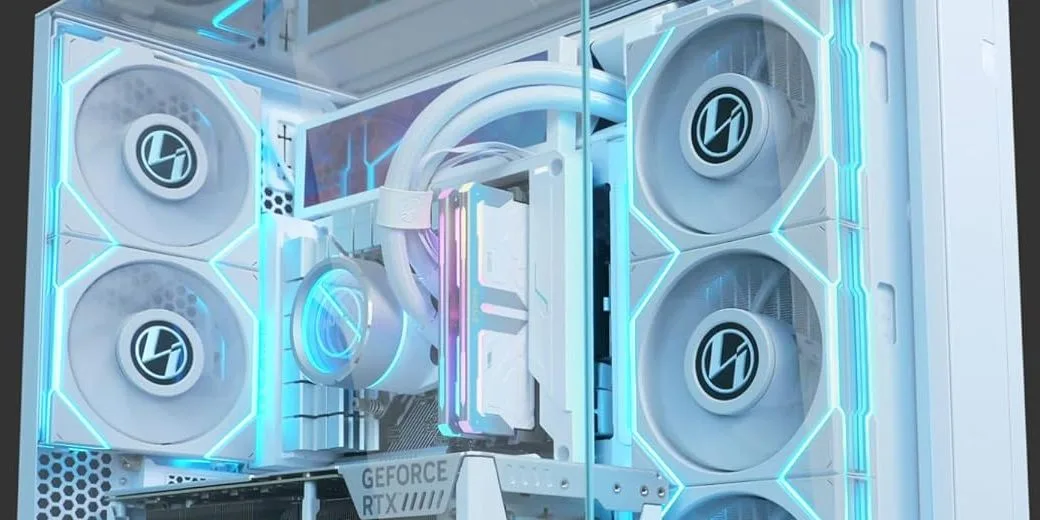

Room for 11 Fans
Specifications
- GPU length
- 408mm
- max
- CPU cooler height
- 167mm
- max
- Top radiator
- 360mm
- max (also 240 / 280), mesh mode only
- Side radiator
- 360mm
- max (also 240)
01
Overview
- Model
- O11 Vision Compact
- Model no.
- O11VPX (Black) · O11VPW (White)
- Case type
- Tower chassis, dual chamber
- Colours
- Black / White
- Top panel
- Swappable: 3 mm tempered glass, or mesh with fan bracket
- Co-developed with
- PC Master Race (PCMR)
02
Dimensions & Weight
- Dimensions
- 447.5 × 287.5 × 446.4 mm (D × W × H)
- Volume
- 57.4 L
03
Materials
- Materials
- Steel, aluminium, 4.0 mm and 3.0 mm tempered glass
- Black
- Brushed aluminium, tinted 4 mm side and front glass, inner corner silkscreen
- White
- White powder-coated aluminium, clear 4 mm side and front glass, outer corner silkscreen
04
Motherboard Support
- Form factors
- Back-connect ATX / E-ATX (under 280 mm) / ATX / Micro-ATX / Mini-ITX
05
Expansion & GPU
- Expansion slots
- 6 + 1
- GPU length
- 408 mm max
- GPU support
- Removable anti-sag bracket for 278–408 mm cards, height set from behind the tray
06
CPU Cooler & Radiators
- CPU cooler height
- 167 mm max
- Top radiator
- 360 mm max (also 240 / 280), mesh mode only
- Side radiator
- 360 mm max (also 240)
- Bottom radiator
- 360 mm max (also 240)
07
Fans
- Top fans
- 3 × 120mm or 2 × 140mm (mesh mode)
- Side fans
- 3 × 120mm
- Bottom fans
- 3 × 120mm
- Rear fans
- 2 × 120mm
- Max fans
- 11 × 120mm, or 2 × 140mm + 8 × 120mm (mesh mode) · 8 × 120mm (glass mode)
- Side bracket
- Removable and reversible
- Side bracket note
- GALAHAD II Trinity Performance does not fit the side bracket (too wide)
08
Storage
- Behind motherboard tray
- 2 × 2.5″ SSD
- Drive cages
- 2 × 3.5″ HDD or 2.5″ SSD, each cage removable
09
Front I/O
- Ports
- USB 3.0 × 2, USB 3.1 Type-C × 1, Audio × 1
- Power button
- White backlight
10
Power Supply
- PSU support
- ATX, under 220 mm
- PSU bracket
- Extends 15 mm past the rear for cable room
11
Extras
- Dust filter
- Bottom × 1, full length, magnetic, slides out
- Screen mount
- Space above the motherboard for a 5–8.8″ screen (screen not included)
- Cable management
- 2 dual-layer cable clips, 6 Velcro straps, magnetic cable bar
- Glass support
- Magnetic mounting key at the top corner, rated for 35 kg
