ASIAHORSE
Scutum ATX Dual-Chamber Case
Rs 24,999Sold out
1
Details

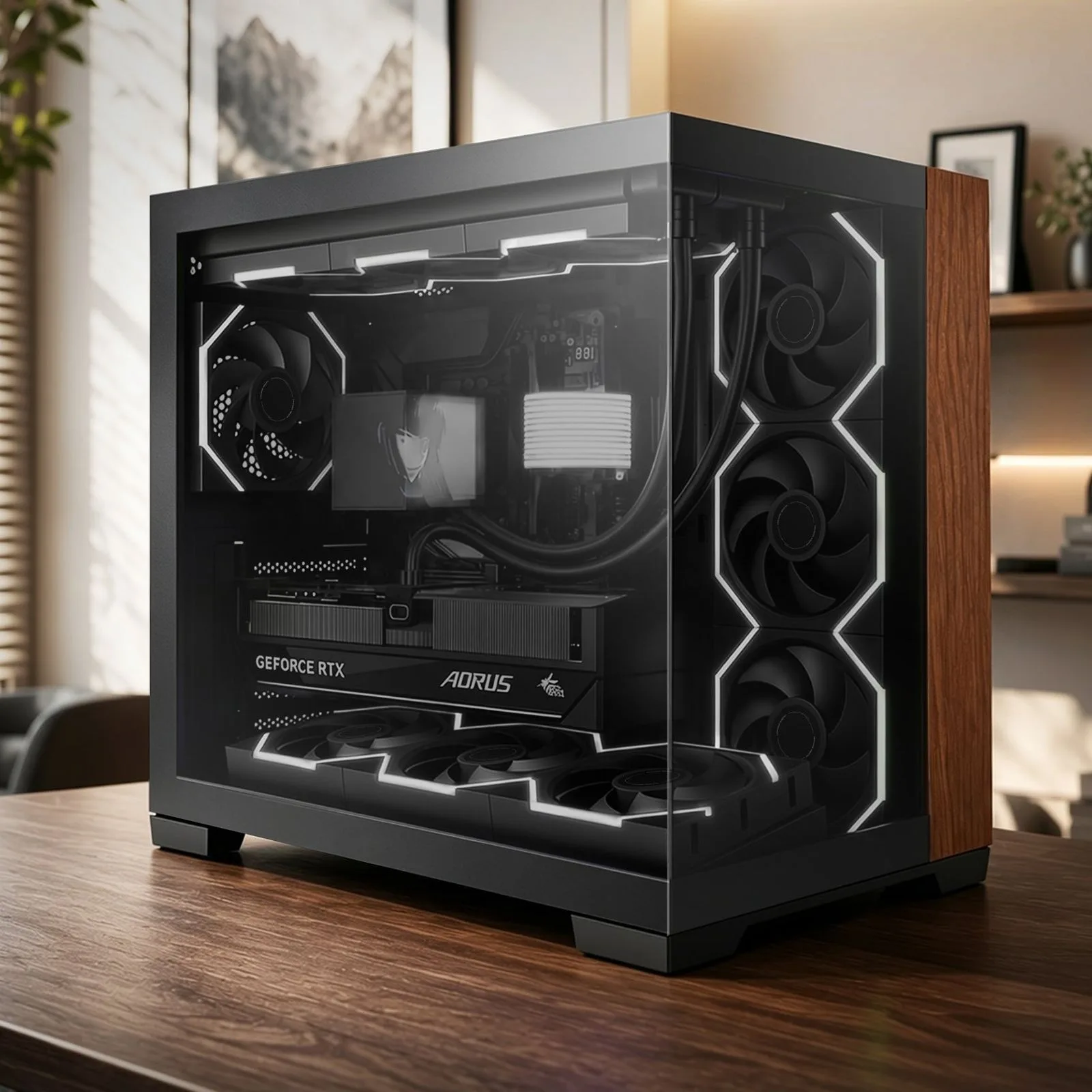

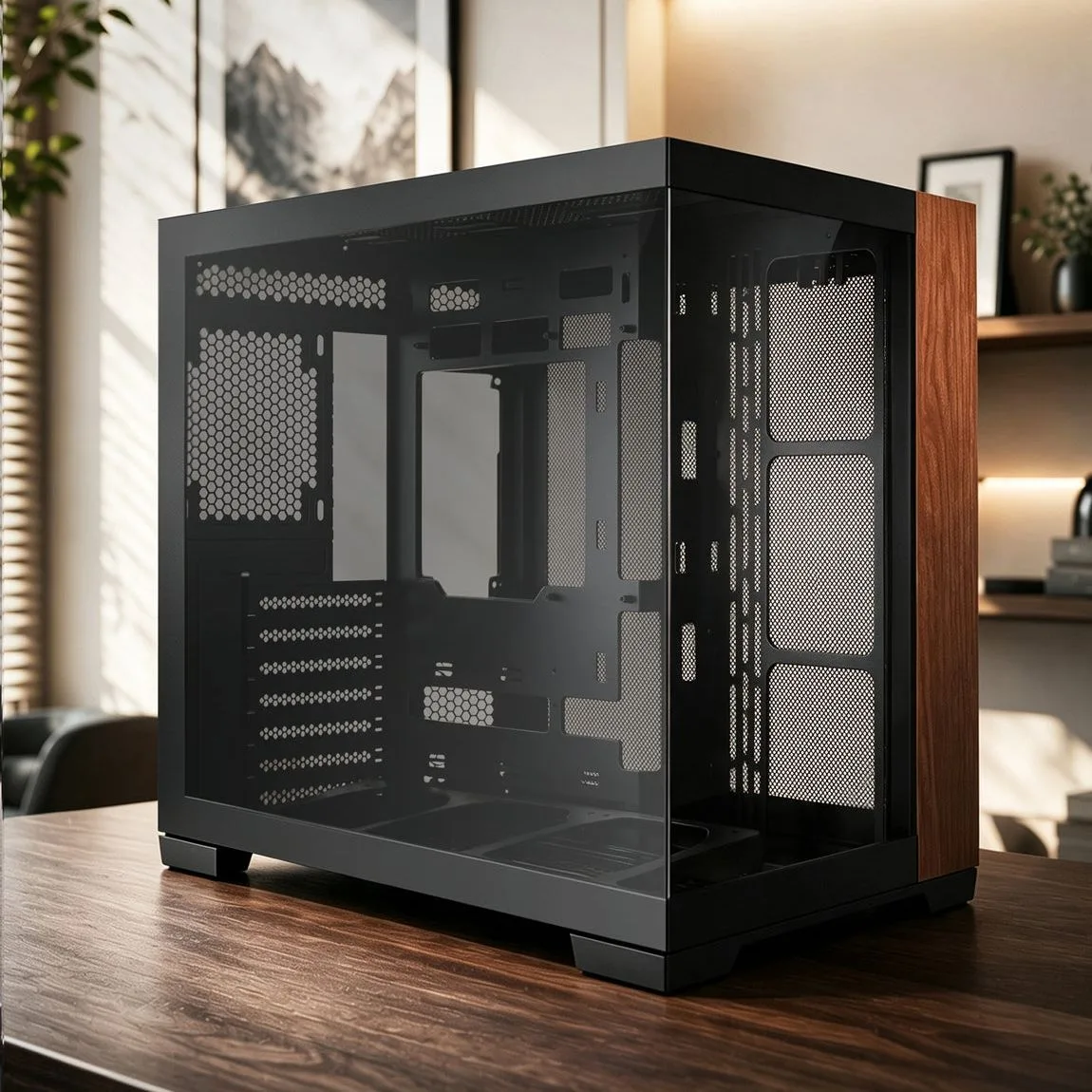

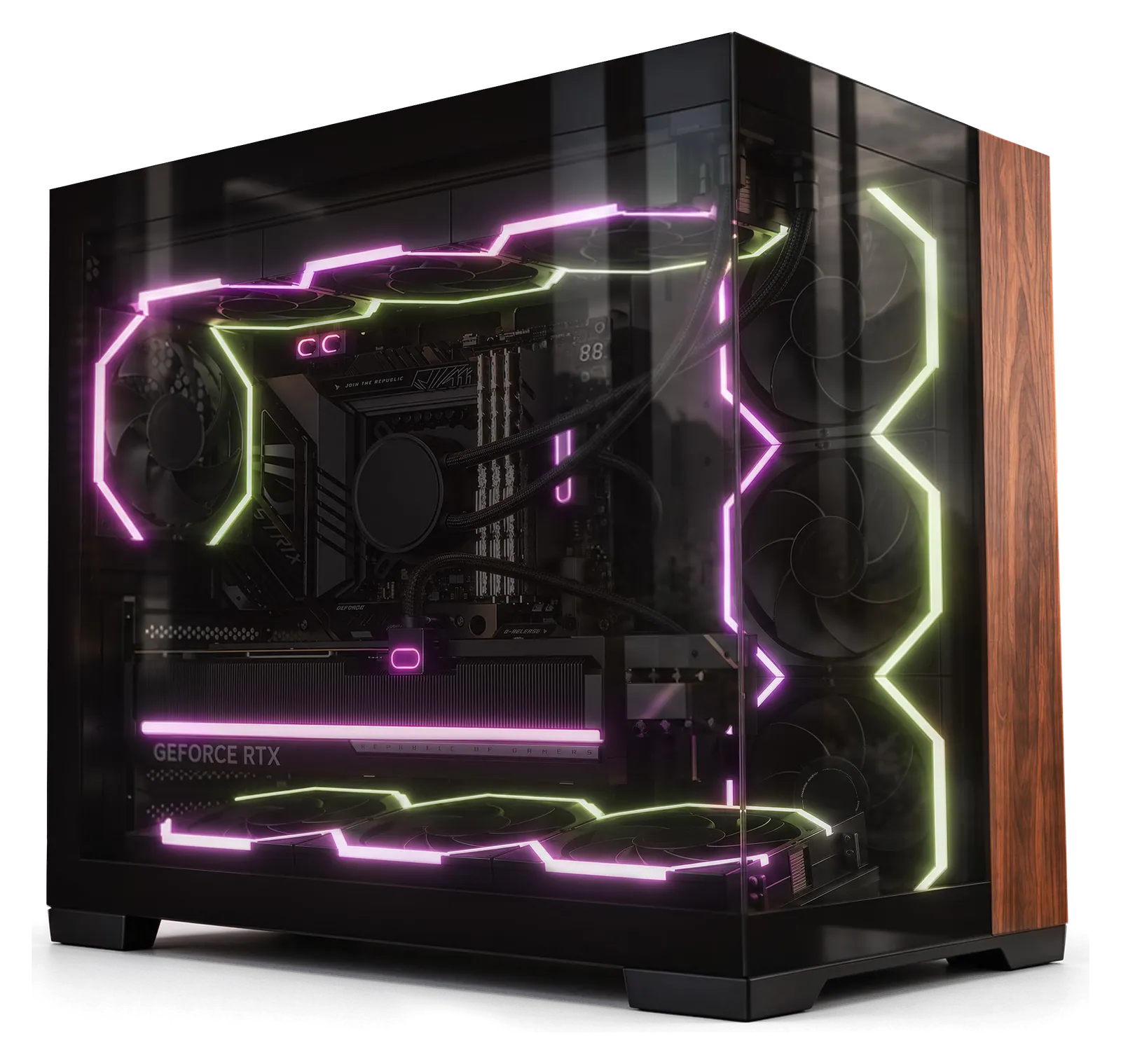

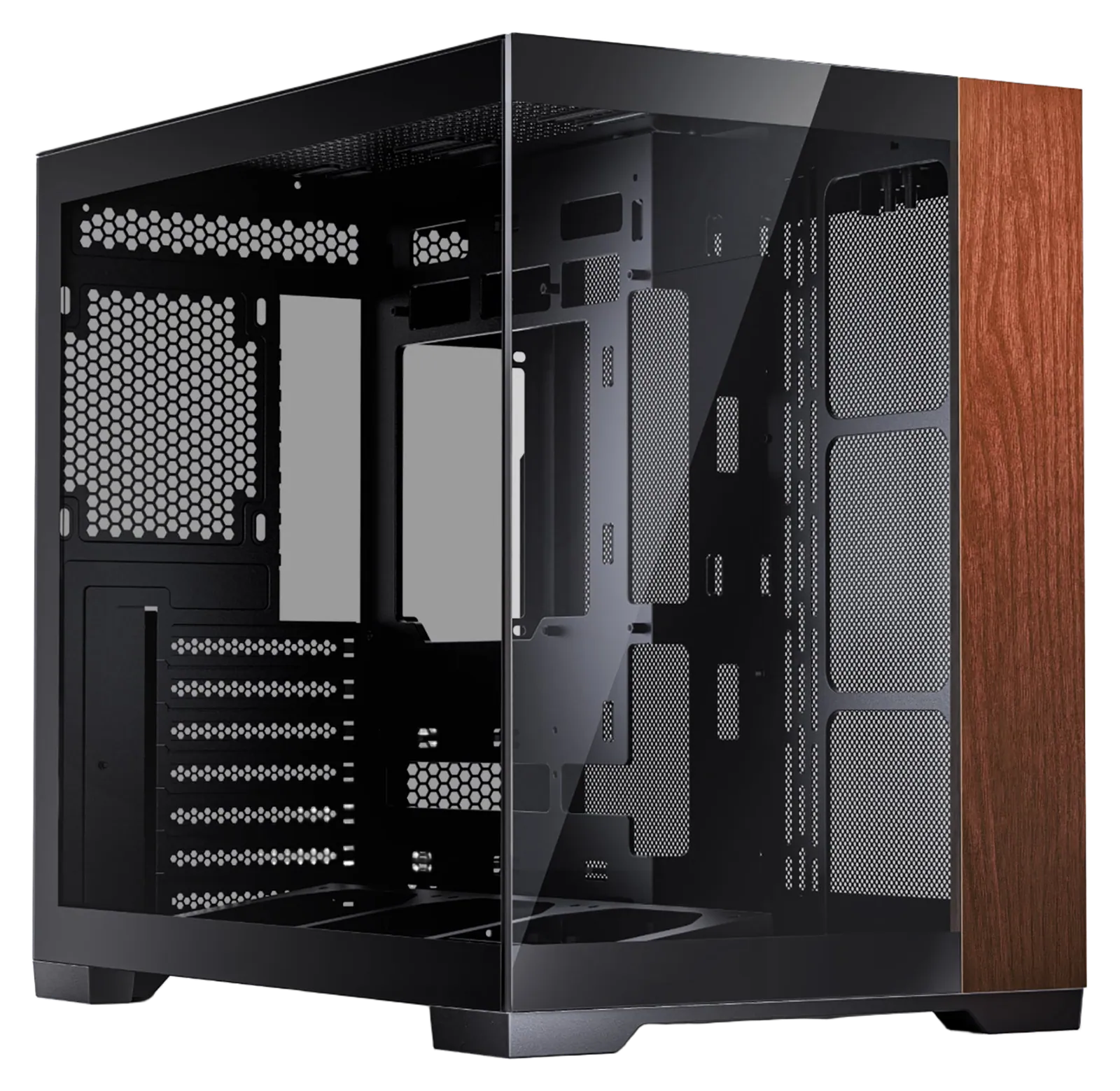

The Scutum wraps a dual-chamber ATX case in 4 mm tempered glass across 270° and finishes the front corner with a panel of real ash wood, so the grain and tone differ from case to case. It takes ATX, M-ATX and Mini-ITX boards, including back-connect BTF models, GPUs up to 410 mm and air coolers up to 160 mm. A 360mm radiator fits up top, and the bottom fan bracket tilts 10° to push intake air at the graphics card. The front I/O has a 20Gbps USB-C port. This is the Standard edition: case and hardware kit, no fans.

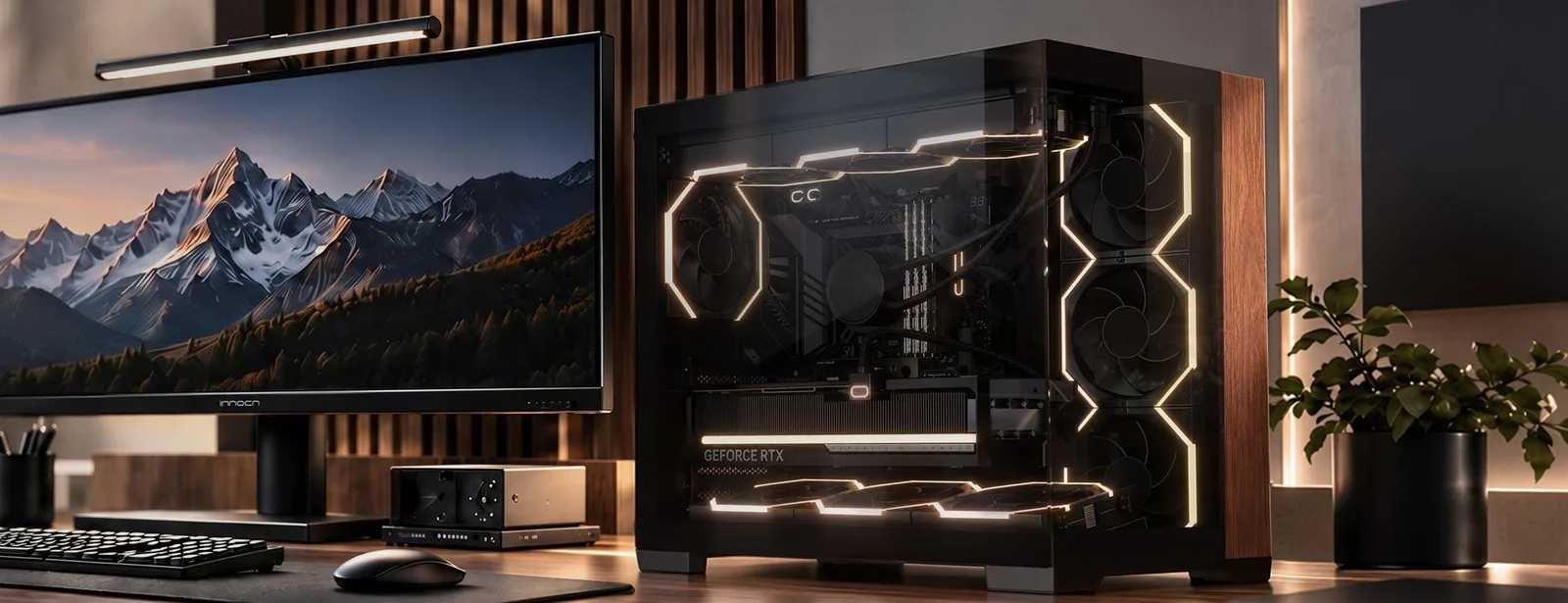

Ash Wood Meets 270° Glass

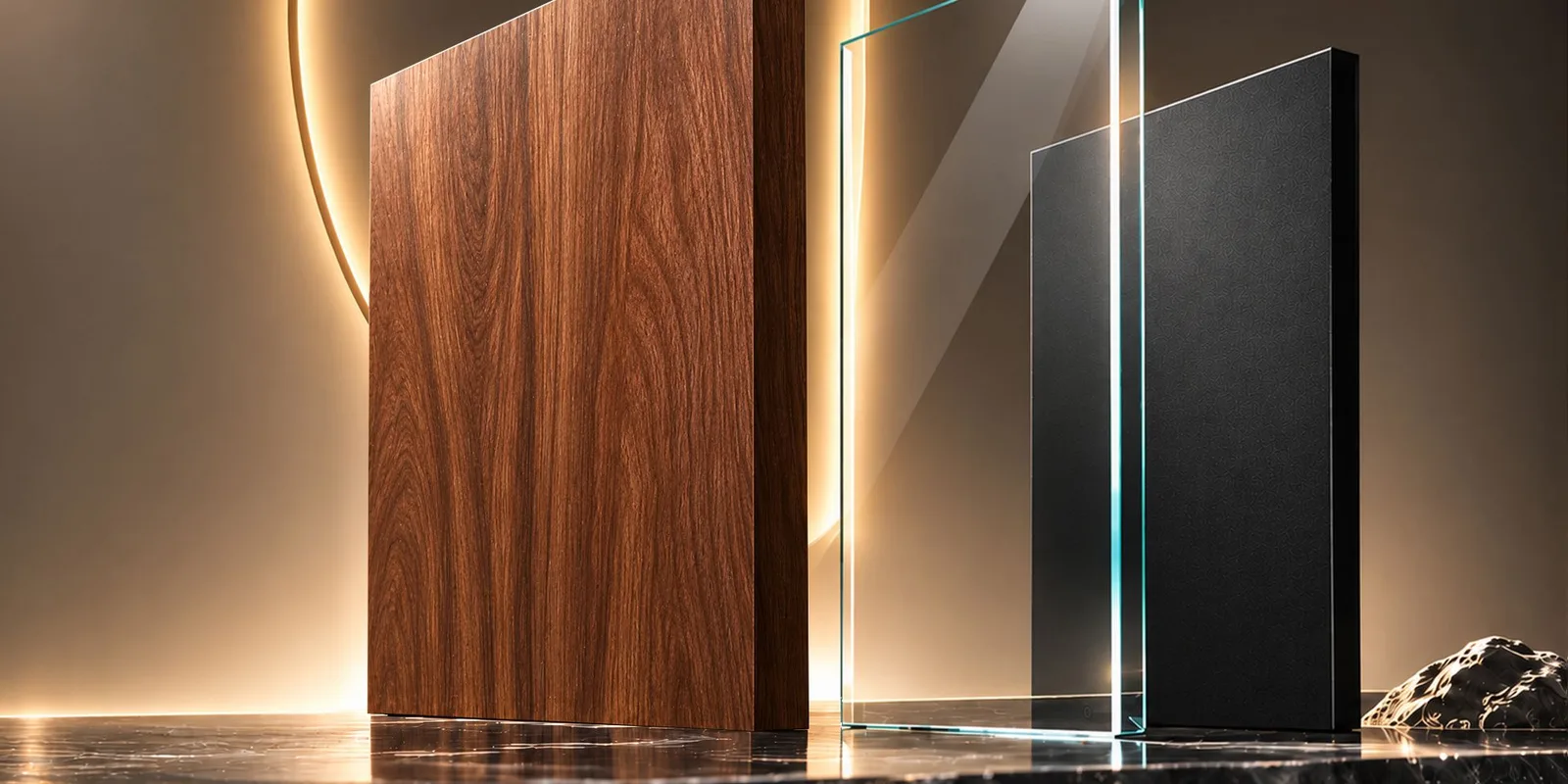

Wood, 4 mm Glass, SPCC Steel

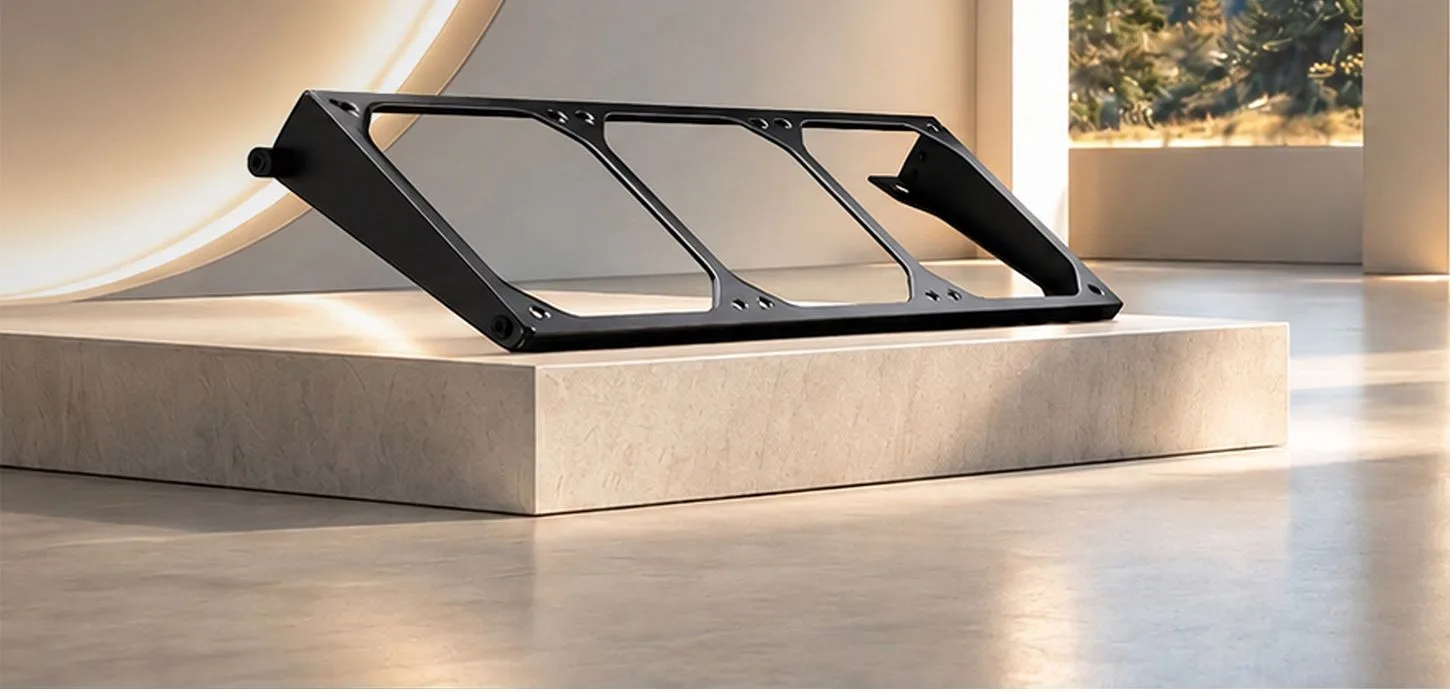

10° Tilted Bottom Fan Bracket

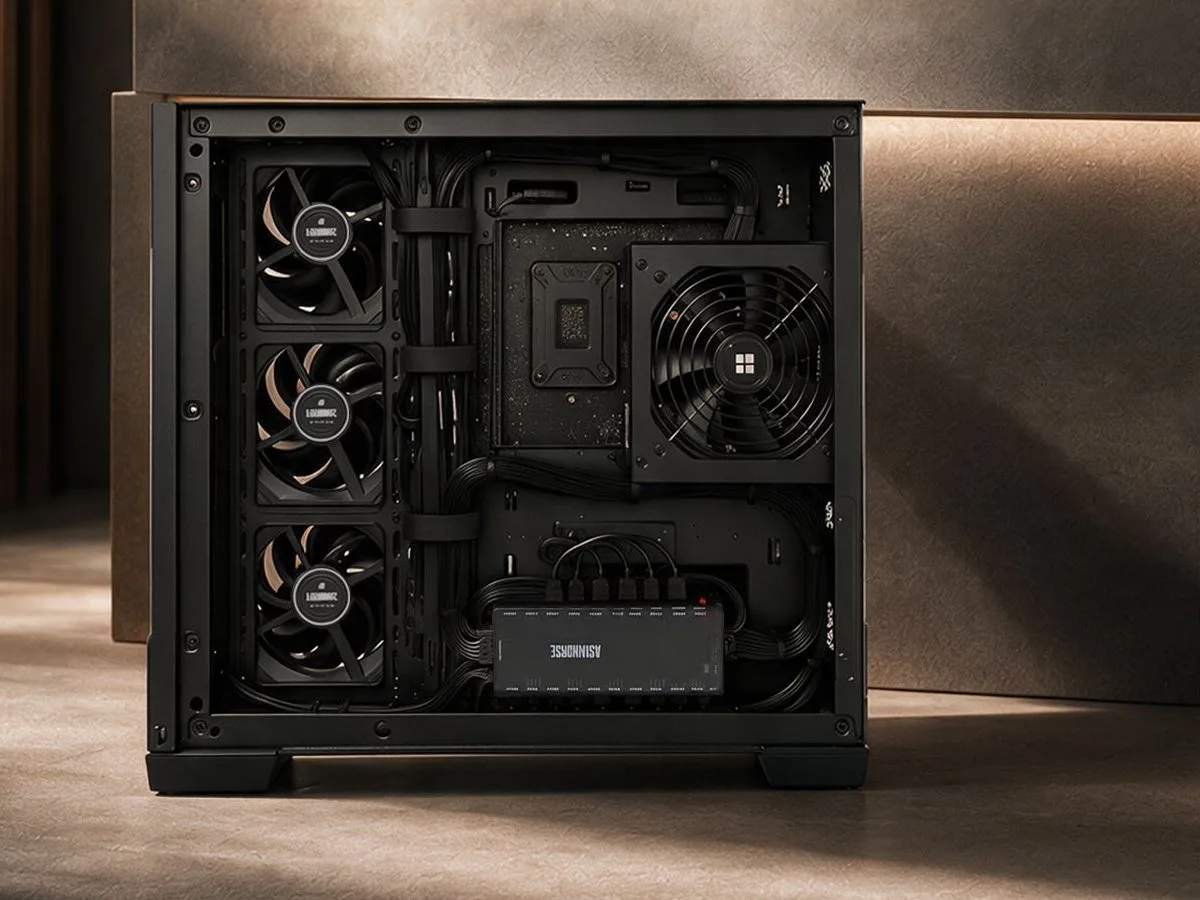

Dual-Chamber Cable Routing

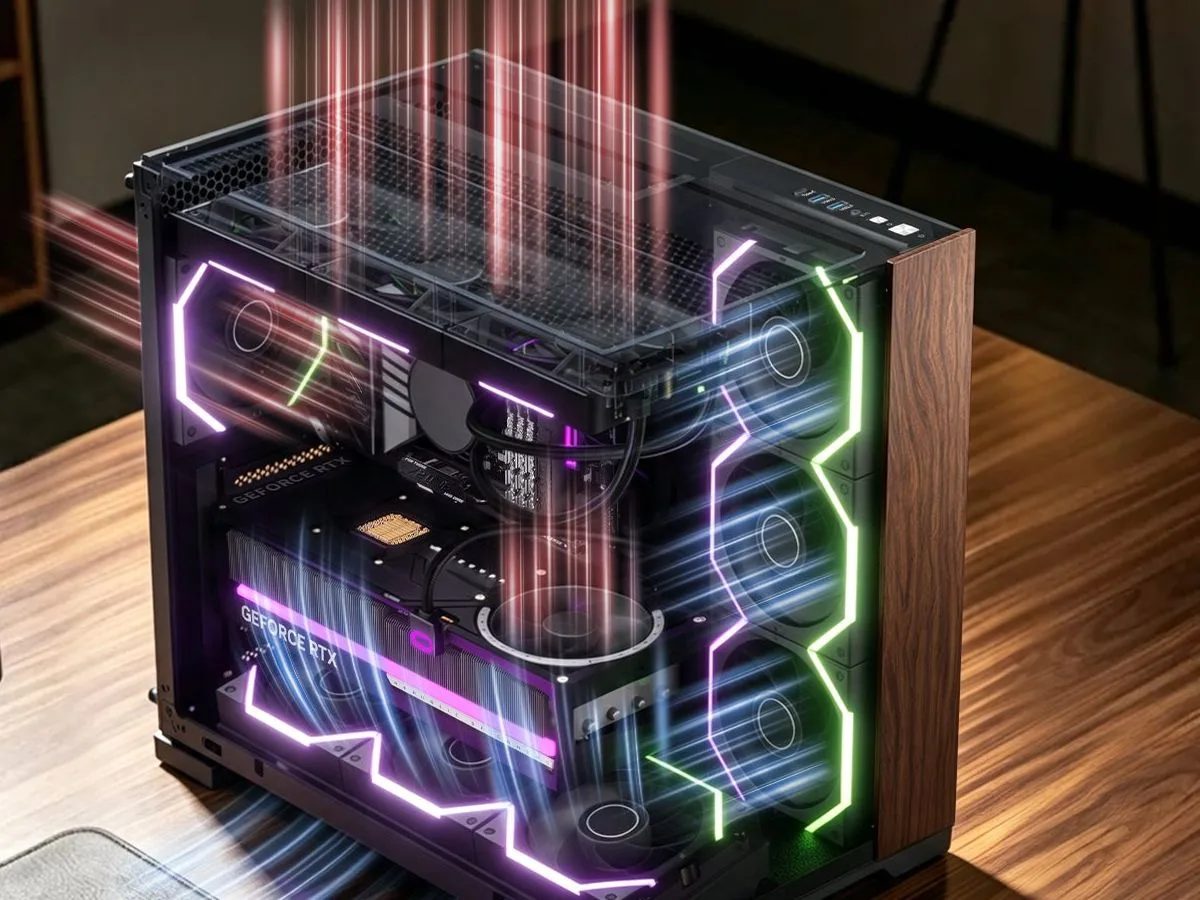

Side & Bottom In, Top & Rear Out

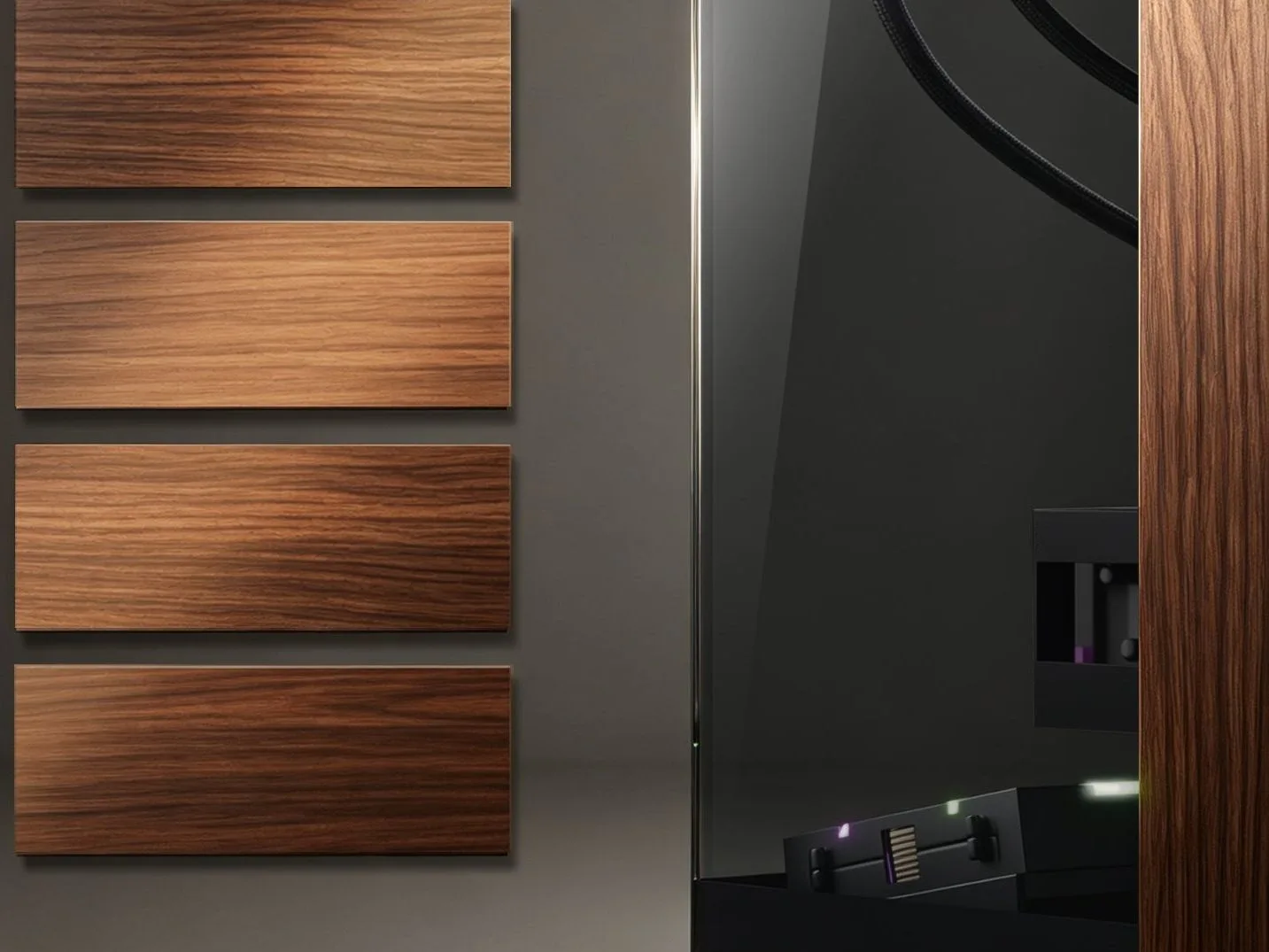

Grain Differs Case to Case

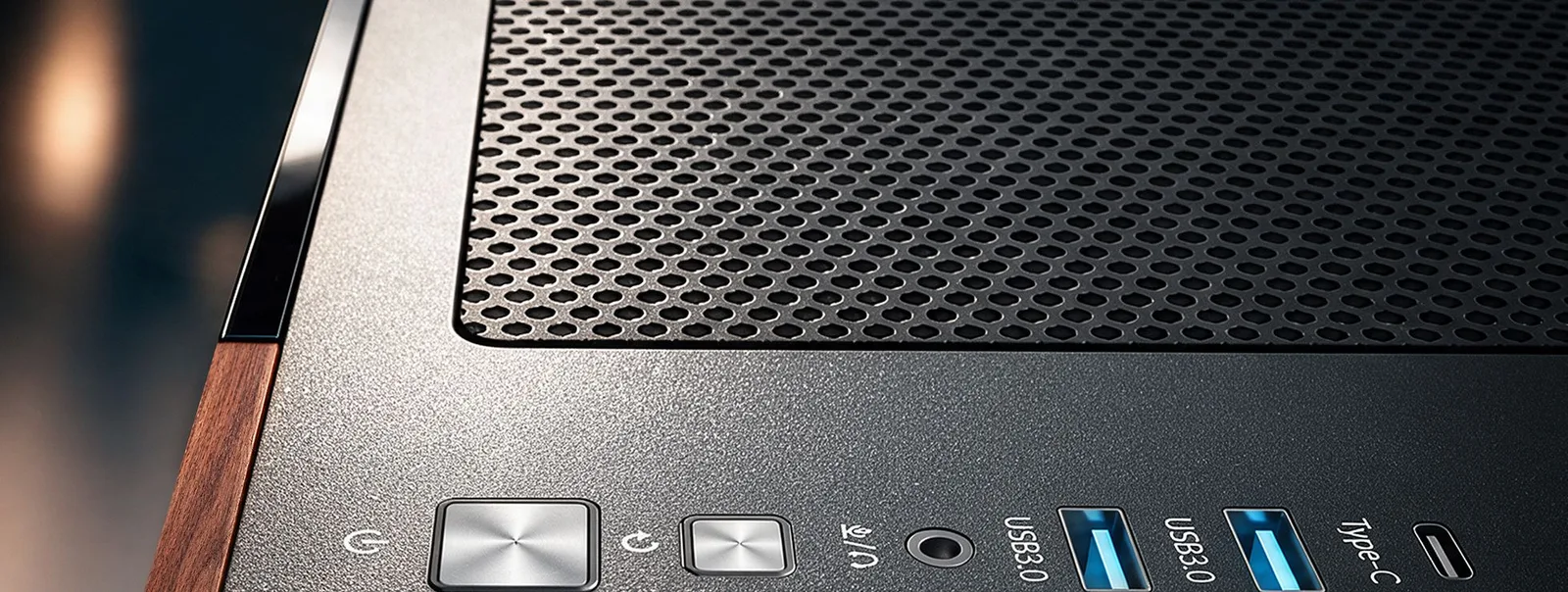

Front I/O with 20Gbps USB-C
Specifications
- Side panel
- 4mm
- black-framed clear tempered glass, 270° view
- Top radiator
- 360mm
- max (also 280 / 240)
- Side radiator
- 280mm
- max (also 240)
- Rear radiator
- 120mm
01
Overview
- Model
- Scutum ATX PC case
- Edition
- Standard: case, bottom fan bracket and hardware kit (no fans, no hub)
- Layout
- Dual chamber, 270° panoramic glass
- Colour
- Black with solid ash wood trim
02
Dimensions & Weight

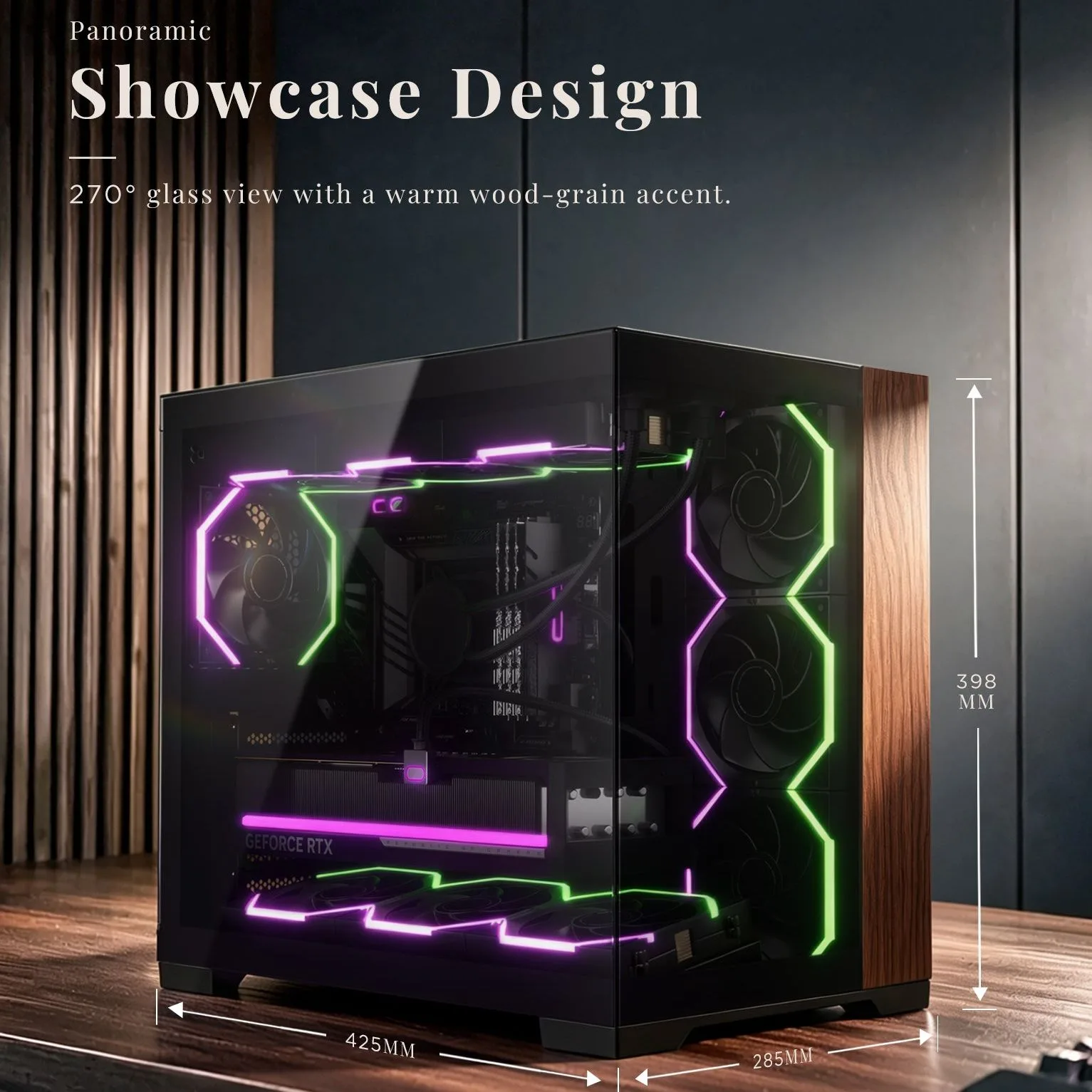

- Dimensions (L × W × H)
- 425 × 285 × 398 mm
03

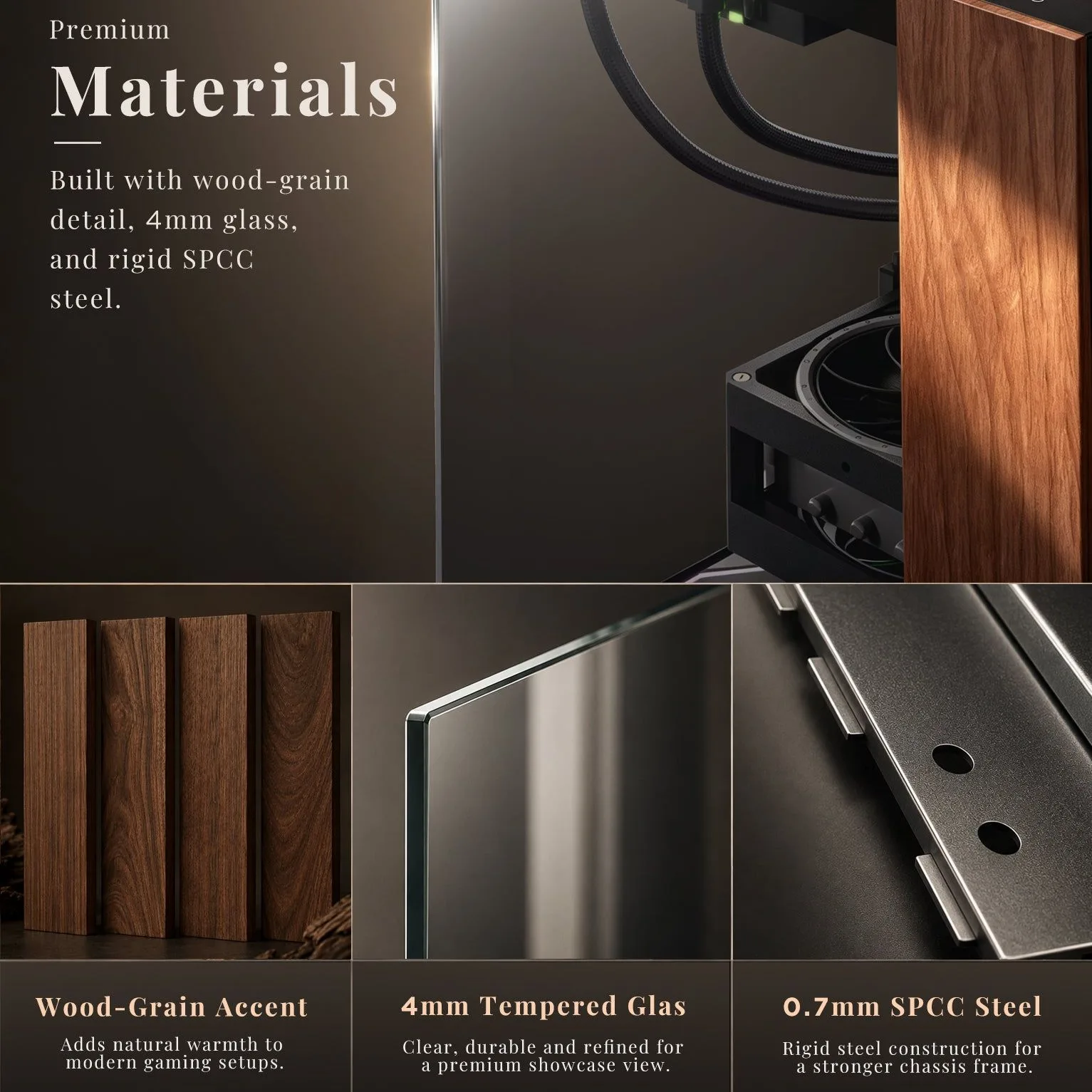

Materials
- Frame
- 0.7 mm SPCC steel
- Side panel
- 4 mm black-framed clear tempered glass, 270° view
- Accent
- Real solid ash wood panels (grain and tone vary per case)
04
Motherboard Support
- Form factors
- ATX, M-ATX, Mini-ITX
- Back-connect
- ATX BTF, M-ATX BTF
05
Expansion & GPU
- GPU length
- ≤ 410 mm
- GPU width
- ≤ 152 mm
06
CPU Cooler & Radiators
- Air cooler height
- ≤ 160 mm
- Top radiator
- 360 mm max (also 280 / 240)
- Top AIO thickness
- ≤ 75 mm (radiator + fans)
- Side radiator
- 280 mm max (also 240)
- Rear radiator
- 120 mm
07
Fans
- Top fans
- 3 × 120 mm or 2 × 140 mm
- Side fans
- 3 × 120 mm or 2 × 140 mm
- Bottom fans
- 3 × 120 mm on a 10° tilted bracket
- Rear fan
- 1 × 120 mm
- Airflow
- Intake side + bottom · exhaust top + rear
- Fans included
- None (Standard edition)
08
Storage
- Drive bays
- 1 × 3.5" HDD + 2 × 2.5" SSD
09
Front I/O
- USB
- 1 × USB-C 20Gbps · 2 × USB 3.0
- Audio
- HD Audio 2-in-1 jack
- Buttons
- Power, Reset
10
Power Supply
- Type
- ATX
- Length
- ≤ 240 mm
11
Cable Management
- Routing depth
- 100 mm, rear chamber
12
In the box
- Bracket
- Bottom fan bracket
- Screws
- 8 motherboard screws, 4 PSU screws
- Standoffs
- 8 motherboard standoffs
- Accessories
- Cable ties
