HYTE

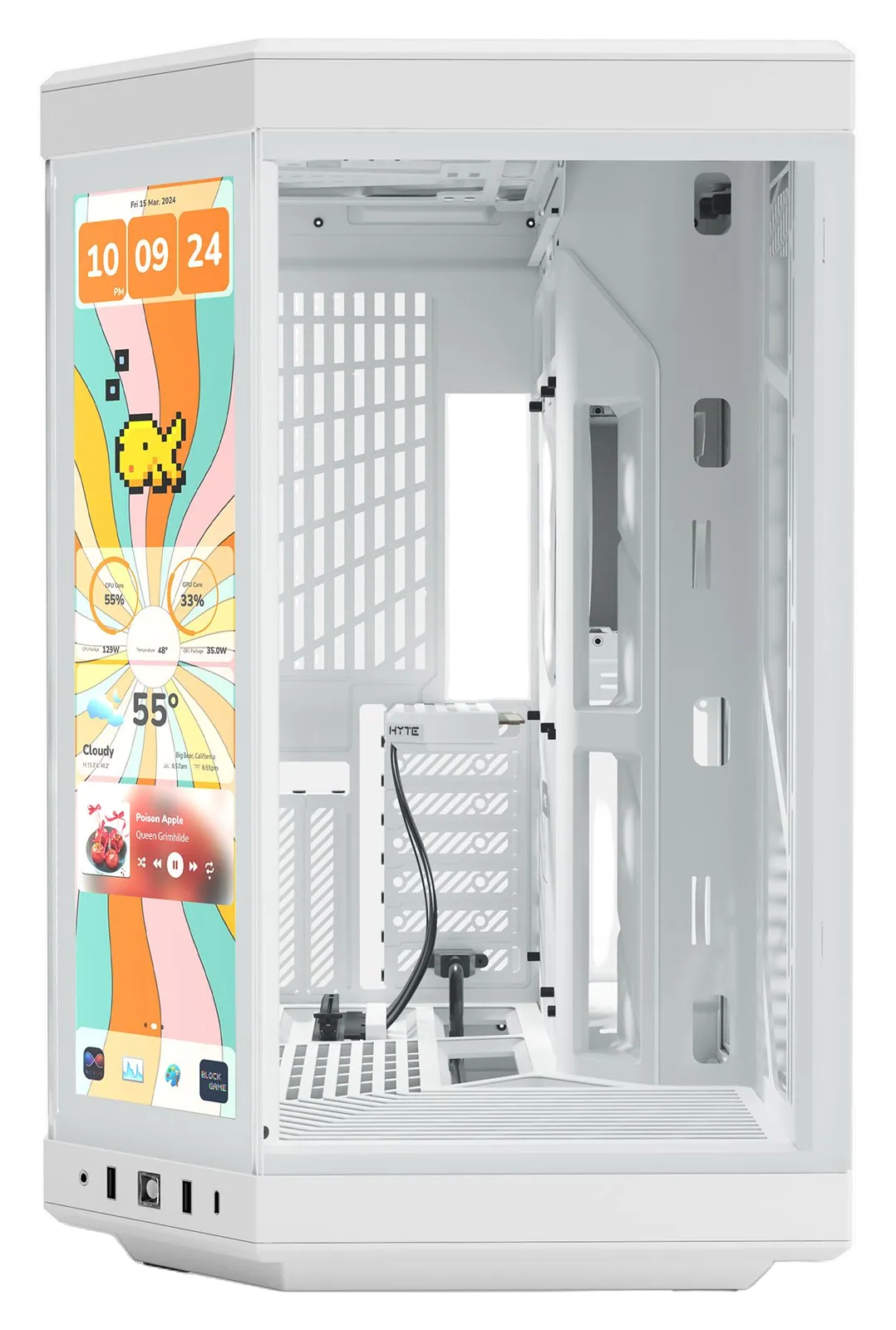

Y70 Touch Infinite Mid-Tower Case with Touchscreen
ColorSnow White
Rs 115,000Sold out
1
Details
The Y70 Touch Infinite is the Y70 chassis with a 14.9-inch IPS touchscreen built into the front corner pillar. The panel runs 682 × 2560 at 60 Hz with 10-point touch and 500 nits, and HYTE's free NEXUS app fills it with system stats, widgets, media or your own art. Behind the glass it is the same dual-chamber mid-tower: a PCIe 4.0 x16 riser for vertical GPUs up to four slots and 422 mm, 360 mm radiator mounts on the top and side, and room for ten fans. Four colourways.

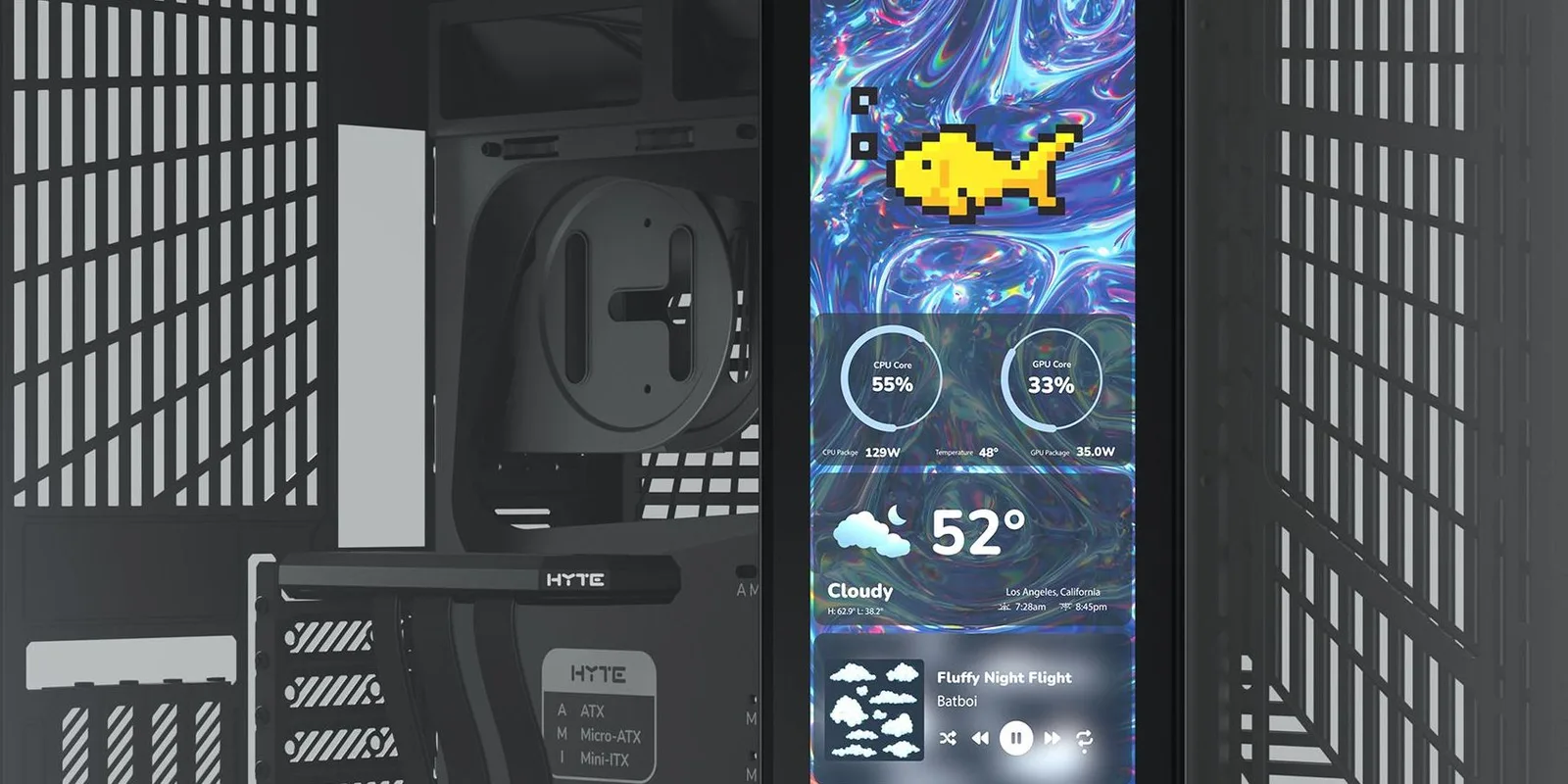

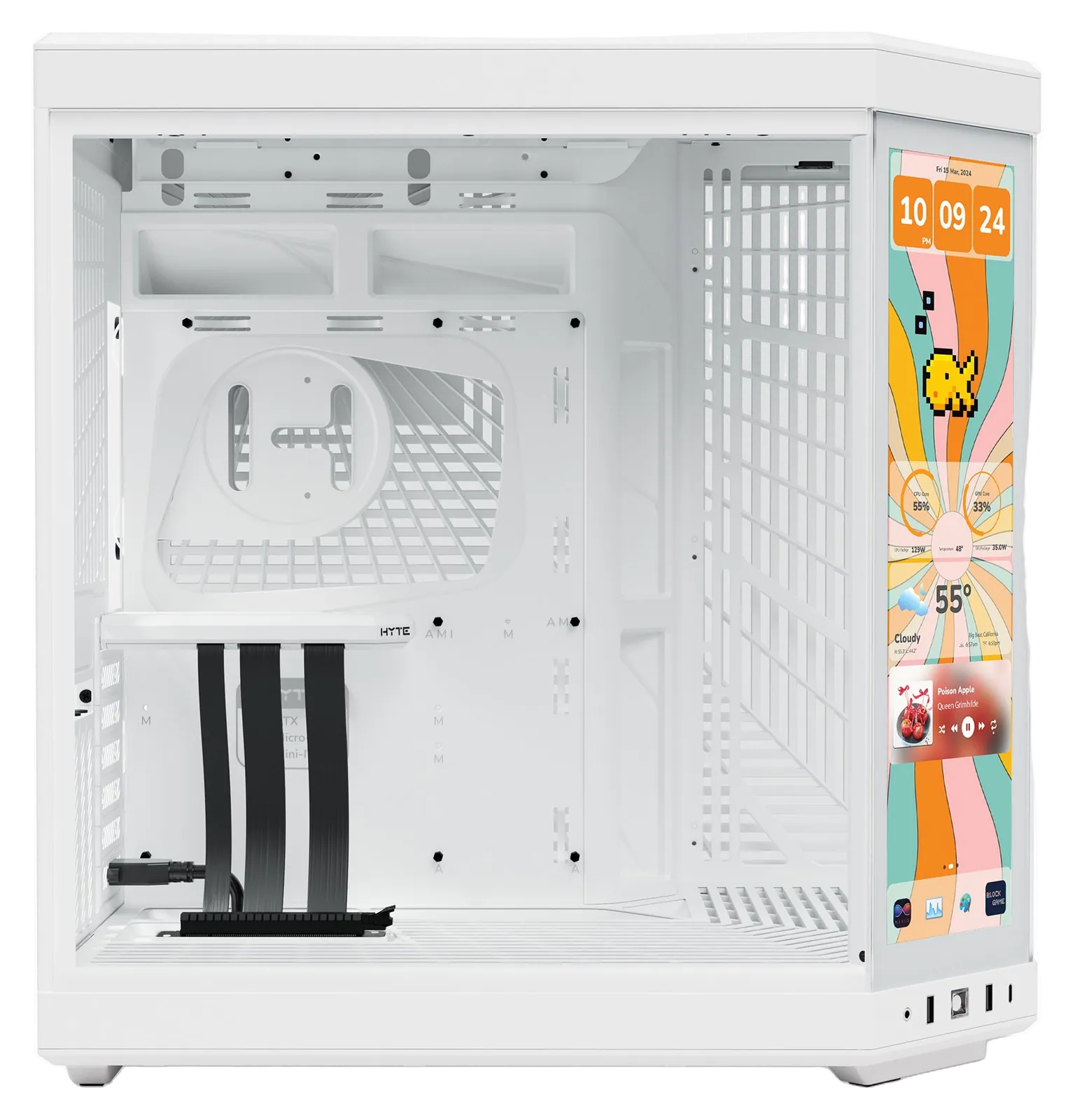

14.9-Inch Touchscreen, Built In

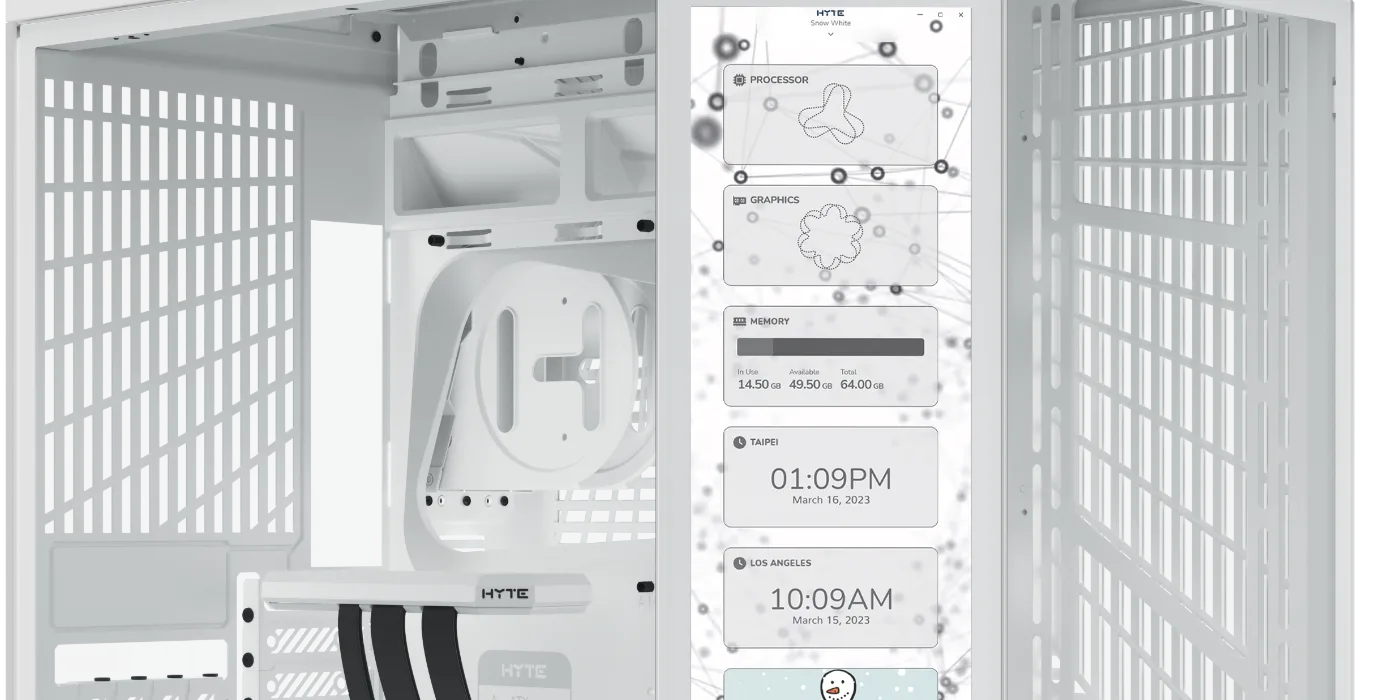

Widgets, Stats or Your Own Art

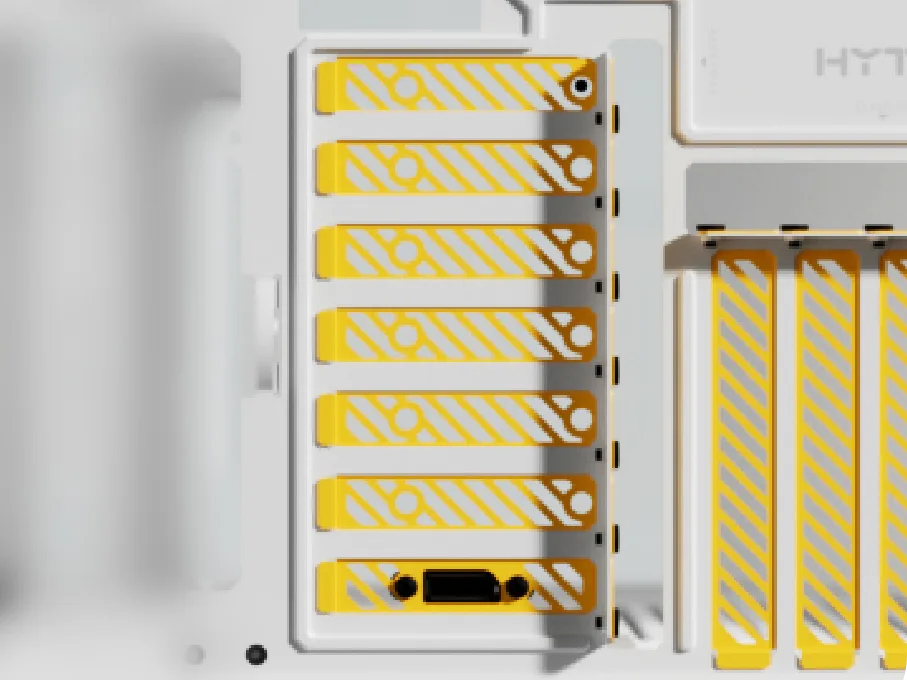

7 Half-Height + 4-Slot Vertical

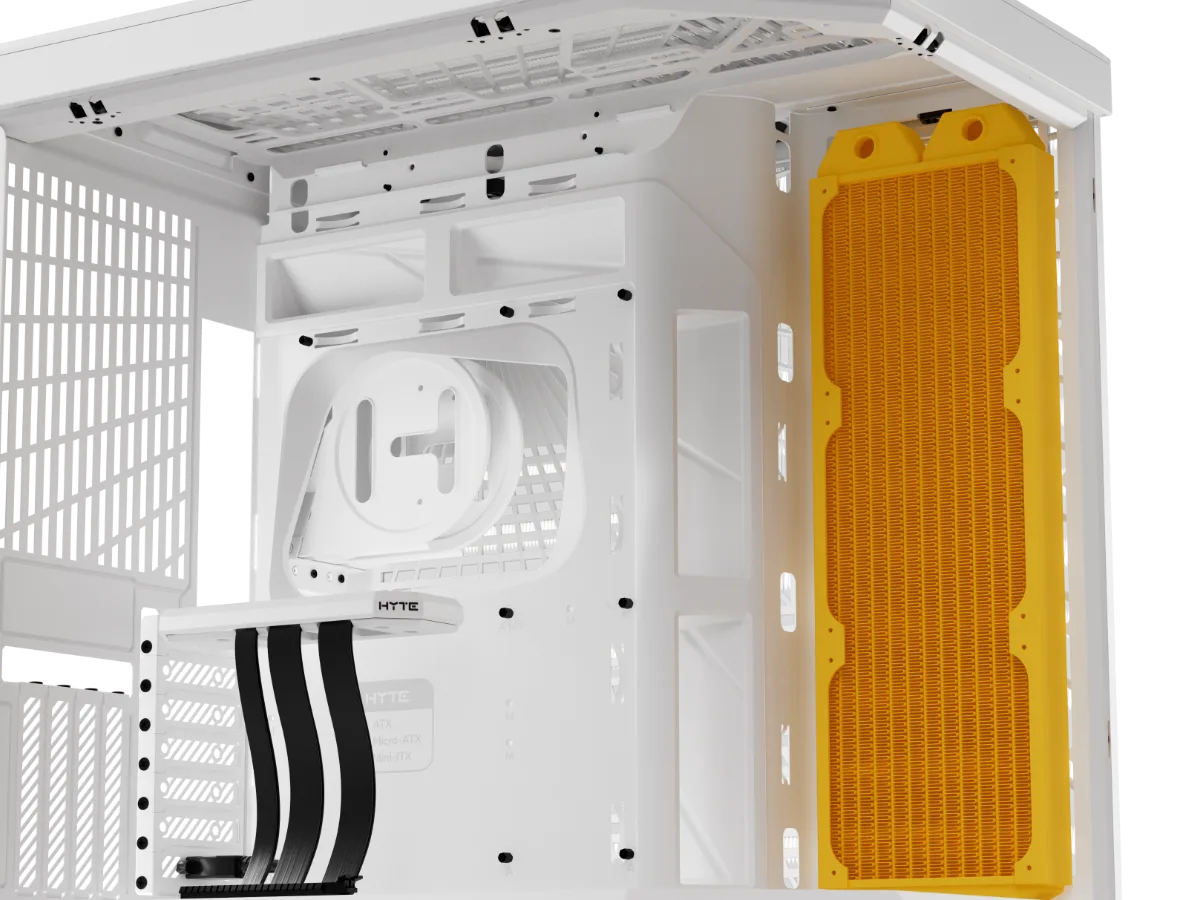

125 mm-Thick Side Radiator

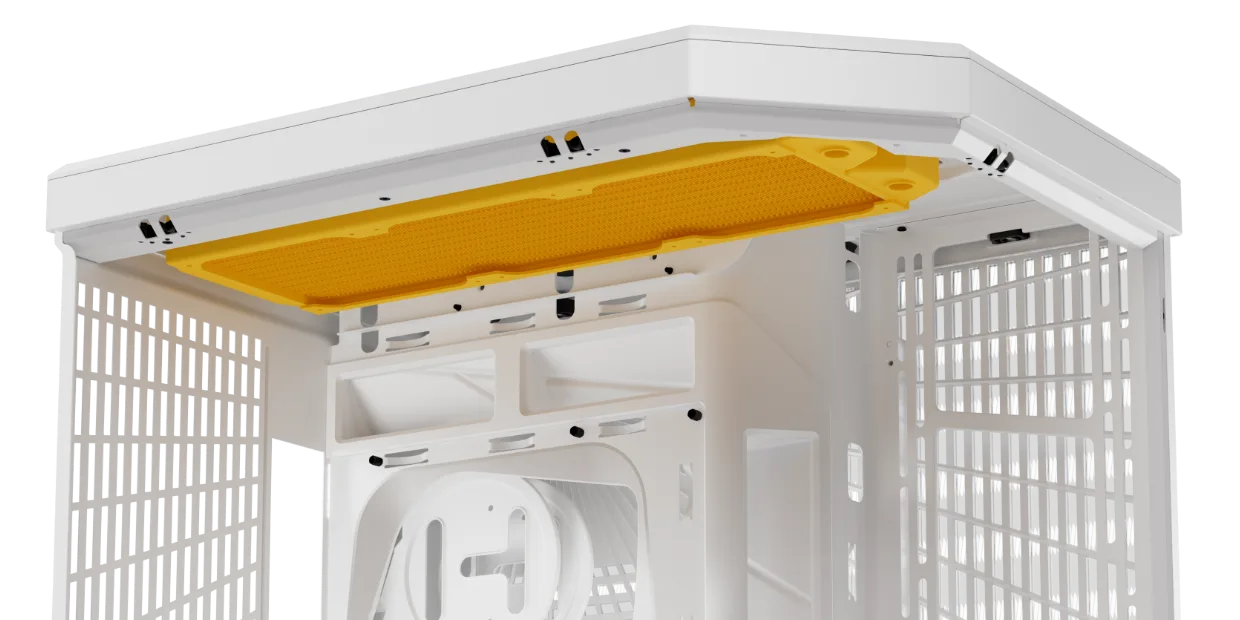

68 mm-Thick Radiator Up Top

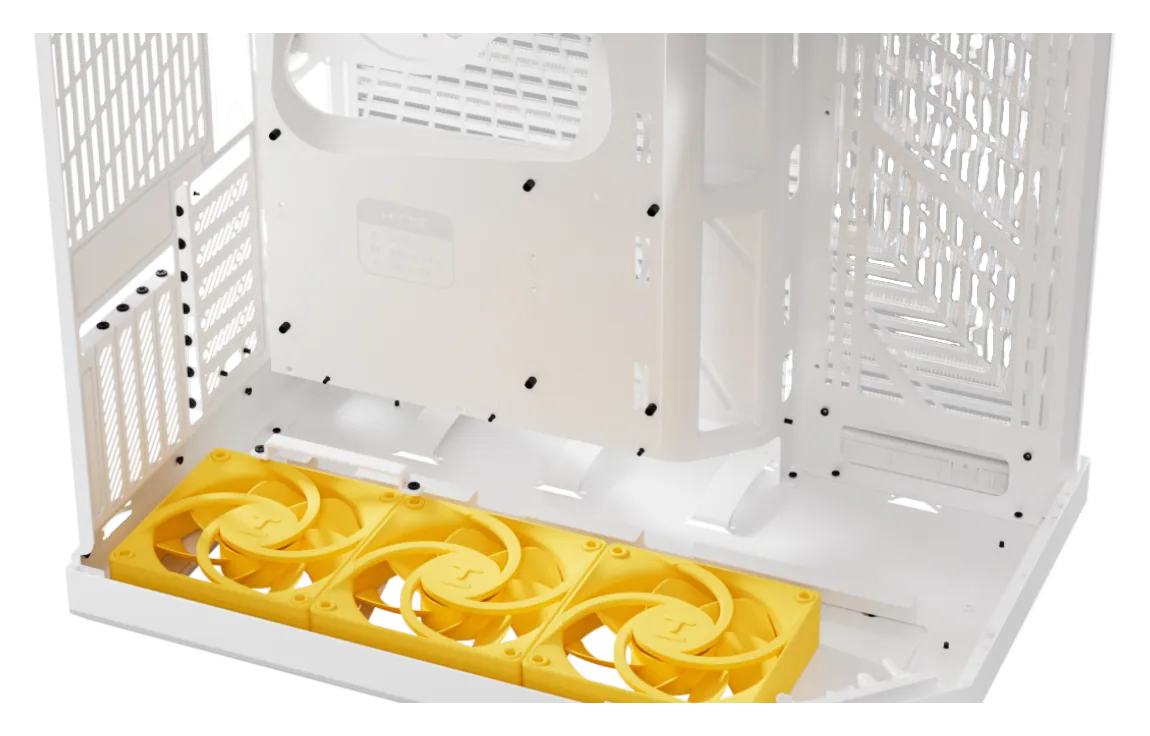

Three Floor Fans Feed the GPU

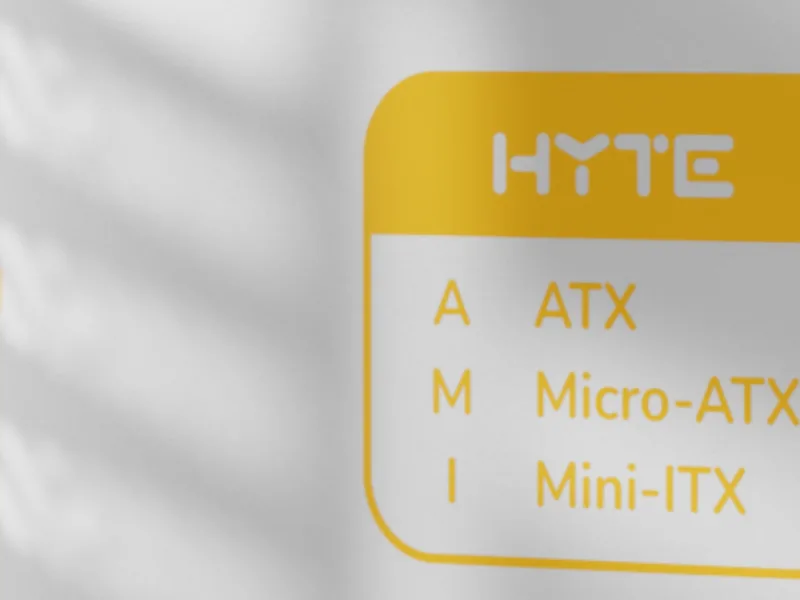

Labelled Standoff Positions

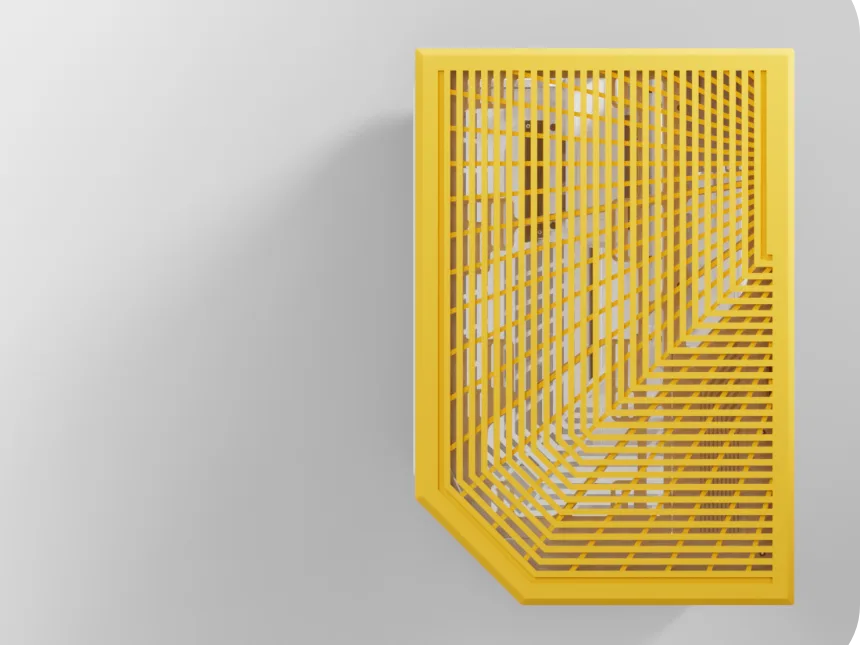

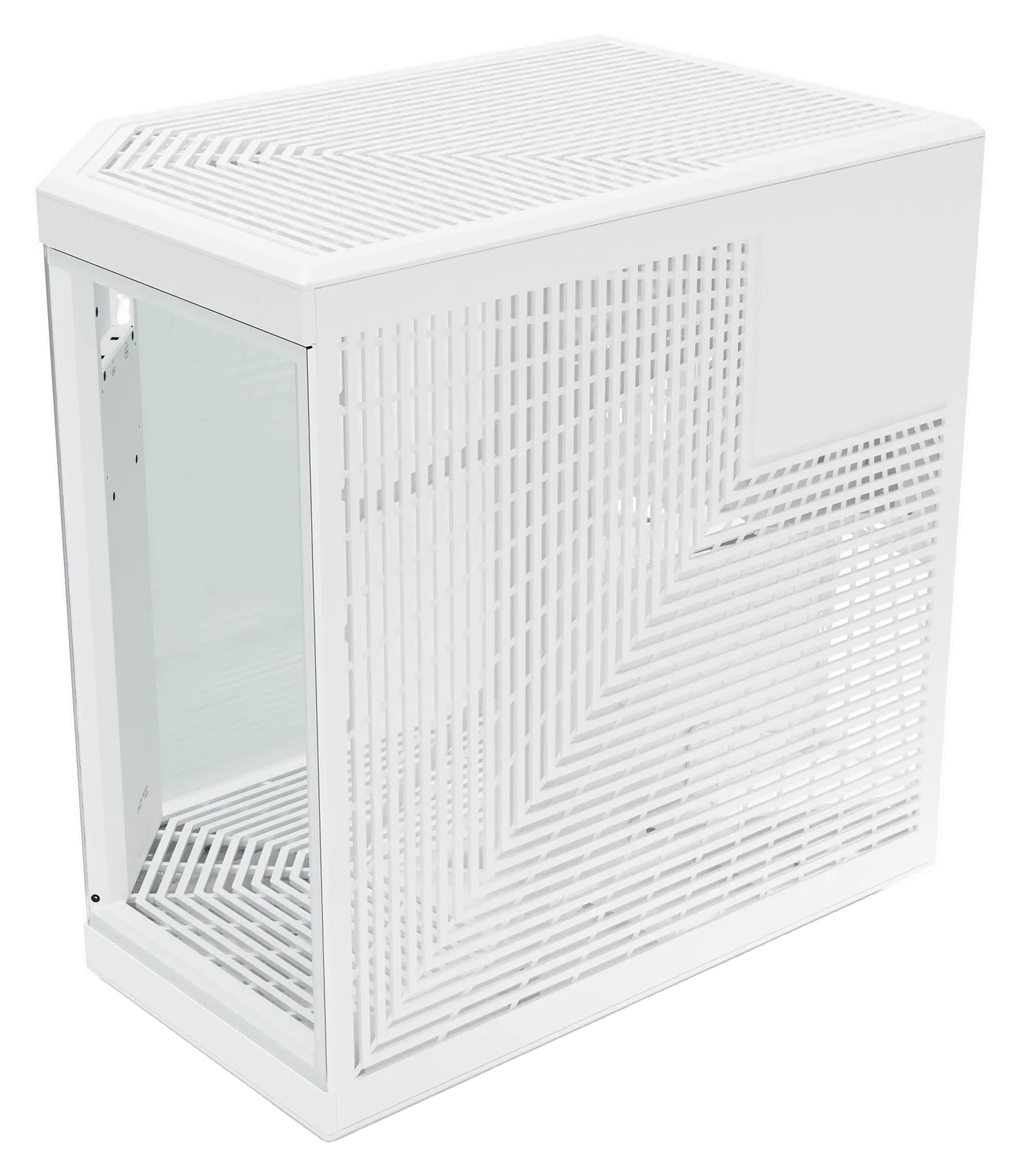

Line-Pattern Vent Panels
Specifications
- Pixel density
- 178PPI
- Brightness
- 500nits
- Viewing angle
- 80°
- Refresh rate
- 60Hz
01
Overview
- Model
- HYTE Y70 Touch Infinite
- Type
- Dual-chamber mid-tower ATX case with integrated touchscreen
- Colours
- Snow White, Panda, Pitch Black, Black Cherry
- SKUs
- CS-HYTE-Y70TTI-WW / -WB / -BB / -RB
- Software
- HYTE NEXUS
- Warranty
- 4 years
02
Display
- Panel
- IPS
- Size
- 14.9" diagonal
- Resolution
- 682 × 2560 (2.5K)
- Pixel density
- 178 PPI
- Brightness
- 500 nits
- Contrast
- 1000:1
- Viewing angle
- 80°
- Refresh rate
- 60 Hz
- Response time
- 30 ms
- Touch
- Capacitive, 10-point multi-touch
- Inputs
- USB 2.0 header, SATA power, DisplayPort
- Software
- HYTE NEXUS (Nexus Touch)
03
Dimensions & Weight
- Exterior (L × W × H)
- 470 × 320 × 470 mm
- Volume
- 70.7 L
04
Materials
- Glass
- 3-piece panoramic glass (front, corner and side)
- Panels
- Tool-free removable top and side panels
- Dust filters
- Top, side, bottom
05
Motherboard Support
- Form factors
- Mini-ITX, Micro-ATX, ATX, E-ATX
06
Expansion & GPU
- Expansion slots
- 7 half-height + 4 full-height (vertical)
- Riser cable
- PCIe 4.0 x16, included, colour-matched canopy
- GPU length
- ≤ 422 mm
- GPU thickness
- ≤ 105 mm (4 slots, vertical)
07
CPU Cooler & Radiators
- CPU cooler height
- ≤ 180 mm
- Top radiator
- 120–360 mm or 140–280 mm, ≤ 68 mm thick
- Side radiator
- 120–360 mm or 140–280 mm, ≤ 125 mm thick
- Rear radiator
- 1 × 120 / 140 mm
08
Fans
- Top fans
- 3 × 120 mm or 2 × 140 mm
- Side fans
- 3 × 120 mm or 2 × 140 mm
- Bottom fans
- 3 × 120 mm or 2 × 140 mm, ≤ 32 mm thick
- Rear fans
- 1 × 120 / 140 mm
- Total capacity
- 10 fans
09
Storage
- Drives
- 2 × 3.5" HDD or 4 × 2.5" SSD (rear-ejecting sleds)
10
Front I/O
- USB
- 1 × USB-C 3.2 Gen 2, 2 × USB-A 3.2 Gen 1
- Audio
- 1 × 3.5 mm audio / mic combo jack
- Power switch
- Low-profile blue mechanical switch
11
Power Supply
- Form factor
- ATX
- PSU length
- ≤ 235 mm
12
In the box
- Riser
- PCIe 4.0 x16 riser cable with colour-matched canopy
- Display cable
- DisplayPort male-to-male cable
- Audio
- PC headset adapter
- Screws
- Motherboard & SSD (M3), HDD (6-32), PSU (6-32), standoff socket
- Cable management
- Zip ties, cable straps
- Documents
- Instructions
Downloads
- Download
Y70 Touch Infinite Manual
HYTE's build guide in 15 languages: clearances, radiator spots and wiring the screen.
PDF9.5 MB
