LIAN LI

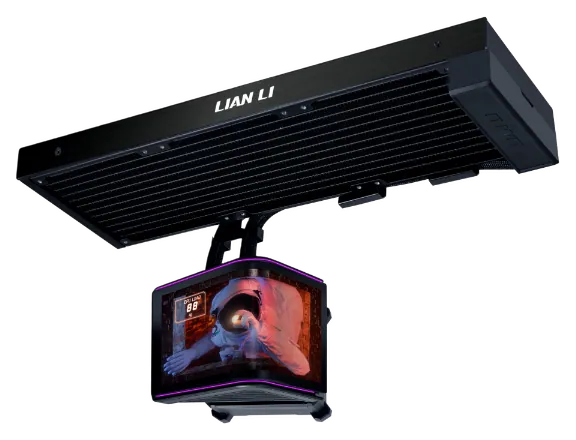

HydroShift II OLED Curved 360mm AIO Cooler
ColorBlack
Fans
UNI FAN TL FLEX
Rs 100,000Pre-order
1
- Arrives in 7-12 days on average.
- Full payment upfront by bank transfer. No cash on delivery.
- Can't be cancelled once paid.
Details
HydroShift II OLED Curved tops a 360mm AIO with a 6.67-inch curved OLED at 2288 × 1048 and 500 nits. Motors lift the screen and tilt it up to 45° from L-Connect 3, and the display module snaps on magnetically, so it can go in after the build is done. The pump runs up to 2400 RPM, or 2800 RPM in Turbo Mode, over a slim 400 × 122 × 24 mm radiator with side-mounted tubes. Pick UNI FAN TL FLEX fans with an L-Wireless controller, UNI FAN P28 V2 fans, or the fanless kit. Six years of warranty on the cooler, three on the screen.

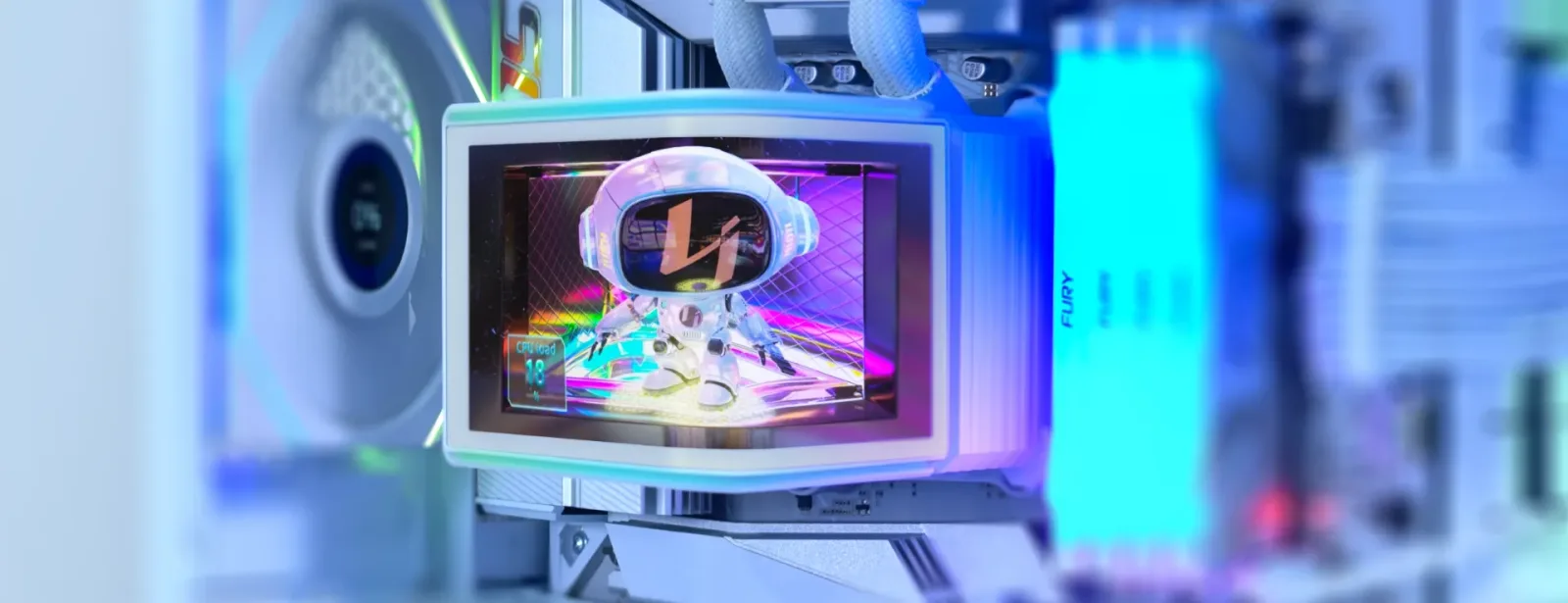

Curved 2K OLED Pump Head

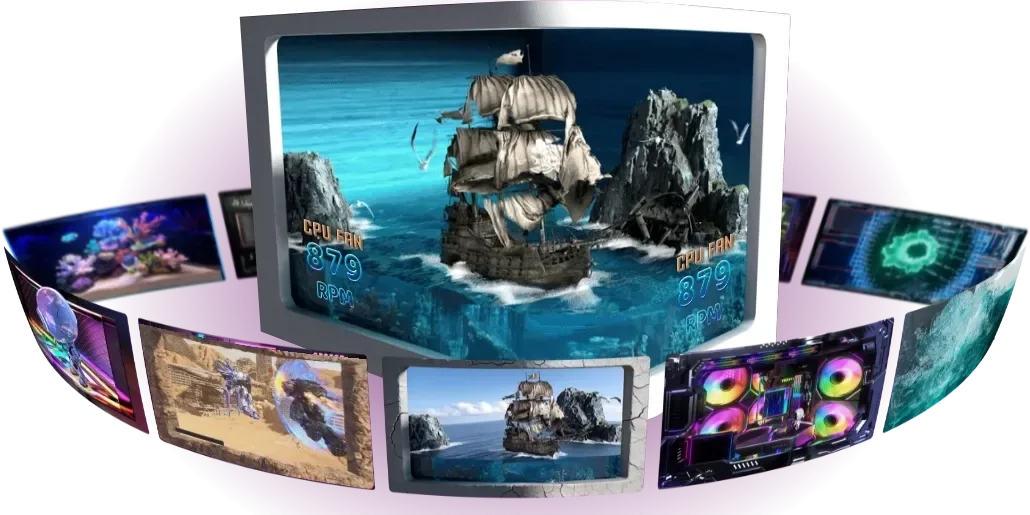

Themes in 2D or 3D, Edge to Edge

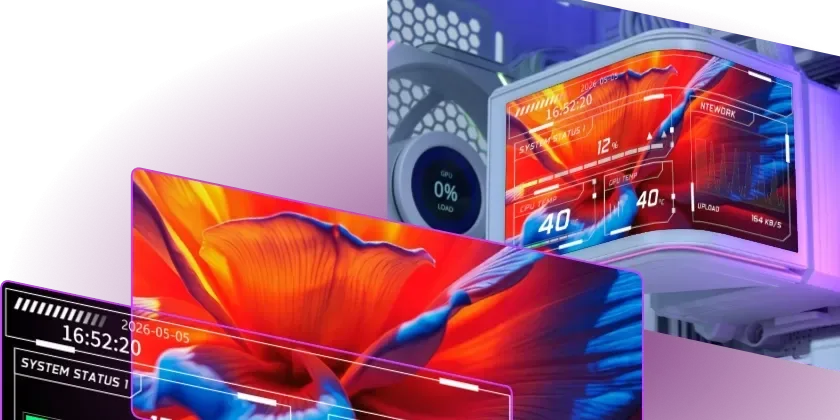

Layered Video Under Live Stats

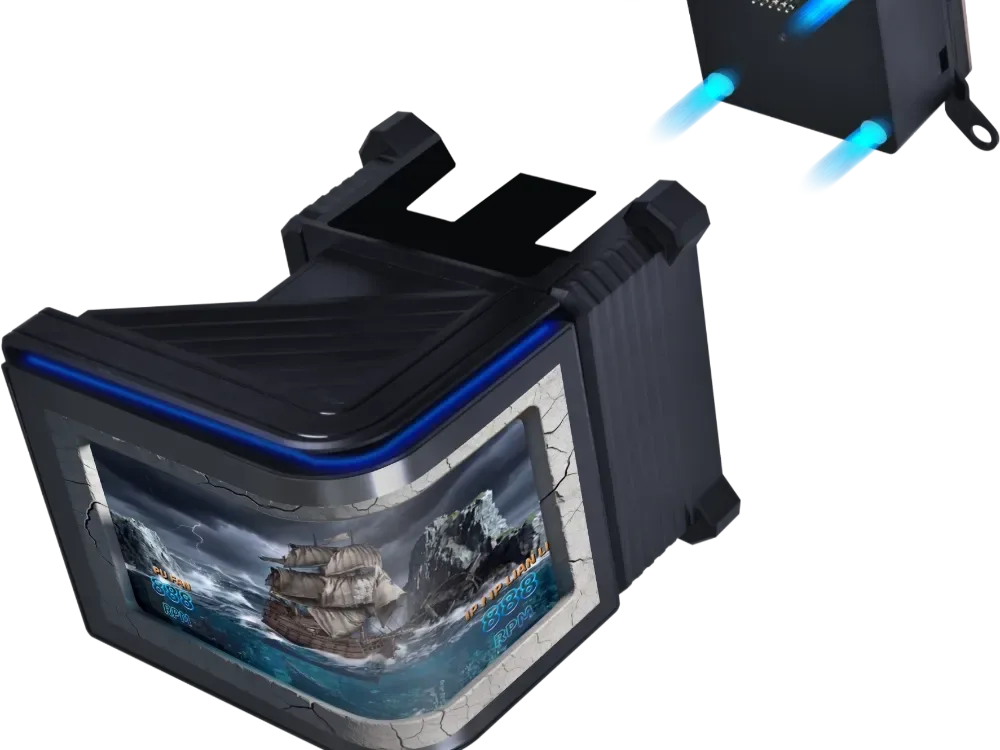

Screen Snaps On Last

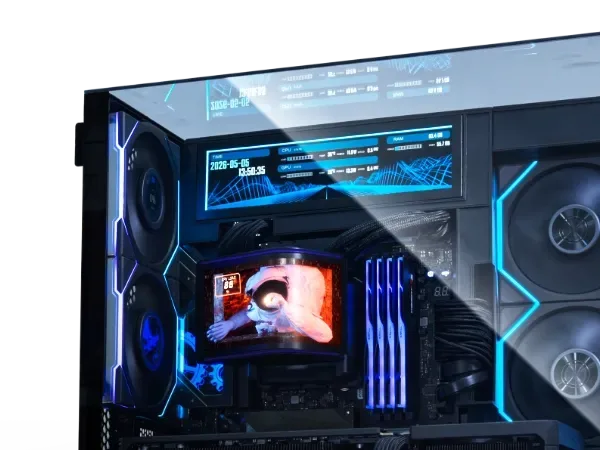

Side Tubing, Clean Top Chamber

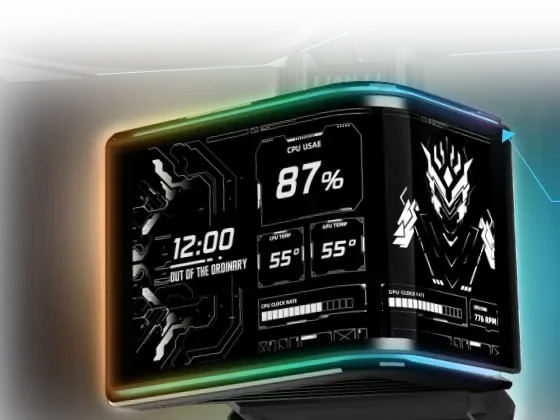

Ambient Light Around the Screen

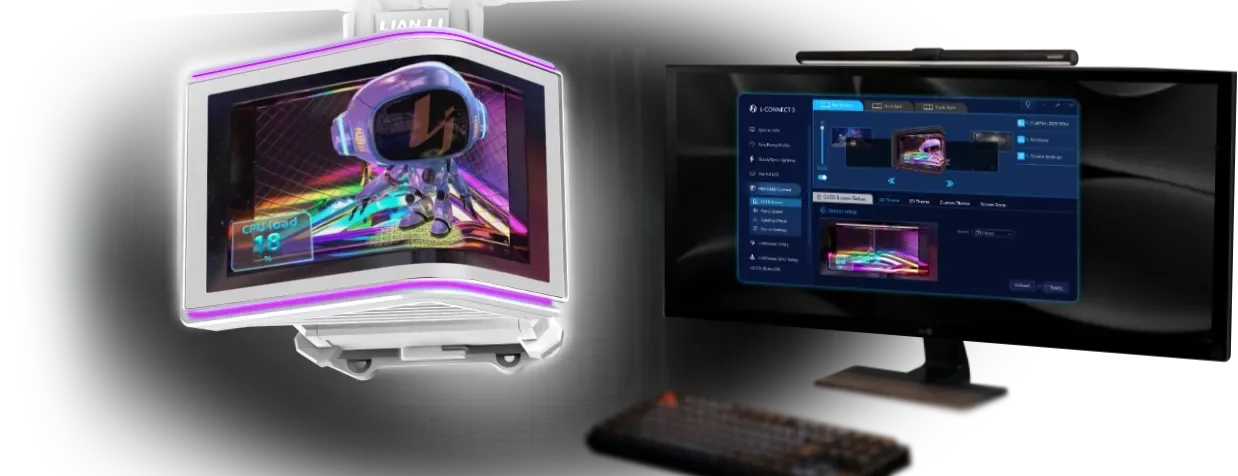

Run It All From L-Connect 3
Specifications
- Brightness
- 500nits
- Refresh rate
- 60Hz
- Pump speed
- 2400RPM
- max (2800 RPM in Turbo Mode) · 1600 RPM min ±10%
- TL FLEX fan speed
- 2600RPM
- max · 200 RPM min
01
Overview
- Model
- HydroShift II OLED Curved 360
- Versions
- TL (UNI FAN TL FLEX) · P28 (UNI FAN P28 V2) · Fanless
- Model no.
- GHS2OLDC36TB / TW · GHS2OLDC36PB / PW · GHS2OLDC36NB / NW
- Colours
- Black / White
- Software
- L-Connect 3
- Warranty
- AIO cooling system 6 years · OLED screen 3 years · fans 3 years
02
Compatibility
- Intel
- LGA 1700 / 1851
- AMD
- AM4 / AM5 (upgraded bracket)
03
Display
- Type
- 6.67″ curved OLED
- Resolution
- 2288 × 1048
- Brightness
- 500 nits
- Refresh rate
- 60 Hz
- Layouts
- Full screen · dual split · triple split · secondary screen · off-mode clock
- Content
- Themes in 2D and 3D, custom backgrounds, dynamic and static layers, live system data
- Ambient light
- Diffused ARGB strip around the screen
- Mount
- Magnetic module on pogo-pin contacts, hot-swappable
- Motion
- Motorized vertical lift and tilt, up to 45°
- Finish
- Protective film pre-applied: on for gloss, off for a matte, anti-reflective look
04
Pump
- Pump head
- 126.5 × 87.1 × 108 mm
- Pump speed
- 2400 RPM max (2800 RPM in Turbo Mode) · 1600 RPM min ±10%
- Modes
- Fixed RPM · PWM · Turbo
- Pump noise
- < 30.0 dBA (max)
- Cold plate
- Enlarged copper base
- Connection
- USB to a motherboard USB 2.0 9-pin header recommended; SATA power adapter for boards with too little header power
05
Radiator
- Dimensions
- 400 × 122 × 24 mm
- Fin design
- Single-wave
- Material
- Aluminum
- Tube length
- 450 / 475 mm
- Tube routing
- Side-mounted
06

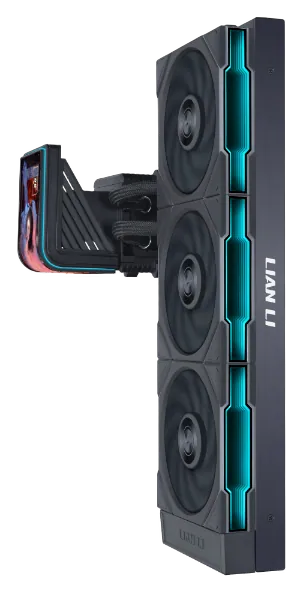

Fans · 360TL
- Fans
- 3 × UNI FAN TL FLEX
- Dimensions
- 120 × 124 × 28 mm
- TL FLEX fan speed
- 2600 RPM max · 200 RPM min
- Airflow
- 90.1 CFM
- Static pressure
- 3.97 mmH₂O
- Fan noise
- 33 dBA
- Control
- Receiver: wireless L-Connect 3 or 5V 3-pin ARGB motherboard sync
07
Fans · 360P28
- Fans
- 3 × UNI FAN P28 V2
- Dimensions
- 120 × 124 × 28 mm
- P28 V2 fan speed
- 3000 RPM max · 200 RPM min
- Airflow
- 110.5 CFM
- Static pressure
- 7.78 mmH₂O
- Fan noise
- 38.1 dBA
- Control
- 5-level speed slider; side lighting shows the PWM duty; receiver with LED on/off switch, wireless or 5V 3-pin ARGB sync
08
Fans · 360Fanless
- Fans
- None included; fit your own 120 mm fans
09
In the box
- All versions
- Thermal paste, spreader, hex wrench, 18 radiator screws, backplate, Intel and AMD brackets, 4 stud nuts, 4 nuts, 4 AMD bracket screws, 2 tube clamps, OLED cap, 2 thumb nuts, SATA power adapter cable
- 360TL adds
- L-Wireless controller, wireless receiver
- 360P28 adds
- Wireless receiver, USB 1-to-2 adapter cable
- 360Fanless adds
- 12 fan screws
