COOLER MASTER
MasterFrame 360 Stage Mirror ATX Showcase Case
Rs 55,999Sold out
1
Details

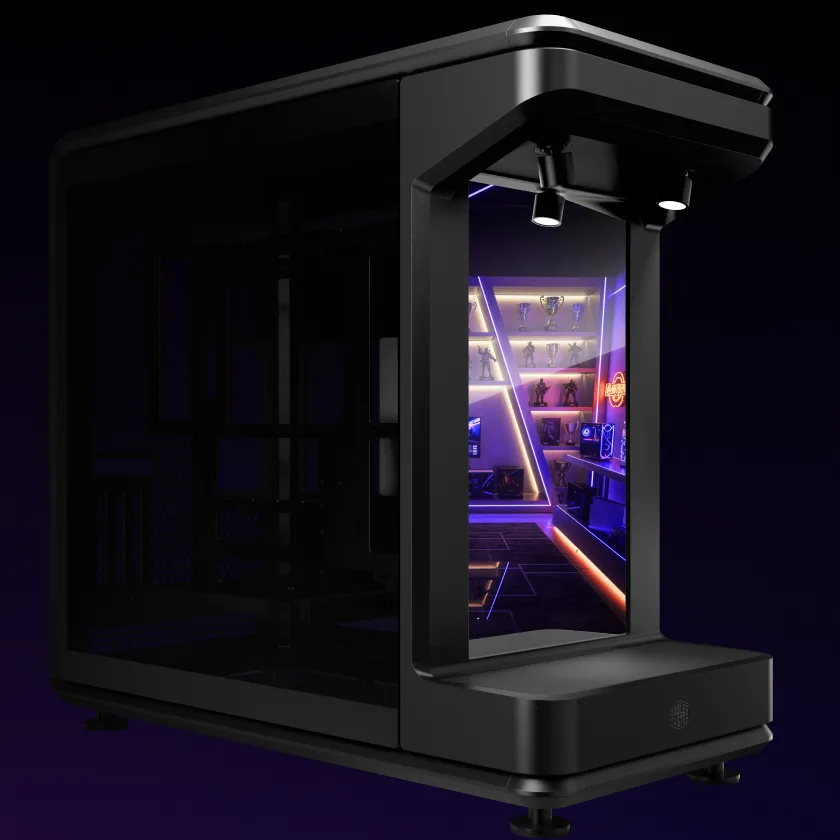

The MasterFrame 360 Stage Mirror turns the front of the case into an open display stage for figures and collectibles. A mirrored backdrop shows the back of whatever stands on it, two ARGB spotlights light it from above, and pieces up to 328 × 290 × 110 mm fit. The main chamber takes ATX and BTF back-connect boards, 430 mm graphics cards, 210 mm power supplies and 360 mm radiators top and bottom, with mounts for twelve 120 mm fans. A PCIe 5.0 riser comes in the box, and the front I/O carries a 20 Gbps USB4 Type-C port.

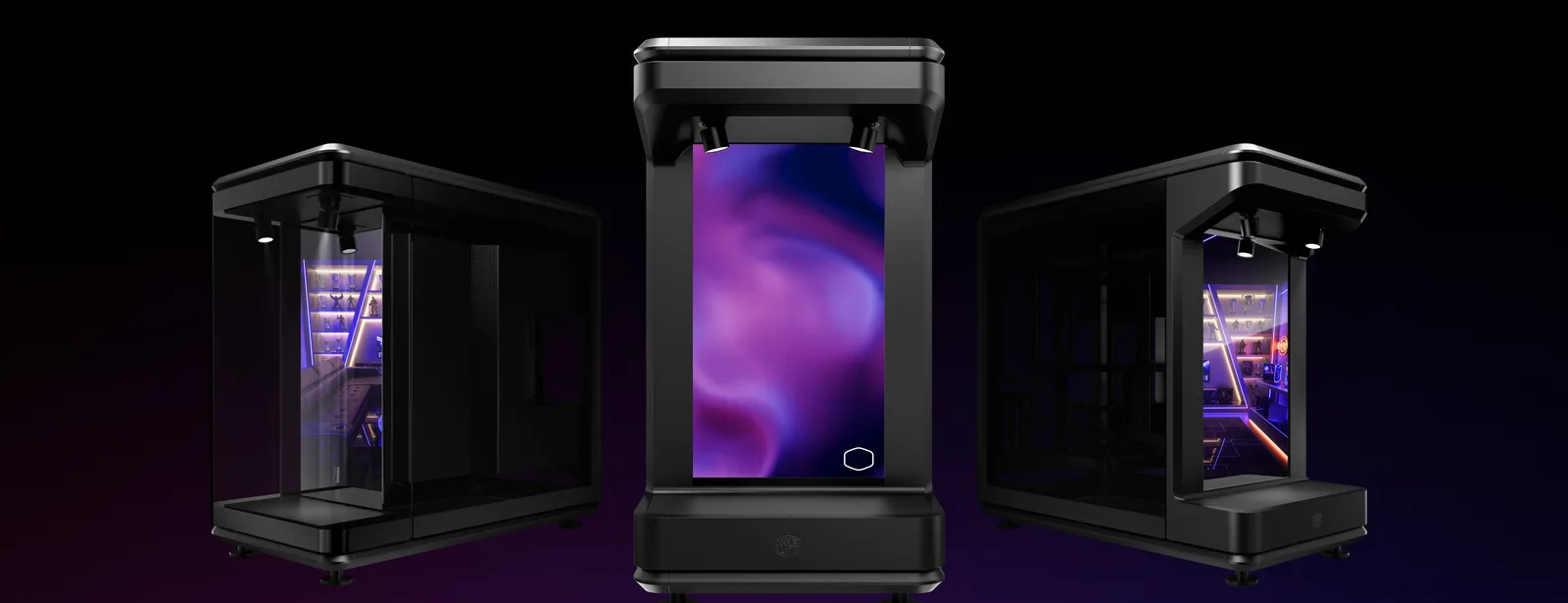

One Frame, Three Stages

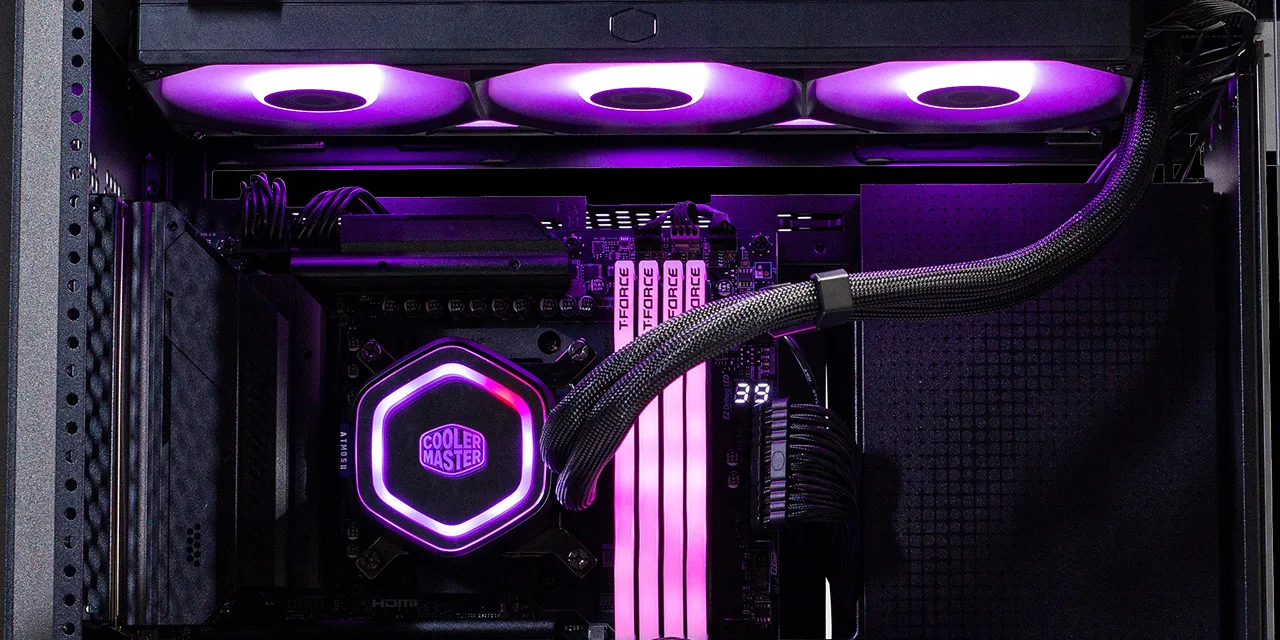

A Full ATX Build Inside

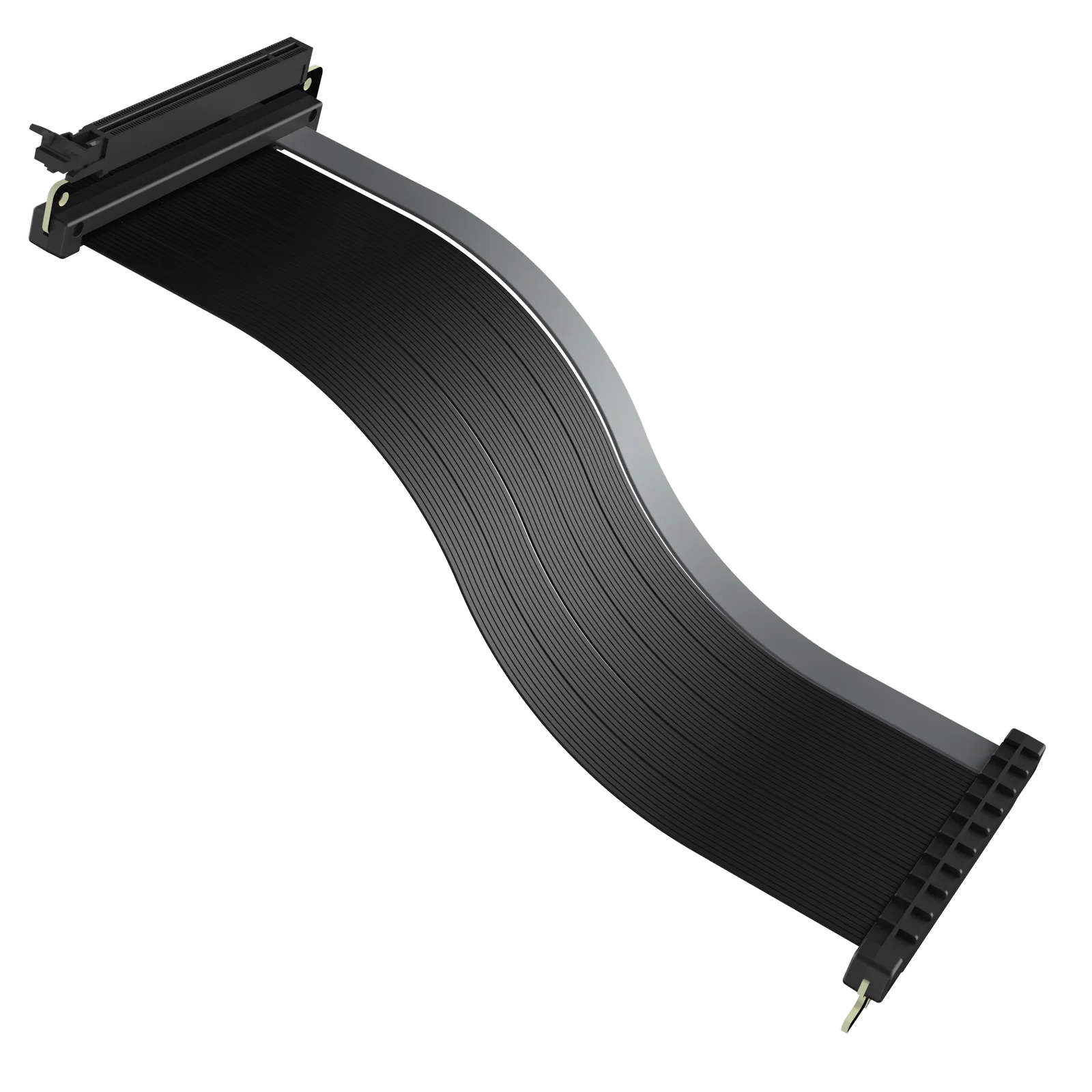

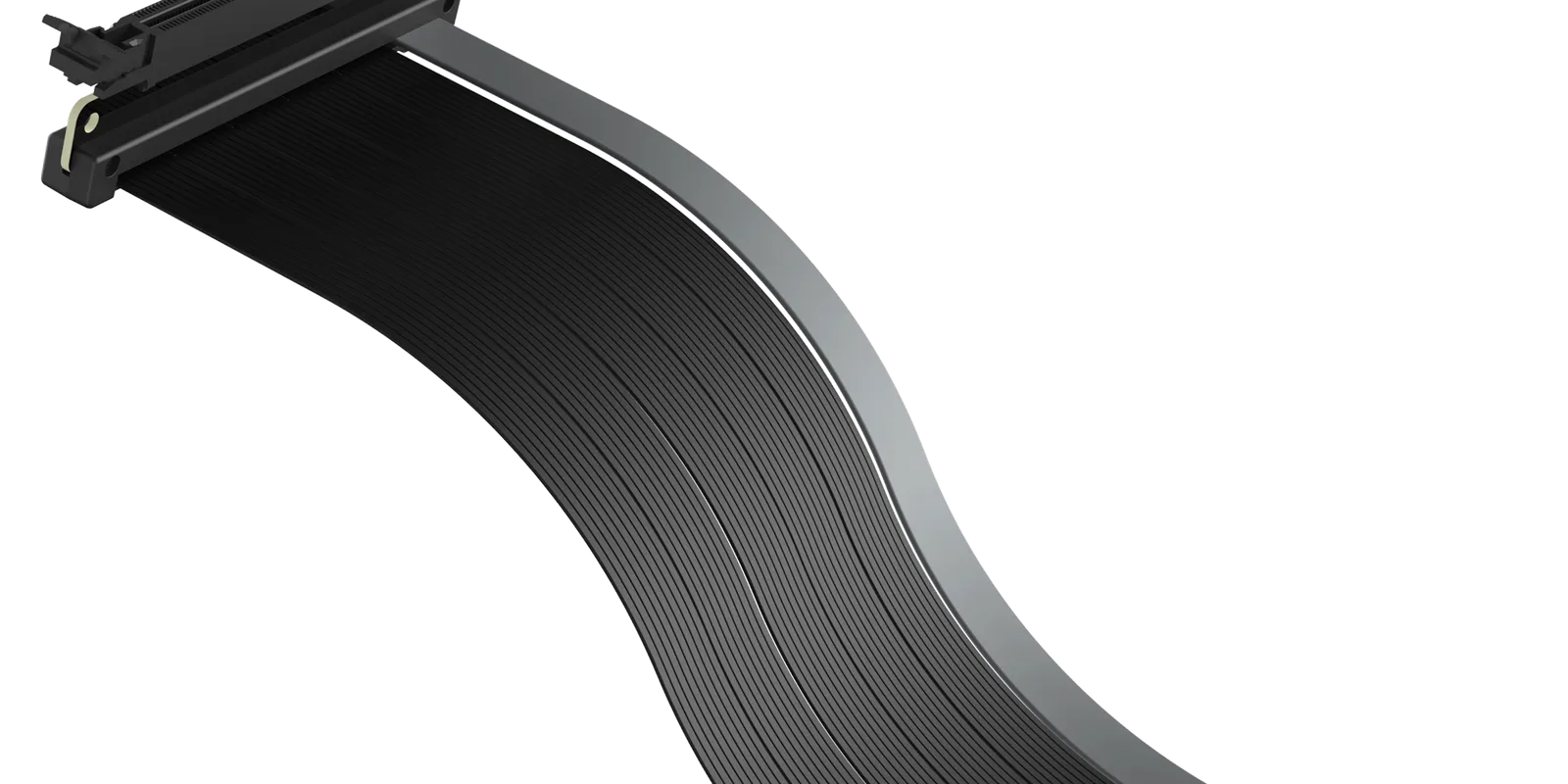

PCIe 5.0 Riser in the Box

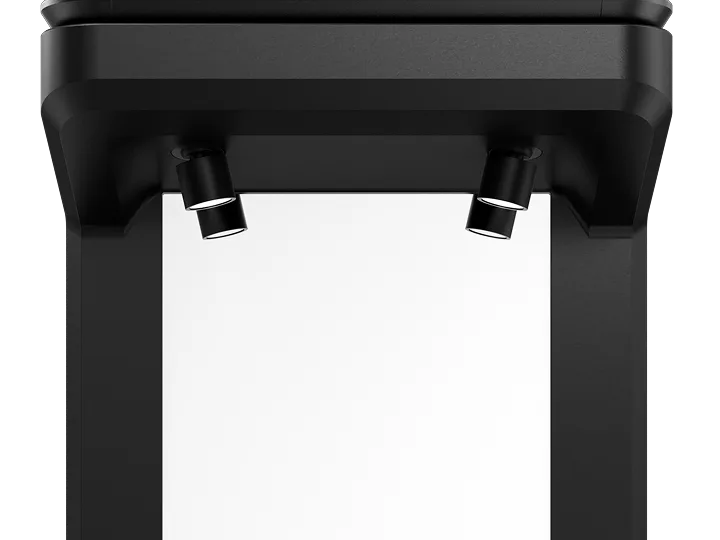

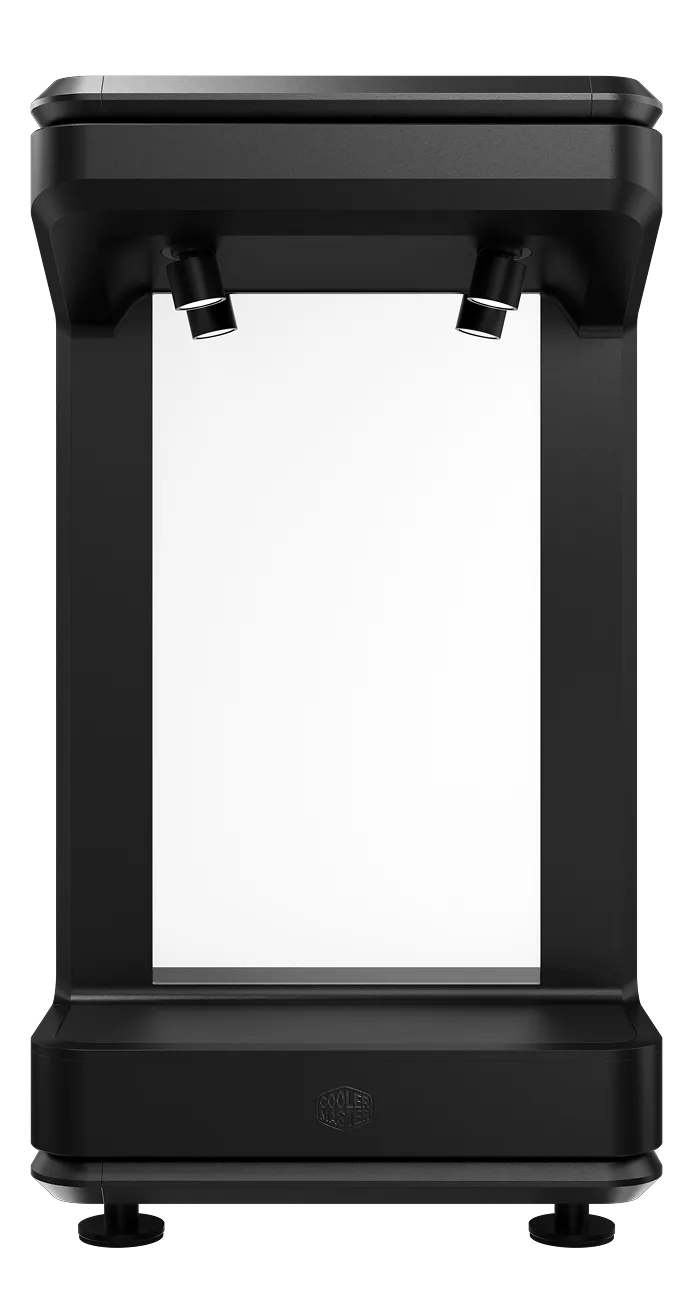

Spotlit Mirror Stage

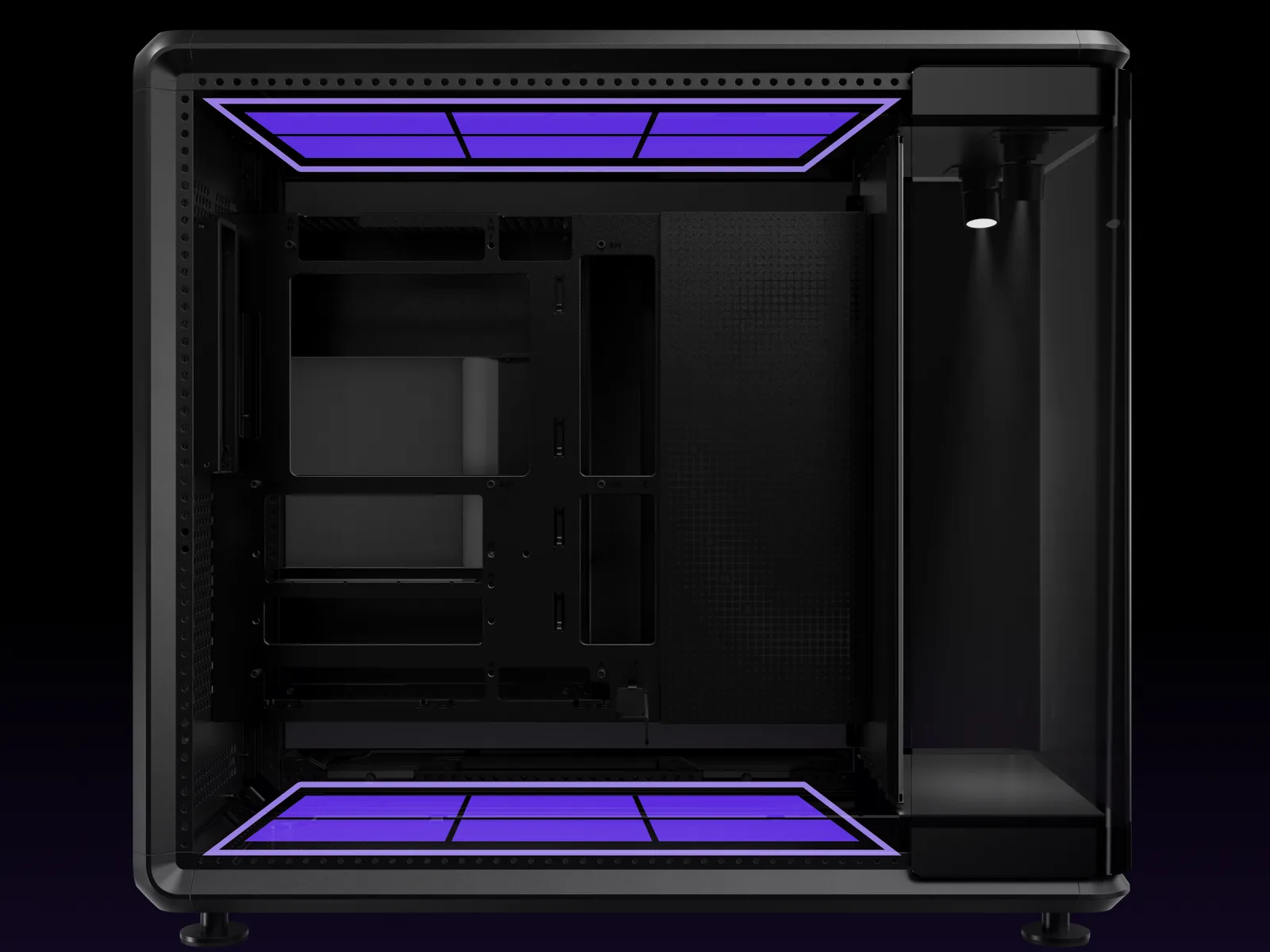

360 mm Up Top and Down Below
Specifications
01
Overview
- Model
- MASTERFRAME 360 STAGE MIRROR
- Model number
- MF360-KHNN-S01
- Series
- MASTERFRAME Series
- Colour
- Black
- Design
- Open front display stage with a mirrored backdrop
- Warranty
- 2 years
02
Dimensions & Weight
- Size (L × W × H), incl. protrusions
- 549 × 291 × 581 mm
- Size (L × W × H), excl. protrusions
- 511 × 291 × 581 mm
- Volume
- 93 L (86 L without panels, protrusions and feet)
- Net weight
- 13.81 kg
- Gross weight
- 18.23 kg
- Carton (L × W × H)
- 650 × 430 × 728 mm
03
Materials
- Exterior
- SGCC
- Side panels (left / right)
- Tempered glass / tempered glass
04
Display Stage
- Type
- Open stage with mirrored backdrop
- Lighting
- 2 × ARGB spotlights
- Max. collectible size (H × W × D)
- 328 × 290 × 110 mm
05
Motherboard Support
- Form factors
- Mini-ITX, Micro-ATX, ATX, BTF (ATX)
06
Expansion & GPU
- PCI expansion slots
- 3.5
- Graphics card length
- ≤ 430 mm
- Riser cable
- PCIe 5.0 riser included
07
CPU Cooler & Radiators
- CPU cooler height
- ≤ 145 mm
- Radiator, top
- 120 / 140 / 240 / 280 / 360 mm (max. thickness clearance 75 mm)
- Radiator, bottom
- 120 / 140 / 240 / 280 / 360 mm (max. thickness clearance 75 mm)
- DIY tank & pump
- Supported (left side)
08
Fans
- Top fans
- 6 × 120 mm, 2 × 140 mm, 2 × 180 mm or 2 × 200 mm
- Bottom fans
- 6 × 120 mm, 2 × 140 mm, 2 × 180 mm or 2 × 200 mm
- Dust filters
- Removable, mesh
09
Storage
- 5.25" drive bays
- 0
- 3.5" / 2.5" drive bay (preinstalled)
- 1 × HDD (44.45 mm) or 2 × SSD
10
Front I/O
- USB-C
- 1 × USB4 Gen 2x2 Type-C, 20 Gbps
- USB-A
- 2 × USB 3.2 Gen 1 Type-A, 5 Gbps
- Audio
- 1 × 3.5 mm headset jack (audio + mic)
11
Power Supply
- Form factor
- ATX
- PSU length
- ≤ 210 mm
12
Cable Management
- Behind the motherboard tray
- 110 mm
13
In the box
- Electronics
- 1 × PCIe 5.0 riser cable · 2 × ARGB spotlights
- Tools
- Toolbox included
