CORSAIR
AIR 5400 LX-R RGB iCUE LINK Triple-Chamber Case
ColorBlack
Rs 70,999Sold out
1
Details
The AIR 5400 splits a build into three chambers: one for the CPU cooler's radiator, one for the motherboard and graphics card, and one for the PSU, cables and drives. Two curved glass panels meet at the front corner and swing open like doors. This LX-R RGB iCUE LINK edition ships with three reverse-rotor LX120-R RGB fans in the floor and a pre-installed iCUE LINK System Hub. It takes E-ATX and back-connector boards, 360 mm graphics cards and 360 mm radiators in three places, with a 20 Gb/s USB-C port up top.

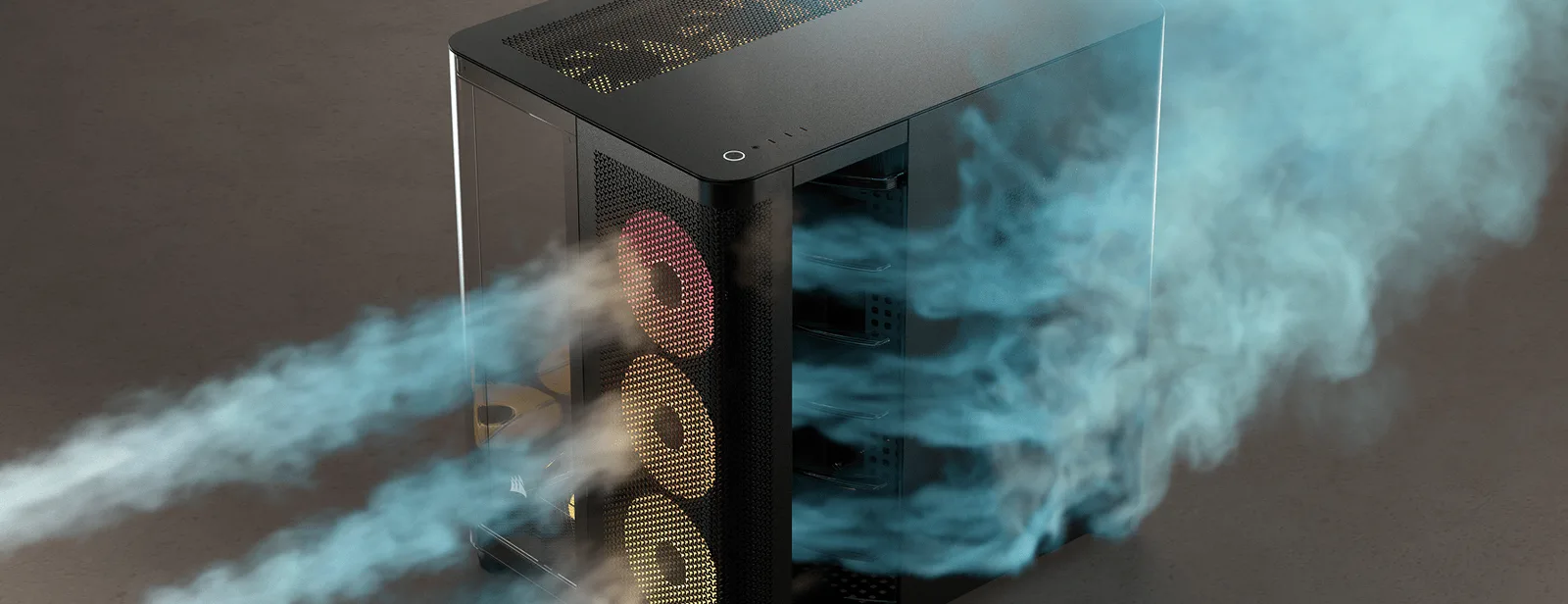

Three Chambers, Three Airflow Paths
Fit
360 mm GPUs · 180 mm Coolers
E-ATX and back-connector boards, 200 mm PSUs, 134 mm behind the tray.

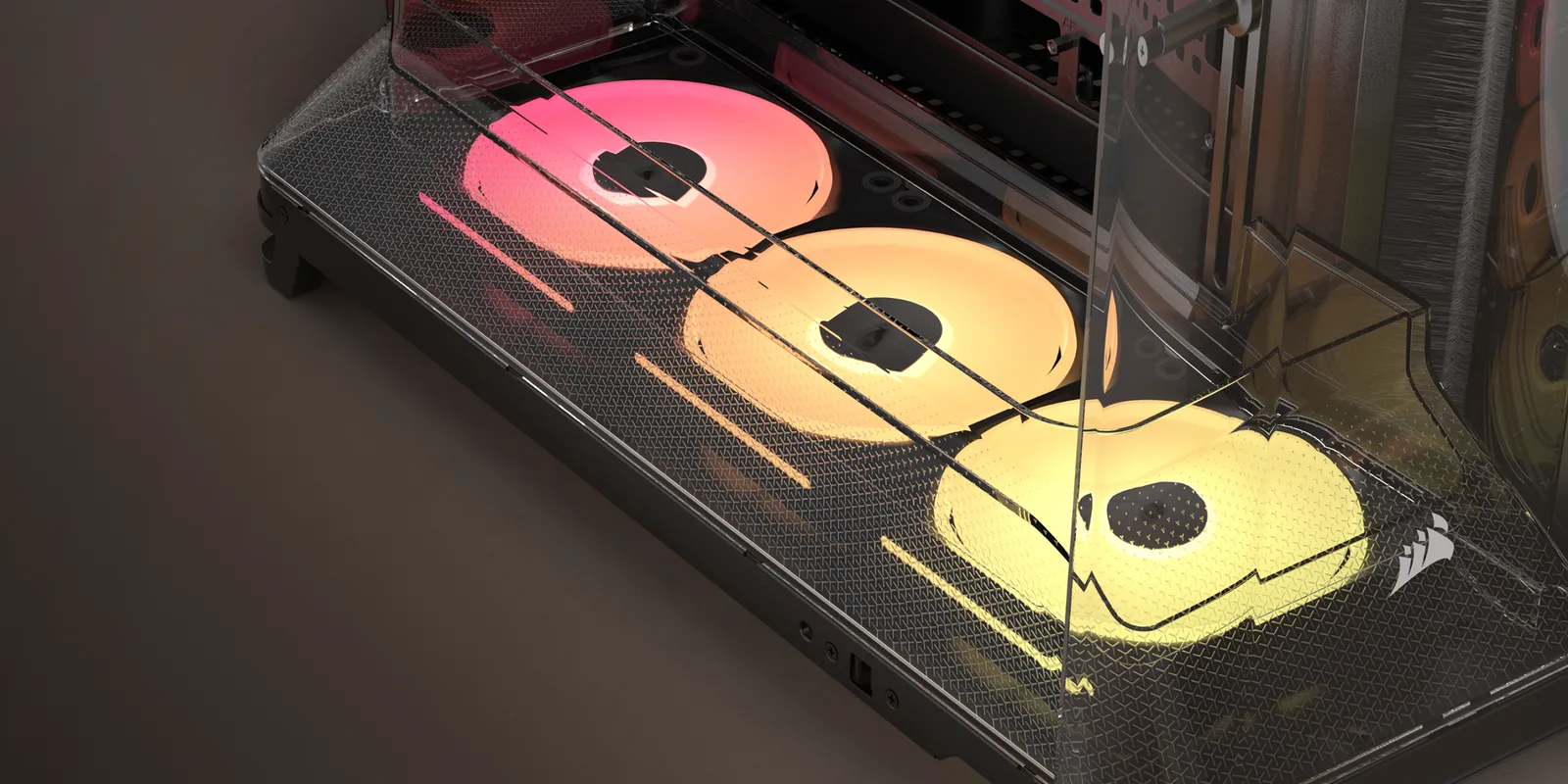

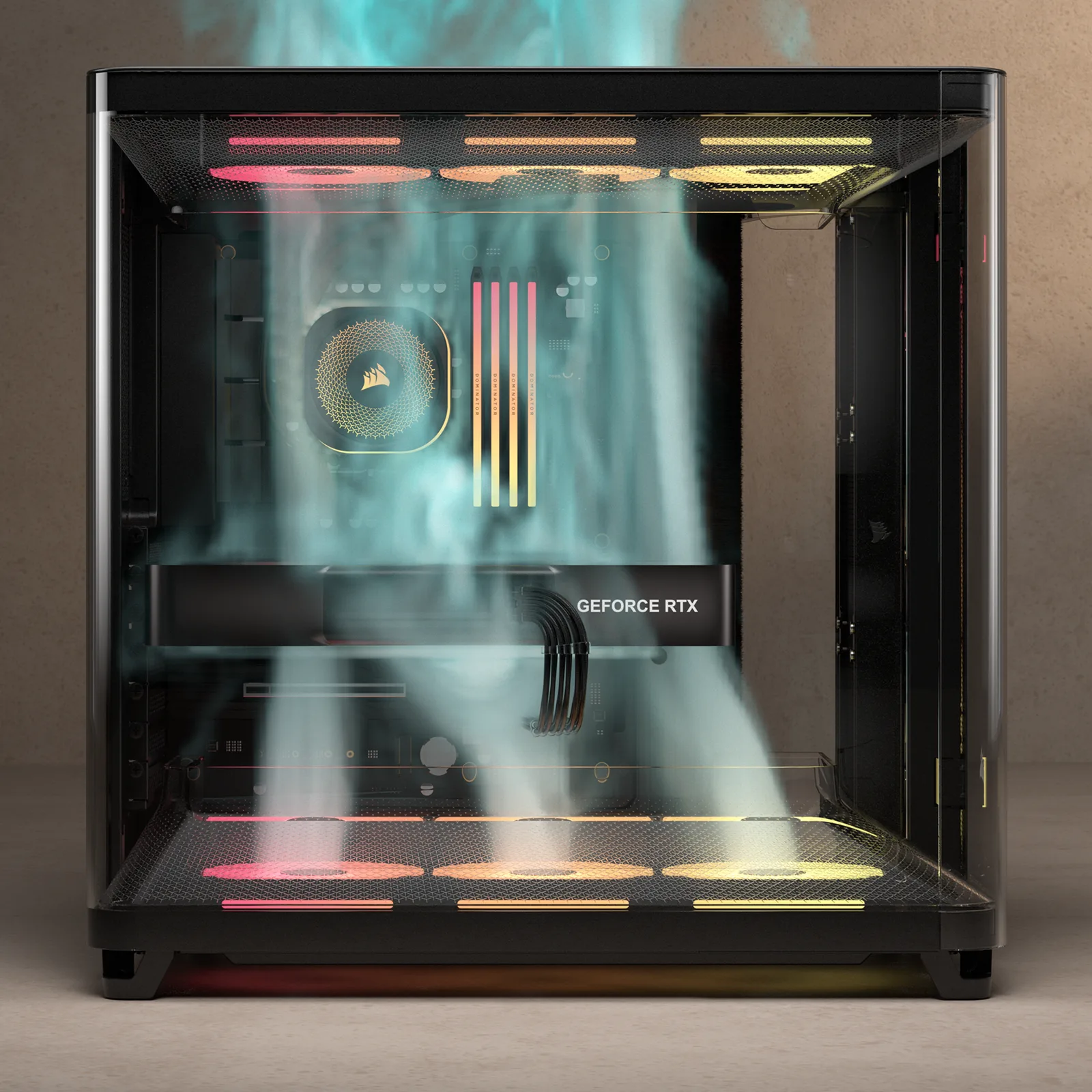

Reverse-Rotor LX120-R RGB Fans

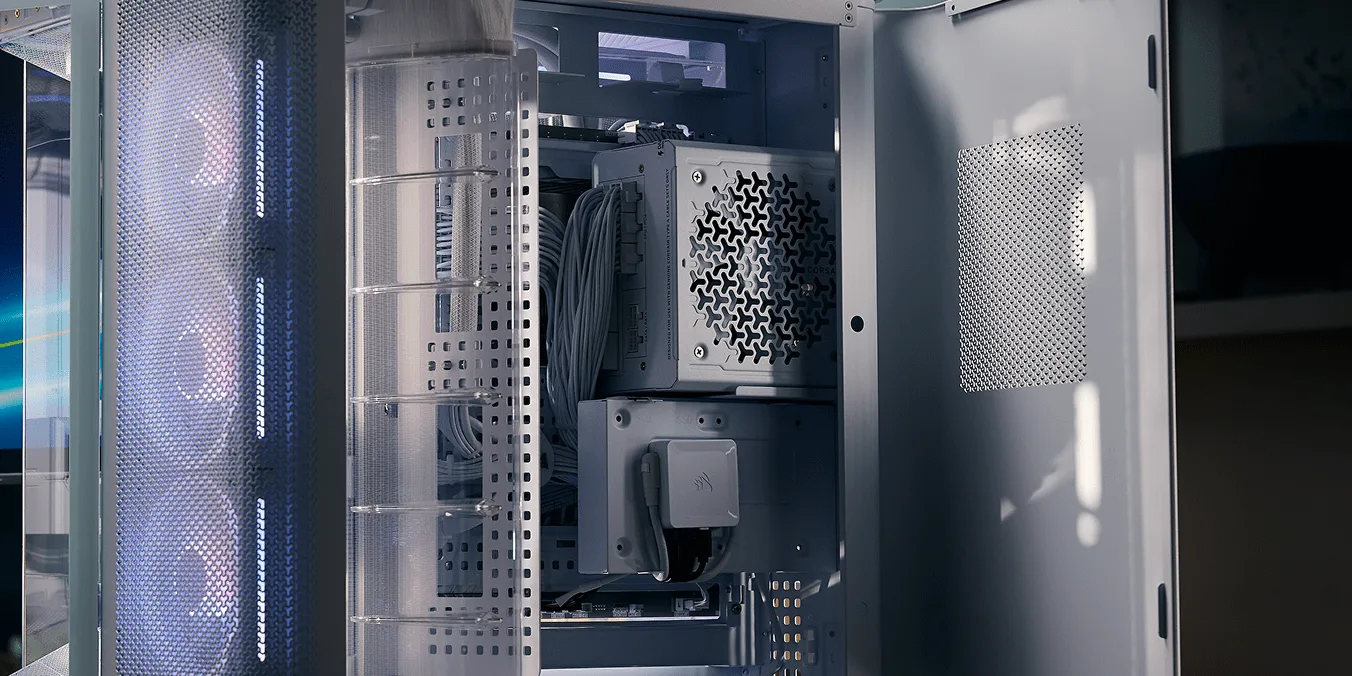

Hinged Panels, Open Access

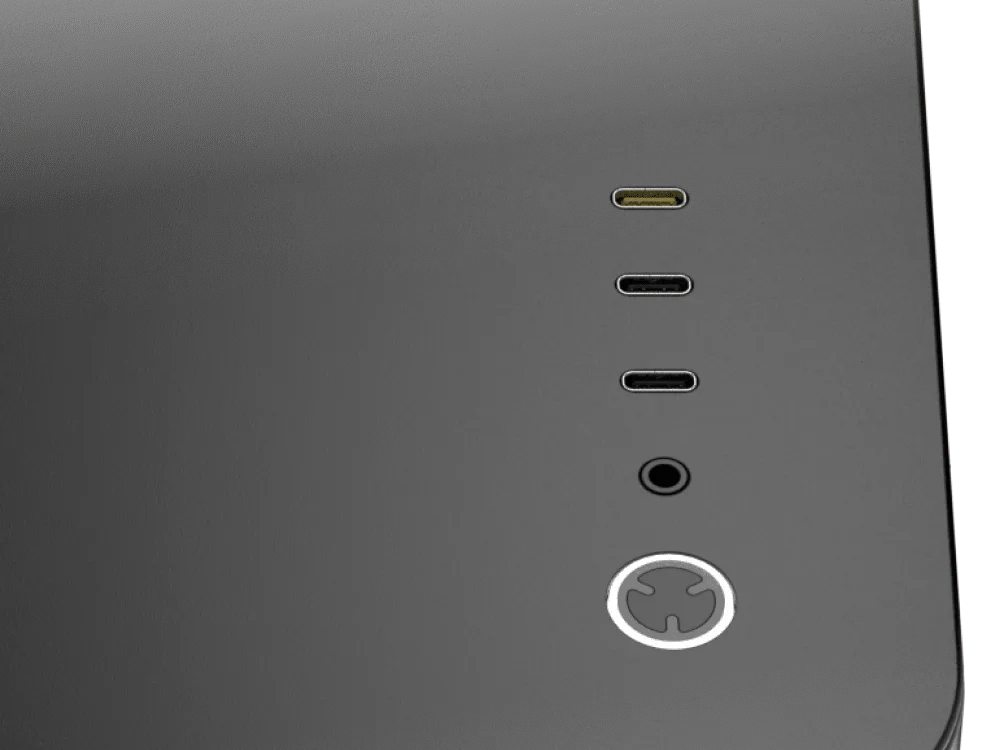

USB-C 20 Gb/s on Top

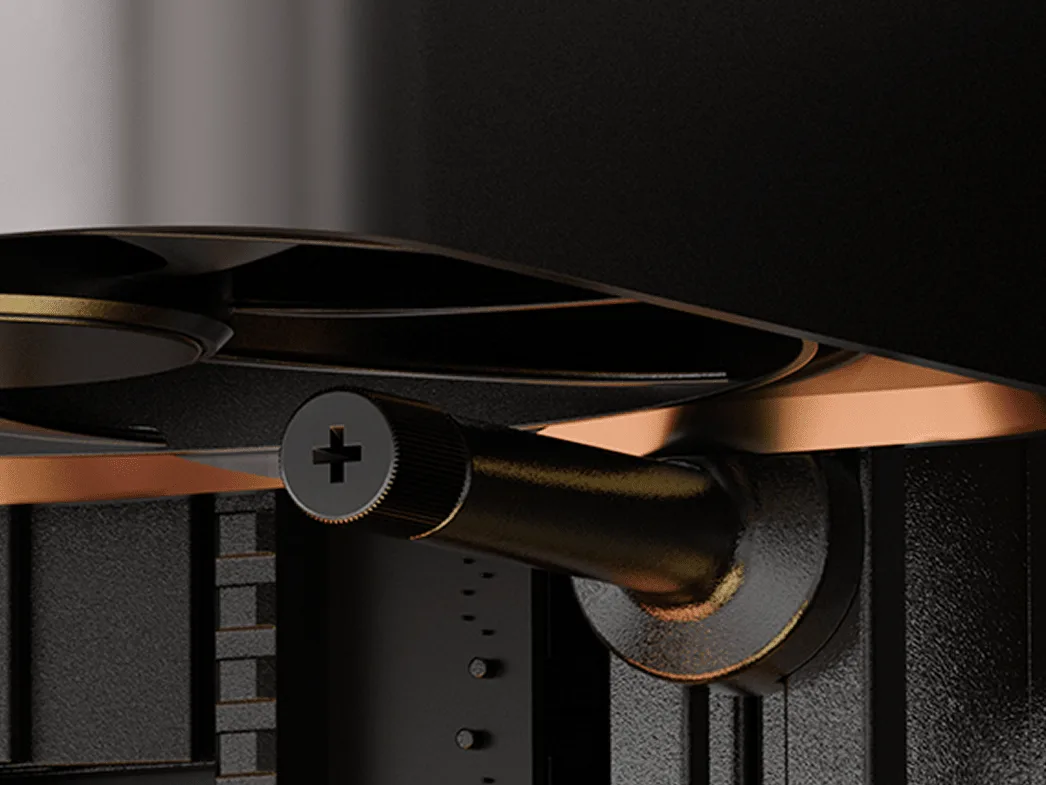

Adjustable GPU Support Arm

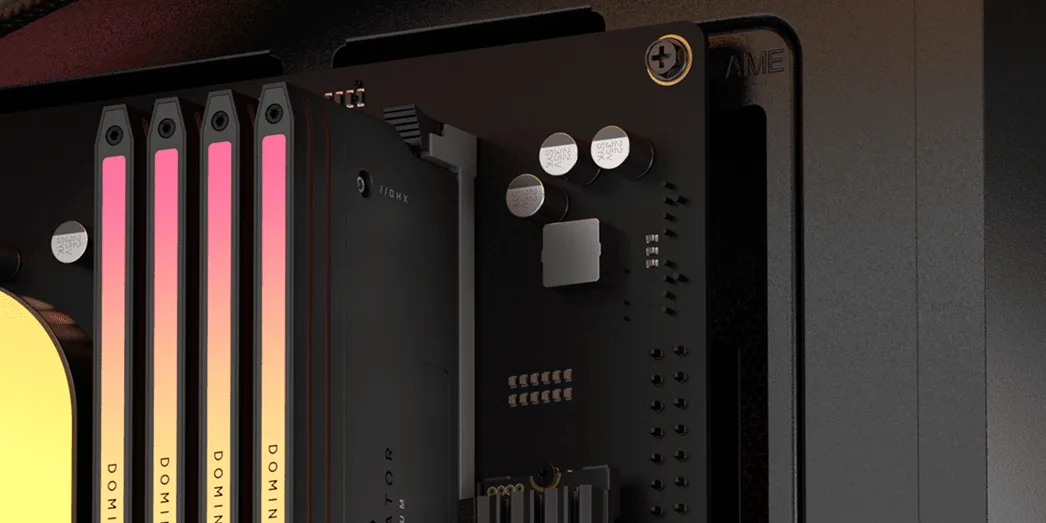

Back-Connector Boards Welcome

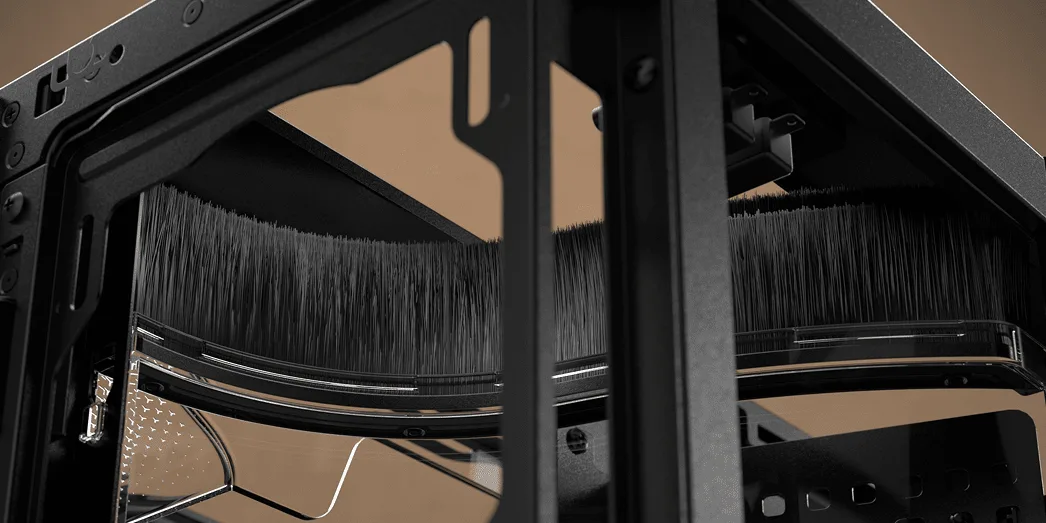

Brush-Sealed Cable Pass-Throughs
Specifications
- Weight
- 16kg
- GPU length
- 360mm
- max
- CPU cooler height
- 180mm
- max
- Front radiator
- 360mm
- max (also 240)
01
Overview
- Model
- CORSAIR AIR 5400 LX-R RGB iCUE LINK
- Type
- Triple-chamber mid-tower case
- Colours
- Black / White
- SKUs
- CC-9011320-WW (Black) · CC-9011321-WW (White)
- Software
- CORSAIR iCUE
- Warranty
- 2 years
02
Dimensions & Weight
- Size (L × W × H)
- 470 × 340 × 467 mm
- Weight
- 16 kg
03
Materials
- Body
- Steel, tempered glass
- Front & left panels
- Curved tempered glass with shatter-safety film, hinged
- Right panel
- Steel, hinged
04
Motherboard Support
- Form factors
- Mini-ITX, Micro-ATX, ATX, E-ATX (305 × 277 mm)
- Back-connector boards
- ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth
05
Expansion & GPU
- Expansion slots
- 7 horizontal
- Vertical GPU mount
- Not supported
- GPU length
- 360 mm max
- GPU support
- Built-in anti-sag stabilisation arm
06
CPU Cooler & Radiators
- CPU cooler height
- 180 mm max
- Front radiator
- 360 mm max (also 240)
- Top radiator
- 360 mm max (also 240)
- Bottom radiator
- 360 mm max (also 240)
- Rear radiator
- 120 mm
- Side radiator
- None
- CORSAIR AIOs
- H60, H100, H115, H150, NAUTILUS, TITAN
07
Fans
- Front fans
- 3 × 120 mm
- Top fans
- 3 × 120 mm
- Bottom fans
- 3 × 120 mm
- Rear fans
- 1 × 120 mm
- Side fans
- None
- Included
- 3 × iCUE LINK LX120-R RGB reverse-rotor fans (pre-installed, bottom)
- Controller
- iCUE LINK System Hub (pre-installed, up to 24 devices)
08
Storage
- Drives
- 1 × 3.5" HDD + 2 × 2.5" SSD
09
Front I/O
- Position
- Top-mounted
- USB
- 1 × USB 3.2 Gen 2x2 Type-C (20 Gb/s), 2 × USB 3.2 Gen 1 Type-C (5 Gb/s)
- Audio
- 1 × headphone / mic combo jack
- Power button
- 1
- Motherboard headers
- USB 3.2 Gen 2x2 Type-E, USB 3.2 Gen 1 20-pin, F_PANEL, HD Audio
10
Power Supply
- Form factor
- ATX (CORSAIR SHIFT supported)
- PSU length
- 200 mm max
11
Cable Management
- System
- RapidRoute 2.0 pegboard tray, ratcheting cable organisers
- Rear cable space
- 134 mm
- Dust filters
- Bottom (pre-installed), front radiator chamber (in accessory kit)
12
In the box
- Fans & hub
- 3 × LX120-R RGB fans and iCUE LINK System Hub (pre-installed)
- Filters & brackets
- Front radiator chamber filter, rear fan VRM cooling bracket, reverse-connector magnetic strip
- Screws
- 22 × motherboard / HDD (6-32), 8 × SSD (M3), 12 × QuikTurn fan screws, spare standoff, reusable screw toolkit
- Other
- 12 zip ties, top-mounted front I/O adapter cable, anti-sag arm rubber spacer
Downloads
- Download
AIR 5400 Quick Start Guide
CORSAIR's step-by-step build guide: panels, back-connector boards, radiators and fan wiring.
