A PCIe 4.0 x16 riser for mounting a graphics card vertically. A 207 mm ribbon runs between a gold-plated x16 edge plug and a right-angle x16 slot, 255 mm end to end. The ribbon is split into strips, so it bends easily behind a vertical bracket and lets air pass through. The slot has a push catch that holds the card in place. The copper core is tinned, and the cable works with PCIe 4.0, 3.0, 2.0 and 1.0 cards with no BIOS changes. ASIAHORSE lists RTX 30-series and RX 6000-series cards as compatible.

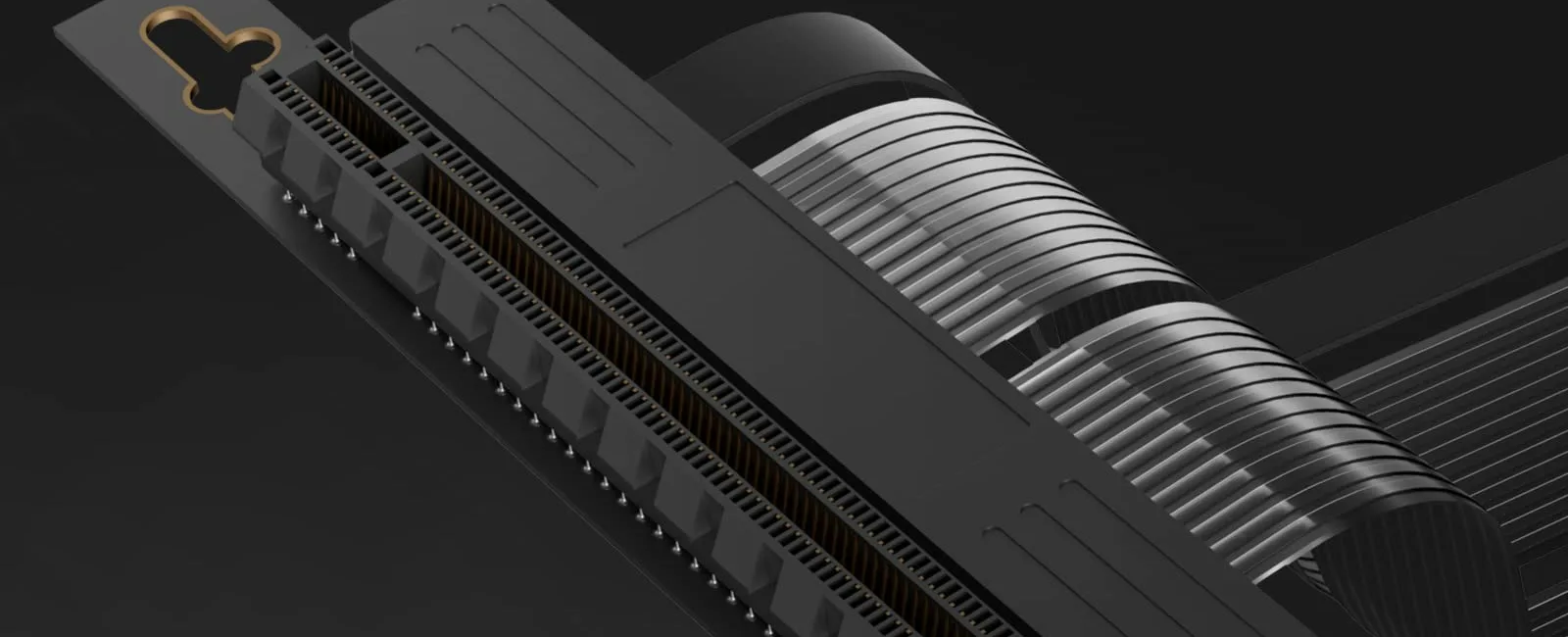

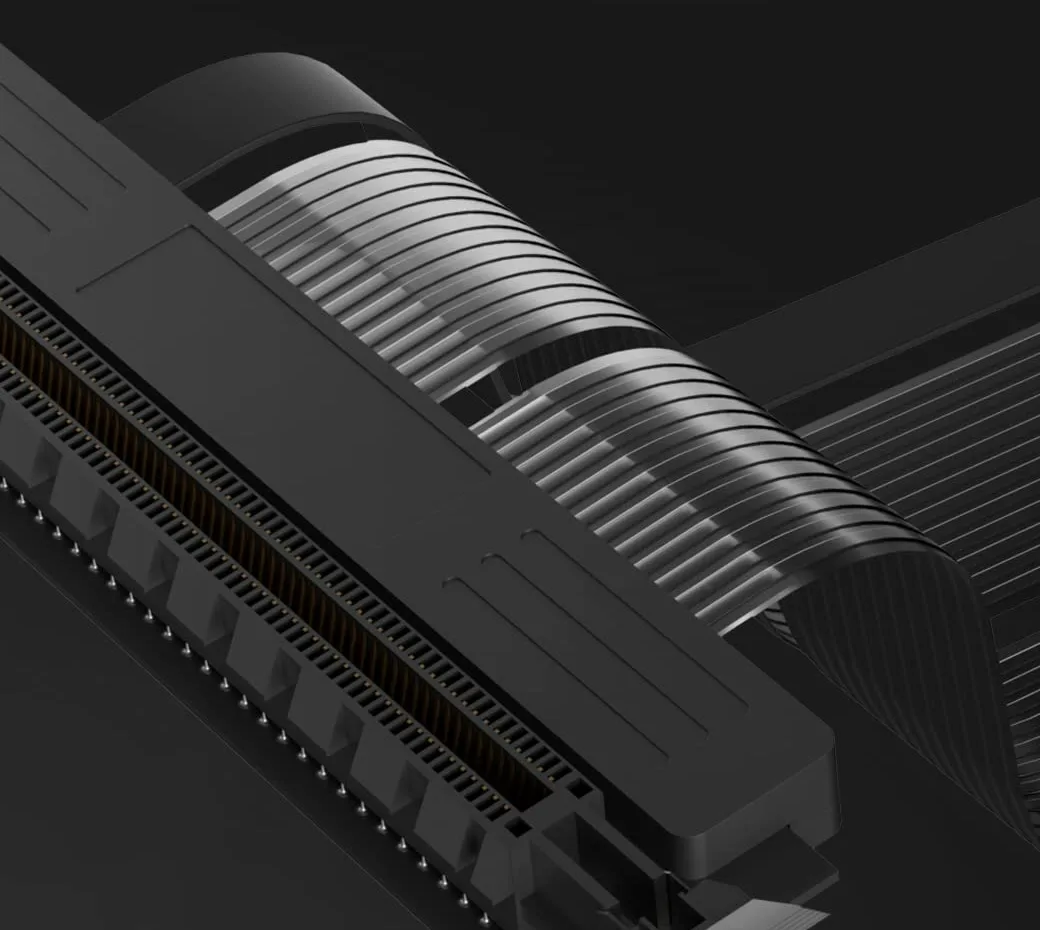

Push-Lock Card Catch

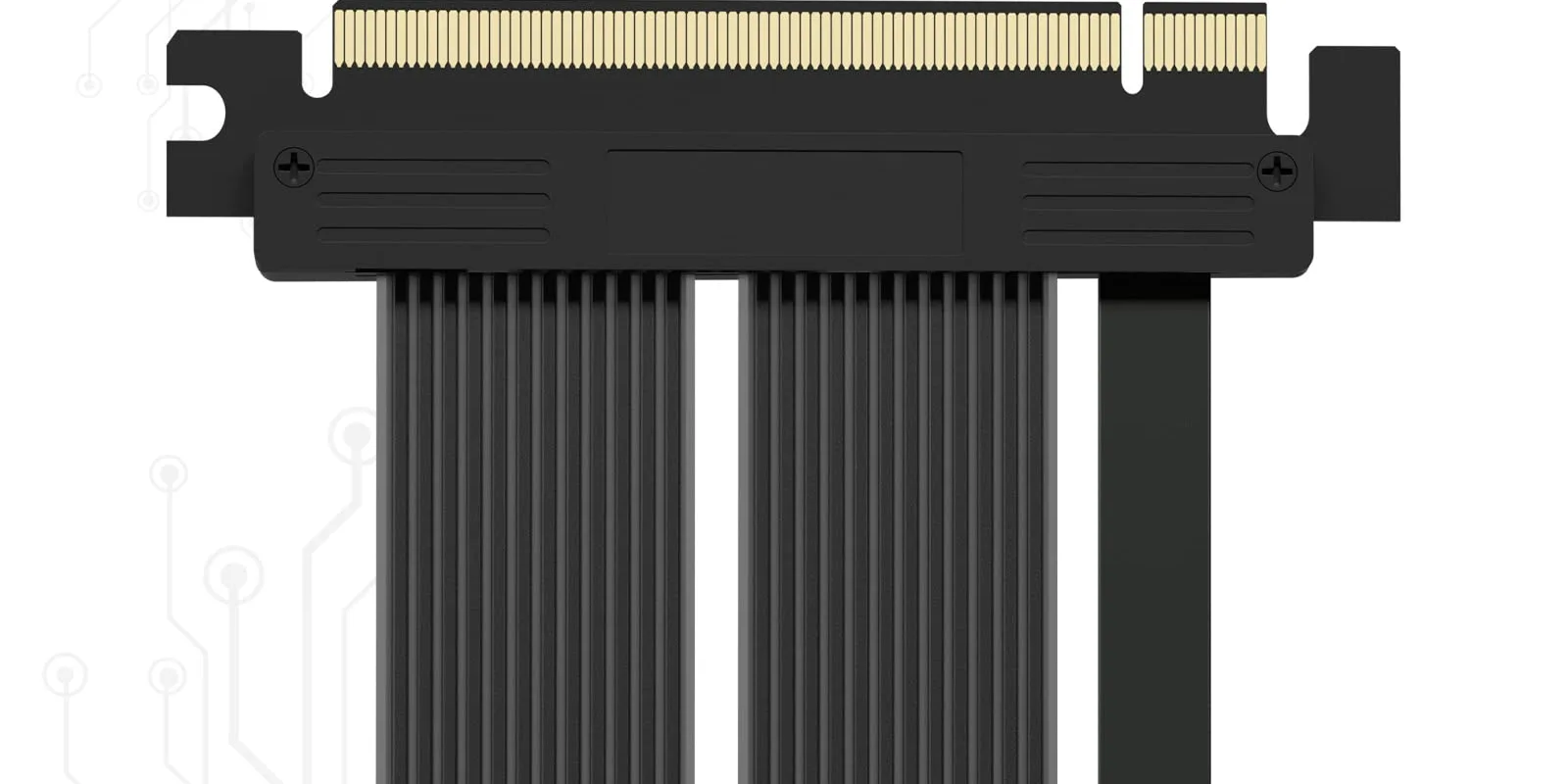

Gold-Plated Edge Plug

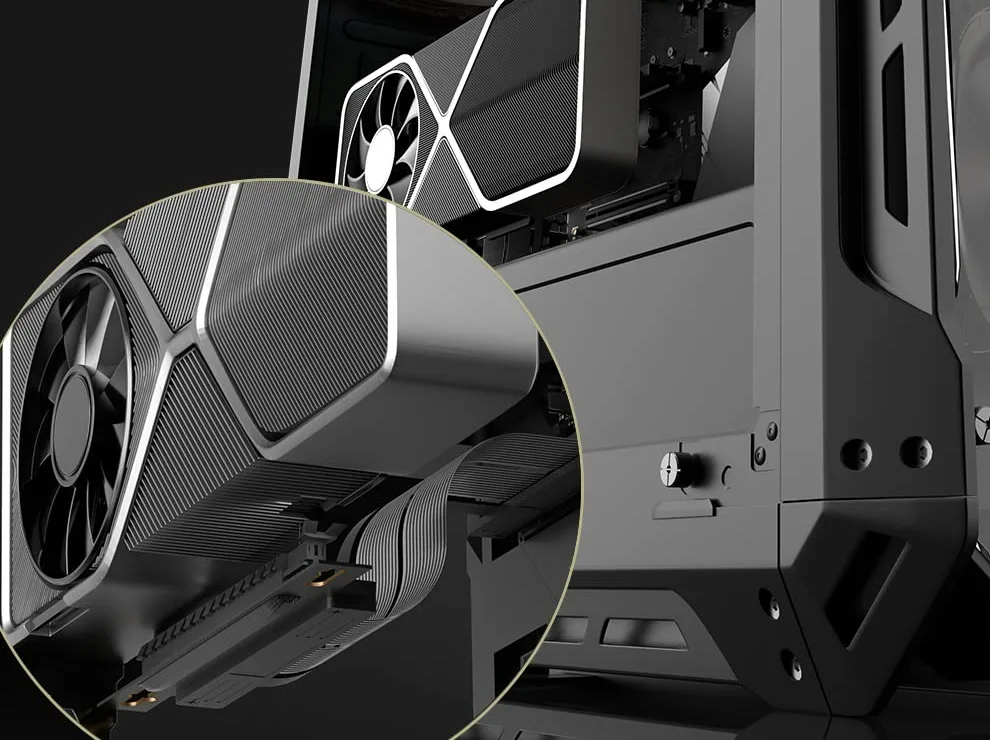

Vertical GPU Mounting

Fit

255 mm End to End

207 mm of ribbon between a 112 mm edge plug and a 140 mm x16 slot.

Performance

PCIe 4.0 x16

Backward compatible with PCIe 3.0, 2.0 and 1.0. No BIOS settings needed.

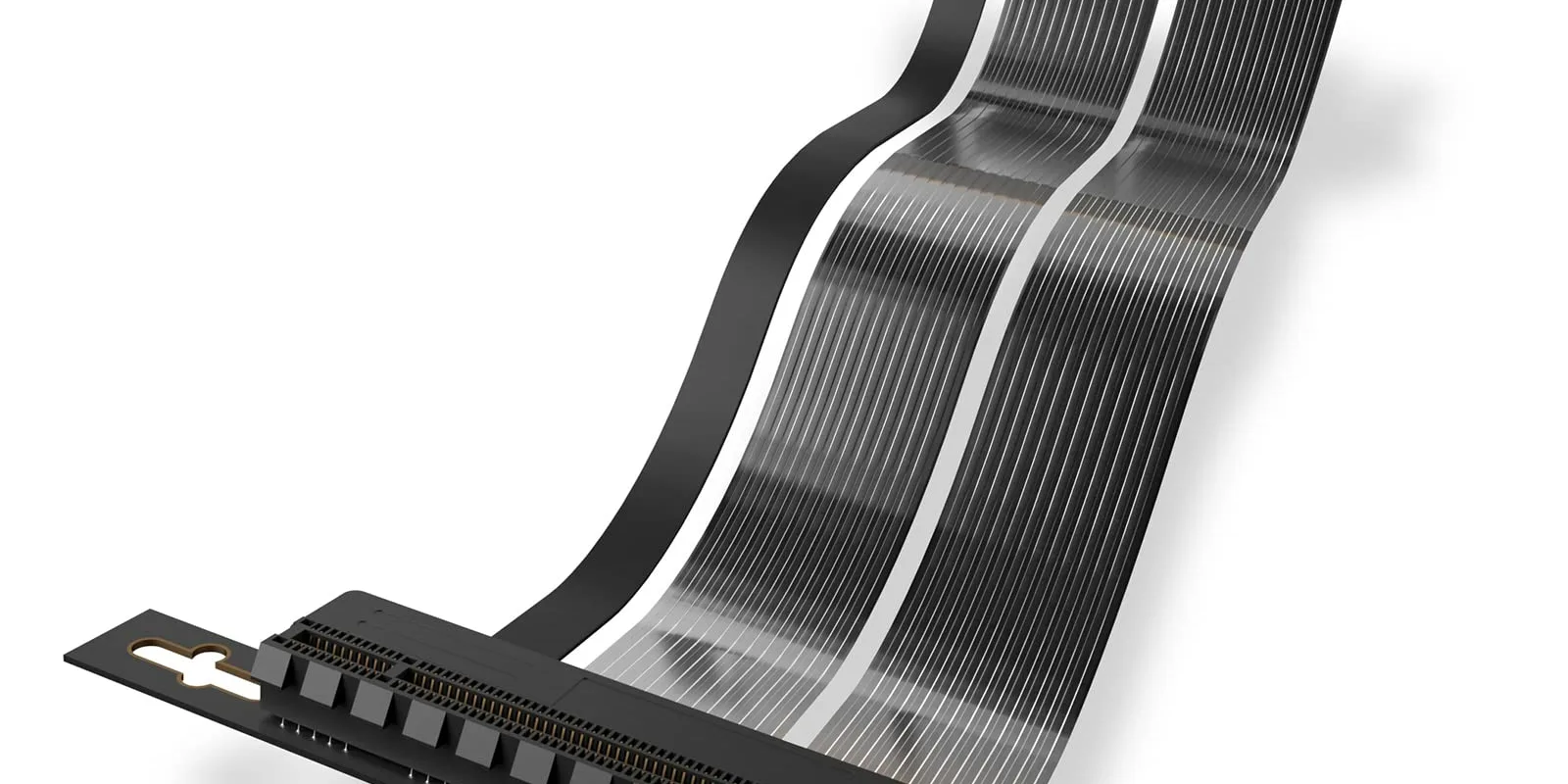

Split, Flexible Ribbon

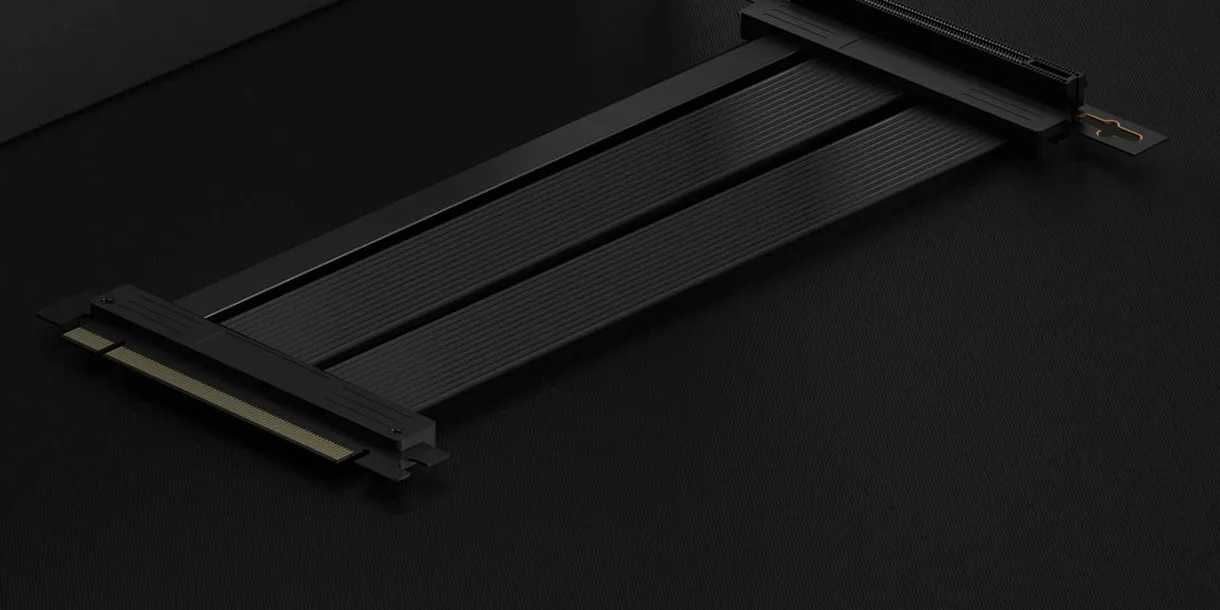

Low-Profile Run
