ASIAHORSE
Matrix Pro ARGB Fan
ColorBlack
Blade type
Forward blade
Draws air in through the lit front and out the back. The standard pick for intake or exhaust.
Size
360mm All-in-One
Rs 16,000Sold out
1
Details

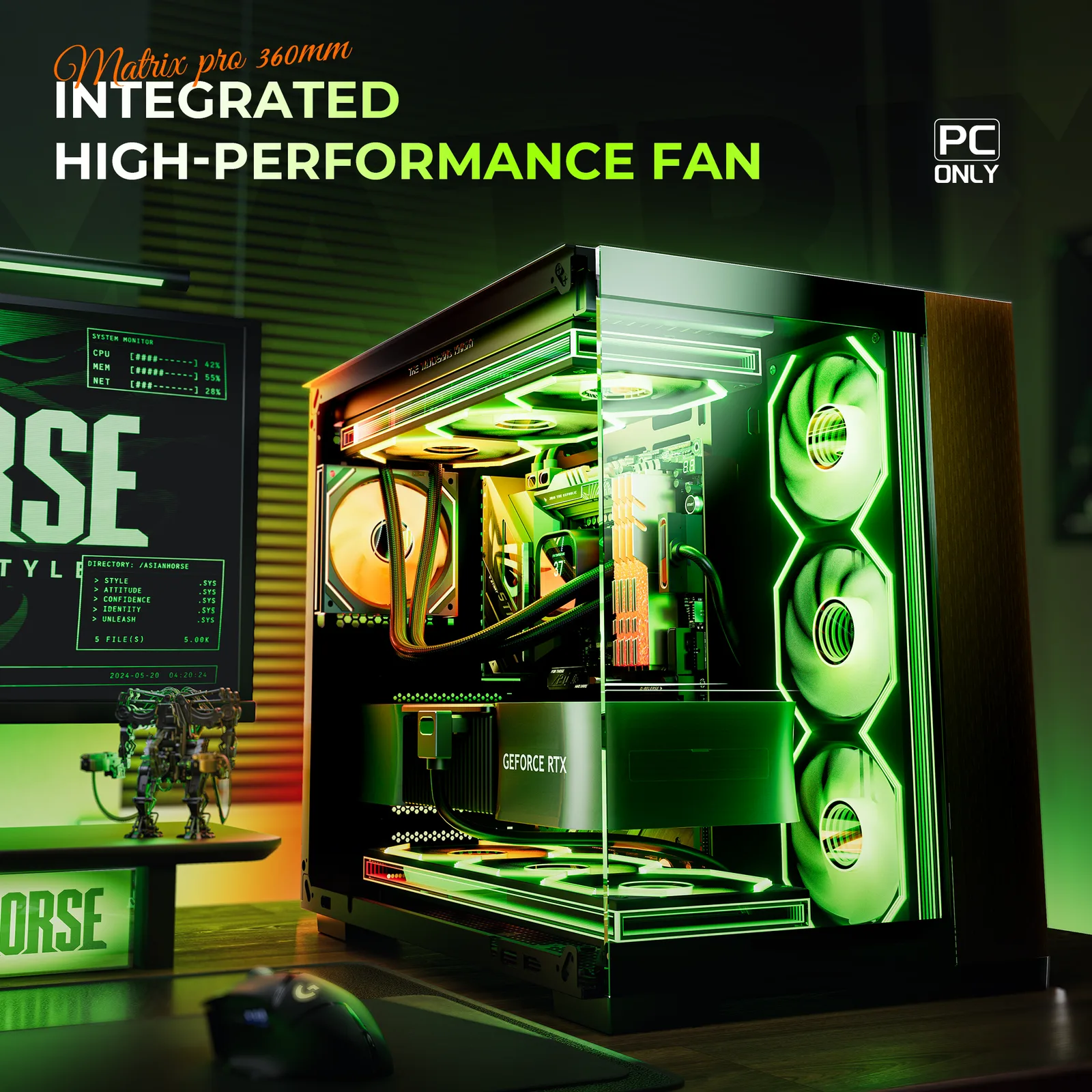

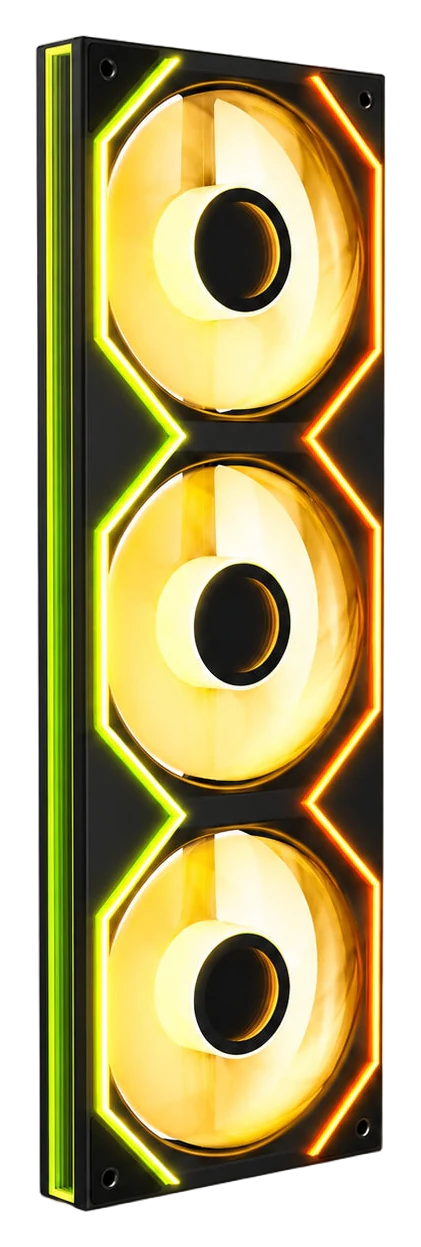

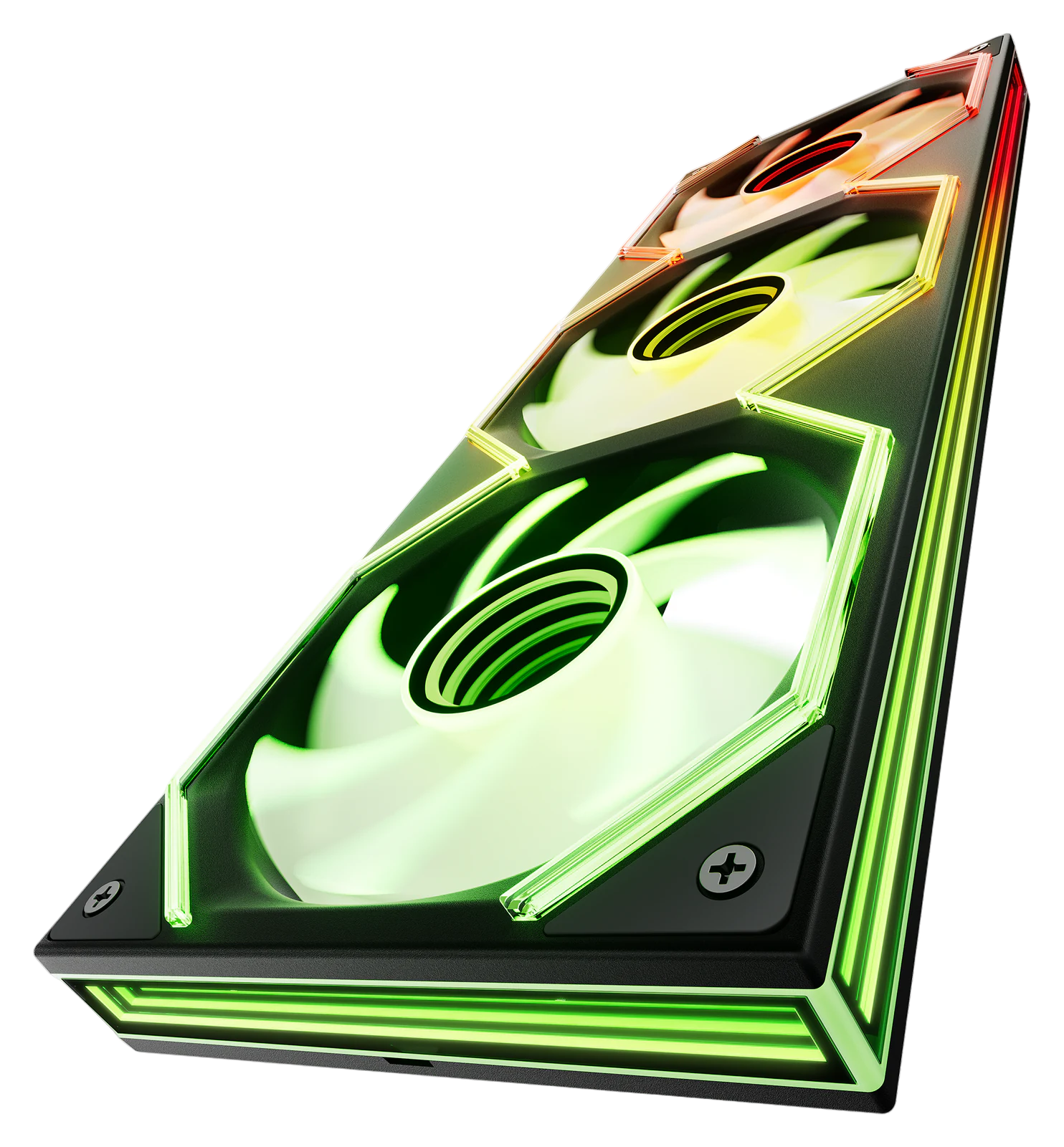

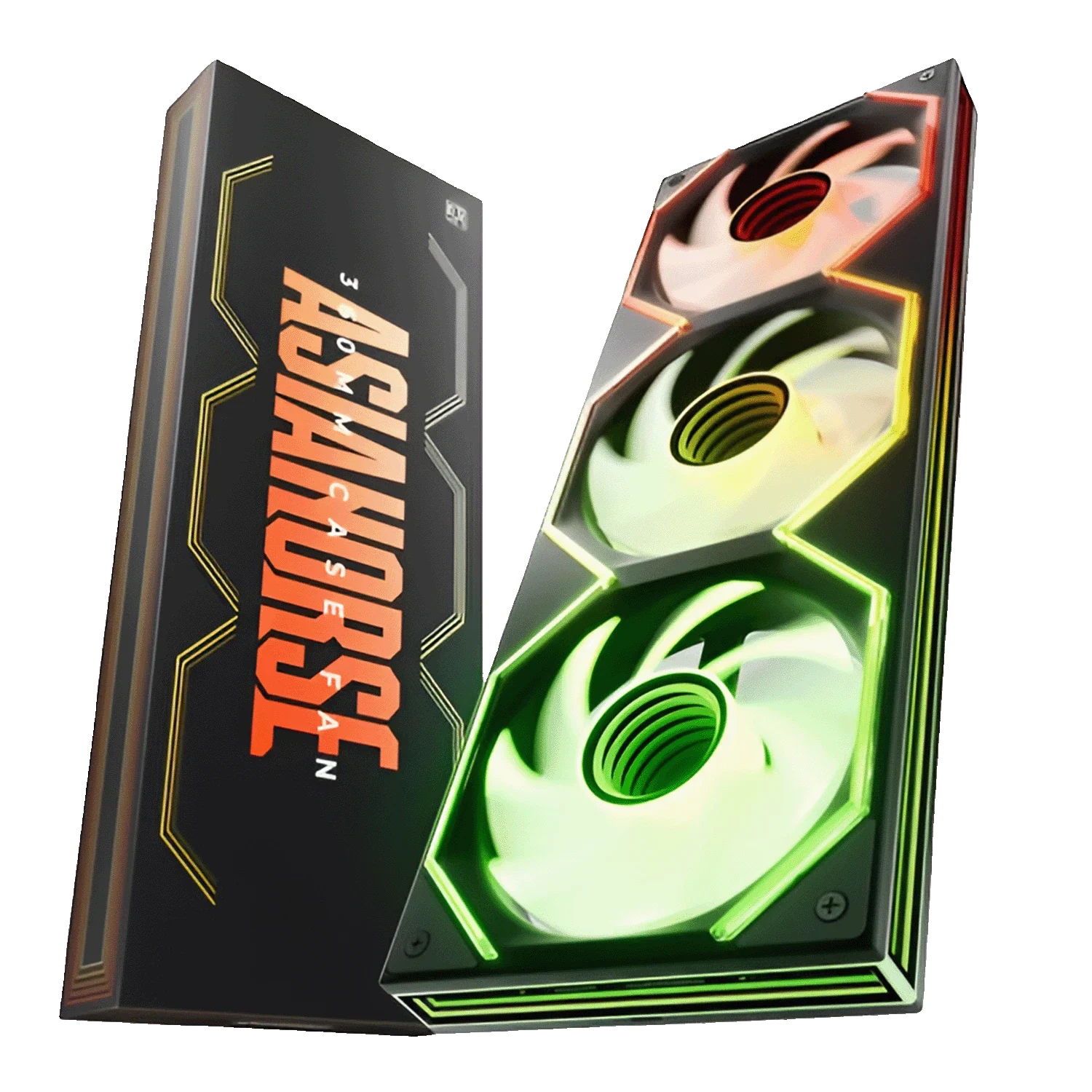

The Matrix Pro molds three fans into one 360mm frame that mounts in a single step, with a 4-side infinity mirror and a 3D zigzag light strip around the edge. It runs at 800 to 2000 RPM on a hydraulic bearing and moves up to 61.4 CFM. The 120mm single carries the same look into a lone slot. Three-zone lighting runs on the UMBRA ARGB PWM Hub.

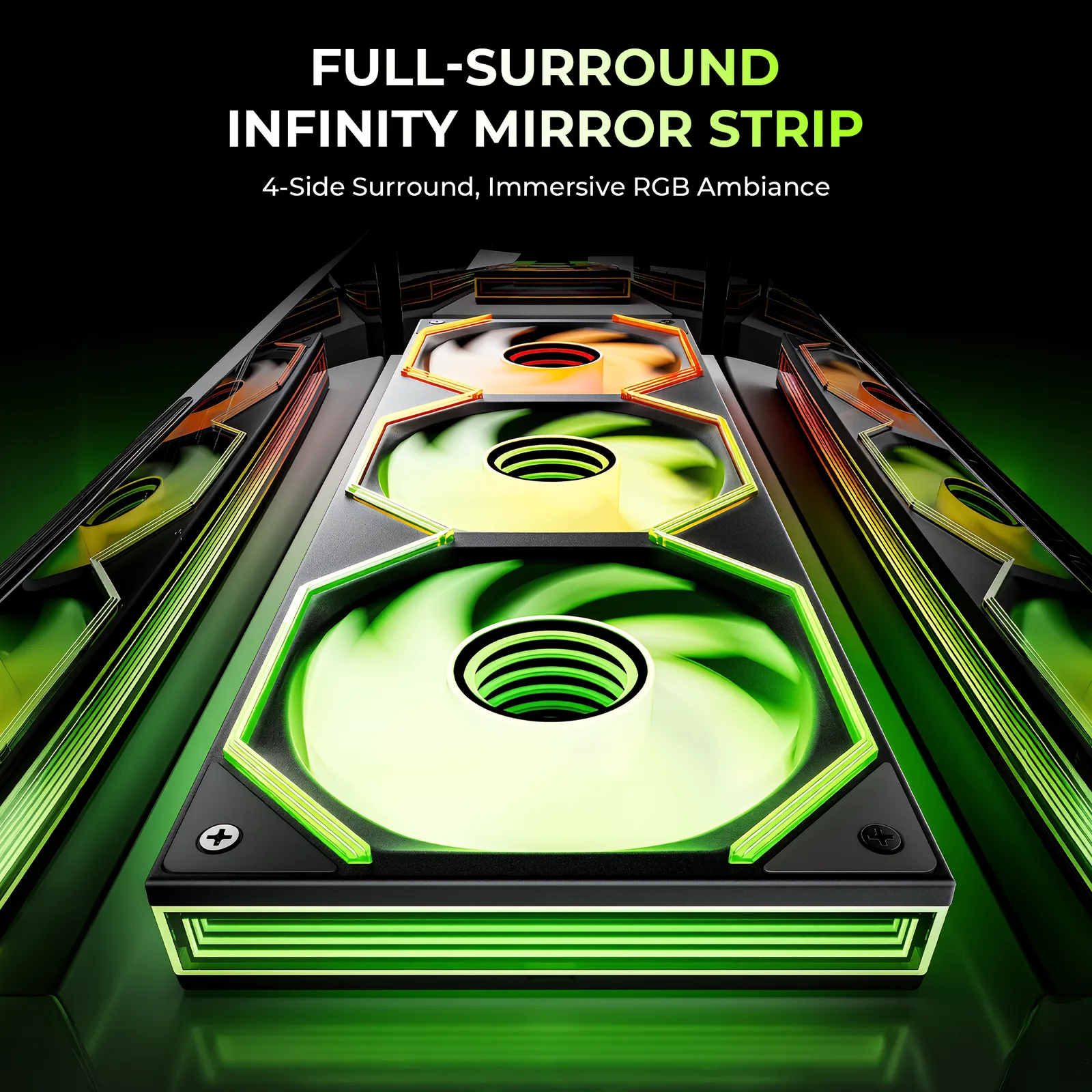

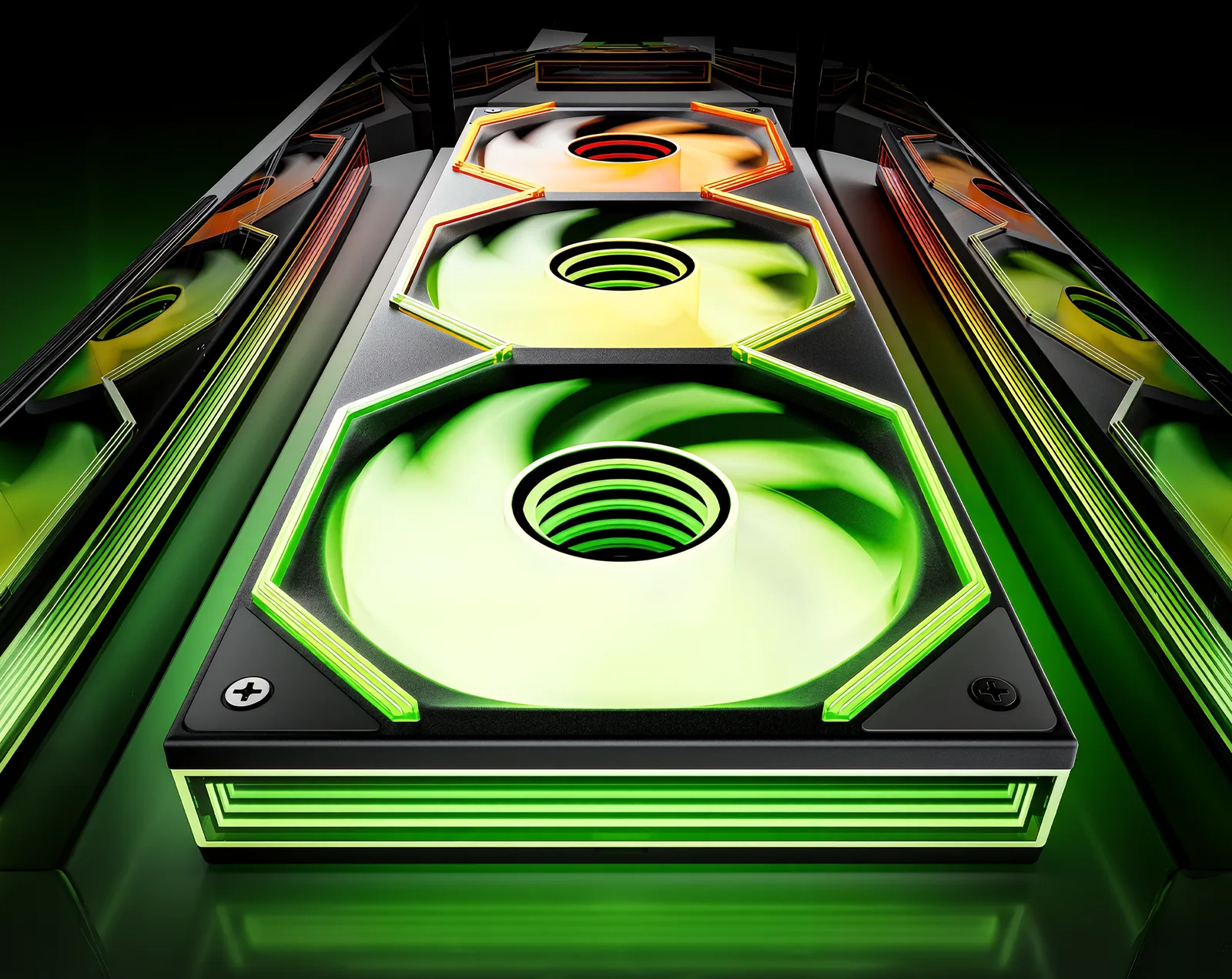

4-Side Infinity Mirror

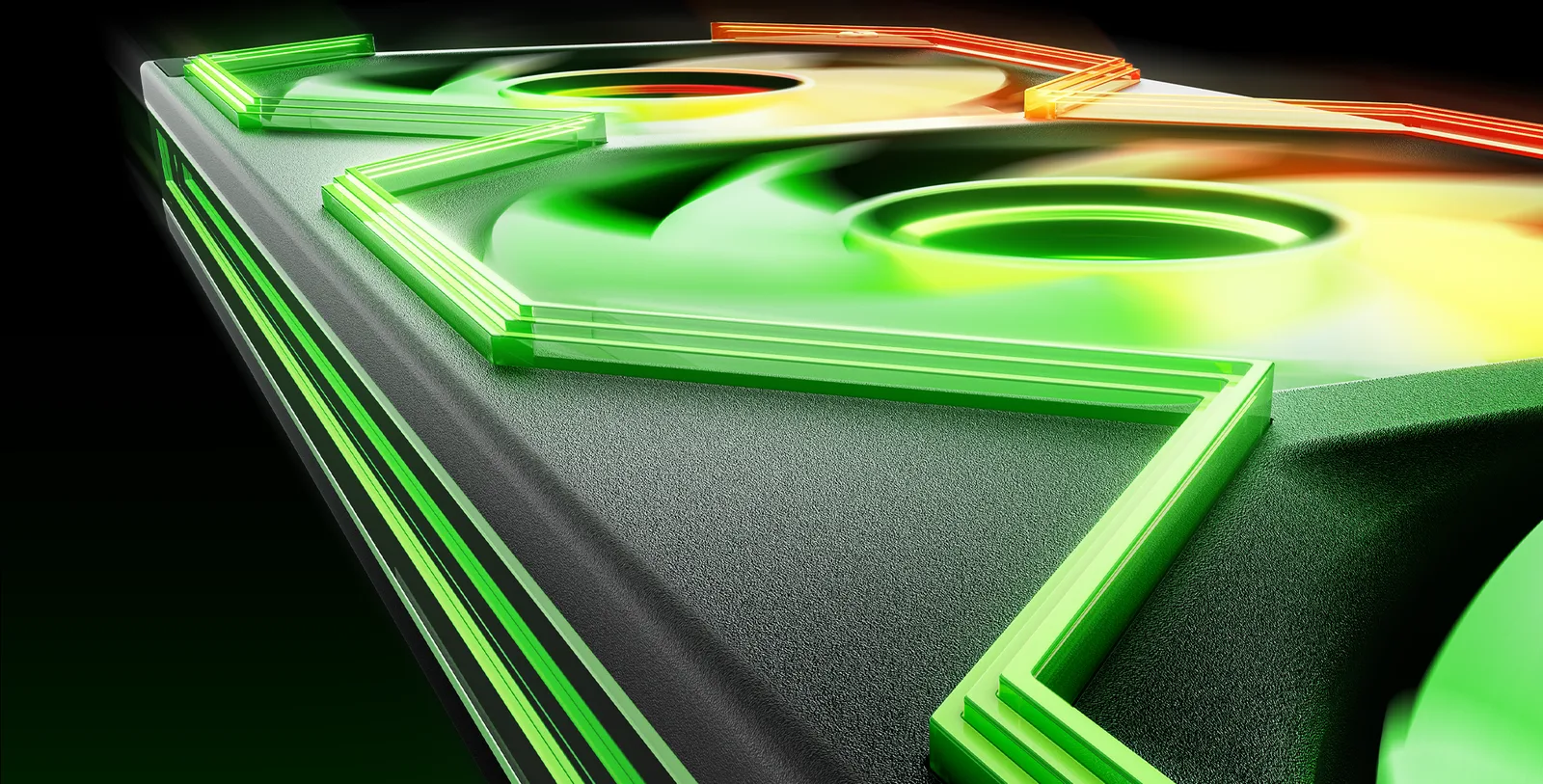

3D Zigzag Light Strip

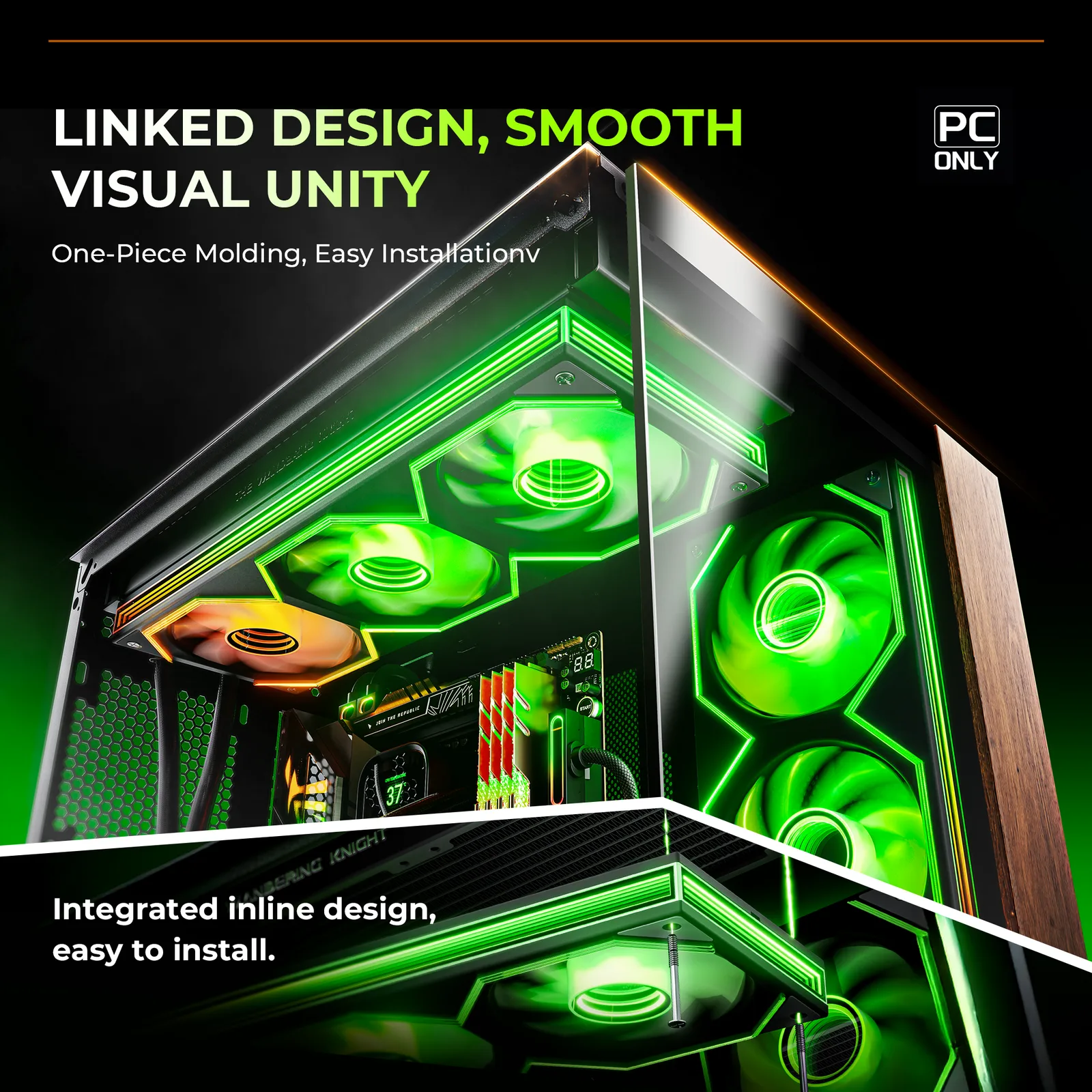

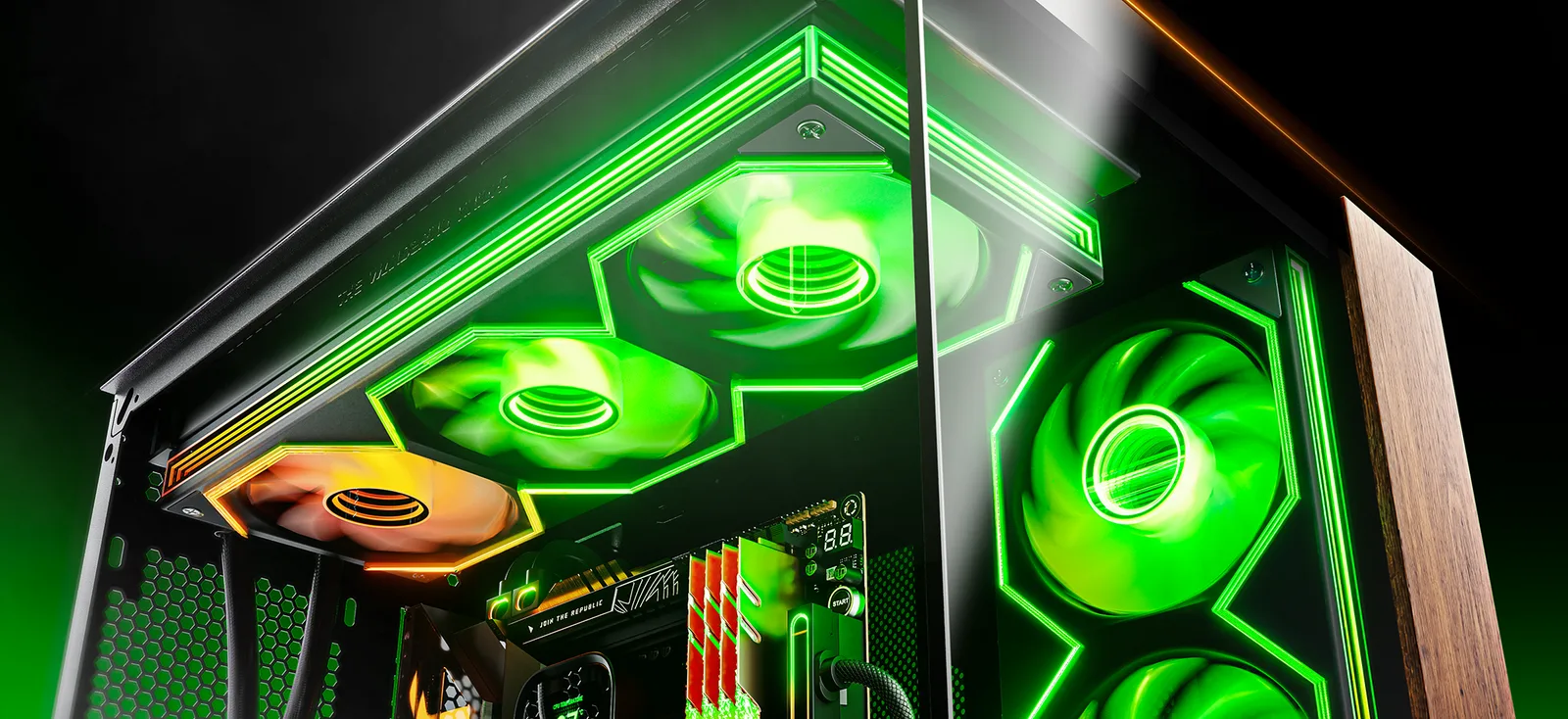

Linked One-Piece Design

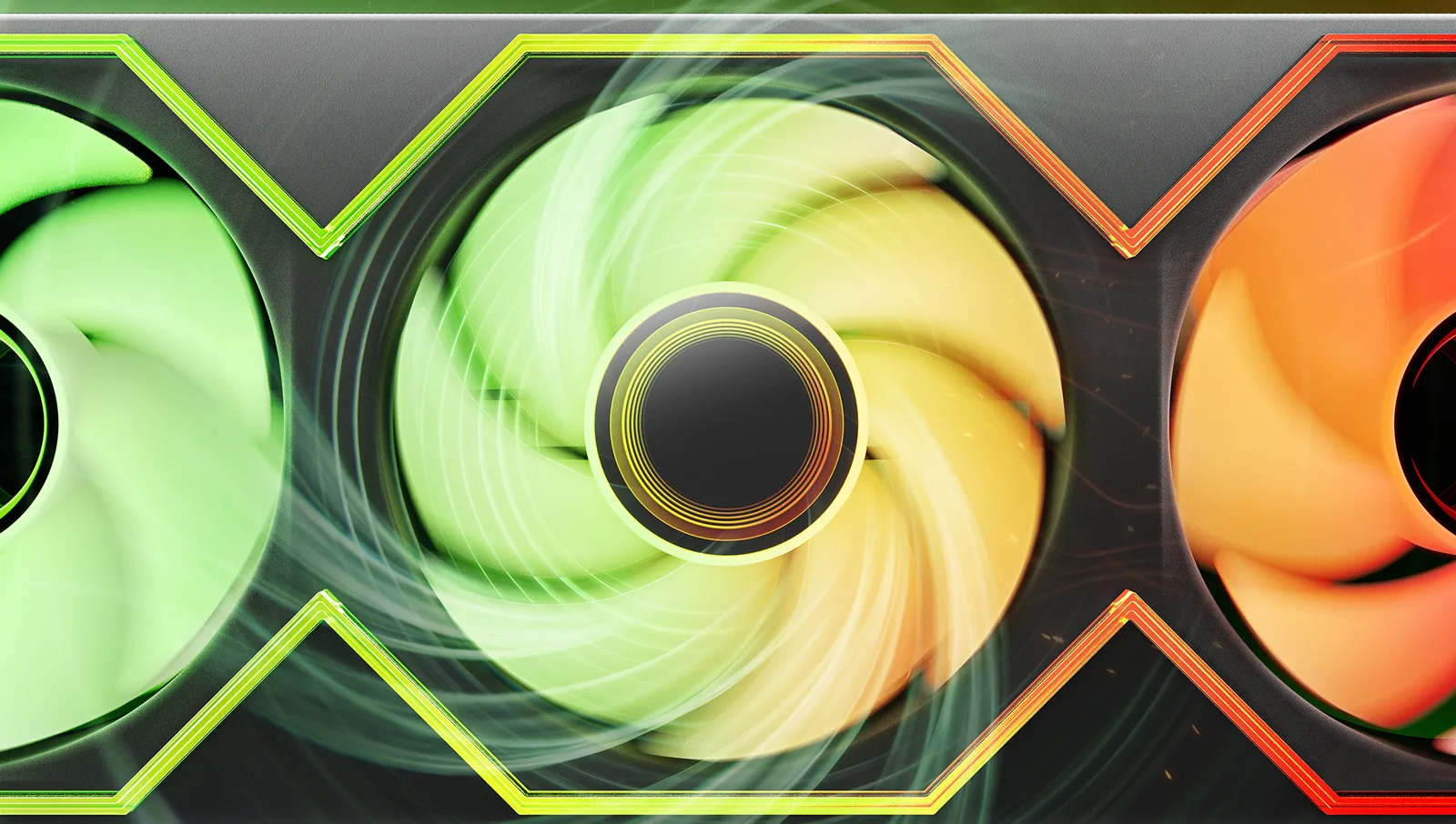

High Airflow, Strong Pressure

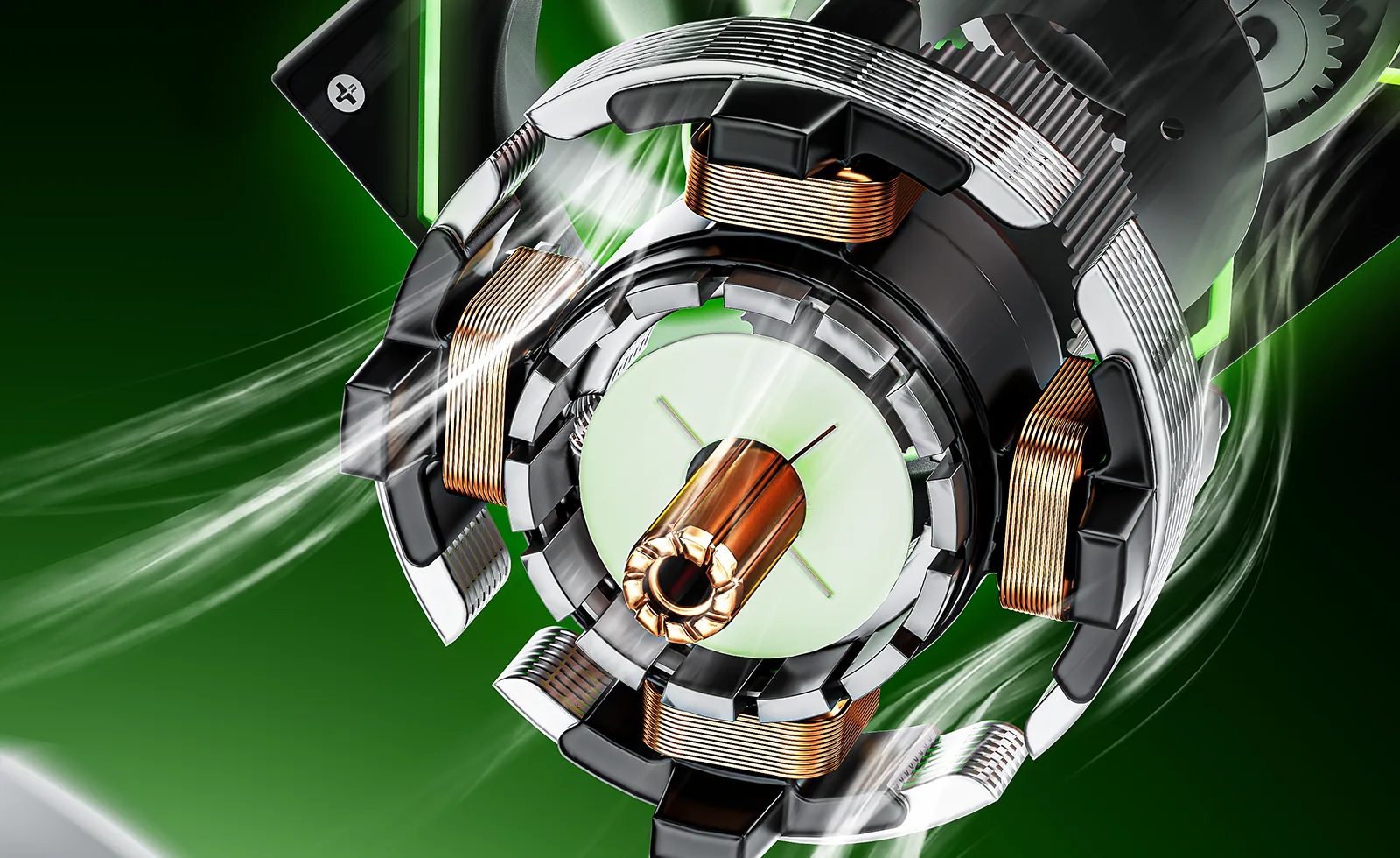

Silent Hydraulic Bearing
UMBRA Zone Control

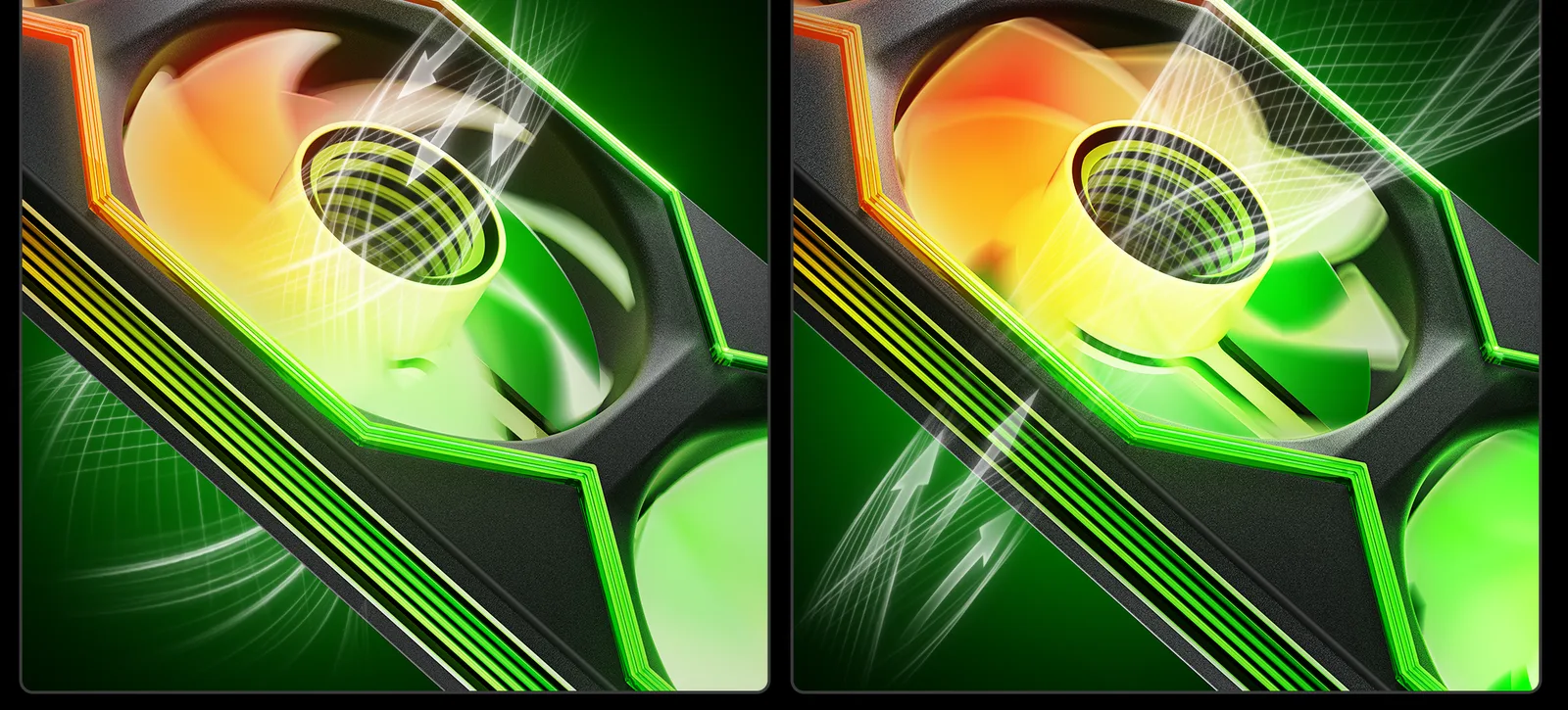

Forward & Reverse Blades

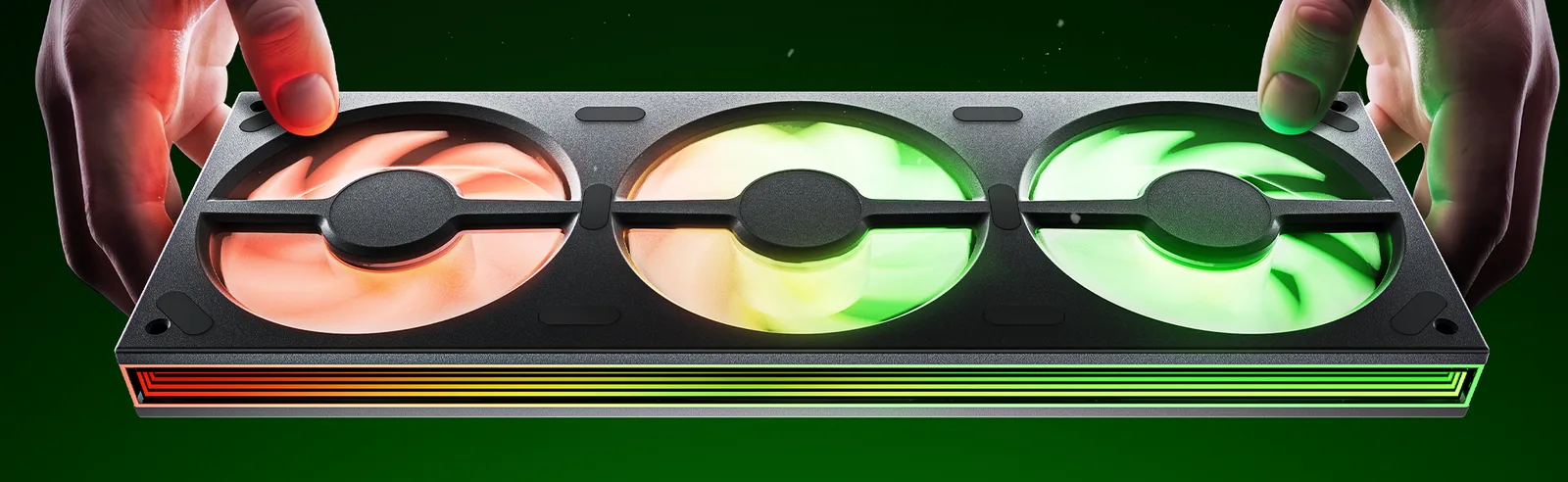

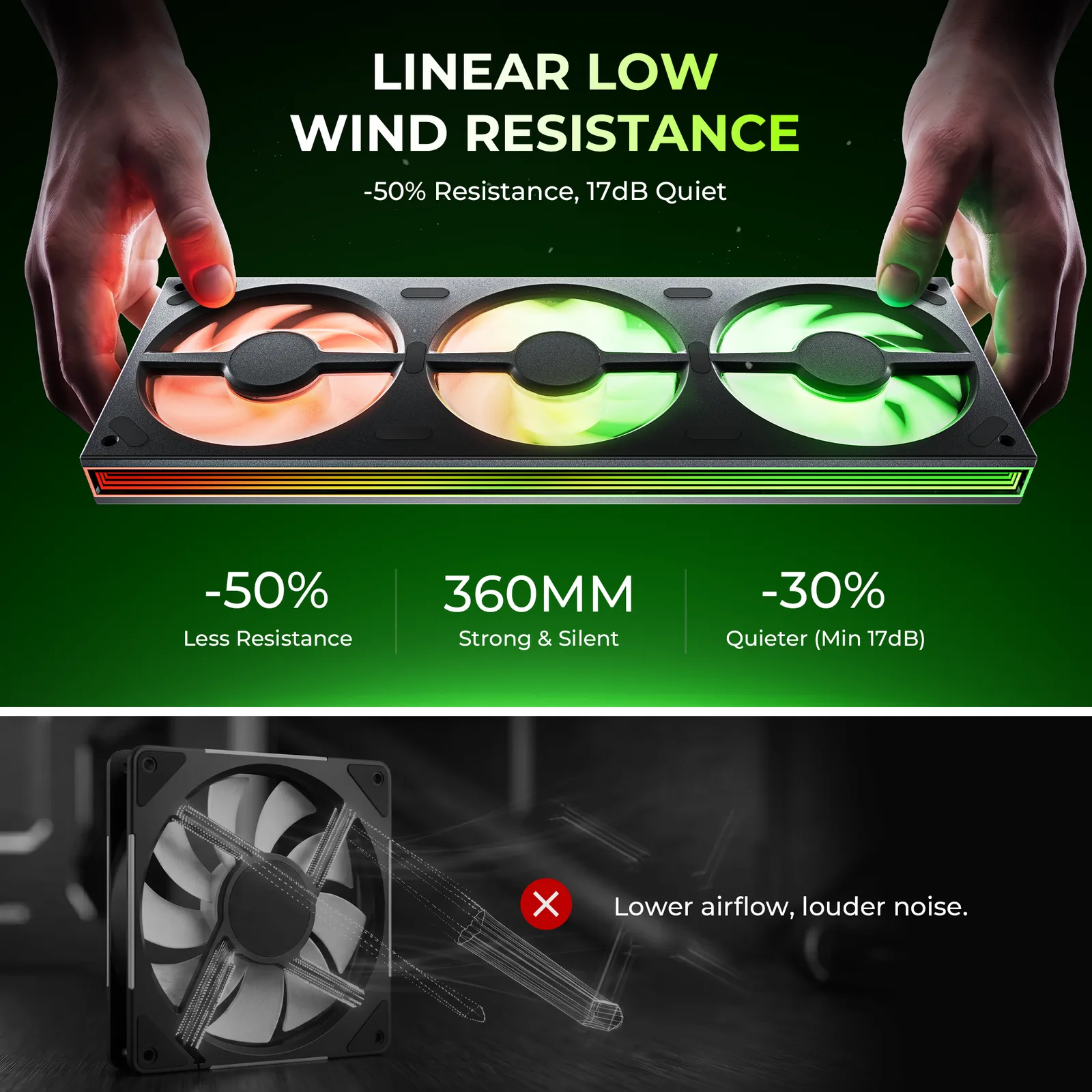

Low-Resistance Frame
Specifications
- Sizes
- 360mm
- all-in-one (three fans in one frame) or 120mm single
- Speed
- 2000RPM
- max · 800 RPM min · ±10%, PWM
- Zones
- 3
- zones with the UMBRA ARGB PWM Hub
- Weight
- 695g
01
Overview
- Model
- Matrix Pro ARGB fan
- Sizes
- 360mm all-in-one (three fans in one frame) or 120mm single
- Forward blade
- Exhaust: case rear, top or front, AIO and CPU coolers
- Reverse blade
- Intake: case bottom or side panel
- Design
- One-piece molded frame, 4-side infinity mirror, 3D zigzag light strip
02
Performance
- Speed
- 2000 RPM max · 800 RPM min · ±10%, PWM
03
360mm · Forward blade
- Airflow
- 21.46–61.40 CFM
- Static pressure
- 0.49–2.15 mmH₂O
- Noise
- 21.3–32.3 dB(A)
- Lifespan
- 22,000 hours at 25°C
04
360mm · Reverse blade
- Airflow
- 19.46–55.58 CFM
- Static pressure
- 0.29–1.86 mmH₂O
- Noise
- 17.3–31.6 dB(A)
- Lifespan
- Over 20,000 hours at 25°C
05
Lighting
- Light
- Infinity mirror on all 4 sides, continuous 3D zigzag LED strip
- Zones
- 3 zones with the UMBRA ARGB PWM Hub
- Sync
- UMBRA software (full-system sync), ASUS Aura Sync, MSI Mystic Light Sync, ASRock Polychrome Sync
06
Electrical
- Voltage
- Fan 12V · LED 5V
- Connectors
- PWM 4-pin + ARGB 3-pin
07
Build · 360mm
- Weight
- 695 g
- Dimensions
- 364 × 124 × 26 mm
- Bearing
- Hydraulic bearing
08

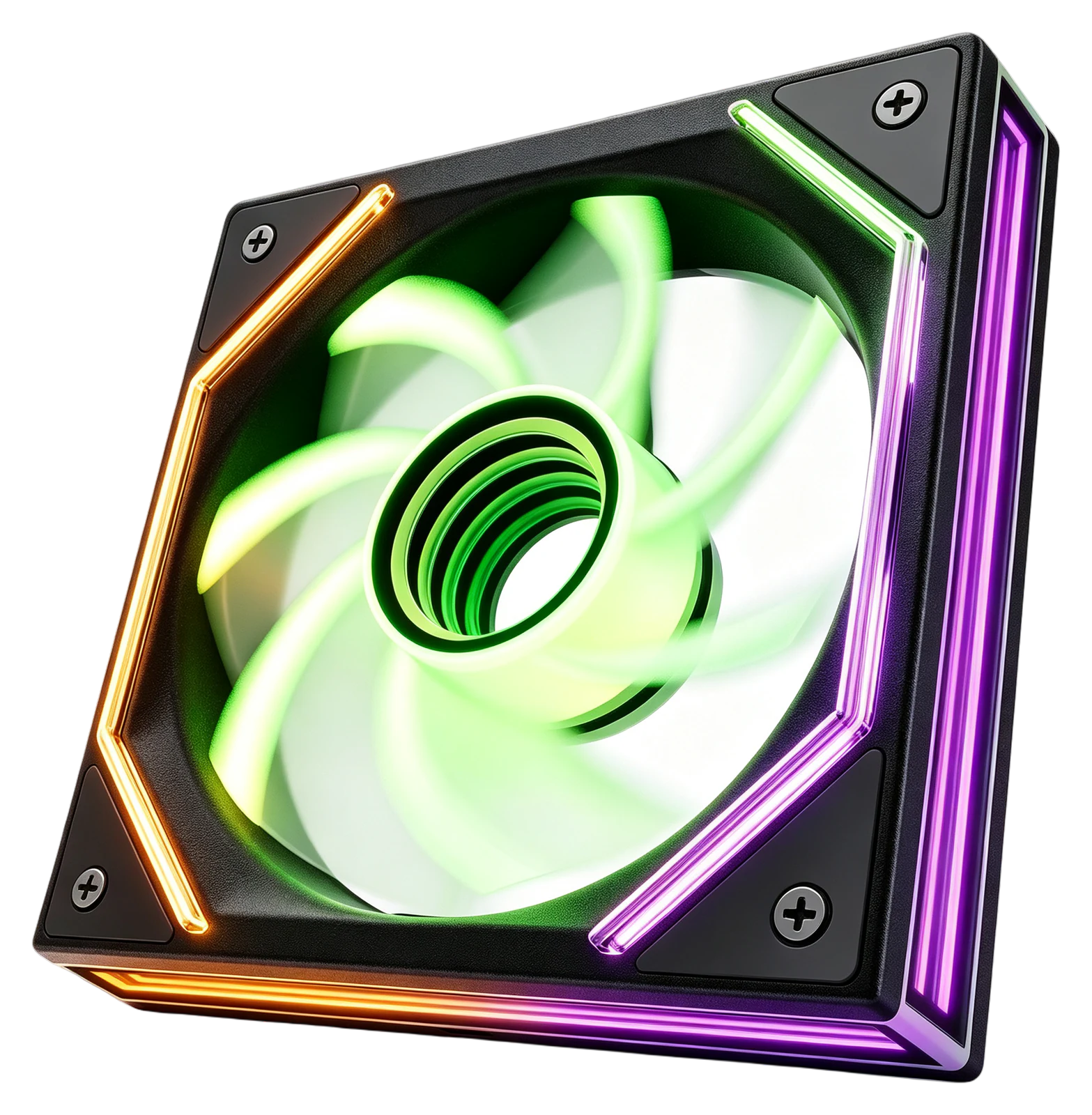

120mm single
- Format
- One Matrix Pro fan, forward blade (reverse comes in the 360mm only)
- Published figures
- ASIAHORSE lists performance figures for the 360mm all-in-one only
