ASIAHORSE

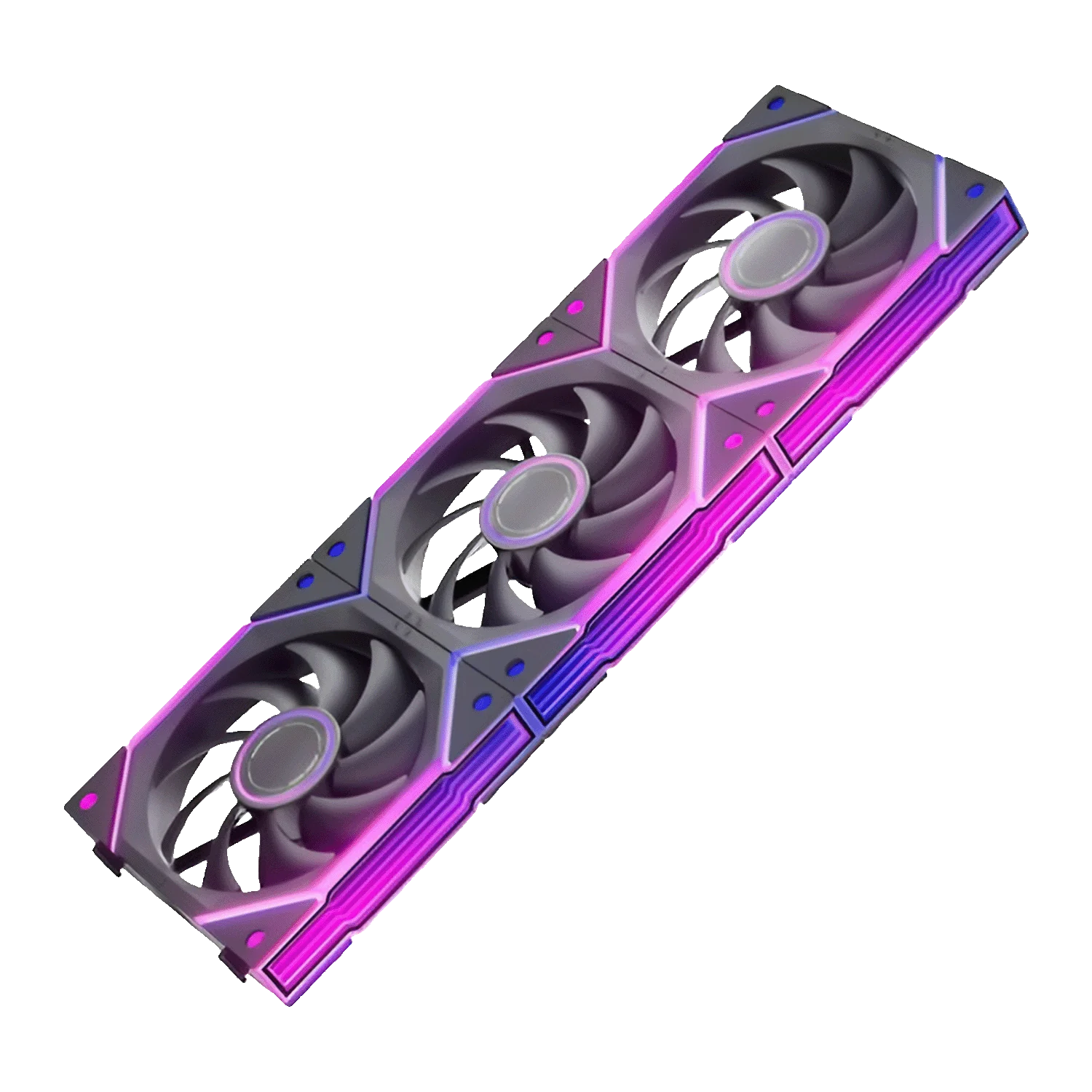

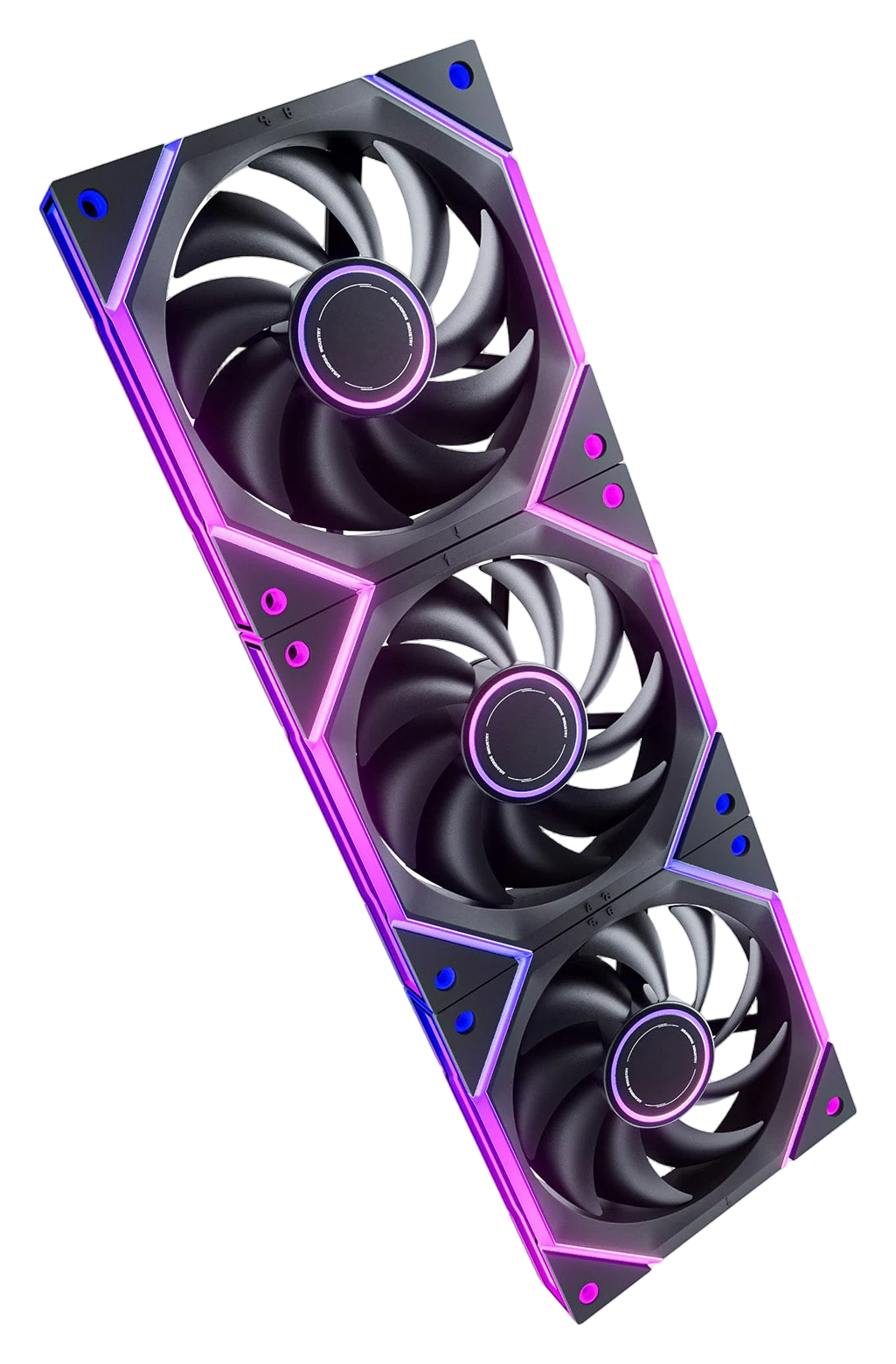

Nyota Ultra 120mm Daisy-Chain PWM Fans
ColorBlack
Blade type
Forward blade
Draws air in through the lit front and out the back. The standard pick for intake or exhaust.
Pack
3-Pack
Rs 13,000Sold out
1
Details
The Nyota Ultra pairs an infinity-mirror side with a nine-blade rotor that moves 58.5 CFM at 2.07 mmH₂O. Its fans splice together on gold-plated contacts and run on one PWM daisy chain. Each fan has 16 Opscoled LEDs that sync with your motherboard, and a hydraulic bearing on thick silicone pads keeps it under 30 dBA. Water-cooling screws are in the box for radiator builds.

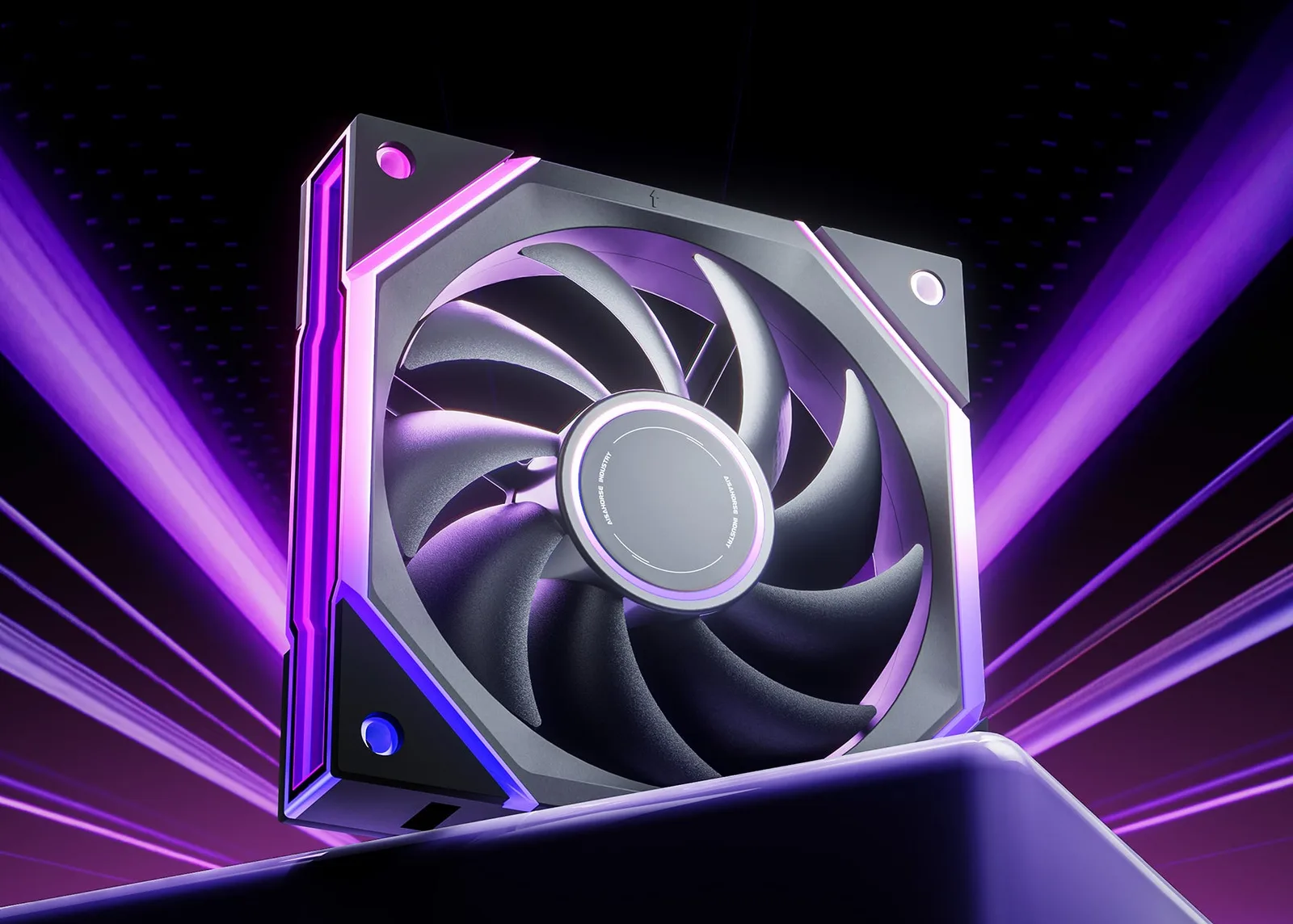

Nyota Ultra

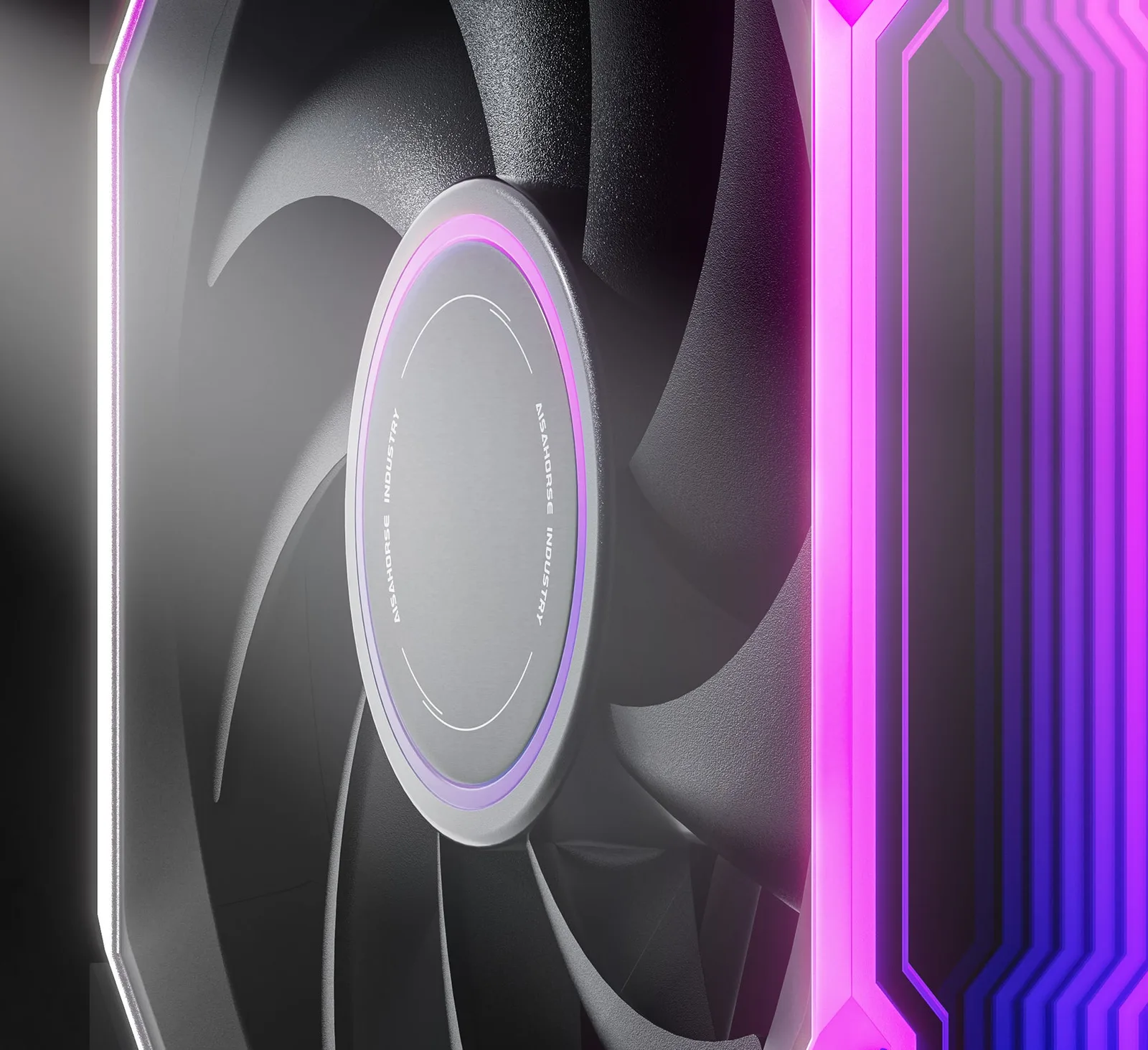

Infinity Mirror Side

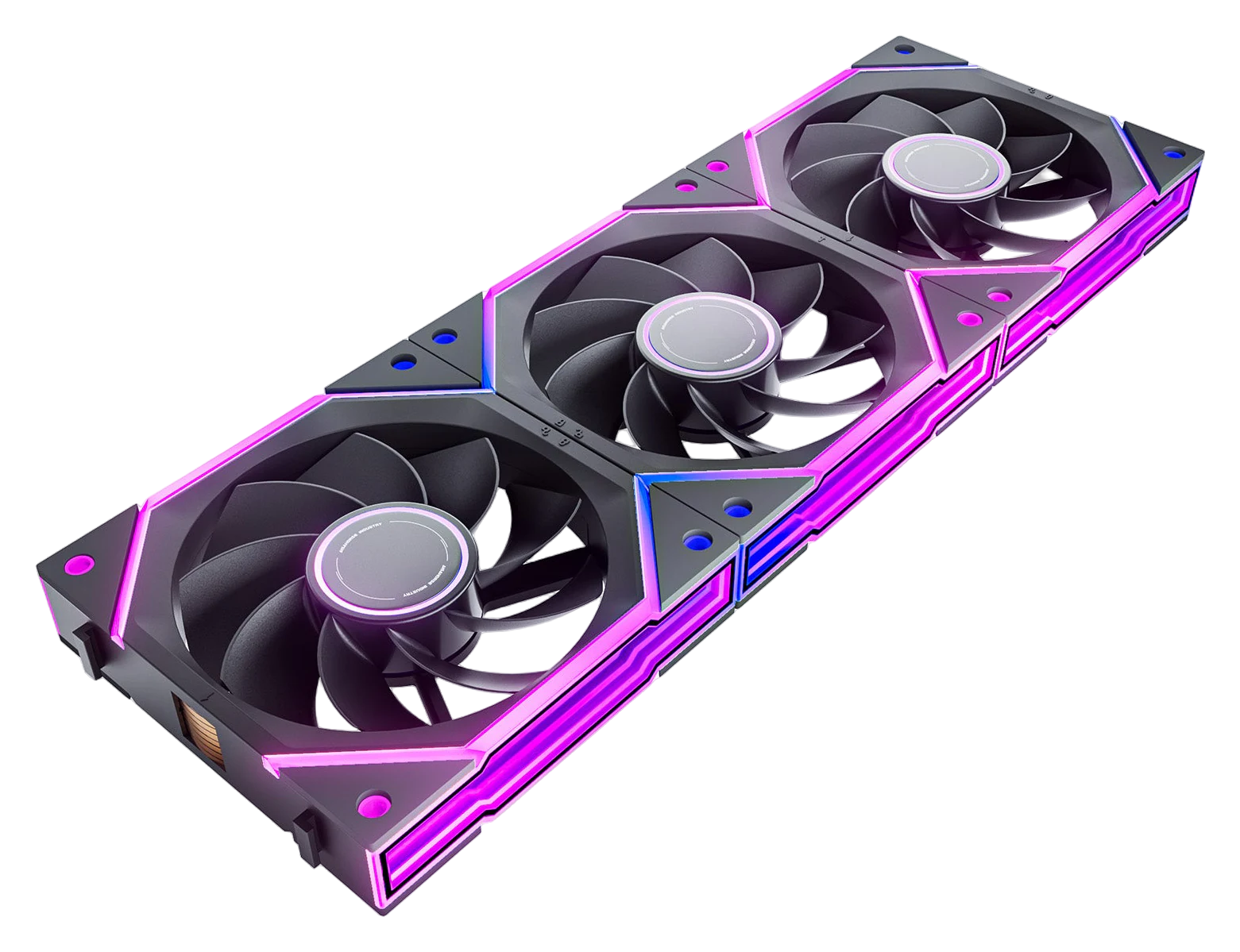

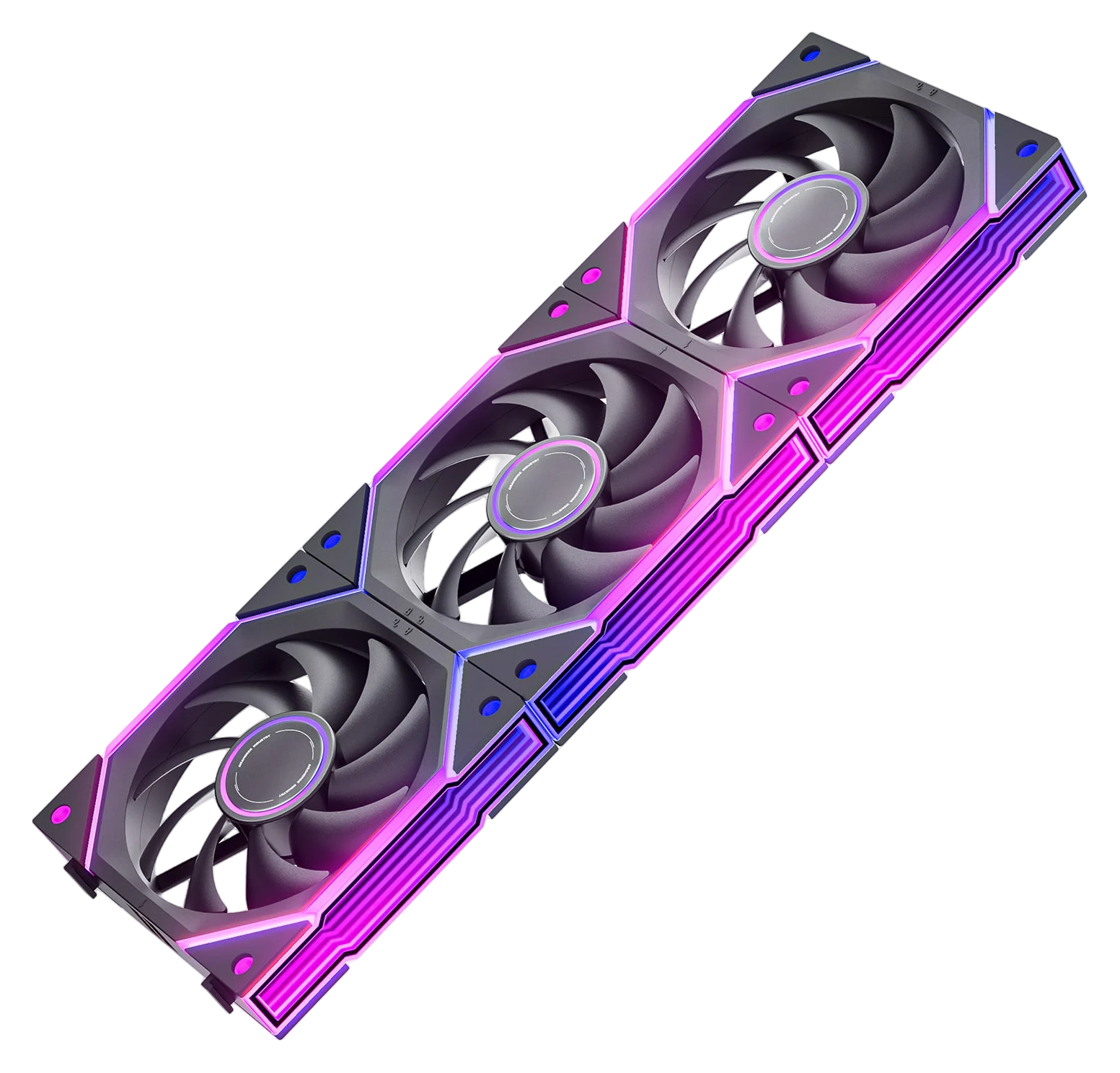

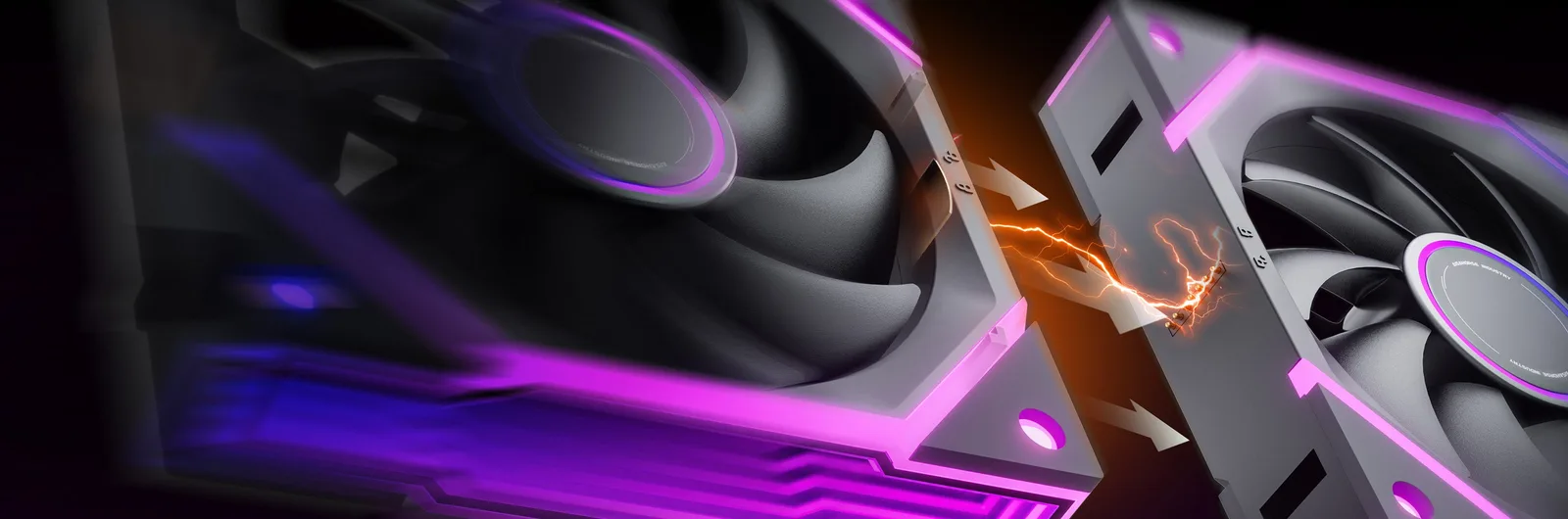

Modular Splicing

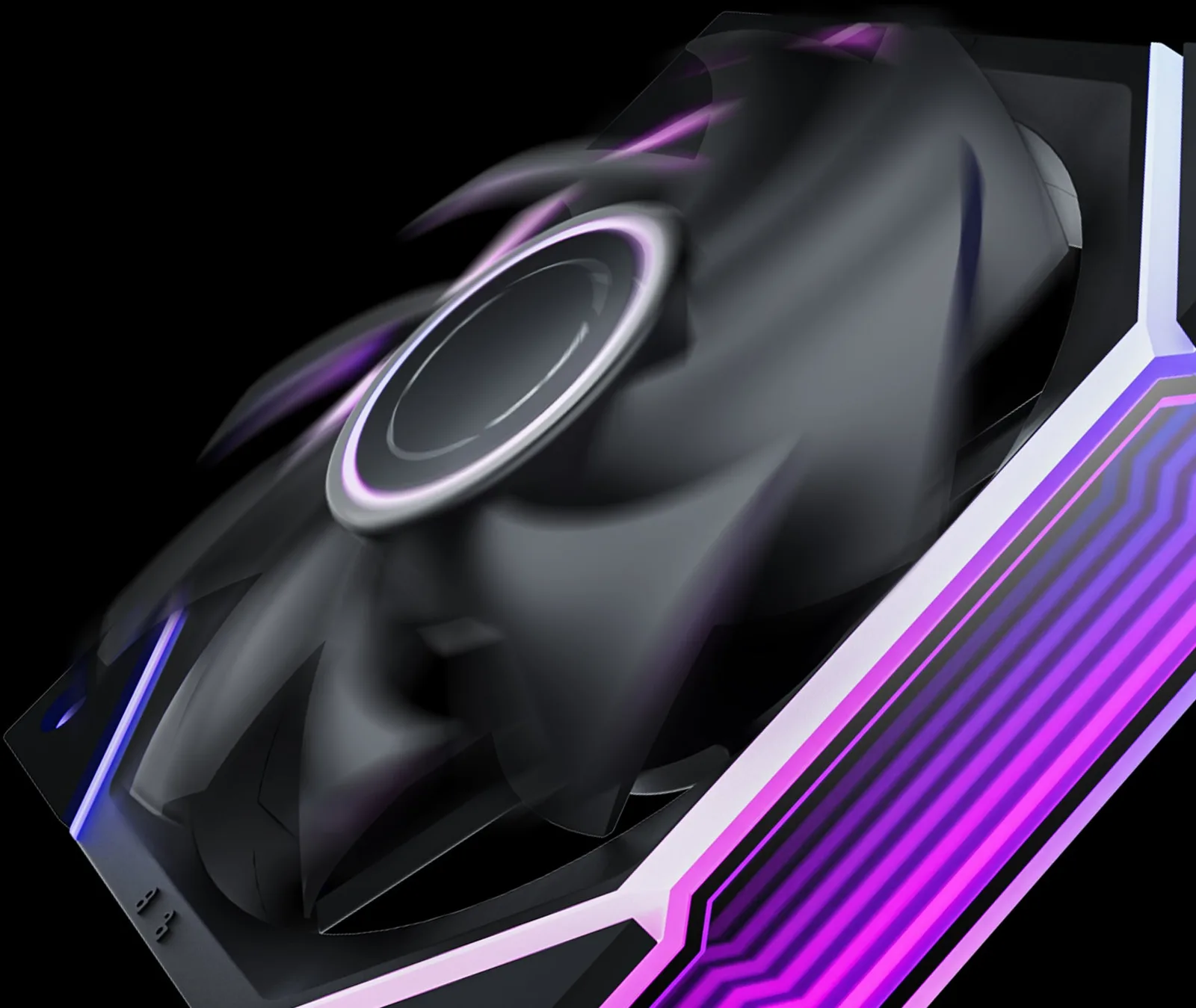

Nine Curved Blades

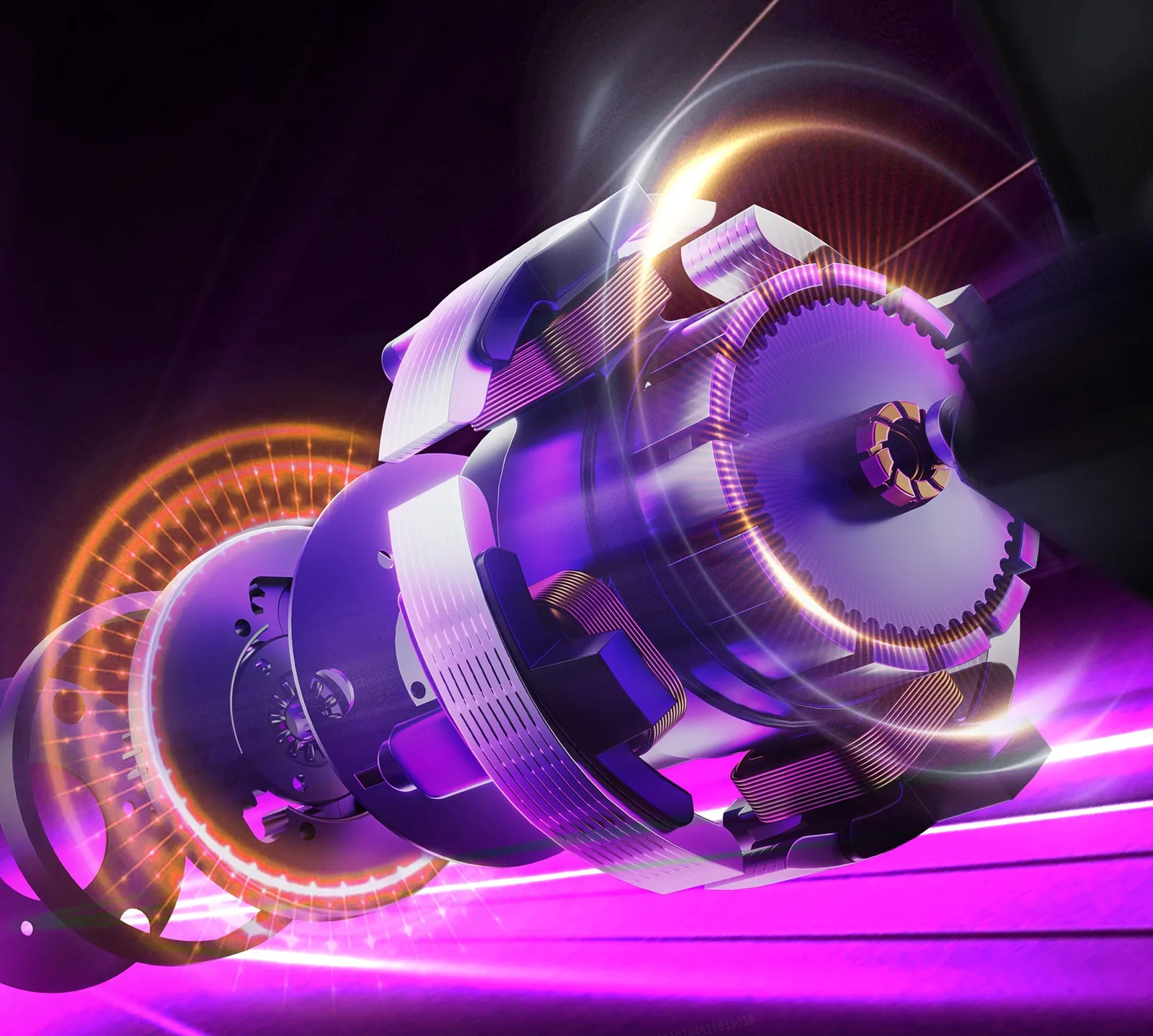

Hydraulic Bearing

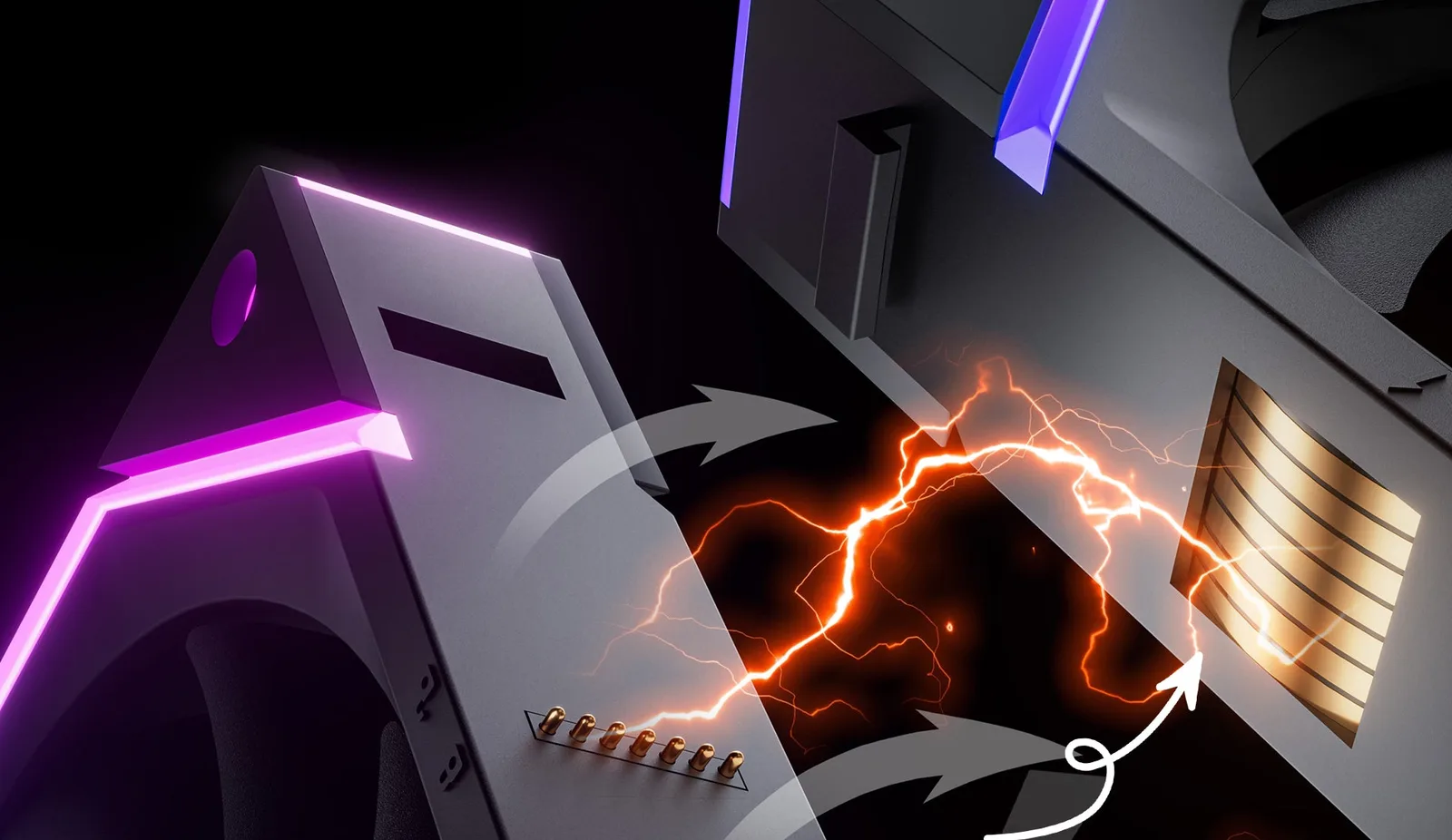

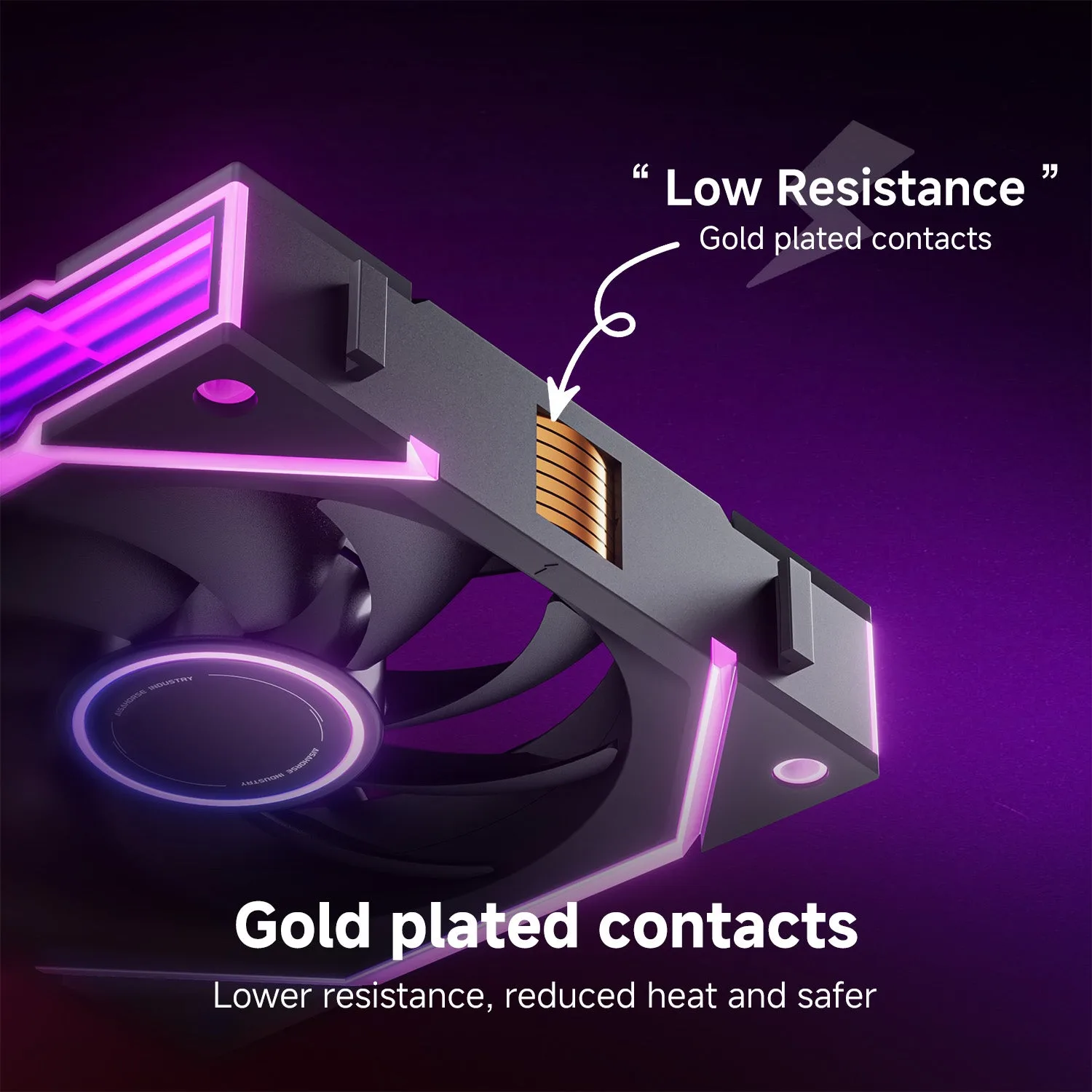

Gold-Plated Contacts

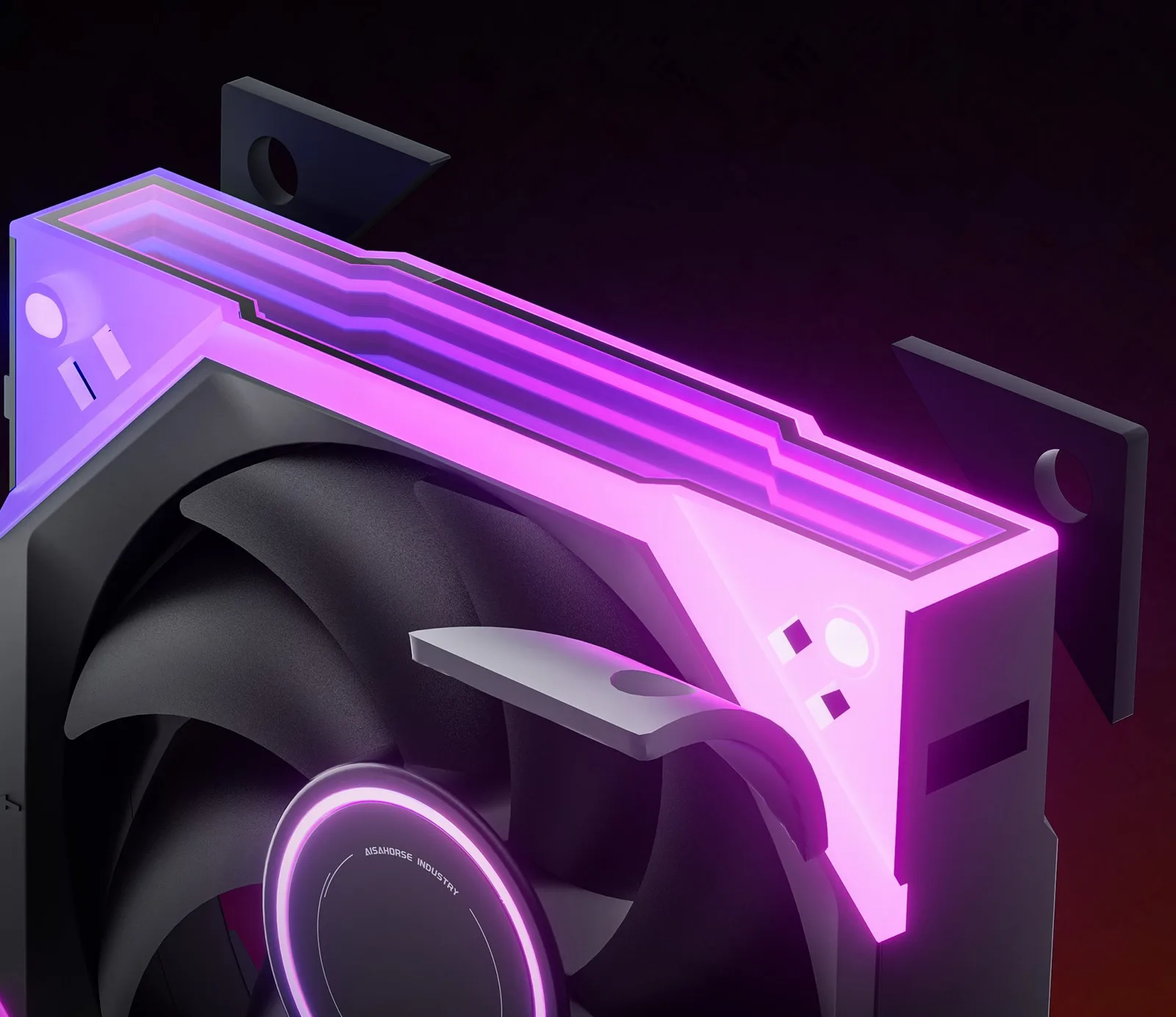

Silicone Anti-Vibration Pads

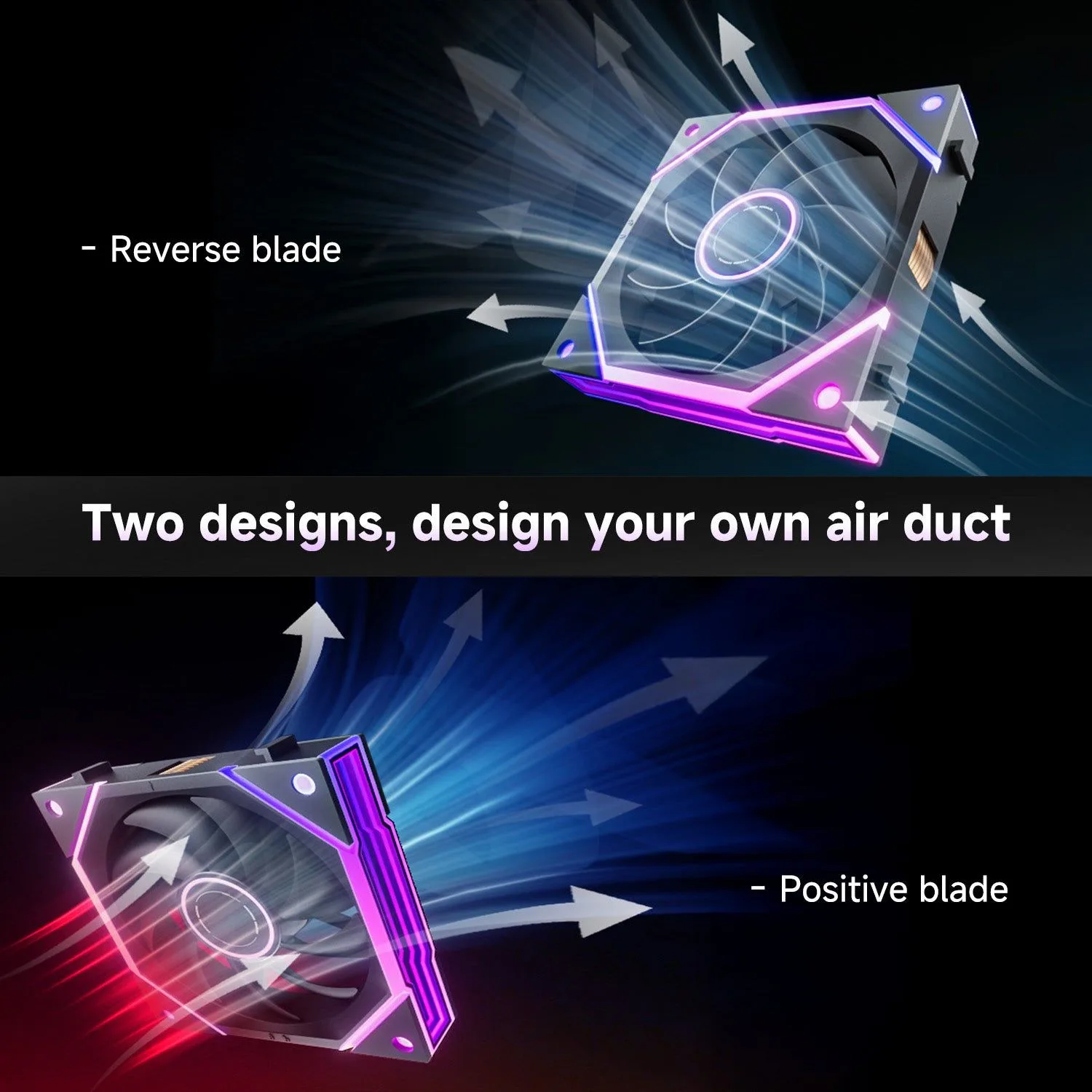

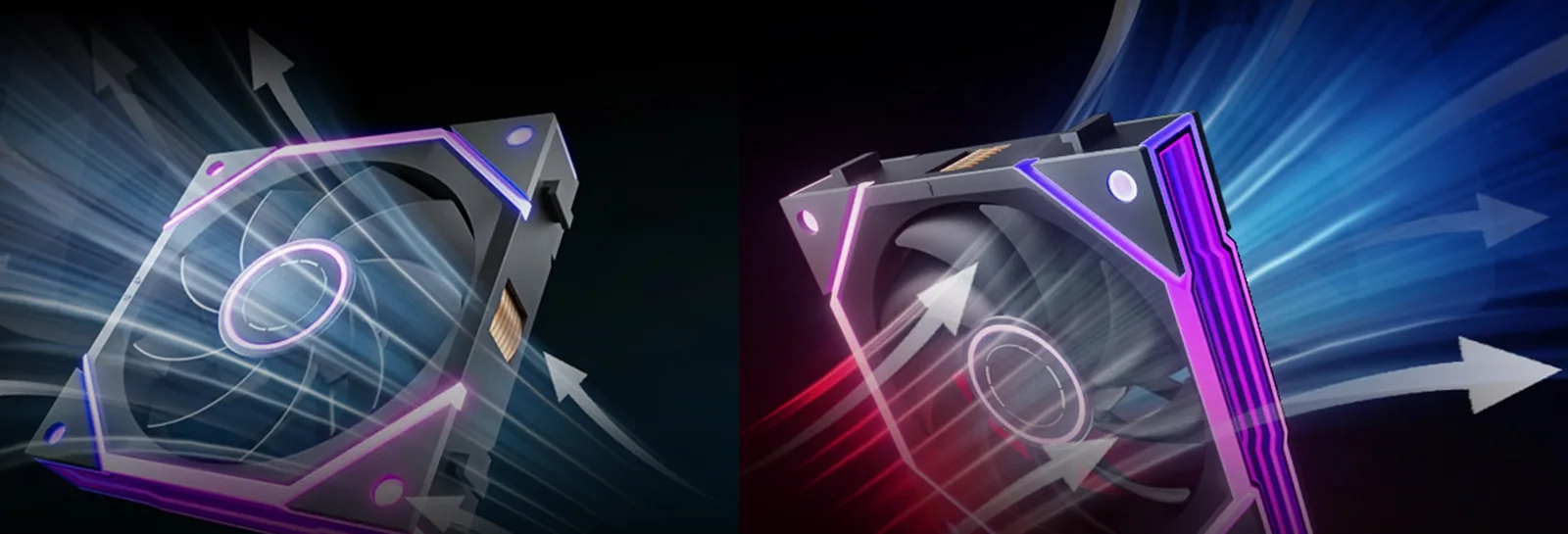

Forward & Reverse Blades
Specifications
- Pack
- 3
- fans or 1 fan
- Speed
- 2000RPM
- max · 800 RPM min · ±10%, PWM
- Cable
- 550mm
- ±10%, braided, flame-retardant
01
Overview
- Model
- NYOTA ULTRA 120mm daisy-chain PWM fan
- Pack
- 3 fans or 1 fan
- Blade options
- Forward or reverse
- Connection
- Modular interlocking daisy chain
02

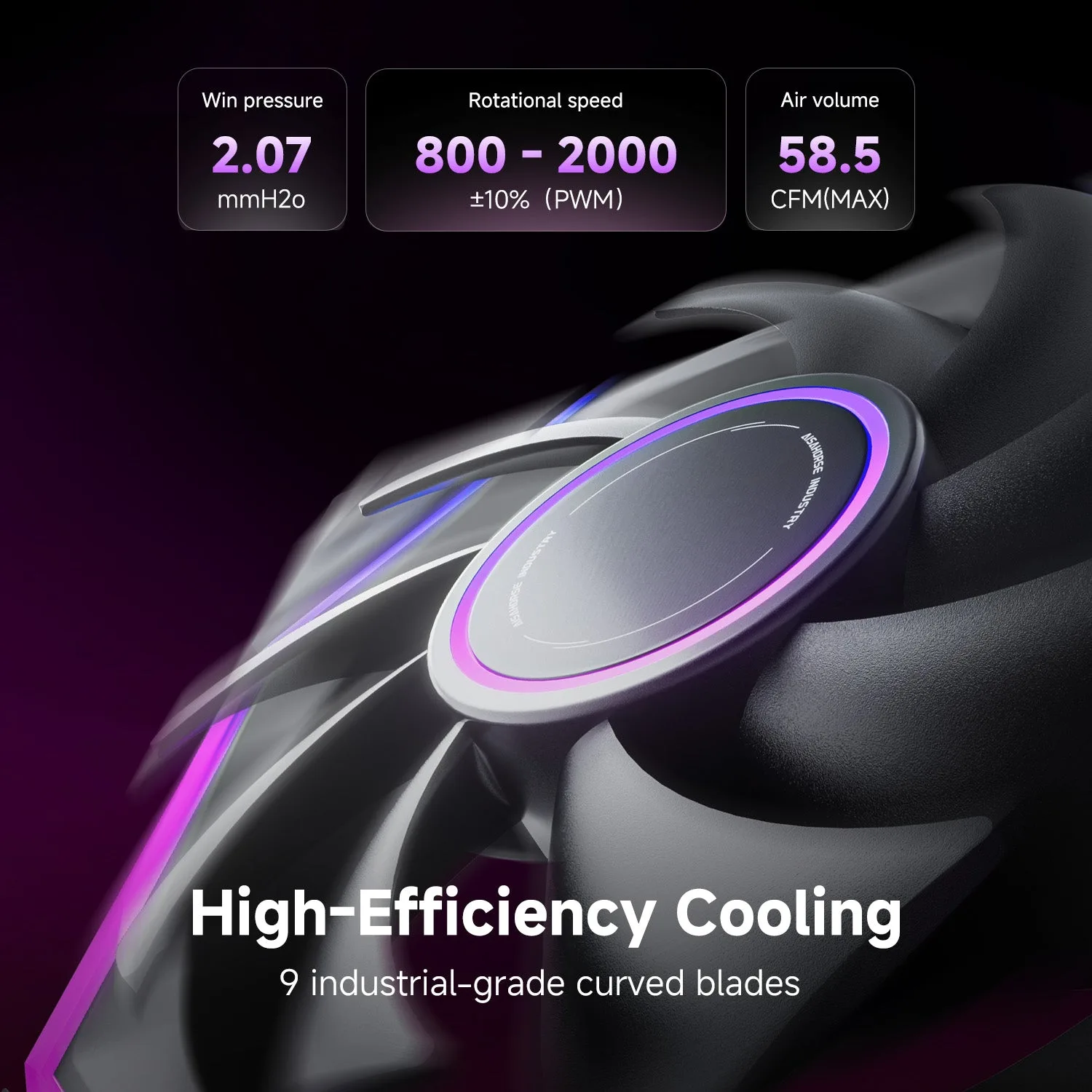

Performance
- Speed
- 2000 RPM max · 800 RPM min · ±10%, PWM
- Airflow
- 58.5 CFM ±10%
- Static pressure
- 2.07 mmH₂O
- Noise
- Under 30 dBA (from 6 dB(A))
- Blades
- 9 industrial-grade curved blades
03
Lighting
- LEDs
- 16 Opscoled patented LED beads per fan
- Design

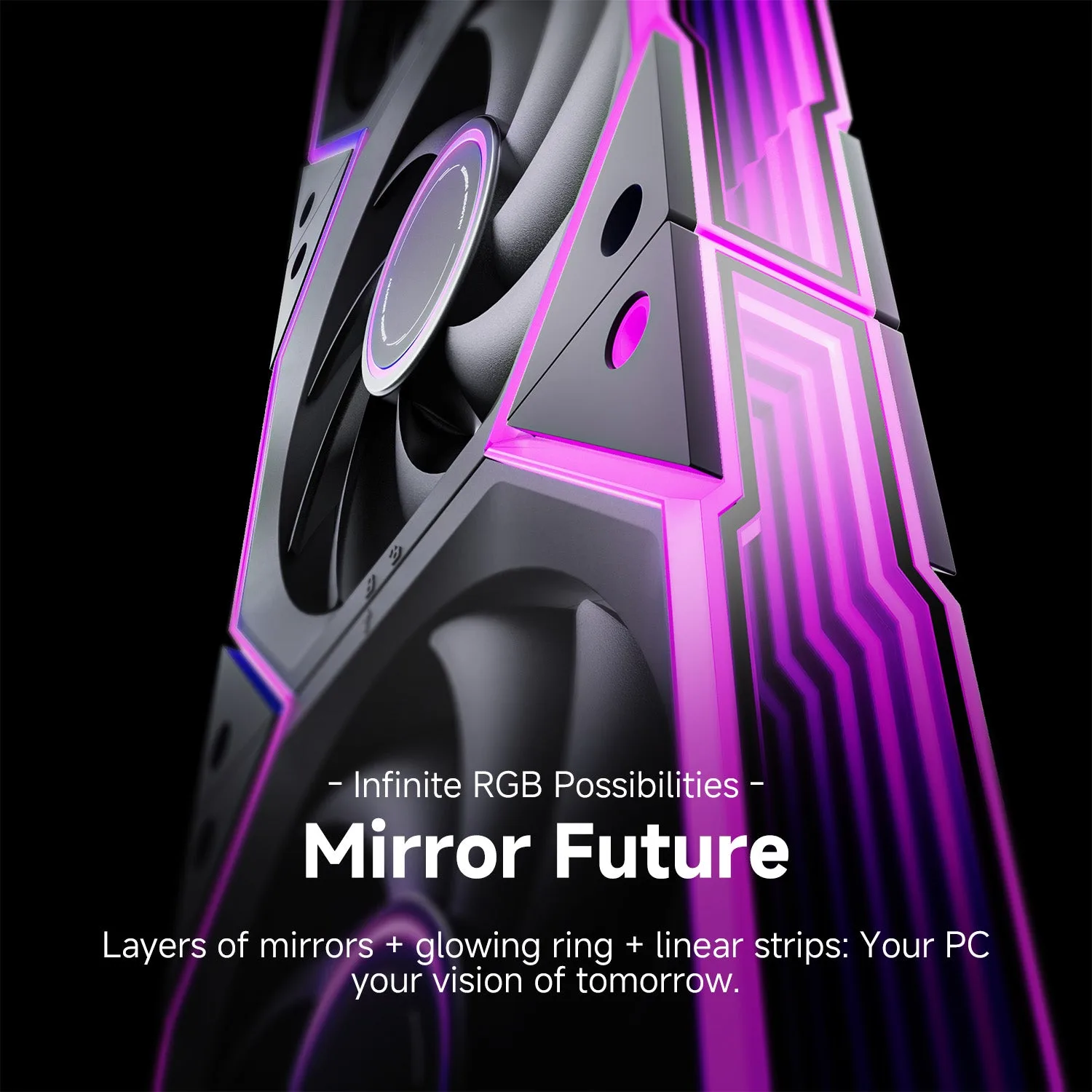

- Infinity-mirror side, glowing ring and linear light strips
- Colours
- 16.7 million
- Sync
- ASUS Aura Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome Sync
04
Electrical
- Rated voltage
- Fan 12V · Lighting 5V
- Rated current
- Fan 0.25A · LEDs 0.18A
- Connectors
- PWM + ARGB, male/female plugs for daisy-chaining
- Contacts
- Gold-plated, pure copper connection parts
05
Build
- Fan size
- 120mm (120 × 120 × 25 mm)
- Bearing
- Hydraulic bearing
- Blade-to-frame gap
- Under 3 mm
- Cable
- 550 mm ±10%, braided, flame-retardant
- Damping
- Thickened silicone anti-vibration pads
06

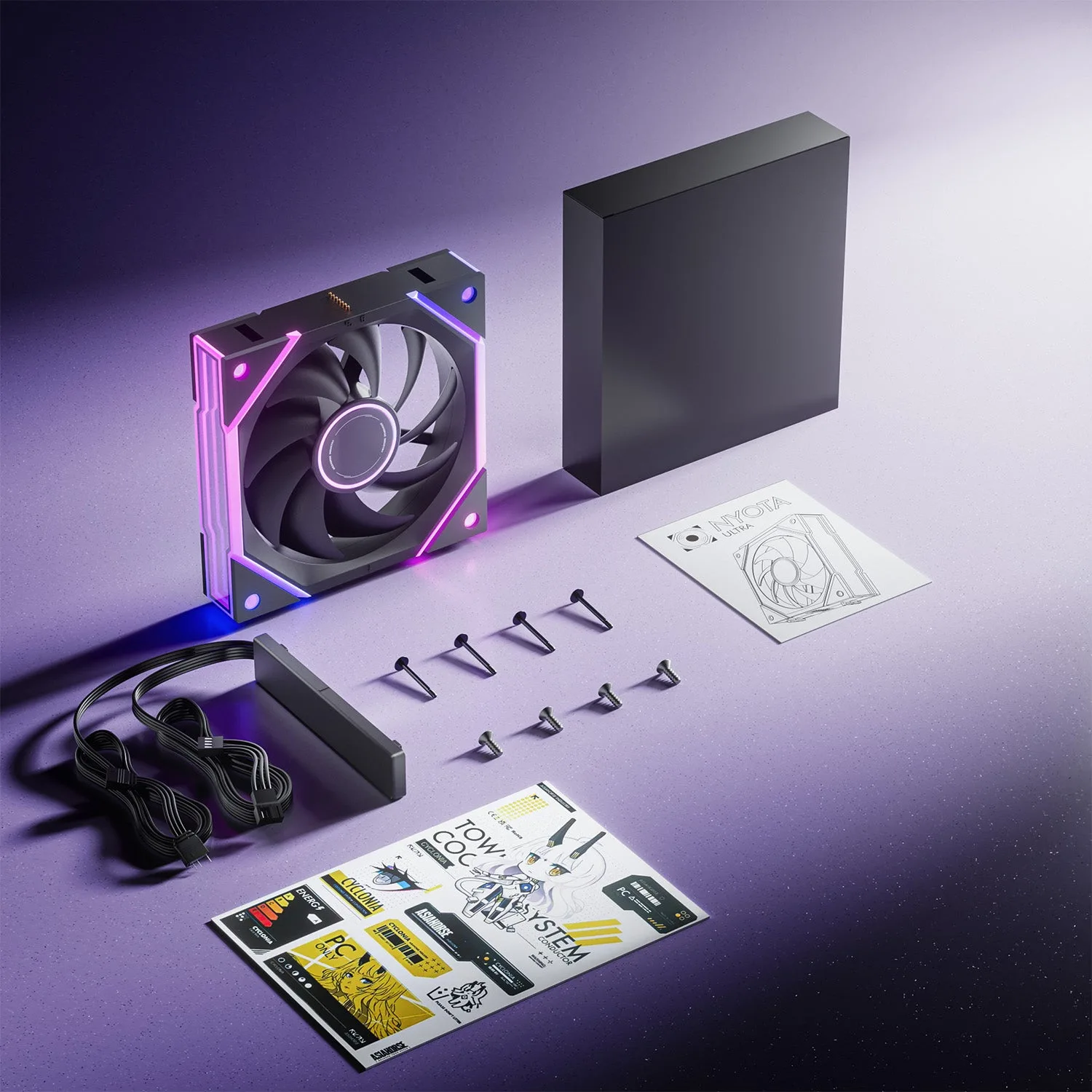

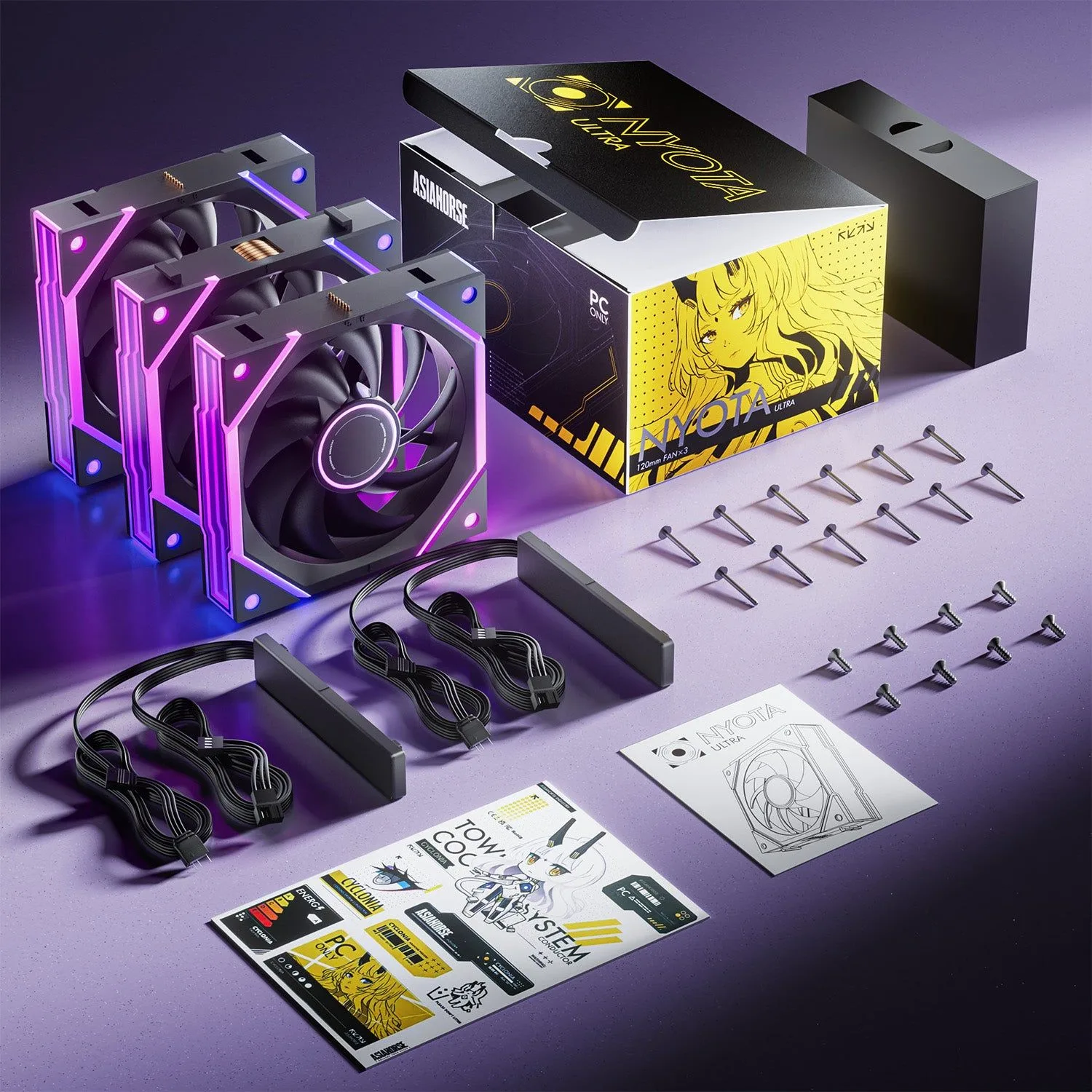

In the box
- Radiator mounting
- Water-cooling screws included
