ASIAHORSE
ASH-S1 ARGB & PWM Fan Hub with Remote
ColorBlack
Rs 5,500Sold out
1
Details
The ASH-S1 runs up to nine fans from one SATA-powered board, with a PWM and an ARGB output for each and room for more than 400 LEDs. The remote steps through 20 built-in effects, ten brightness levels, ten light speeds and ten fan speeds. LEARN mode reads the colour set in your PC lighting software and applies it to the hub's own effects, AURA mode hands lighting fully to the motherboard, and 4PWM mode lets the board's temperature curve set fan speed. Black or white hub; the remote is black for both.

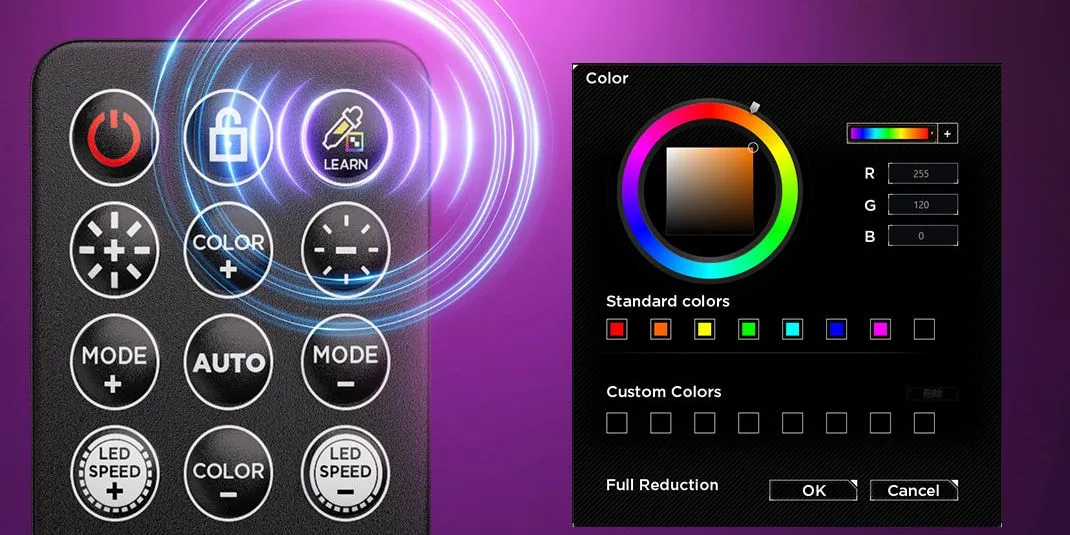

LEARN: Your Colour, Its Effects
20 Built-In Effects
Motherboard Sync

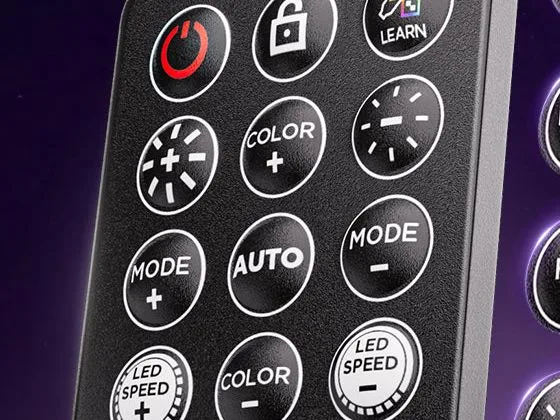

Everything on the Remote
Room for 400+ LEDs
Specifications
01
Overview
- Model
- ASH-S1 ARGB fan hub controller
- Control
- Remote control, motherboard sync or colour learning
- Modes
- Remote effects · LEARN (colour learning) · AURA (motherboard lighting) · 4PWM (motherboard fan speed)
02
Ports
- Outputs
- 9 × PWM 4-pin + 9 × ARGB 5V 3-pin
- Input
- M/B (motherboard) connection
- Other ports & buttons
- FP port, RESET button, POWER IN marked 5V / 12V
- Power
- SATA
03
Lighting
- Effects
- 20 built-in ARGB effects
- LED capacity
- 400+ LEDs (for example nine 24-LED fans plus a 161-LED strip)
- Colour learning
- Reads the colour set in PC lighting software and applies it to the built-in effects
- Sync
- Motherboard ARGB software in AURA mode
04
Fan control
- Remote speed steps
- 10 PWM settings
- Automatic (4PWM)
- Follows the motherboard temperature curve
05
Remote
- Brightness
- 10 levels
- ARGB speed
- 10 levels
- Fan speed
- 10 levels
- Buttons
- Power, lock, LEARN, brightness ±, colour ±, mode ±, AUTO, LED speed ±, fan ±, PWM, AURA SYNC, 5 quick colours
06
In the box
- Contents
- ASH-S1 hub with SATA power lead, remote control
