AstroBeat 240/360 Manual
Install steps for Intel and AMD, plus fan, pump and ARGB wiring (Chinese and English).
Loading
JUNGLE LEOPARD
AstroBeat Digital ARGB Liquid Cooler
ColorBlack
Size
360mm
Rs 22,000Pre-order
1
- Arrives in 7-12 days on average.
- Full payment upfront by bank transfer. No cash on delivery.
- Can't be cancelled once paid.
Details

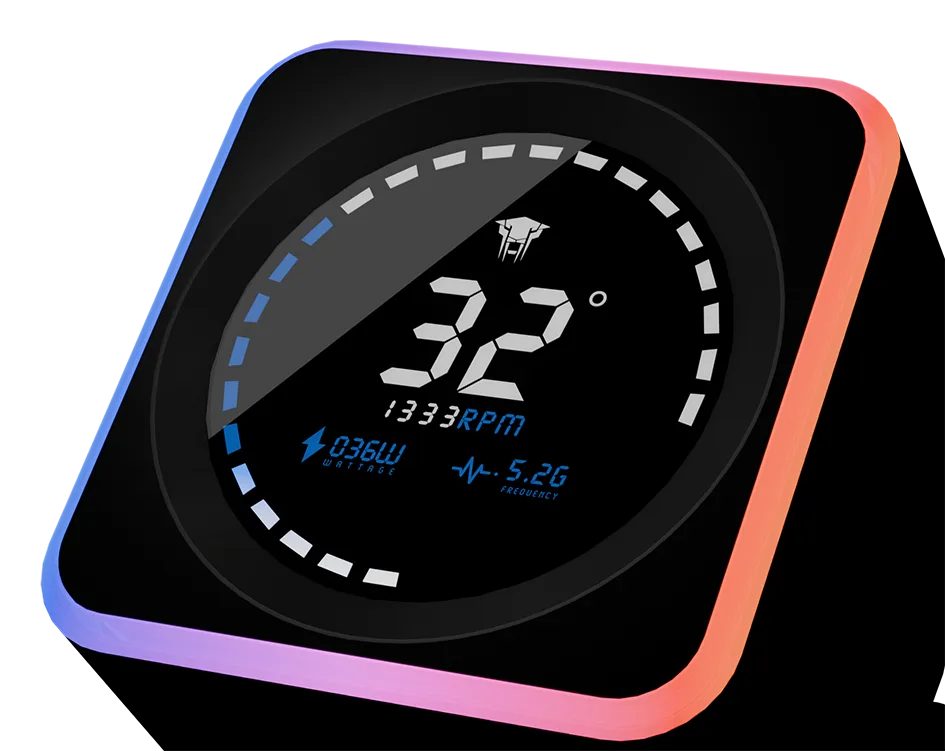

AstroBeat swaps a picture screen for a clear digital readout: the pump head shows CPU temperature, fan speed, power draw and clock, framed by an ARGB edge. Its built-in controller raises and lowers fan speed with CPU temperature. Jungle Leopard's third-generation pump uses a three-phase, six-pole motor and a ceramic-bearing impeller over a skived copper base, and the 120mm fans are joined in one block, so they go onto the radiator in one step. The fans run 600–2000 RPM for 64.3 CFM at 31.5 dBA. 360mm, in black or white.

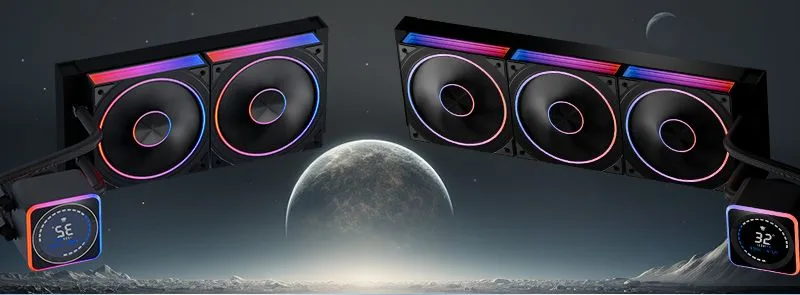

AstroBeat 360

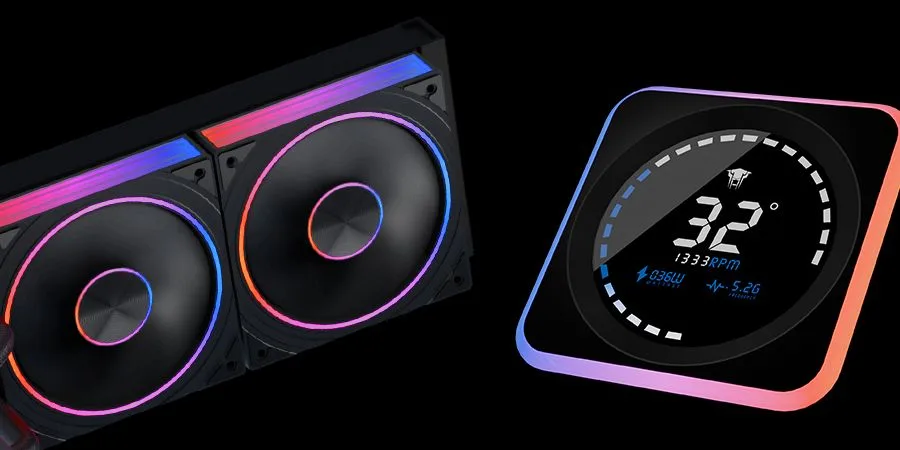

Digital Temperature Readout

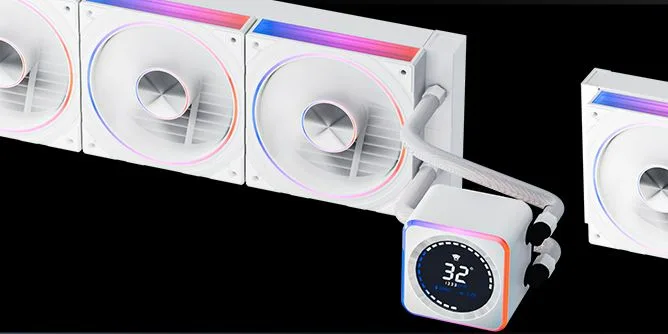

Fans Joined in One Block

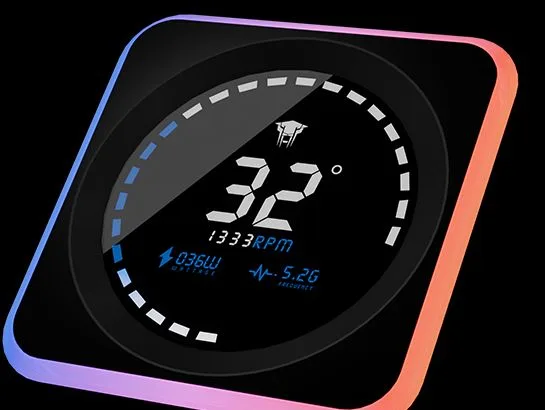

Fan Speed Follows CPU Temp

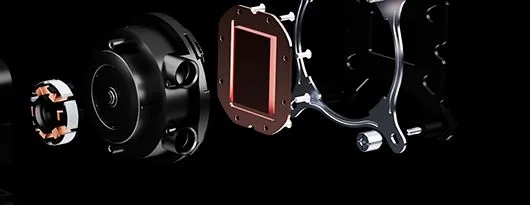

Third-Gen Pump, Six-Pole Motor

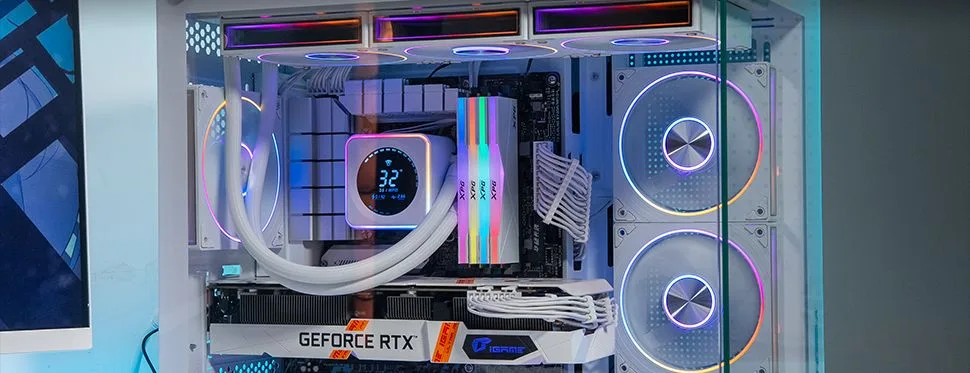

Shown in a White Build

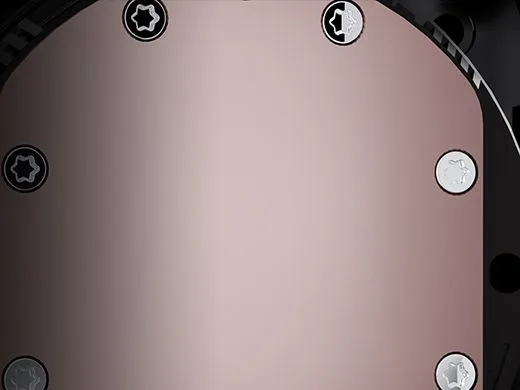

Skived Copper Base
Specifications
- Sizes
- 360mm
- Pump speed
- 2400RPM
- ±10%
- Pump noise
- 30dBA
- Count
- 3
01
Overview
- Model
- AstroBeat Digital ARGB liquid cooler
- Sizes
- 360mm
- Colours
- Black / White
- Fan layout
- Joined block of 120mm fans
- Cooling method
- Closed-loop liquid (AIO)
- Pump generation
- Third generation, about 30% more flow than the previous one
02
Compatibility
- Intel
- LGA115X / 1200 / 1700 / 1366 / 2011 / 2066
- AMD
- FM2 / FM2+ / AM3 / AM3+ / AM4 / AM5
03
Display
- Type
- Digital readout in the pump head, ARGB edge
- Shows
- CPU temperature, fan speed, power, CPU clock
- Fan control
- Built-in, follows CPU temperature
04
Pump
- Pump speed
- 2400 RPM ±10%
- Pump noise
- 30 dBA
- Rated voltage
- 12 VDC
- Rated current
- 0.35 A
- Power
- 4.2 W
- Connector
- 3-pin
- Motor
- Three-phase, six-pole
- Impeller
- Ceramic bearing
- Cold plate
- Copper, skived fins
05
Radiator
- Material
- Aluminum
- Dimensions (360mm)
- 367 × 120 × 60.5 mm
06
Fans
- Dimensions
- 120 × 120 × 25 mm
- Count
- 3
- Fan speed
- 2000 RPM max · 600 RPM min ±10%, PWM
- Airflow
- 64.3 CFM
- Fan noise
- 31.5 dBA
- Bearing
- Hydraulic
- Rated voltage
- 12 VDC
- Power
- 3.6–6 W
- Connector
- 4-pin PWM, fans pre-linked in series
07
Lighting
- LEDs
- Addressable RGB
- Connector
- 5V 3-pin (+5V-D-G)
- Sync
- Motherboard ARGB (e.g. ASUS Aura)
08
In the box
- Cooler
- Pump, radiator and fans, pre-assembled
- Mounting
- Intel and AMD brackets, backplate, Intel 17XX and 115X/1200 standoffs, AMD screws, nuts
- Also
- Thermal paste, spreader, chassis screws
